STM32 SWD Debug Adapter Rev B Bare PCB

Description

STM32 SWD Debug Adapter Rev B Bare PCB

Connector adapter for several SWD programmer and target pinouts, including ST-Link, J-Link, Nucleo and six-pin Tag-Connect connections. Original design by fronders.

Applications

Embedded development benches and STM32 programming fixtures.

What you receive

This is a passive connector adapter, not a programmer. Headers, cables, debug probes and target boards are excluded. Check the pinout before connection. With J-Link, keep the pin-19 power solder jumper OPEN: pin 19 can carry 5V while the target rail is 3.3V. Some clone probes require modifications for reset or SWO support; consult the upstream documentation.

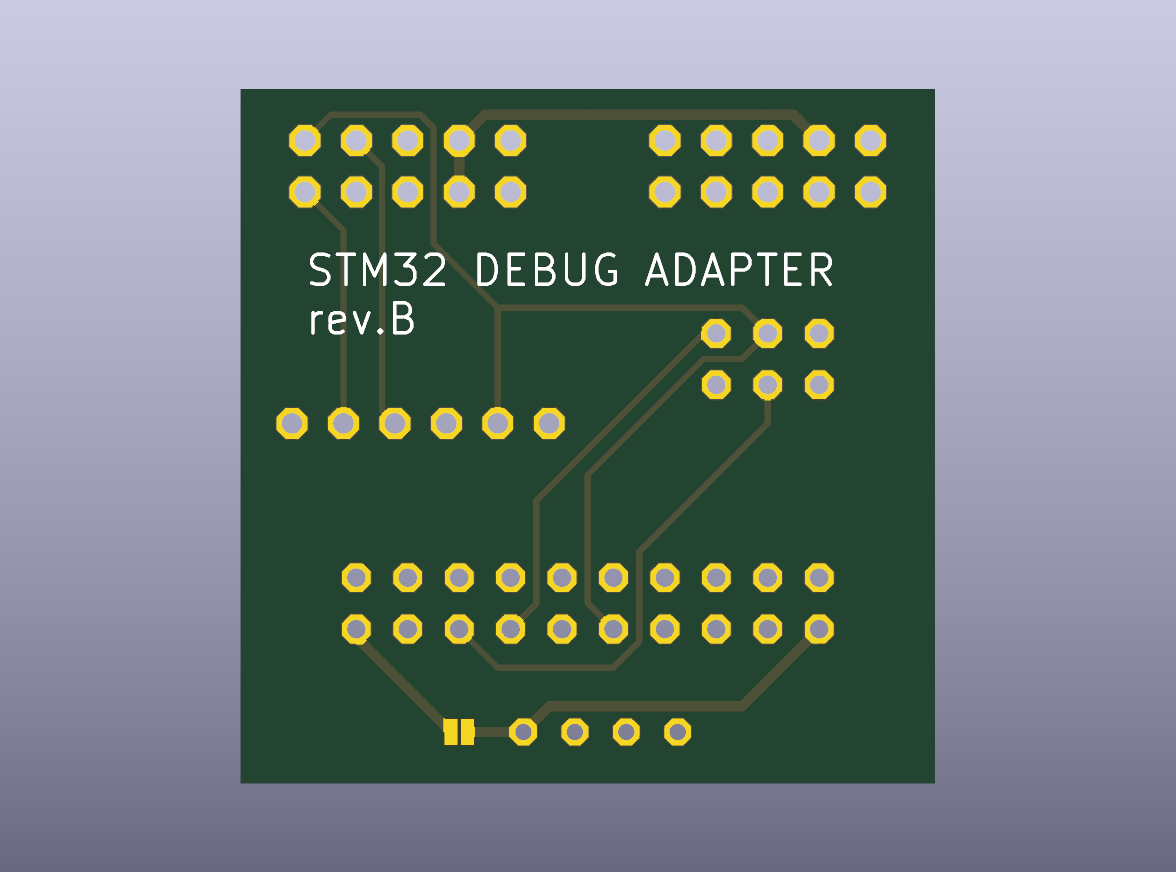

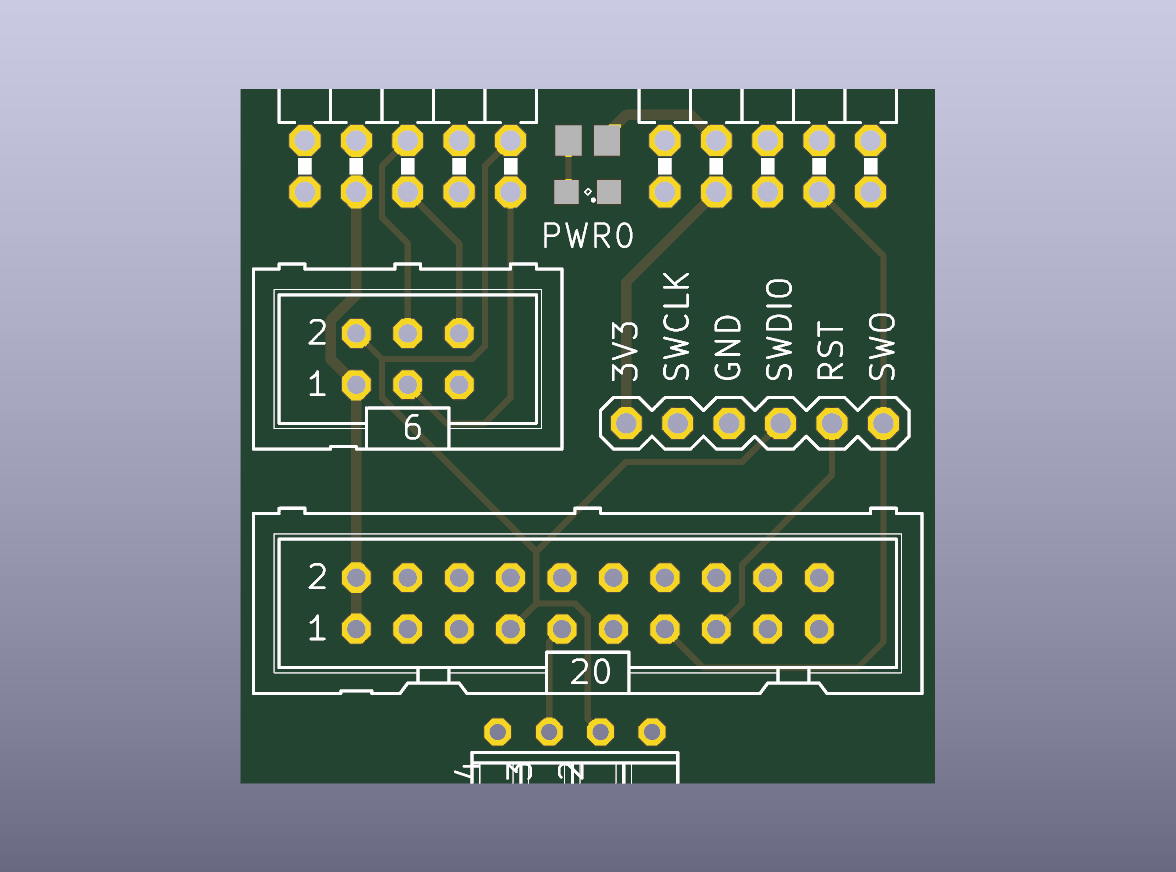

DIYIPCB independently manufactures this open hardware design. It is not an official product of, or endorsed by, the original designer. Images are bare-board CAD previews, not photographs of stocked assemblies. Actual soldermask and surface finish may differ.

PCB order details

• One bare PCB per purchase unit, US$2.00.
• 2 copper layers; nominal thickness 1.6 mm.
• PCB production lead time: 2-3 days.
• Estimated shipping weight including packaging: 50 g.
• Shipping transit time is additional.

PCBA and customization

Component sourcing, SMT assembly, hand soldering, programming and agreed functional testing are available by quotation. A project manager follows up your requirements. Send the quantity, required connectors, firmware and testing scope. PCBA production lead time: 5-10 days, subject to component availability. PCBA is not included in the bare-board price.

Request a PCBA Quote

Source files and attribution

Original design: fronders/stm32-debug-adapter. Version: Rev B.

• Original GitHub project and assembly documentation
• Pinned source revision 96ebf36d7cb5
• Fabrication files
• License: MIT

Manufacturing uses the original fabrication files. The CAD image copy hides component models for illustration only. Original source and attribution notices are retained.
