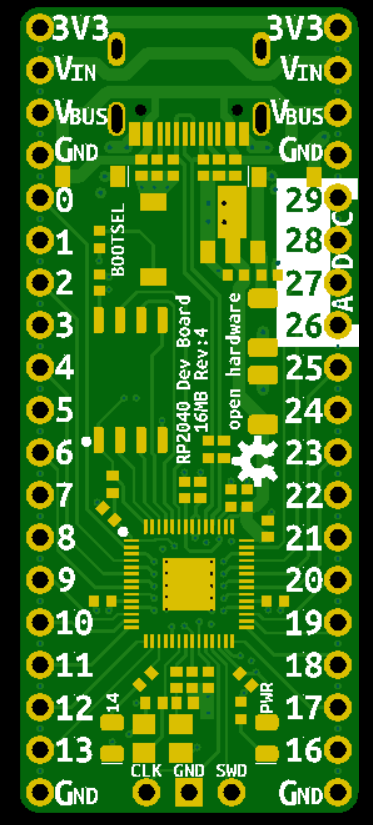

22008 RP2040 Dev Board Rev 4 Rev 4 front bare PCB render — not assembled PCBA

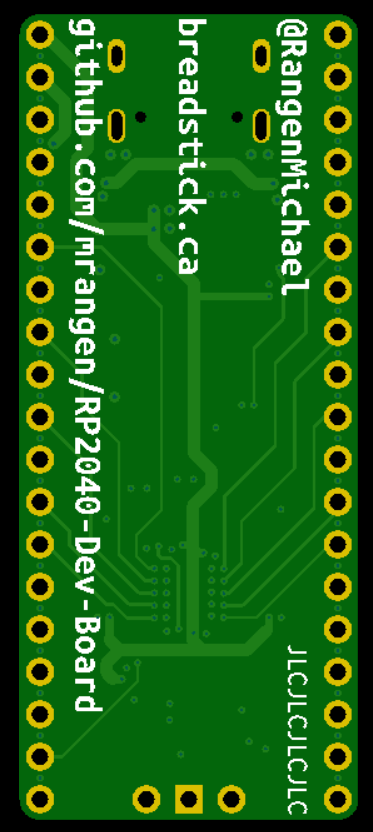

22008 RP2040 Dev Board Rev 4 Rev 4 back bare PCB render — not assembled PCBA

22008 RP2040 Dev Board Rev 4 — PCB / PCBA

Name: 22008 RP2040 Dev Board Rev 4 — PCB / PCBA
SKU: DIYI-22008-RP2040-REV4
Availability: InStock

Price range: $3.90 through $8.50

RP2040 development board design for MicroPython, CircuitPython, GPIO experiments and embedded prototyping.

Choose PCB Only — $3.90, 50 g or PCBA — $8.50, 60 g, per piece.

PCBA is made to order: 5-10 days of production after payment confirmation, excluding shipping transit time.

Images show bare PCB renders. The PCB-only option contains no components.

PCB production lead time: 2-3 days. Shipping transit time is additional.

Choose your PCB color: Green, Purple, Red, Yellow, Blue, White, Black or Matte Black.

For bare PCB orders, please enter your preferred soldermask color in the order notes at checkout. If ordering multiple products, specify the product name and color for each item. Example: Arisu PCB – Purple. Product images are references; the supplied PCB color follows your confirmed order requirements.

Prefer to order with your Gerber files? Upload your Gerber files on our PCB/PCBA online ordering page, select your PCB color and manufacturing specifications, and place your order directly. Pricing is calculated from your uploaded files and selected options.

Upload Gerber & Order Online

5% Supports Open Hardware

5% of this product’s net sales goes to the shared DIYIPCB Open Hardware Fund, at no extra charge.

See the fund & rules →

Build Option

Clear

SKU: DIYI-22008-RP2040-REV4 Category: Open-Source Hardware Kits Tags: CircuitPython, development board, MicroPython, PIO, RP2040

Description

Design functions and applications

RP2040 development board design for MicroPython, CircuitPython, GPIO experiments and embedded prototyping.

Main chips and their roles

Chip	Role in the design
RP2040	Dual-core Arm Cortex-M0+ microcontroller with programmable I/O (PIO); the main controller in the upstream design.

Key design functions

Compact RP2040 development-board layout with accessible GPIO and SWD connections.
The upstream documentation provides MicroPython and CircuitPython getting-started resources.
BOOTSEL access supports firmware-loading workflows; software must match the board configuration.

Typical applications

Learning Python on microcontrollers.
Sensor acquisition, LED control and GPIO experiments.
Prototyping custom USB and PIO peripherals with suitable firmware.

Application examples require suitable firmware and external hardware. Functions and chips describe the assembled design; the PCB-only option contains no components. Actual PCBA population and any programming or testing requirements should be confirmed for the order.

Upstream design reference

22008 RP2040 Dev Board Rev 4 — Choose PCB or PCBA

Based on the open-source 22008-RP2040-Dev-Board project from Breadstick Innovations, designed by Michael Rangen. The supplied PCB renders are marked Rev:4. Select your required build option before adding to cart.

Option	Price per piece	Shipping weight per unit	Supplied condition	Production lead time
PCB Only	USD $3.90	50 g	1 bare PCB; no electronic components	2-3 days
PCBA	USD $8.50	60 g	1 assembled circuit board	5-10 days after payment confirmation

The PCBA production lead time excludes shipping transit time. PCBA is produced to order, not dispatched immediately from stock.

What you receive

PCB Only: one unpopulated printed circuit board. RP2040, flash, connectors and all other components are excluded.
PCBA: one populated and soldered board based on this project. Cables and enclosure are not included. Contact DIYIPCB before ordering if you need particular header fitting, firmware programming or a specific test procedure.

Both gallery images are front/back bare PCB renders for layout reference. They are not photos of the assembled PCBA.

Open-source design resources

The upstream project is an RP2040 development board design. Refer to the original repository for design files, documentation and revision details.

Assembly and customization questions

Contact DIYIPCB for assembly details or custom production requirements.

5% of eligible net sales from both options supports the Open Hardware Fund, at no extra charge.

Original license and copyright notice

MIT License

Copyright (c) 2022 Michael Rangen

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Additional information

Weight	N/A
Build Option	PCB Only, PCBA — 5-10-day production
PCB Production Lead Time	2-3 days
PCBA Production Lead Time	5-10 days
PCB Color (Order Notes)	Green, Purple, Red, Yellow, Blue, White, Black, Matte Black

Maker & product resources

Maker / seller: DIYIPCB · Upstream: Michael Rangen / Breadstick Innovations

Hardware license: MIT

Source repository: https://github.com/Breadstick-Innovations/22008-RP2040-Dev-Board

Documentation: https://github.com/Breadstick-Innovations/22008-RP2040-Dev-Board#readme

Check the product description for specifications, included items, stock and fulfillment details.
