SCD41 CO2 Temperature Humidity Sensor Qwiic Bare PCB

$2.00

US$2.00 per board. 2 copper layers. 50 g listed shipping weight.

I2C carrier board for the Sensirion SCD41 CO2 sensor, including connections for temperature and humidity readings provided by the sensor.

One unpopulated PCB. Electronic components and accessories are not included.

PCB production lead time: 2-3 days. PCBA production lead time: 5-10 days. Shipping transit time is additional. PCBA pricing, component availability and assembly scope are confirmed by quotation.

Contact Us for PCBA

Choose your PCB color: Green, Purple, Red, Yellow, Blue, White, Black or Matte Black.

For bare PCB orders, please enter your preferred soldermask color in the order notes at checkout. If ordering multiple products, specify the product name and color for each item. Example: Arisu PCB – Purple. Product images are references; the supplied PCB color follows your confirmed order requirements.

Prefer to order with your Gerber files? Upload your Gerber files on our PCB/PCBA online ordering page, select your PCB color and manufacturing specifications, and place your order directly. Pricing is calculated from your uploaded files and selected options.

Upload Gerber & Order Online

5% Supports Open Hardware

5% of this product’s net sales goes to the shared DIYIPCB Open Hardware Fund, at no extra charge.

See the fund & rules →

In stock

SKU: DIYI-OH2-FAFD4527D825 Category:

Description

SCD41 CO2 Temperature Humidity Sensor Qwiic Bare PCB

Manufactured by DIYIPCB using the open hardware design from sparkfun/SparkFun_Qwiic_CO2_Sensor_SCD4X. Original design by SparkFun Electronics. This is an independently manufactured bare PCB, not an official product of the original designer.

Design functions

I2C carrier board for the Sensirion SCD41 CO2 sensor, including connections for temperature and humidity readings provided by the sensor.

Typical applications

Indoor air-quality monitors, ventilation experiments and environmental data-logging projects.

Main chips and components in the design

Sensirion SCD41 sensor and Qwiic-compatible I2C connectors in the assembled design.

These functions and components describe the assembled design. The bare PCB contains no electronic components and does not perform these functions on its own.

What you receive

One unpopulated PCB. US$2.00 per board.

This listing uses the SCD41 hardware folder. The sensor module is not included with the PCB. Specify SCD41 population and functional-test requirements for PCBA; enclosure airflow and installation affect system measurements.

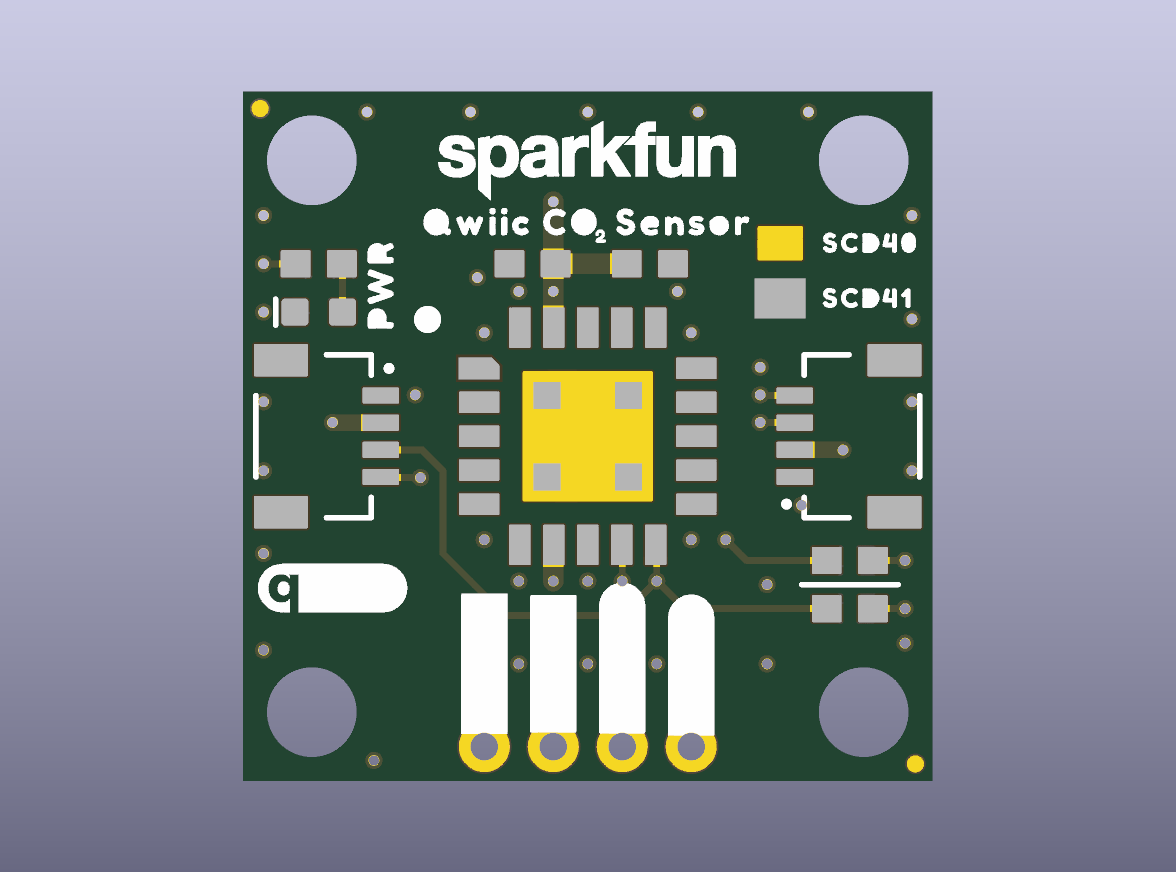

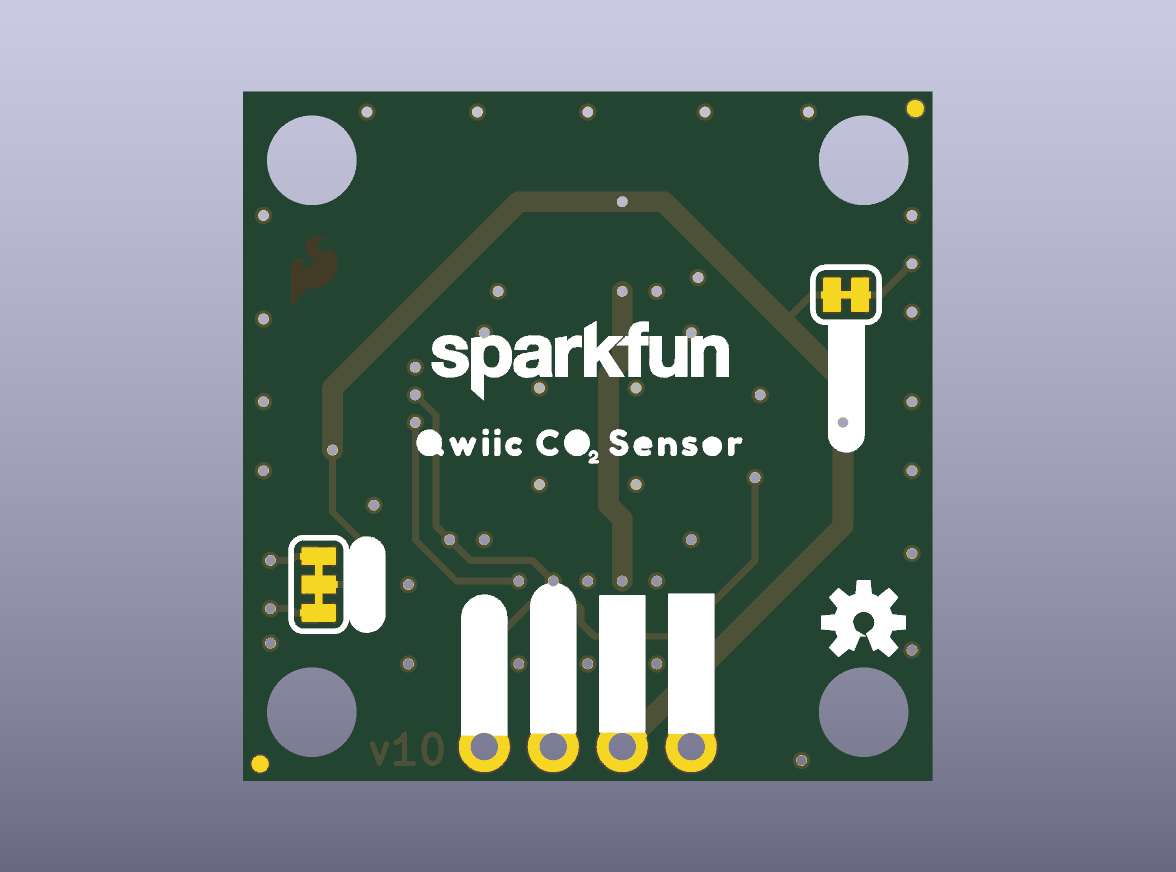

Images are bare-board CAD previews generated from the selected source. Actual soldermask color and surface finish may differ.

PCB and order details

  • Copper layers: 2
  • Nominal PCB thickness: 1.6 mm
  • PCB quantity per purchase unit: 1
  • PCB production lead time: 2-3 days.
  • PCBA production lead time: 5-10 days, subject to component availability and assembly-scope confirmation.
  • Shipping transit time is additional.
  • Estimated shipping weight: 50 g per board, including packaging allowance.

Complete PCBA service

DIYIPCB can assist with component sourcing from global and Shenzhen suppliers, SMT assembly, through-hole and hand soldering, firmware programming and agreed functional tests, final assembly and worldwide shipping. A project manager coordinates your requirements. For assembled boards, please specify quantity, component or connector choices, firmware, testing and accessories.

Contact Us for PCBA or email service@diyipcb.com. PCBA is supplied by quotation and is not included in the bare PCB price.
