1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero - Image 2
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero - Image 3
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero - Image 4
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero - Image 5
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero - Image 6

1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero

$11.90

In stock

SKU: 1005005752009686 Categories: , ,

Description

1.69inch LCD Display Module

Embedded ST7789V2 Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 11.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 2
Features At A Glance
  • 240×280 resolution, 262K colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V RESOLUTION 240 × 280 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 27.97 × 32.63mm
DISPLAY PANEL IPS PIXEL SIZE 0.11655 × 0.11655mm
DRIVER ST7789V2 MODULE SIZE 31.50 × 39.00mm
Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 3
Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 4
VCC Power (3.3V / 5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight
Hardware Connection

Connecting with Raspberry Pi

 1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 5

Connecting with Arduino board

 1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 6

Connecting with STM32

 1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 7
Usage Example
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 8
Product Show
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 91.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 10
Outline Dimensions
1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 11

Packing List

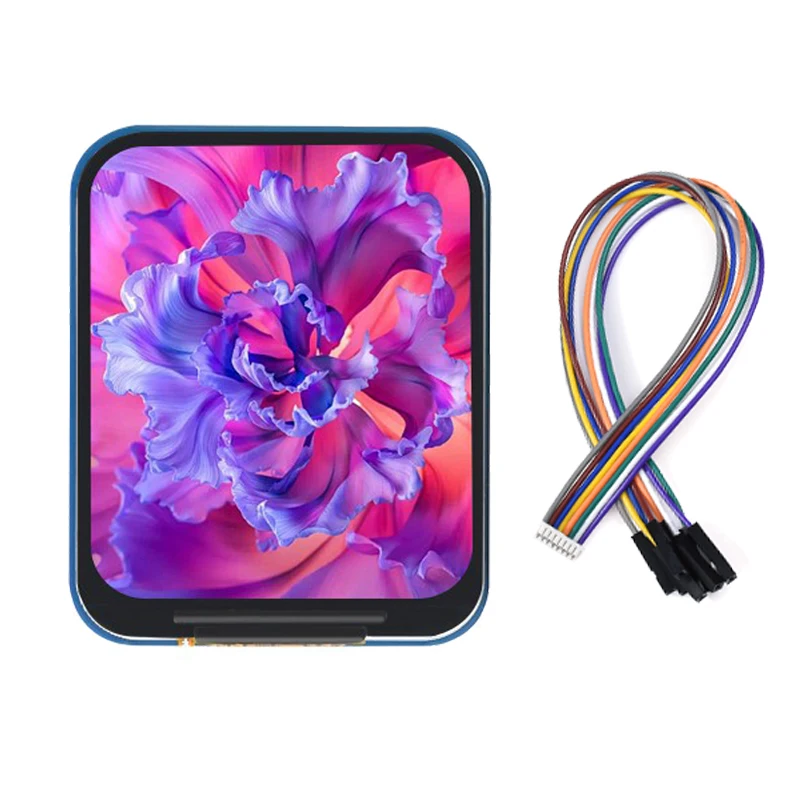

1 x 1.69 Inch IPS LCD Module

1 x GH1.25 20cm 8Pin Cable

1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module for Arduino ESP32 Raspberry Pi 4B 3B+ Zero — reference image 12

Product Customization

We support product customization services. Contact us to discuss your requirements.
