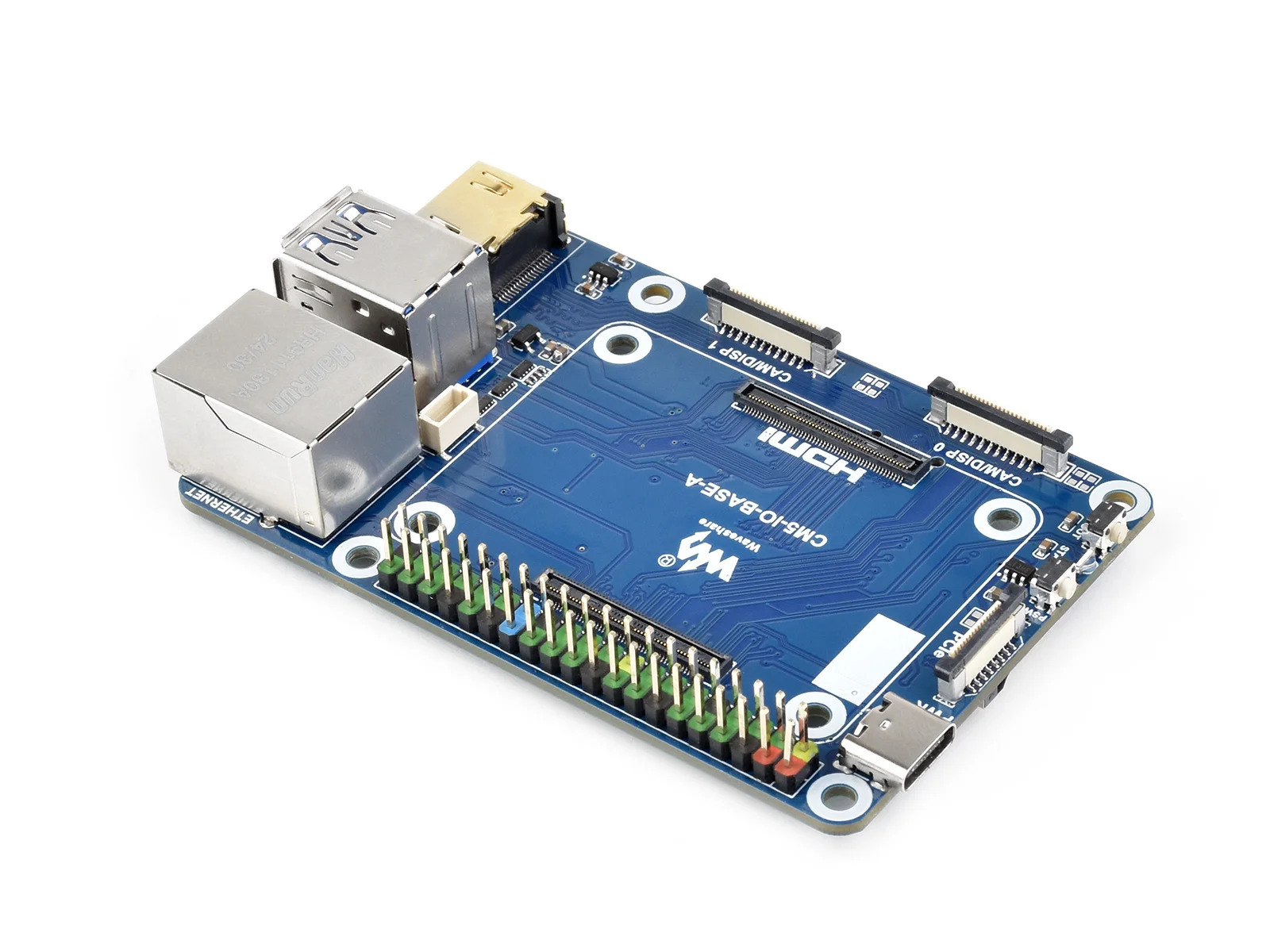

Waveshare Mini Base Board (A) は、Raspberry Pi Compute Module 5 用に設計されています。

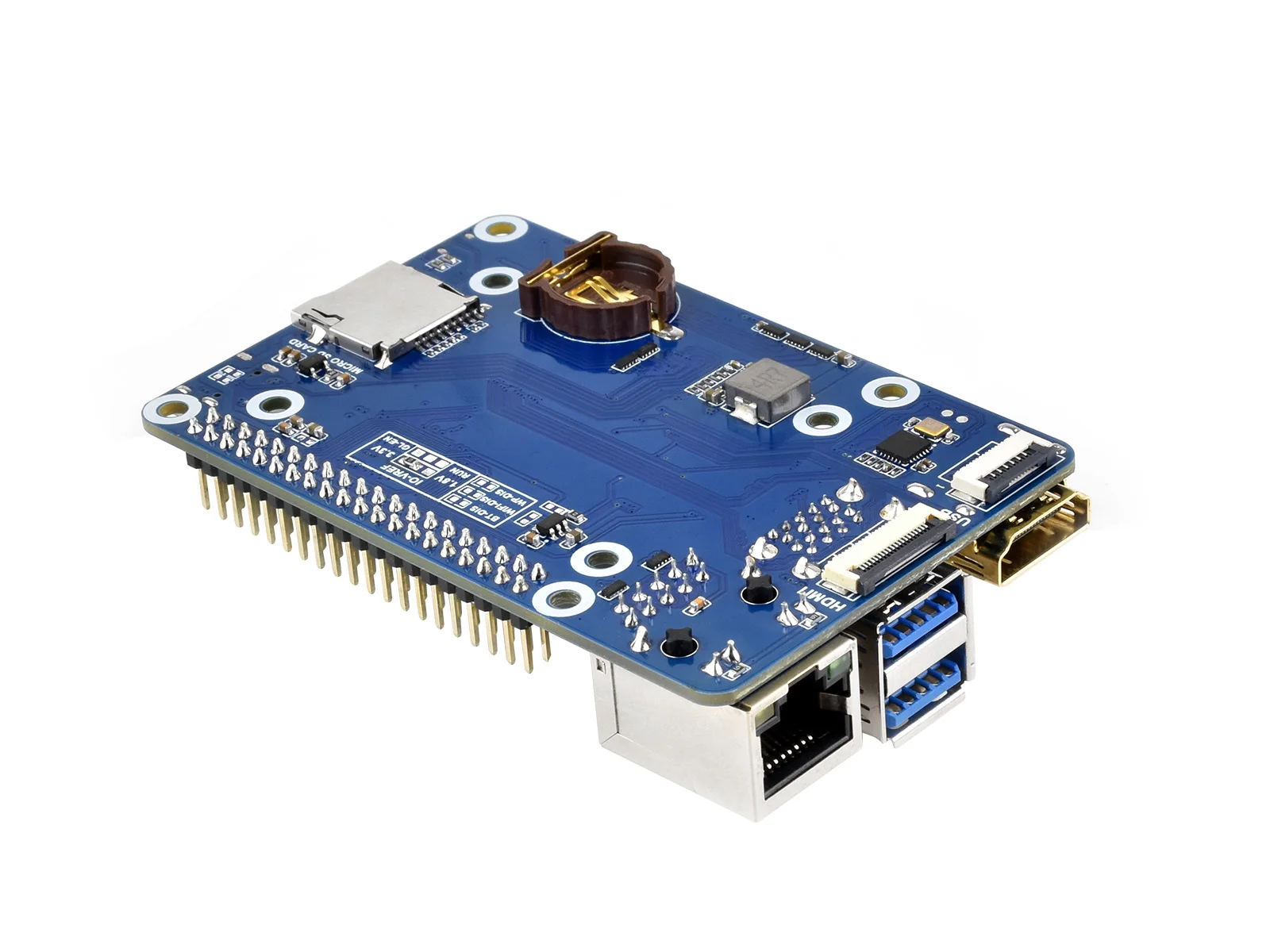

Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 - 画像 (2)

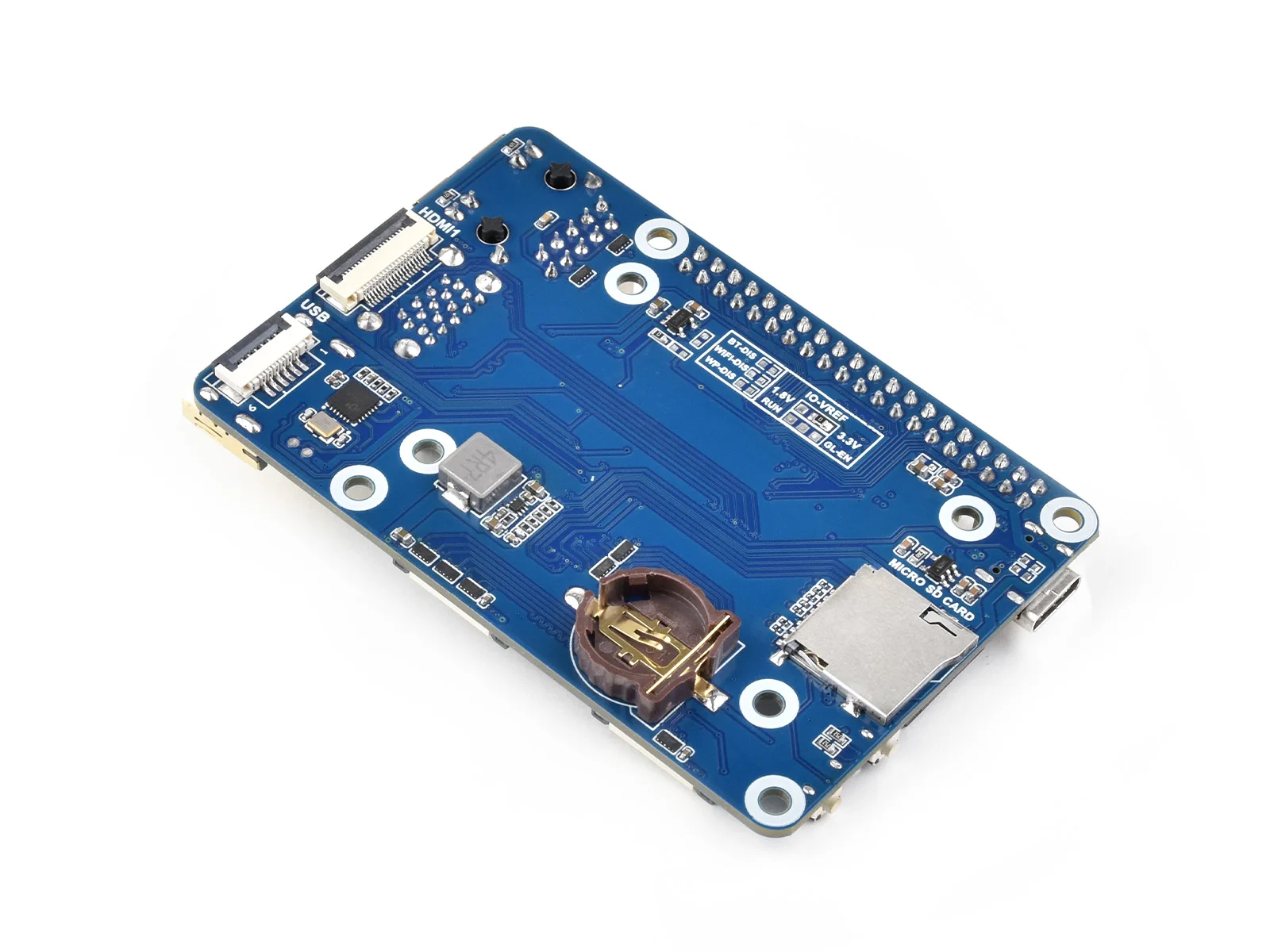

Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 - 画像 (3)

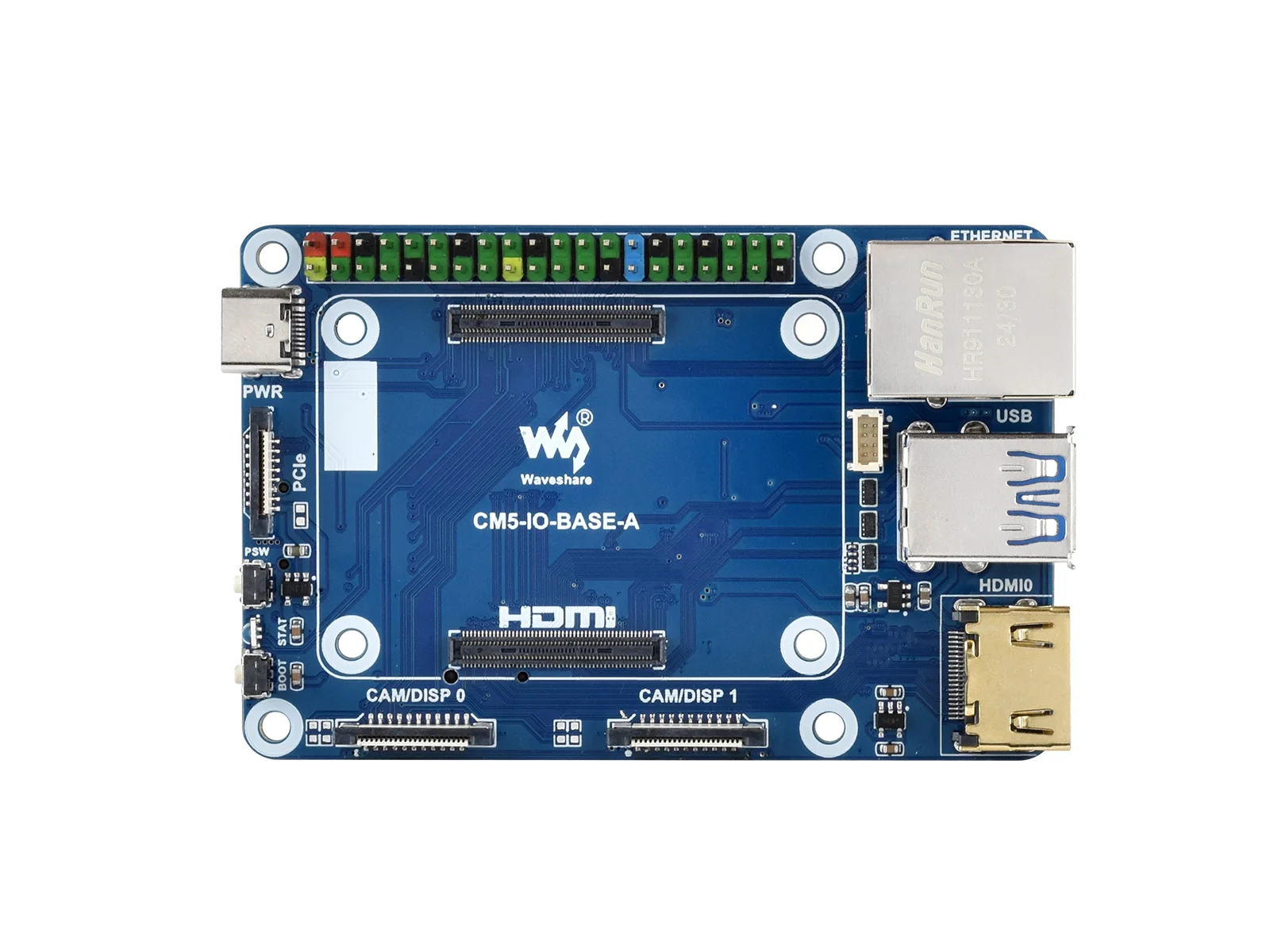

Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 - 画像 (4)

Waveshare Mini Base Board (A) は、Raspberry Pi Compute Module 5 用に設計されています。

$19.80

在庫あり

商品コード: 1005008623967734 カテゴリー: , ,

説明

Mini Base Board (A) designed for Raspberry Pi Compute Module 5
Mini Base Board for Compute Module 5

suitable for evaluating the Raspberry Pi CM5 or being integrated into end products

Powerful functions in a credit card sized body

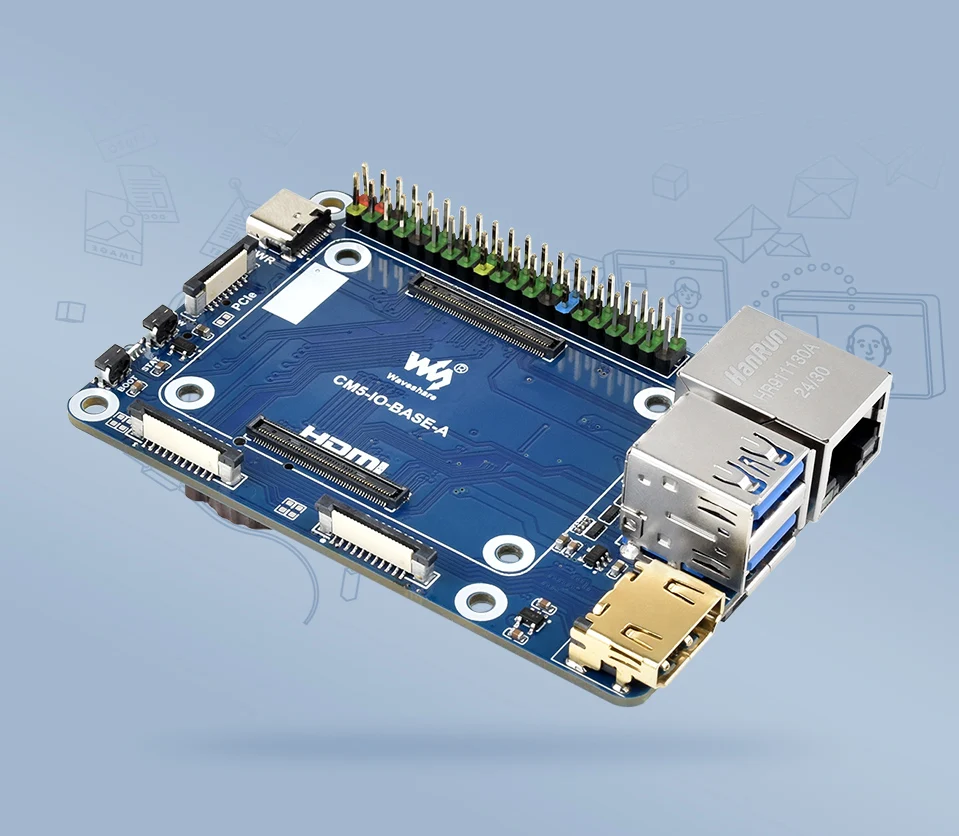

Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 1

仕様

CM5 socket suitable for all variants of Compute Module 5
ネットワーキング Gigabit Ethernet RJ45 connector
コネクタ 16PIN PCIe (PCIe Gen2/3 x1)
Raspberry Pi 40PIN GPIO header
USB USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
MIPI 4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
Video HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
ストレージ TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan header 5V, 4PIN JST-SH PWM connector
Power input DC 5V 5A
寸法 85 × 56mm

What’s the differences

CM5 Base Board Interface count and specifications
PoE Gigabit
ETH		 40PIN
GPIO		 PCIe USB① MIPI HDMI RTC ファン
Header②		 力
Input		 特長
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 2
mini Base A		 ×1 √ 16PIN PCIe 3.0×2
2.0×2		 ×2 ×2 ML/CR1220 √ 5V mini size
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 3
PoE Base		 √ ×1 √ M.2 M 3.0×2
2.0×2		 ×2 ×2 ML/CR1220 √ 5V USB×4
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 4
Raspberry Pi official		 ③ ×1 √ M.2 M 3.0×2 ×2 ×2 ML/CR1220 √ 5V Official IO base board
注記 ① USB 3.0 is equivalent to USB 3.2 Gen1.
② Unless otherwise specified, the Fan header usually is JST-SH type connector.
③ There’s PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

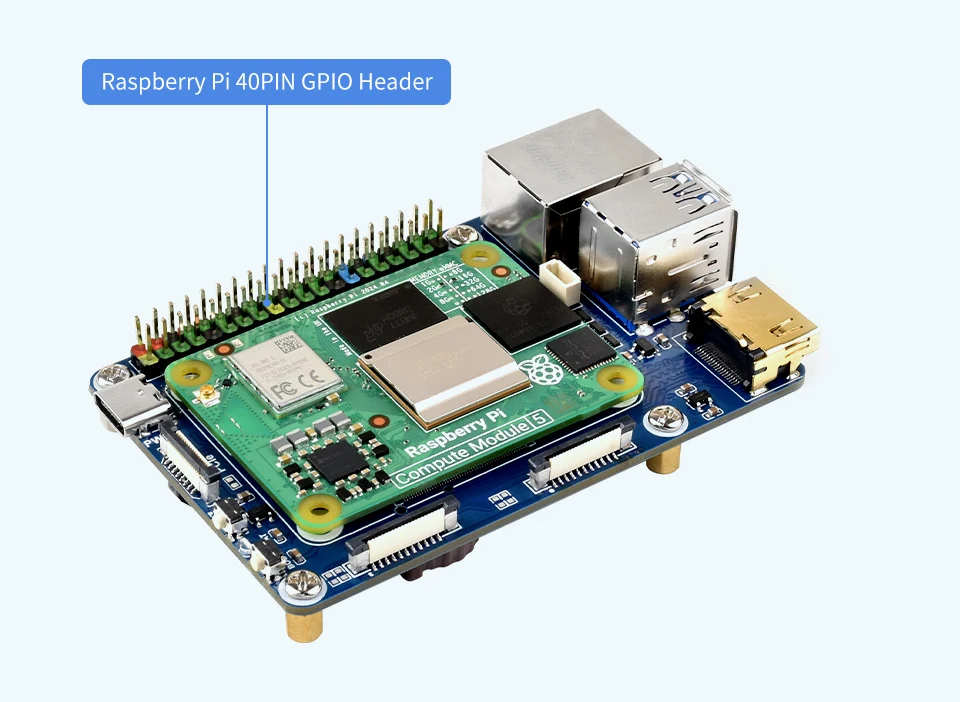

Connecting with Compute Module 5

standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite/eMMC series module

Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 5

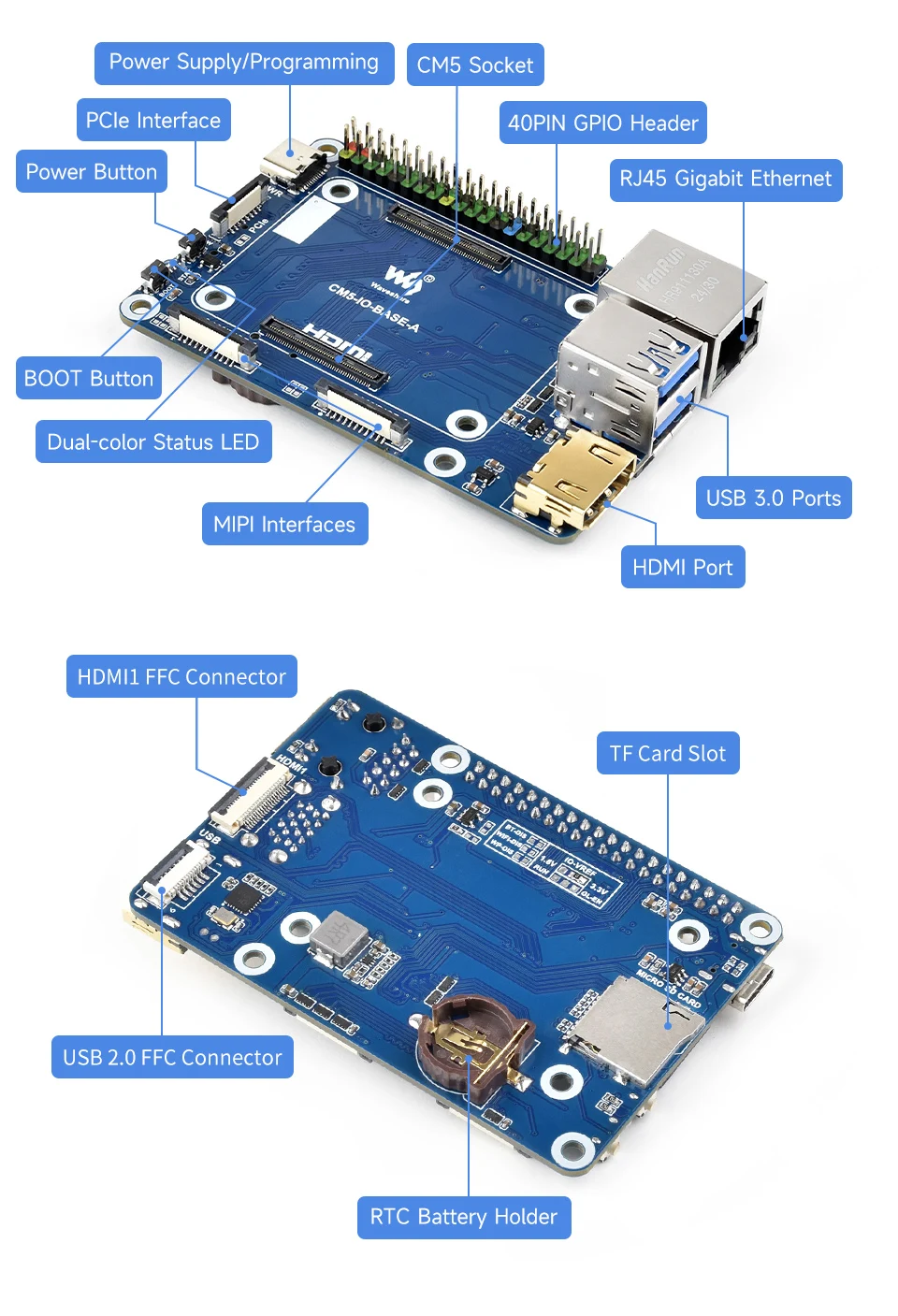

Compact, yet Complete

onboard multiple connectors, more convenient to use

Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 6

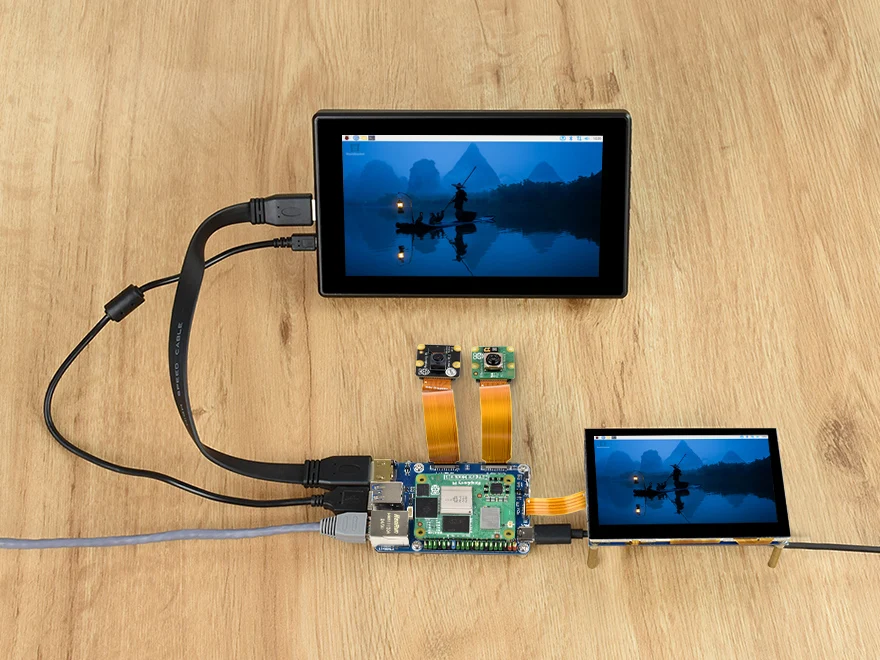

Application example
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 7
for reference only, the CM5, displays, and cameras are NOT included.

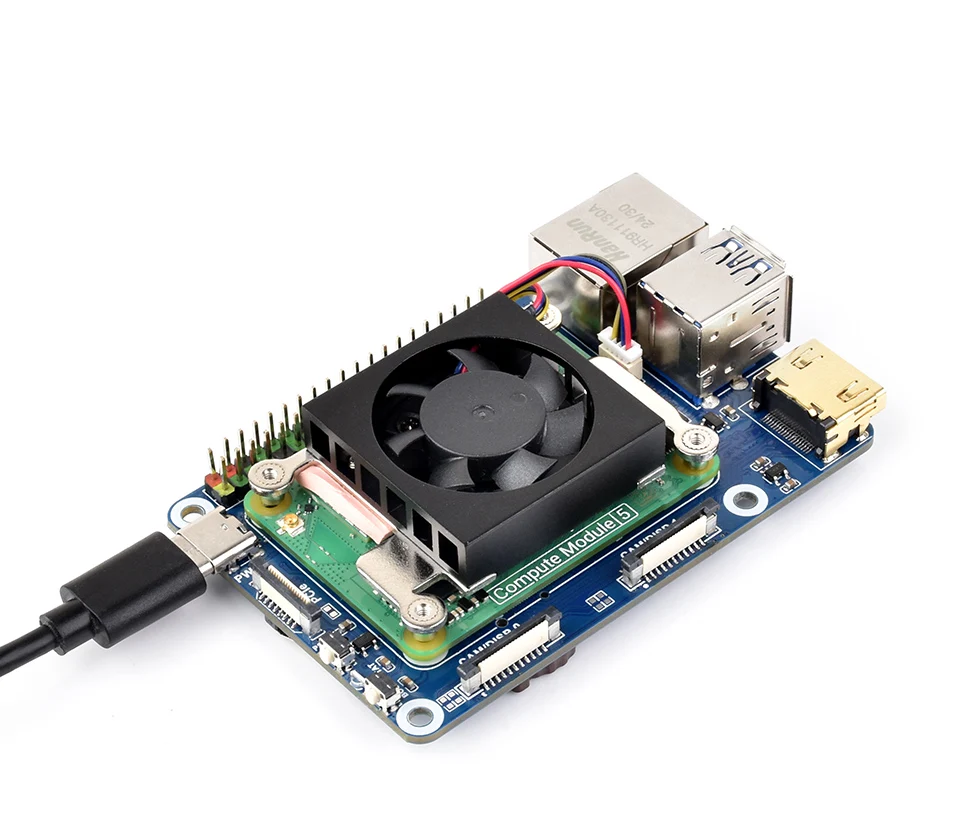

Connecting to cooling fan
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 8
for reference only, the cooling fan is NOT included.

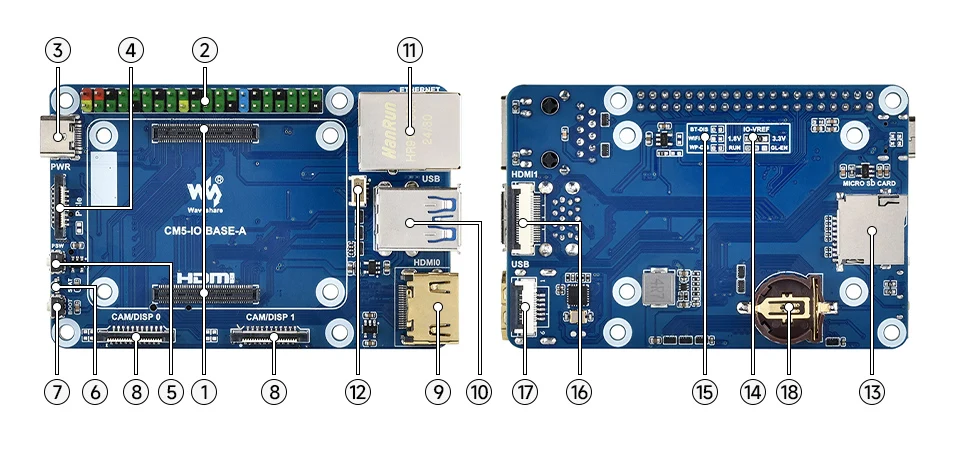

機内設備
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 9
  1. CM5 socket
    suitable for all variants of Compute Module 5
  2. 40PIN GPIO header
    for connecting various HAT / HAT+ modules
  3. Power input/Programming
    5V / 5A power supply, or used for eMMC burning
  4. PCIe interface
    for connecting various PCIe expansion boards
  5. PSW Power button
    Long press to force power off, short press to soft power off or on
  6. STAT LED
    Dual-color status LED
  7. ブートボタン
    Press before powering on and release after powering on to enter the burning mode
  8. Dual MIPI interfaces
    for connecting DSI displays and CSI cameras
  9. HDMI0 connector
    HDMI0 port, supports 4K output
  10. USB 3.2 Gen1 ports
    2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation



  1. RJ45 Gigabit Ethernet port
    Supports 10M / 100M / 1000M network access
  2. 4PIN JST-SH PWM Fan header
    for connecting cooling fan, 5V power supply
  3. TFカードスロット
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  4. IO-VREF selection
    CM5 IO logic level: 3.3V (default) or 1.8V
  5. Other function pins
    WIFI / BT hardware disable or write protection
  6. HDMI1 FFC connector
    HDMI1 port, supports 4K output, can be connected through an adapter
  7. USB 2.0 FFC connector
    can be connected through an adapter
  8. RTC battery holder
    Supports CR / ML1220 button cell

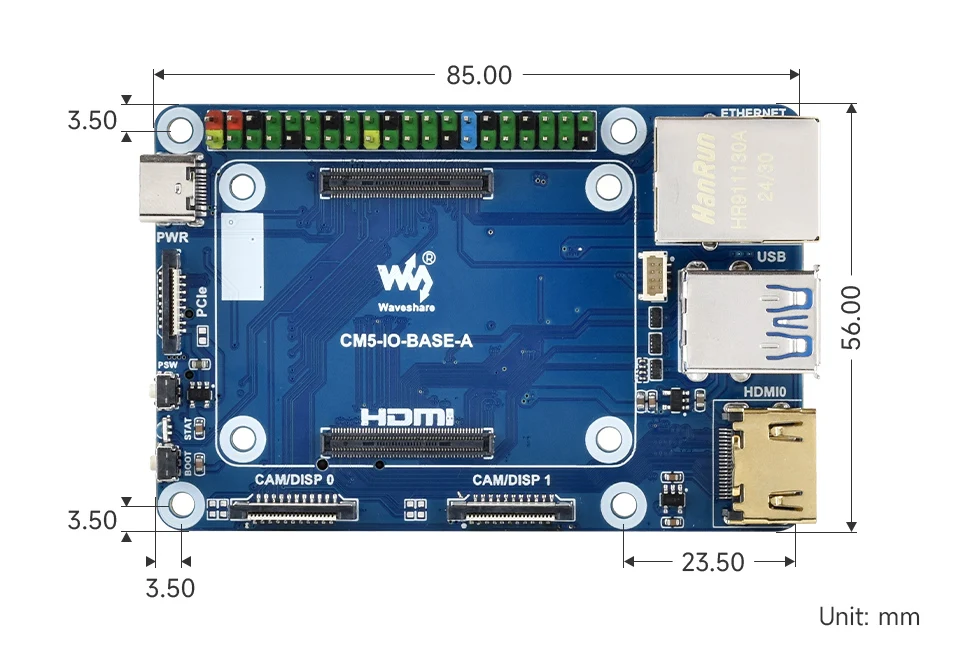

外形寸法
Waveshare Mini Base Board (A) designed for Raspberry Pi Compute Module 5 — reference image 10

製品のカスタマイズ

当社は製品のカスタマイズサービスを提供しています。. お問い合わせ お客様のご要望について話し合うため。.

追加情報

重さ 0.3 kg
