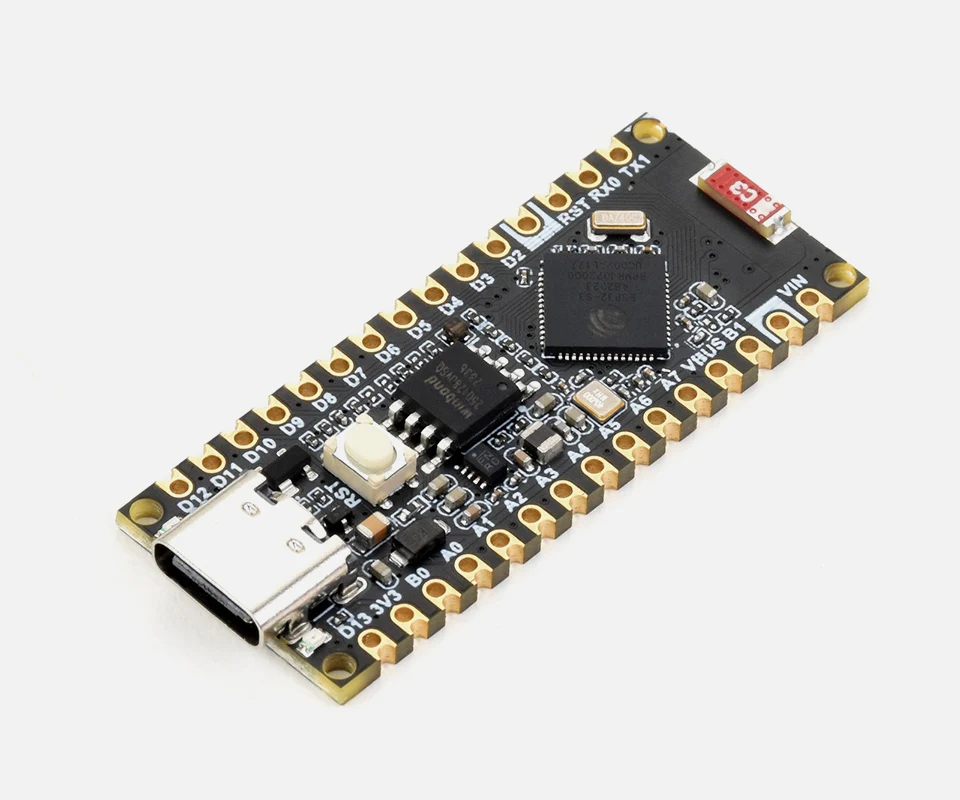

ESP32-S3-Nano Development Board

Enhanced Version Of Arduino Nano ESP32

Based On ESP32-S3R8, Compatible With Arduino Nano ESP32

バージョンオプション

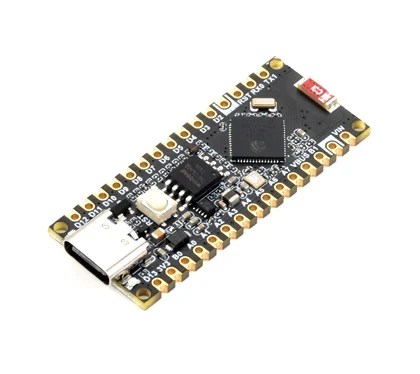

ESP32-S3-Nano

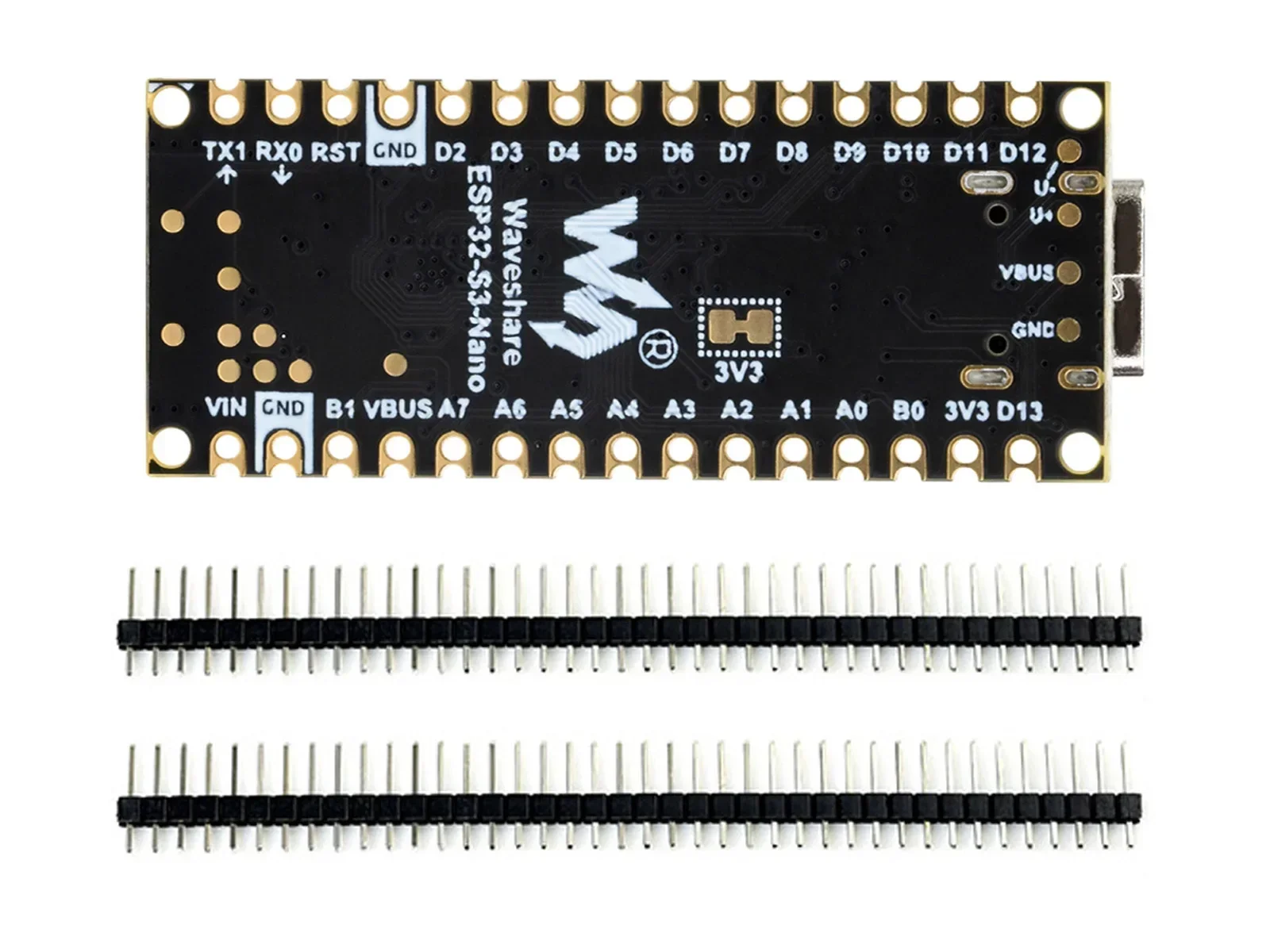

ESP32-S3-Nano-M

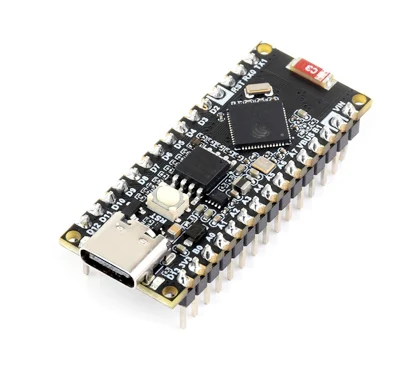

with pre-soldered header (black)

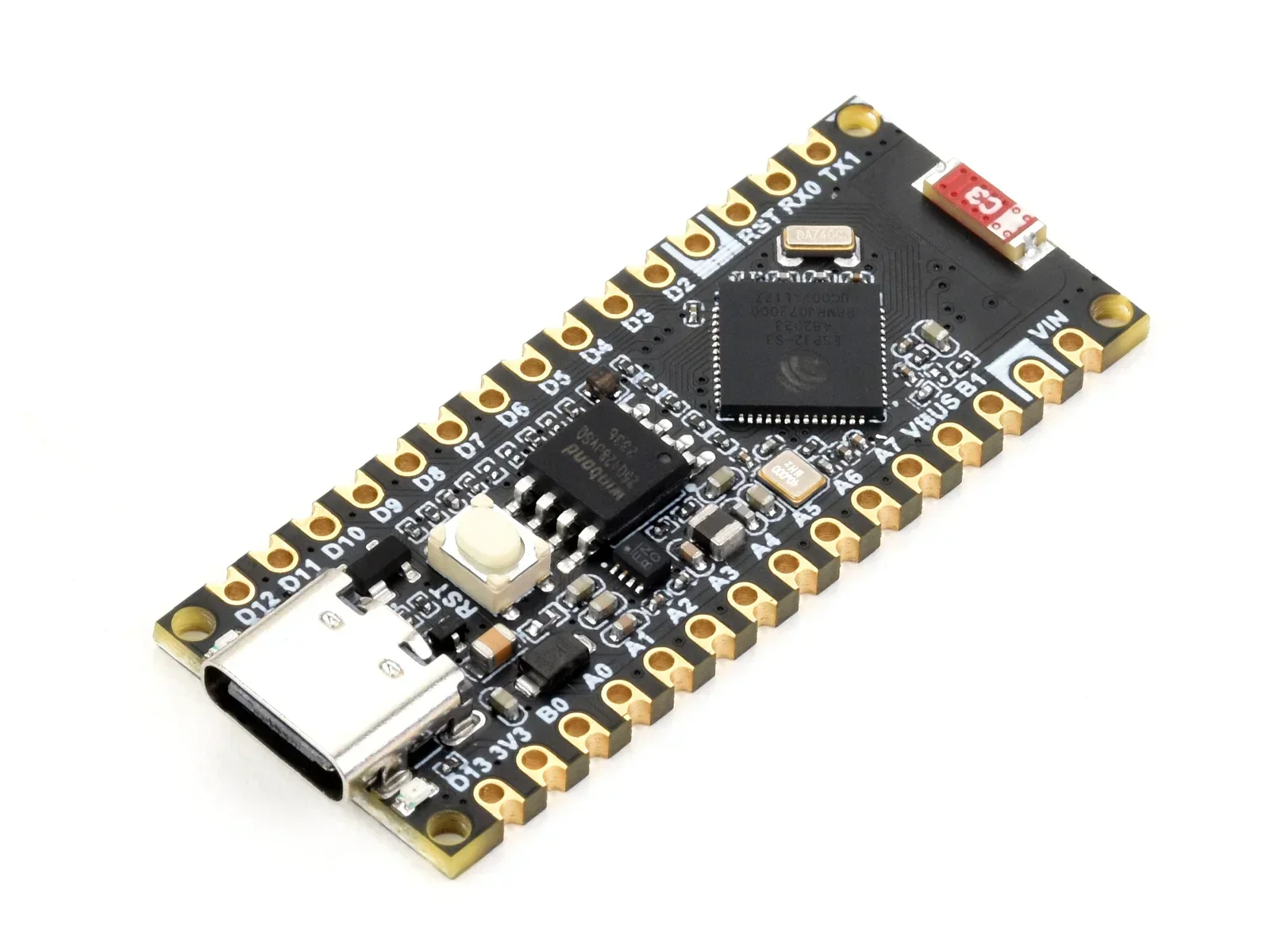

Board Specifications

の ESP32-S3-Nano adopts ESP32-S3R8 chip and is compatible with Arduino Nano ESP32. It is compact in size and powerful, suitable for applications such as IoT and MicroPython, and easy to integrate into your projects.

Adopts ESP32-S3R8 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Supports seamlessly switching between Arduino and MicroPython programming, more flexible usage
Compatible with Arduino IoT Cloud, allows monitoring and controlling your project from anywhere by using the Arduino IoT Cloud app
Supports HID, emulating Human Interface Devices such as keyboards or mice via USB port for easier interaction with PC

Product Parameters Comparison

MODEL	R7FA4 PLUS A	R7FA4 PLUS B	ESP32-S3-NANO
MICROCONTROLLER	R7FA4 (32-bit ARM Cortex-M4)	R7FA4 (32-bit ARM Cortex-M4)	ESP32-S3R8 (Dual-core 32-bit Xtensa LX7)
		ESP32-S3FN8 (Dual-core 32-bit Xtensa LX7)
CLOCK FREQUENCY	R7FA4: 48MHz	R7FA4: 48MHz	ESP32-S3R8: 240MHz
		ESP32-S3FN8: 240MHz
STORAGE	R7FA4: 256kB Flash, 32kB RAM	R7FA4: 256kB Flash, 32kB RAM	ESP32-S3R8: 384kB ROM, 512kB RAM, 16MB Flash, 8MB PSRAM
		ESP32-S3FN8: 384kB ROM, 512kB RAM, 8MB Flash
WIRELESS COMMUNICATION	なし	2.4GHz WiFi + Bluetooth LE
動作電圧	Options for 5V/3.3V, support more shields		3.3V
POWER INPUT	6~24V		6~21V
RESET BUTTON	Lateral, easier to use when connecting with shield		Vertical
IO PIN OUTPUT CURRENT	8mA		40mA
DIGITAL PINS	14		14
ANALOG PINS	6		8
DAC	2		なし
PWM	6		5
UART	1		2
I2C	1		1
SPI	1		1
できる	1		なし
DC JACK	Low profile, shields won’t be blocked anymore while connecting		なし
POWER OUTPUT HEADER	Provides 5V OR 3.3V power output and common-grounding with other boards		なし
5V POWER OUTPUT	Up to 2000mA Max, features higher driving capability		1000mA Max
EXPERIMENTAL BOARD	Support, solder pad is provided for DIY interfaces to connect with experimental board		サポート

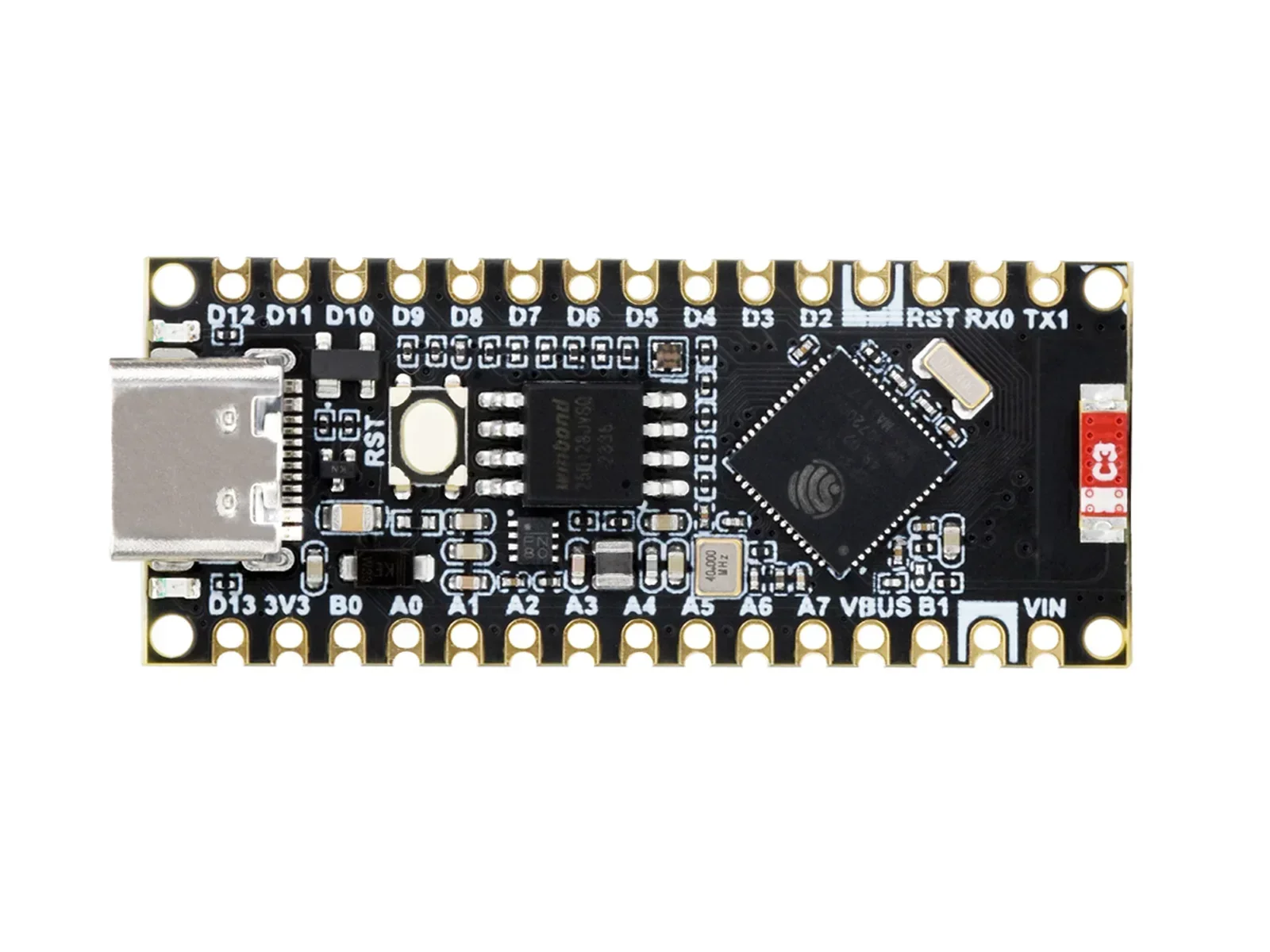

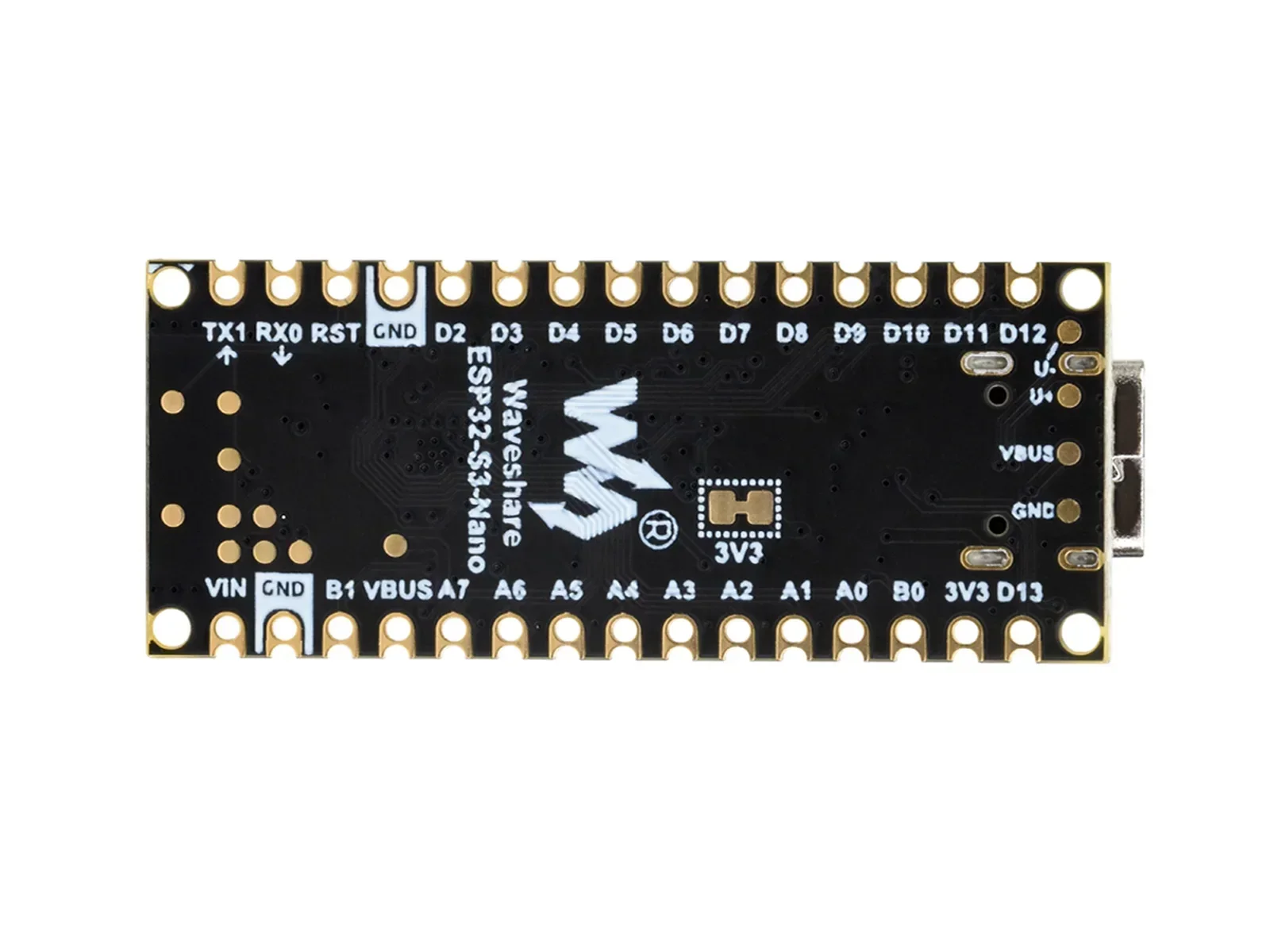

機内設備

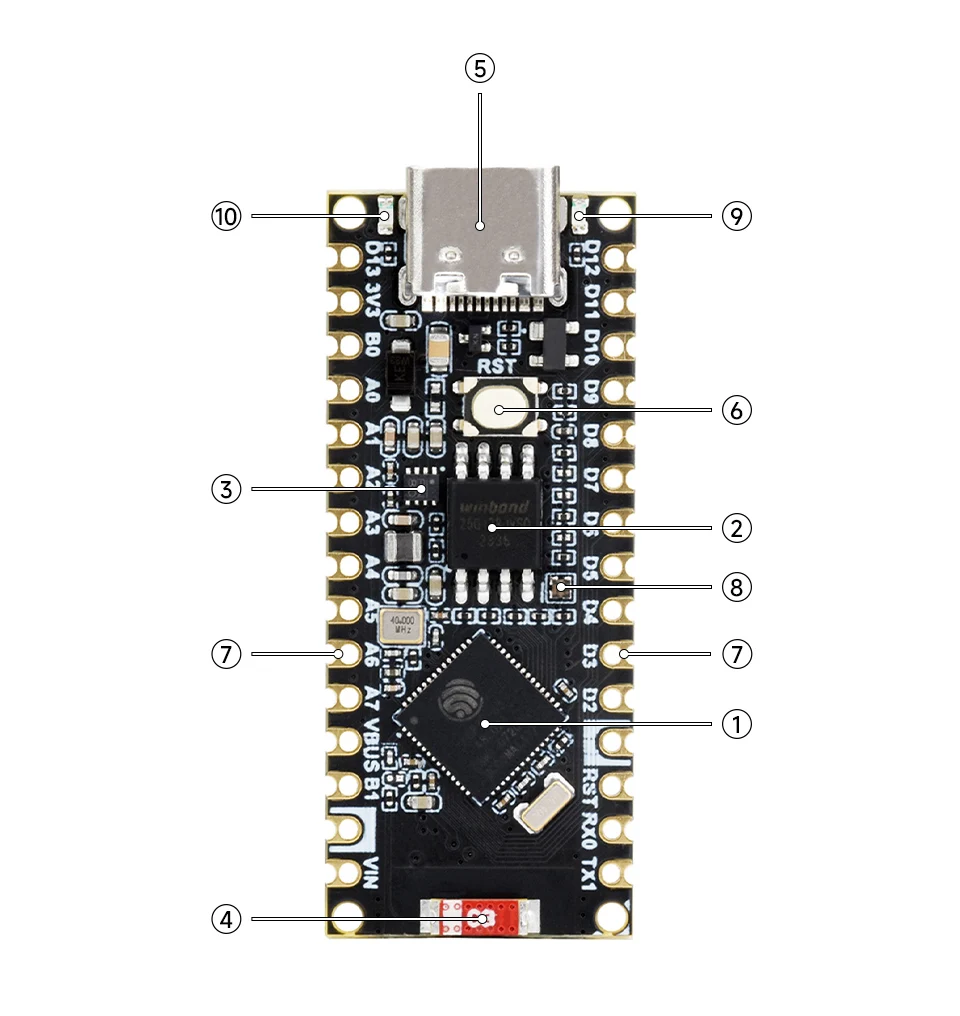

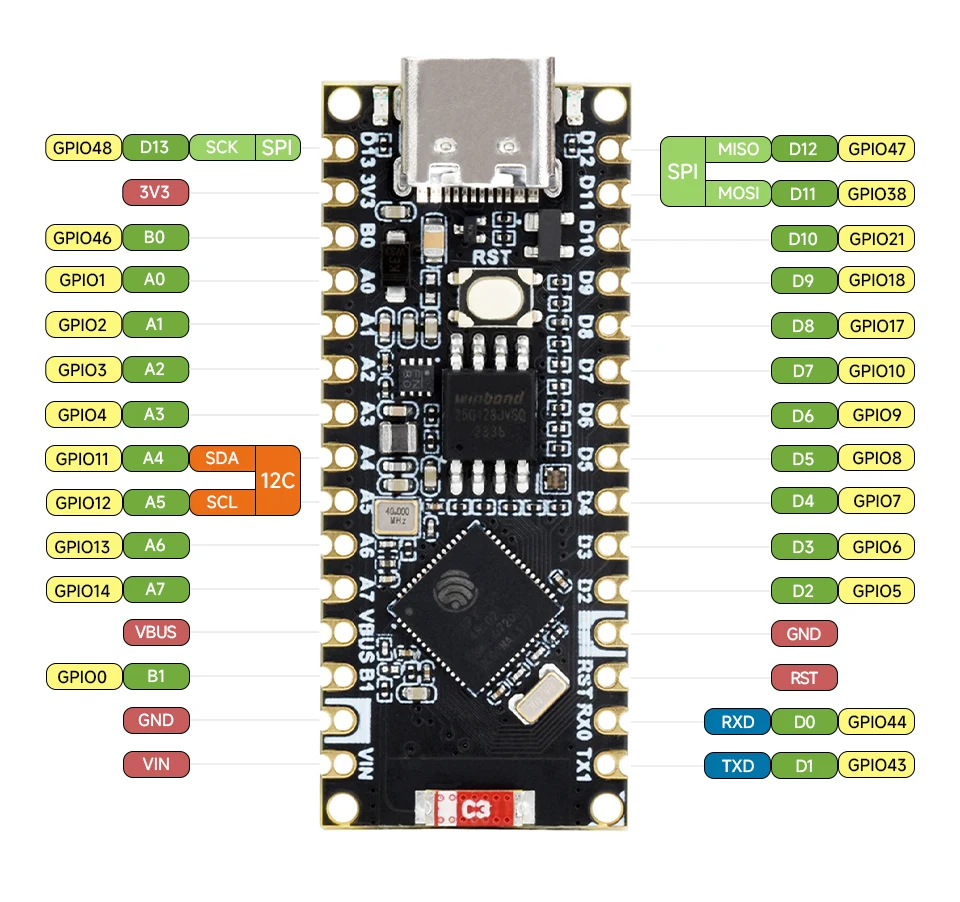

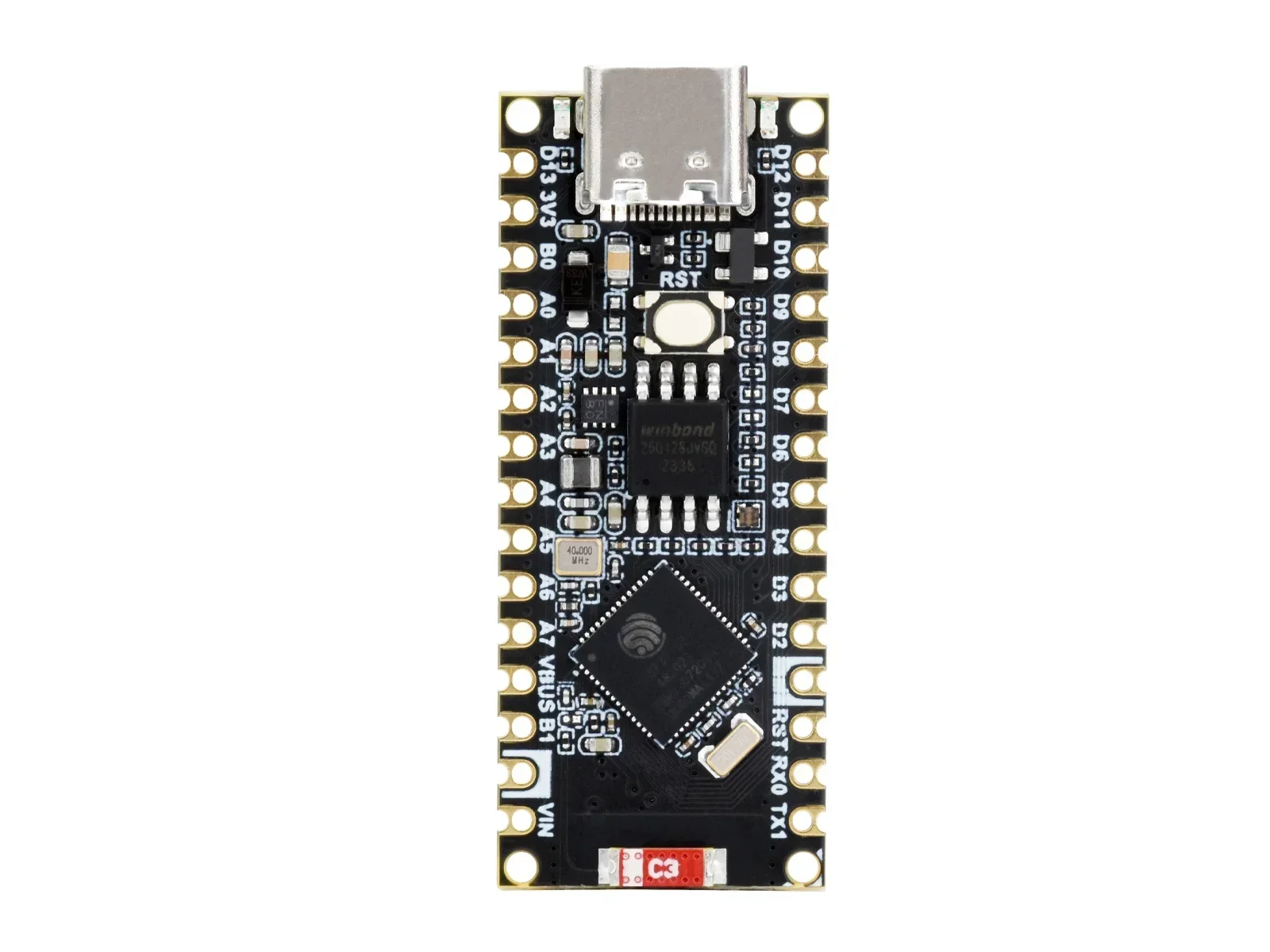

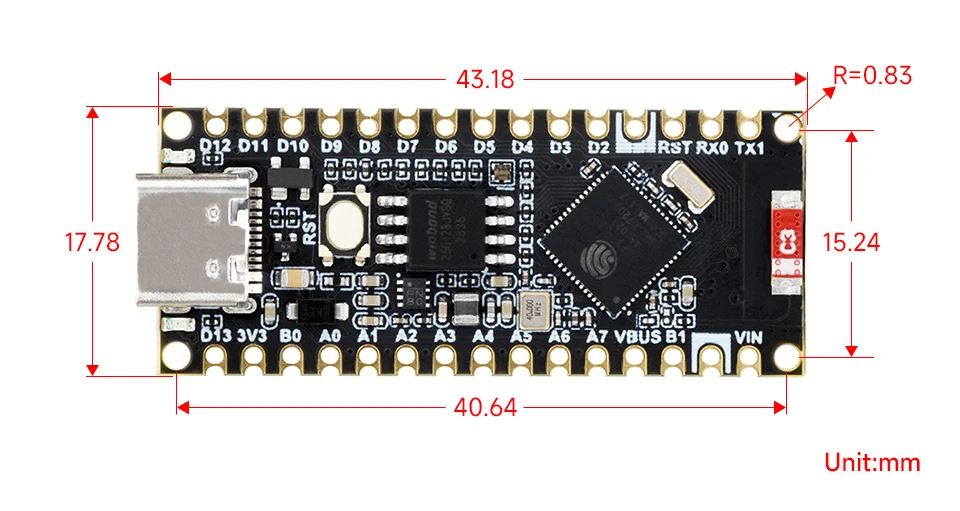

Waveshare ESP32-S3-Nano Development Board, Based on ESP32-S3R8, Compatible with Arduino Nano ESP32 — reference image 7

ESP32-S3R8 dual-core processor
up to 240 MHz running frequency
W25Q128JVSIQ
16MB Flash, for program and data storage
MP2322GQH
3.3V voltage regulator
2.4G ceramic antenna
USB Type-C connector
for downloading program and serial port debugging

RST button
for resetting ESP32-S3R8
Arduino Nano interface
compatible with Arduino interface, adapting 2.54 pitch solder pad, can be directly connected to experimental board
RGB indicator
blinks and then turns off during power on or reset, supports programmable control after the board has booted up normally
電源インジケーター
User LED
