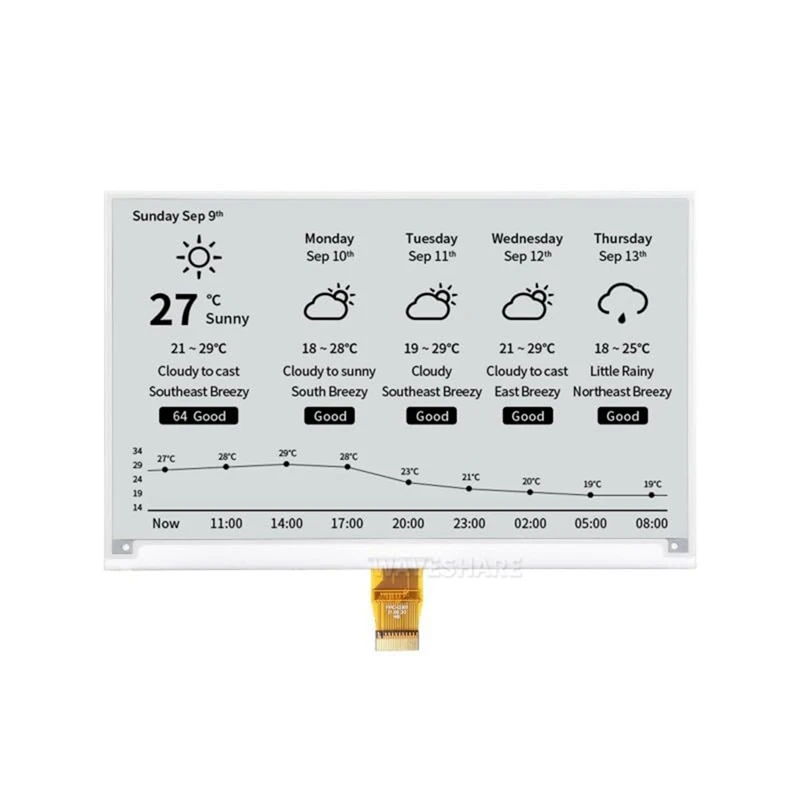

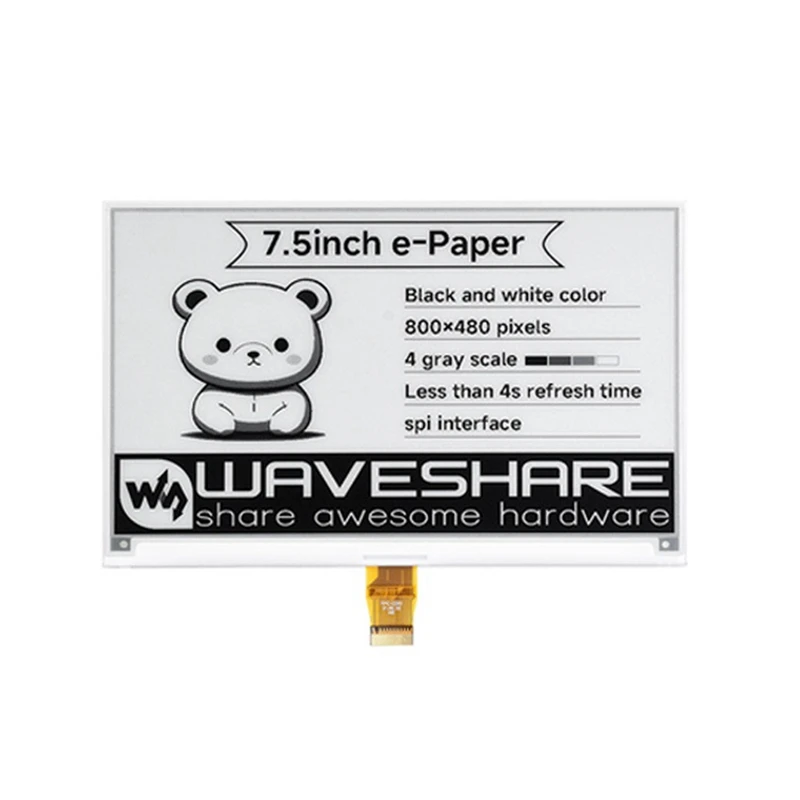

7.5 Inch E-Ink Display 800X480 Black White E-Paper Screen For Raspberry Pi Series Mainboard Jetson Nano RDK X3

The power consumption is very low, and basically only consumes power when refreshing.

No backlight is required, and the last screen display content can be kept for a long time when the power is turned off.

Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces.

Based on the for Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi series motherboards, for Jetson Nano, RDK X3.

SPI control interface, can be connected to for Raspberry Pi/for Jetson Nano/RDK X3/for Arduino/STM32 and other main control boards.Size: 7.5 inches

Operating voltage: 3.3V/5V

通信インターフェース：SPI

Point spacing: 0.205mmx0.204mm

Resolution: 800×480

Display color: black, white

Grayscale: 4

Viewing angle: Greater than 170°

Refresh time: 4S

Partial refresh: 0.4S

Quick refresh: 1.5S

Colour:As Shown

Material:PCB

パッケージ内容：

1 * E-Ink Display

上記パッケージの内容物のみが含まれており、その他の製品は含まれていません。.

注：光の反射やディスプレイの違いにより、写真と実物の商品の色が若干異なる場合があります。測定誤差は±1～3cmです。.
