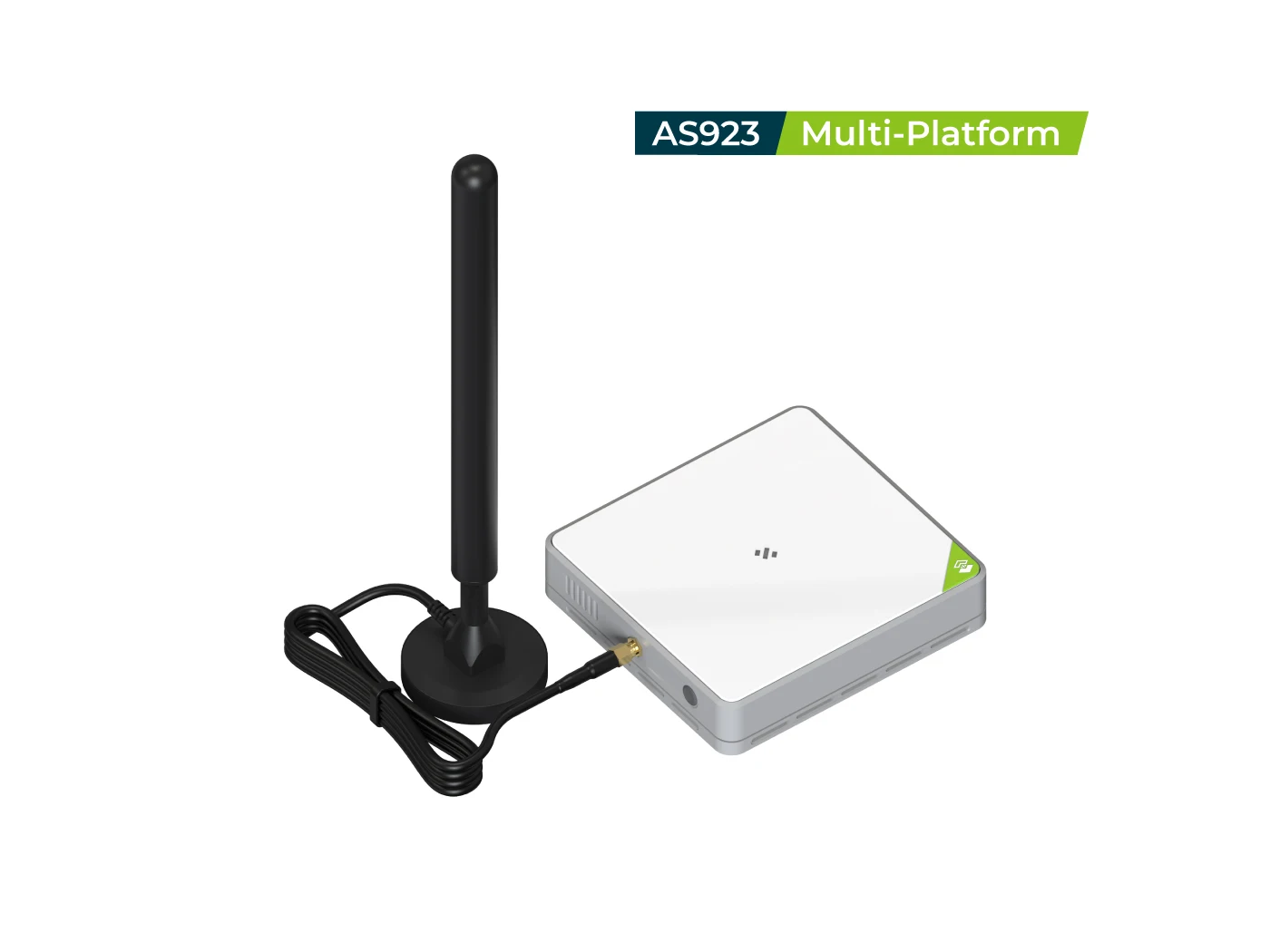

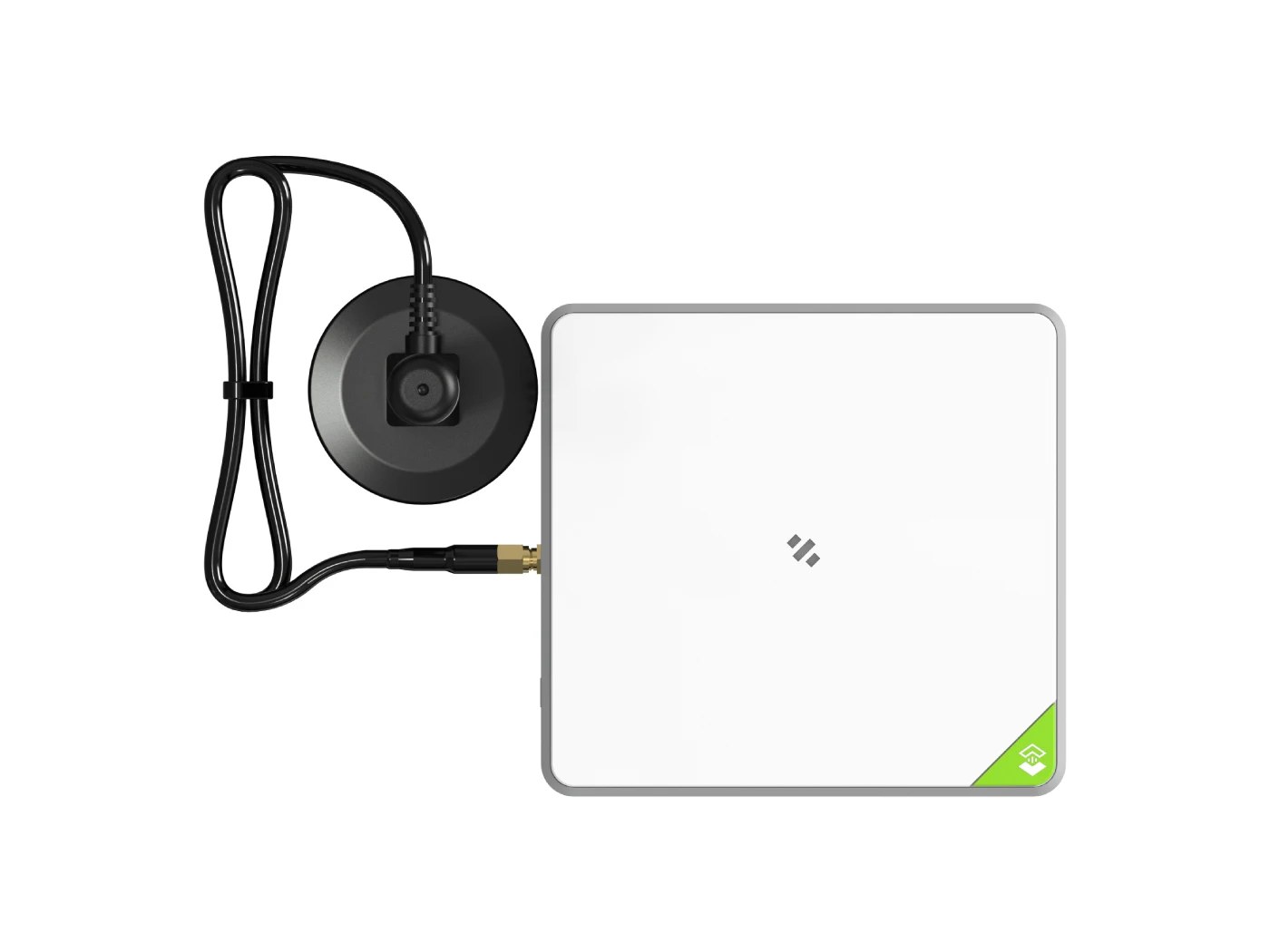

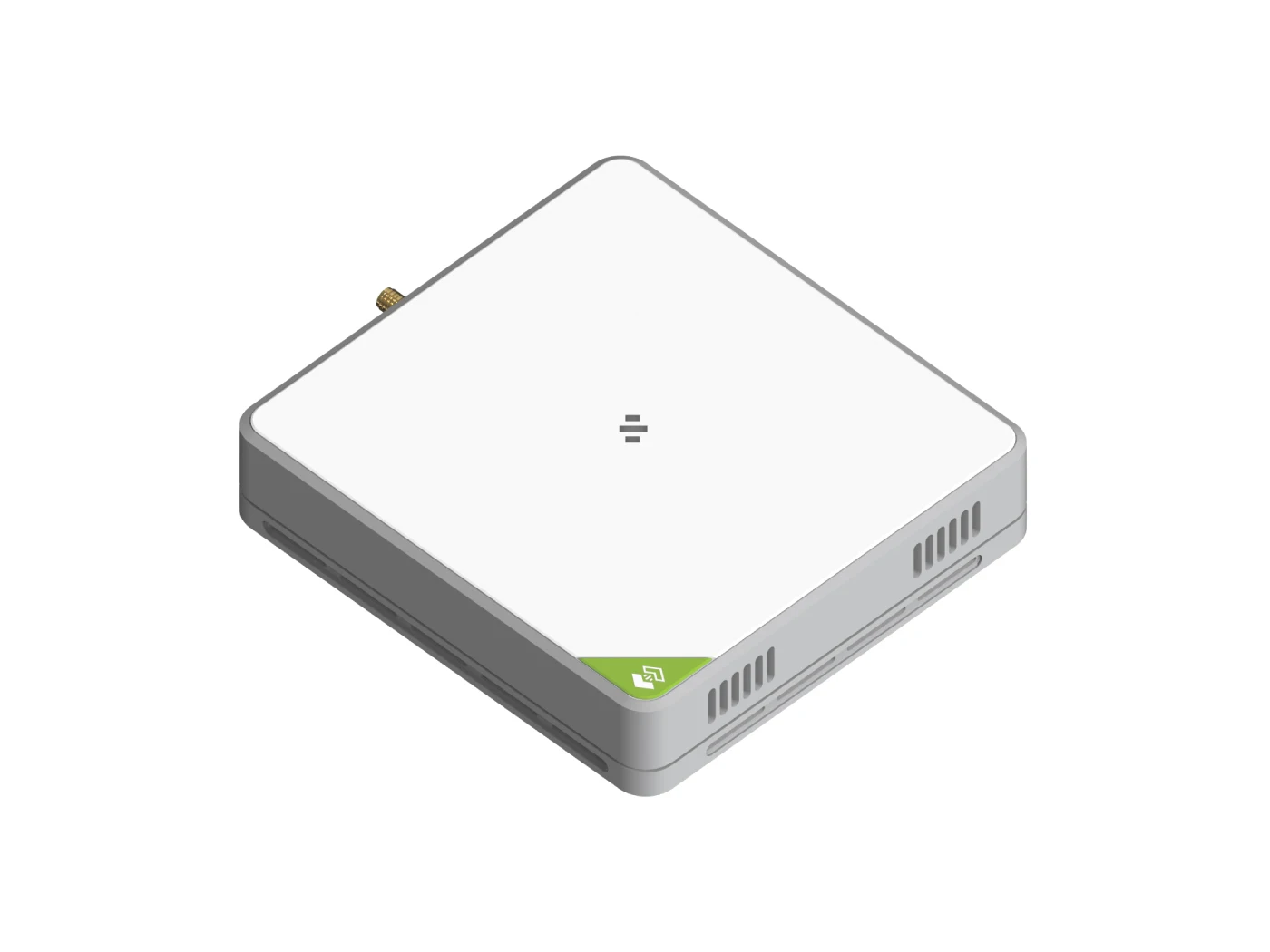

SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) – AS923

説明

主な機能

🌱Open-Source Support:

Easily customize and develop users own LoRaWAN solutions for seamless integration into their specific use cases. Check out details here.

🌱Support Multiple LoRaWAN® Network Servers:

Compatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics™ Station mode.

🌱Built-in LoRaWAN Network Server:

Based on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.

🌱Built-in SenseCAP Local Console for Configuration:

Provides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.

🌱Support Power-over-Ethernet (PoE):

For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.

🌱Wide-range Coverage and Strong Signal:

Provides up to 10km of LoRaWAN® coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.

🌱Excellent and Stable Performance:

The gateway is powered by the mature hardware solution MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular(optional)、Wi-Fi and Ethernet internet connection.

🌱Professional Management Tools and Cloud Services:

Users could easily set up the gateway in a few simple steps via Web Interface. SenseCAP Portal and SenseCAP Local Console are also developed for users to monitor and manage the gateway efficiently and easily.



説明

SenseCAP M2 Multi-Platform LoRaWAN® Gateway is a standard LoRaWAN® gateway that supports connecting to different network servers.

As a LoRaWAN® gateway, it could be able to provide miles of wireless network coverage and data transmission capacity for your LoRaWAN® devices.

SenseCAP M2 Multi-Platform LoRaWAN® Gateway supports multiple applications like smart agriculture, smart city, or any smart project that requires network densification, providing both unique superior coverage and operational excellence.

The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCAP Mate APP and SenseCAP Portal in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN® network solutions.

• Scan the QR code for device binding
• Connect gateway to internet and power on
• Check gateway status on the SenseCAP platform
• Connect sensors to the network and upload data to the cloud



インタフェース

仕様



プロセッサ	MT7628(MIPS24KEc@580MHz)
ラム	DDR2 128MB
Flash	32MB
Long Range Gateway Chip	SX1302
Channel	8
LoRaWAN® Protocol	V1.0.3 Class A/Class B/Class C
Frequency Plan	IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity	-125dBm @125KHz/SF7
	-139dBm @125KHz/SF12
Long Range TX Power	Up to 26 dBm
アンテナ	Long Range: 3dBi External Antenna with Base Wi-Fi: Internal Antenna
Antenna Impedance	50 Ohm
Wi-Fi	Support 2.4 GHz 802.11 b/g/n
イーサネット	1xRJ45 (10M / 100 M), PoE PD support
Cellular(Optional)	Another version is optional, coming soon
入力電圧	DC 12V – 2A PoE (IEEE 802.3 af), 40V-57V DC
Interfaces	Ethernet RJ45 * 1 RP-SMA Female Antenna Connector * 1 Micro SD Card Slot (Future use)  * 1 USB Type-C (Console) * 1
Management Software	Web
寸法	143.6x135x34mm (connector not included) 150.6x135x34mm (connector included) Package: 340*230*65mm
動作温度	-20°C to 55°C
Relative Humidity	0% – 85% (non-condensing)



LoRaWAN® Frequency

Frequency Band	Switchable Frequency Band
EU868	IN865/RU864
US915	US915/AU915/KR920/AS923
AS923	US915/AU915/KR920/AS923

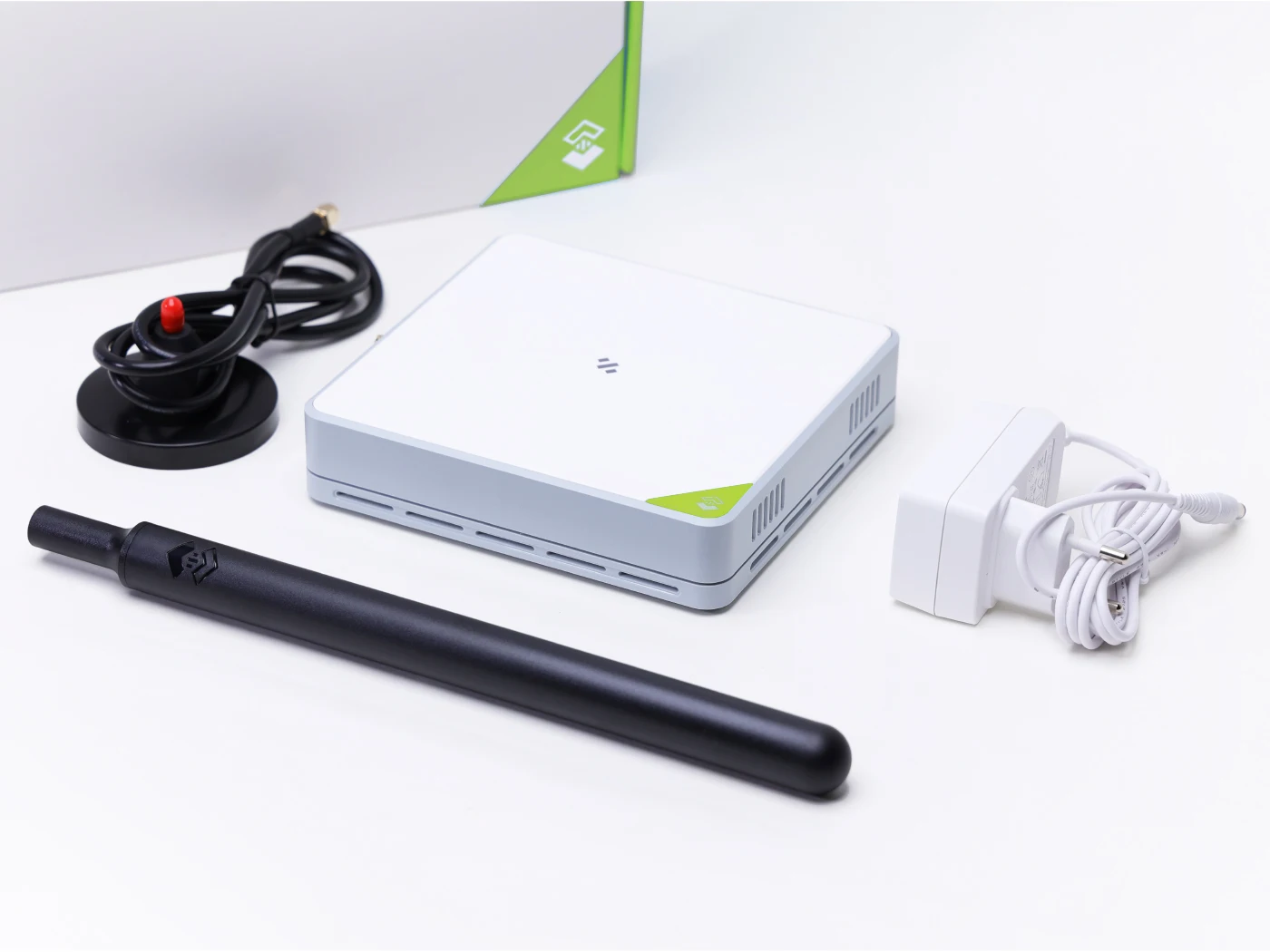

部品リスト

SenseCAP M2 Multi-Platform LoRaWAN® Gateway	1
Adapter	1
3dBi LongRange Antenna	1
