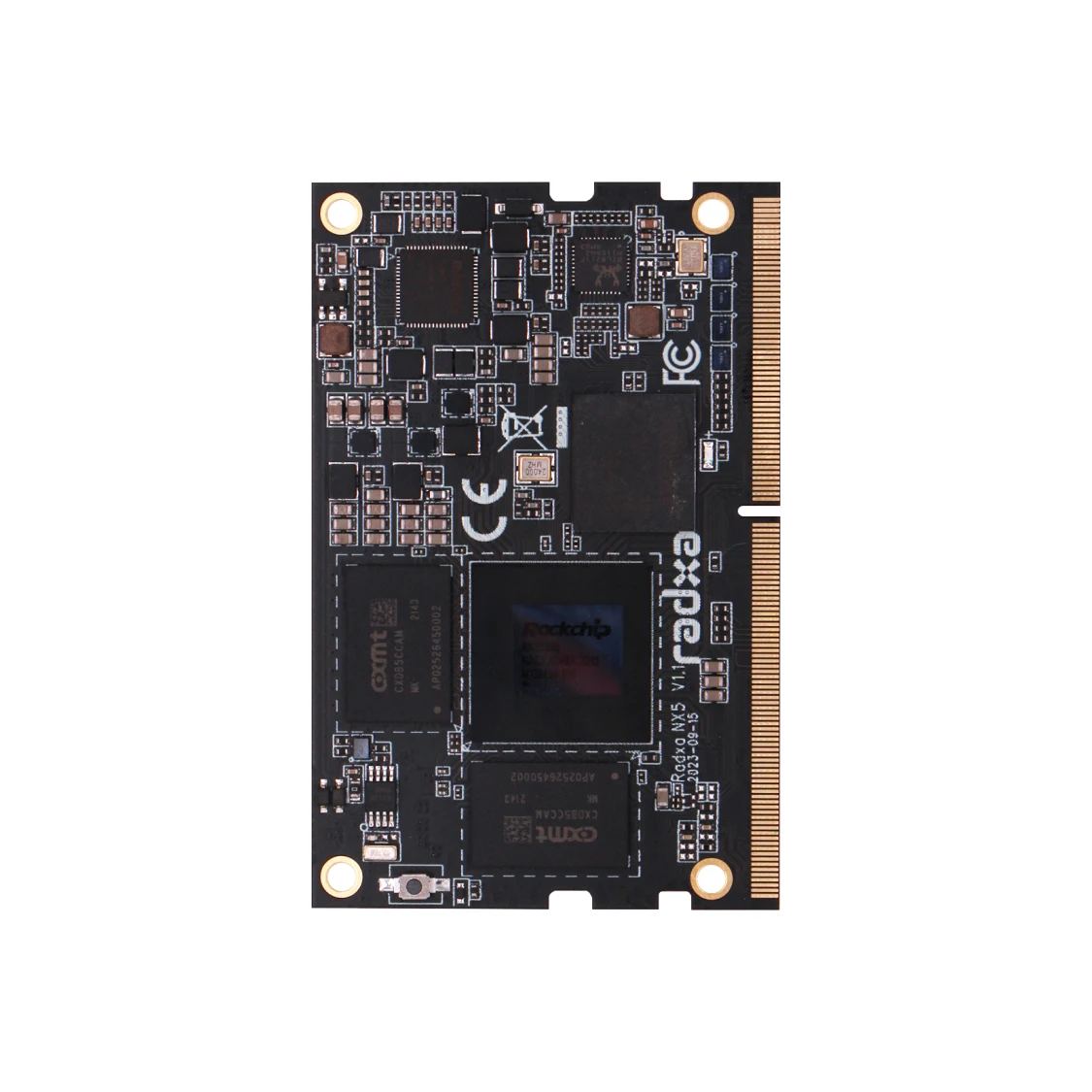

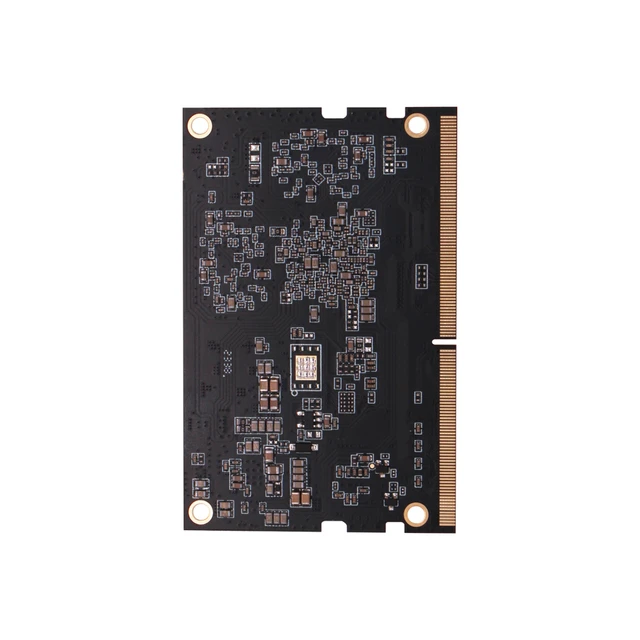

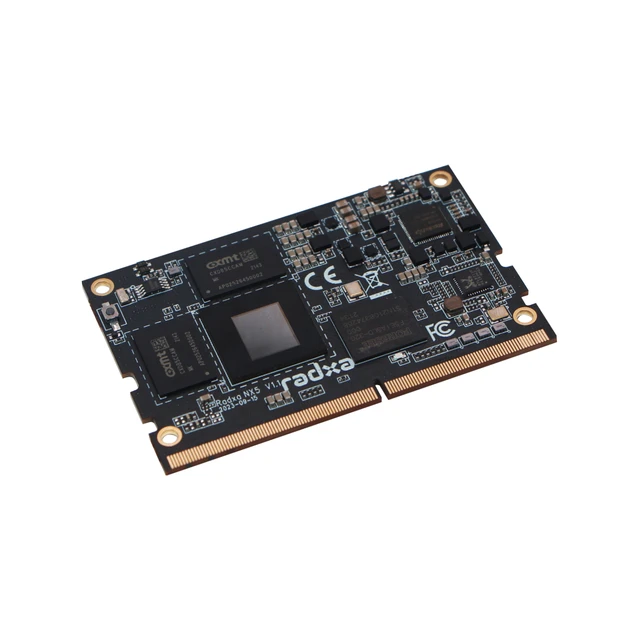

Radxa NX5 RK3588S 8コアCPUコンピューティングモジュール、8K HDMIおよび260ピンSODIMM金箔エッジコネクタ、シングルボードコンピュータ
Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer - 画像 (2)
Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer - 画像 (3)

Radxa NX5 RK3588S 8コアCPUコンピューティングモジュール、8K HDMIおよび260ピンSODIMM金箔エッジコネクタ、シングルボードコンピュータ

価格帯: $238.90 – $573.90

商品コード: 1005007511990982 カテゴリー: , ,

説明

Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 1

Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 2

Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 3Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 4Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 5Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 6Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 7Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 8Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 9Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 10Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 11Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 12

Radxa NX5 RK3588S 8-core CPU Compute Module, 8K HDMI and 260-Pin SODIMM Golden Finger Edge Connector, Single Board Computer — reference image 13

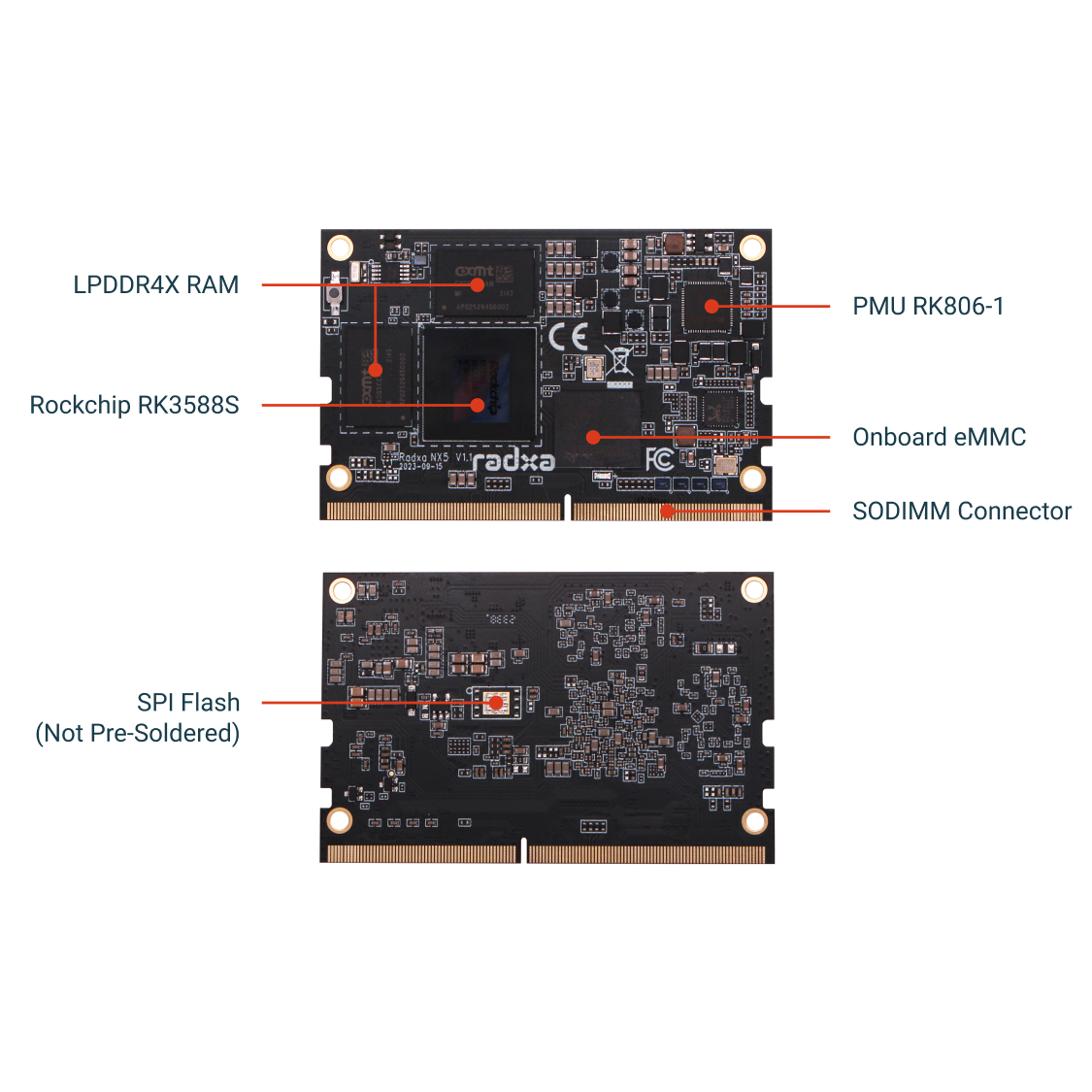

製品名 Radxa NX5

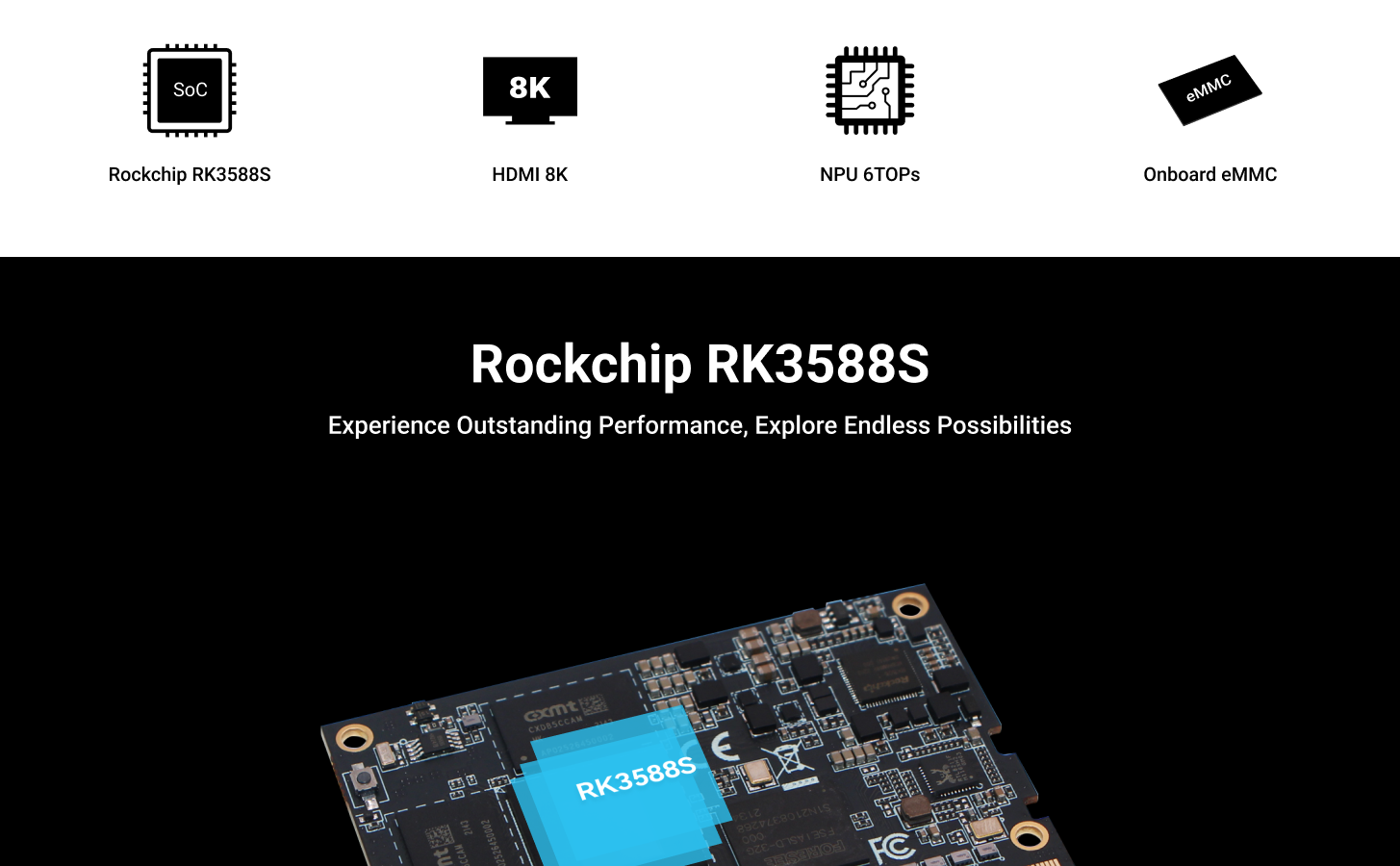

SoC Rockchip RK3588S
CPU Quad Cortex®‑A76 and Quad Cortex®‑A55 based on Arm®DynamIQ™ configuration
GPU ARM Mali™ G610MP4 GPU
NPU 6TOPs@INT8
メモリ LPDDR4x
Multimedia H.265 and VP9 decoder by 8K@60fps
H.264 decoder by 8K@30fps
AV1 decoder by 4K@60fps
H.264 and H.265 encoder by 8K@30fps
eMMC Onboard eMMC
SDMMC Supports SDMMC interface for microSD cards
イーサネット 1x Gigabit Ethernet PHY
表示 1x HDMI TX up to 8K@60hz
1x eDP TX up to 4K@60Hz
1x DP TX (and USB3.0 Combo) up to 8K@30Hz
1x 2-lane MIPI D/C PHY TX
カメラ 2x 2-lane or 1 x 4-lane MIPI CSI for Camera
1x 2-lane MIPI D/C-PHY RX
1x 4-lane MIPI D/C-PHY RX
USB 2 × USB 2.0 Host Port (HighSpeed)
1 x USB 3.0 Host Port (SuperSpeed)
1 x USB 3.0 OTG Port
PCIe 2 x PCIe2.0 1‑lane
– one shared with USB3 and SATA
– one shared with SATA
SATA 2 x SATA ports
– one shared with USB3 and PCIe2.0
– one shared with PCIe2.0

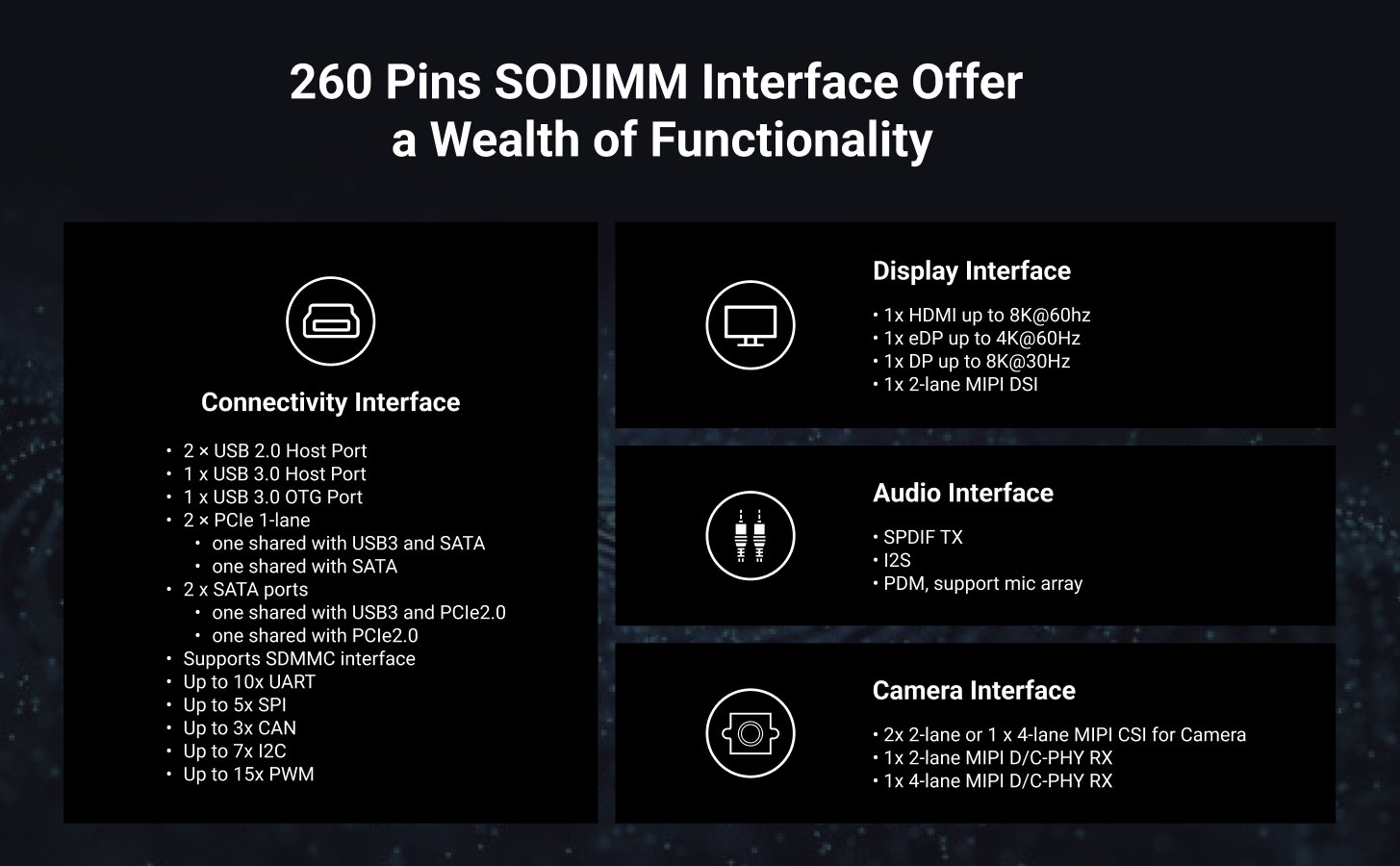

Connectivity UART
I2C
PWM
SPI
できる
I2S
PDM
SPDIF

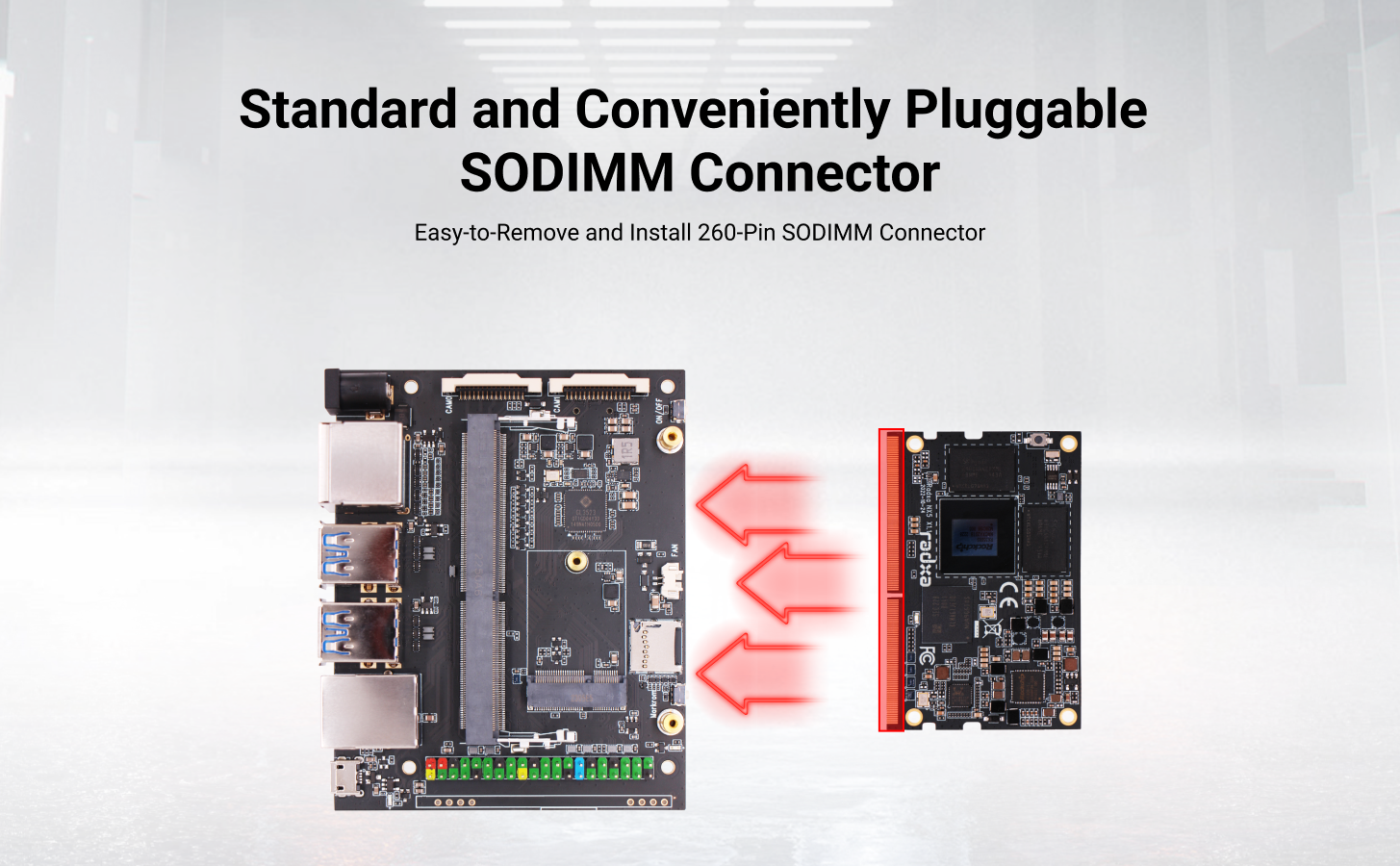

コネクタ 260-Pin SODIMM Golden Finger Edge Connector
フォームファクター 70mm x 45mm

製品のカスタマイズ

当社は製品のカスタマイズサービスを提供しています。. お問い合わせ お客様のご要望について話し合うため。.

追加情報

重さ 該当なし

メーカーと製品に関するリソース

製品の仕様、同梱品、在庫状況、配送に関する詳細は、製品説明をご確認ください。.
