Orbbec Gemini 2 3D Camera, Active Stereo IR 30fps 0.15–10 m Depth, 91°×66° FOV, USB‑C, IMU, SDK Support for Robotics

Orbbec Gemini 2 3D Camera, Active Stereo IR 30fps 0.15–10 m Depth, 91°×66° FOV, USB‑C, IMU, SDK Support for Robotics - 画像 (2)

Orbbec Gemini 2 3D Camera, Active Stereo IR 30fps 0.15–10 m Depth, 91°×66° FOV, USB‑C, IMU, SDK Support for Robotics

Name: Orbbec Gemini 2 3D Camera, Active Stereo IR 30fps 0.15–10 m Depth, 91°×66° FOV, USB‑C, IMU, SDK Support for Robotics
SKU: 1005009631352221
Price: 360.90 USD
Availability: InStock

$360.90

在庫あり

商品コード: 1005009631352221 カテゴリー: モジュールストア, 設備, プロトタイピングと拡張

説明

The compact Gemini 2 3D camera is based on Active Stereo IR technology and is equipped with Orbbec’s latest custom ASIC for high quality depth processing, IMU, and single cable USB 3.0 power + connectivity.

The wide FOV and the wide depth sensing range makes Gemini 2 adaptable for many applications, especially for robotics.

It is easy to set up and operate with the Orbbec SDK and delivers extremely accurate and reliable data in various lighting conditions from pitch black to semi-outdoor.

特集

Active Stereo IR Employs active stereo IR technology for depth output, enabling accurate and reliable data output in various lighting conditions
Wide Sensing Range Provides quality depth data output from 0.15m to 10m
Wide FOV Provides wide field of view data at 91-degree horizontal and 66-degree vertical
Multi-camera synchrnoization Supports multi-camera synchronization for both depth image and RGB image

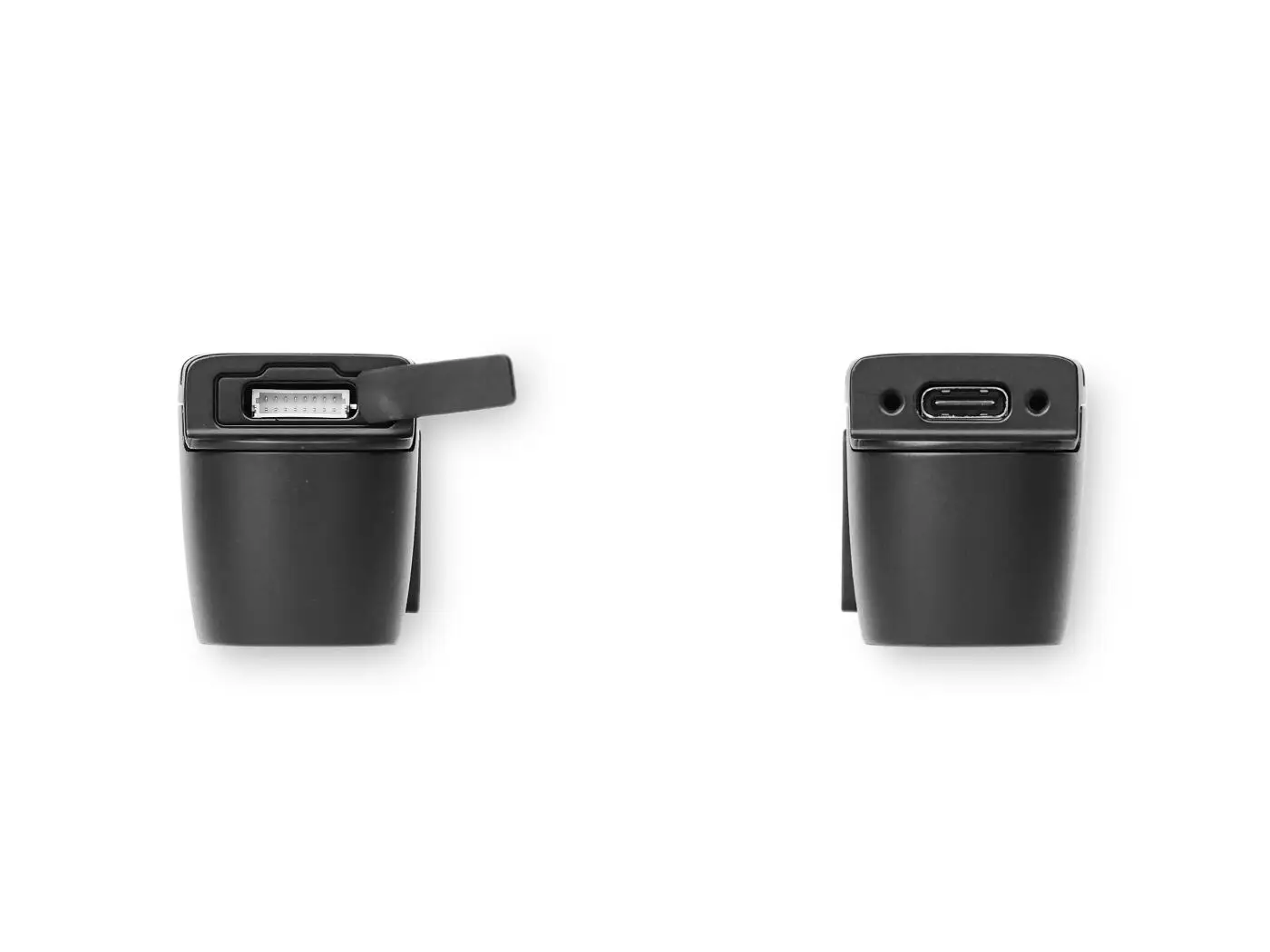

USB Connection Uses single USB 3.0 Type-C cable for power and connectivity

仕様

製品	Orbbec Gemini 2
電圧	5V (USB Type-C)
Depth Technology	Active Stereo IR
動作温度	0℃～40℃
機械的寸法	90mm x 25mm x 30mm
通信インターフェース	USB 3.0 Type-C
カメラ Driver	UVC
Depth 範囲	0.15m ~ 10m
Ideal 範囲	0.2m ~ 5m
Depth Resoultion	Up に 1280×800 @ 30fps
RGB Resoultion	Up に 1920×1080 @ 30fps
水平 FOV	91°
Vertical FOV	66°
