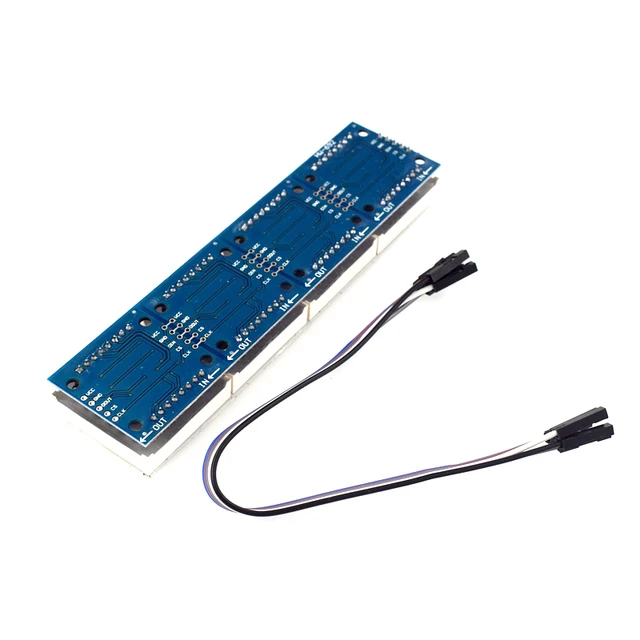

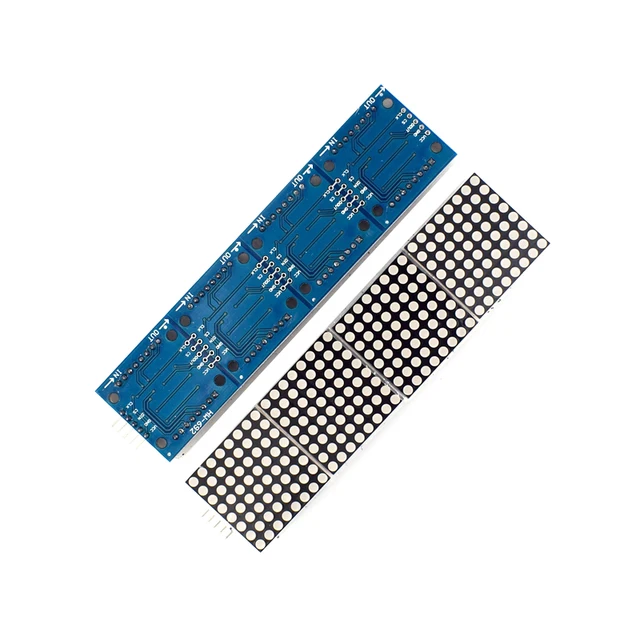

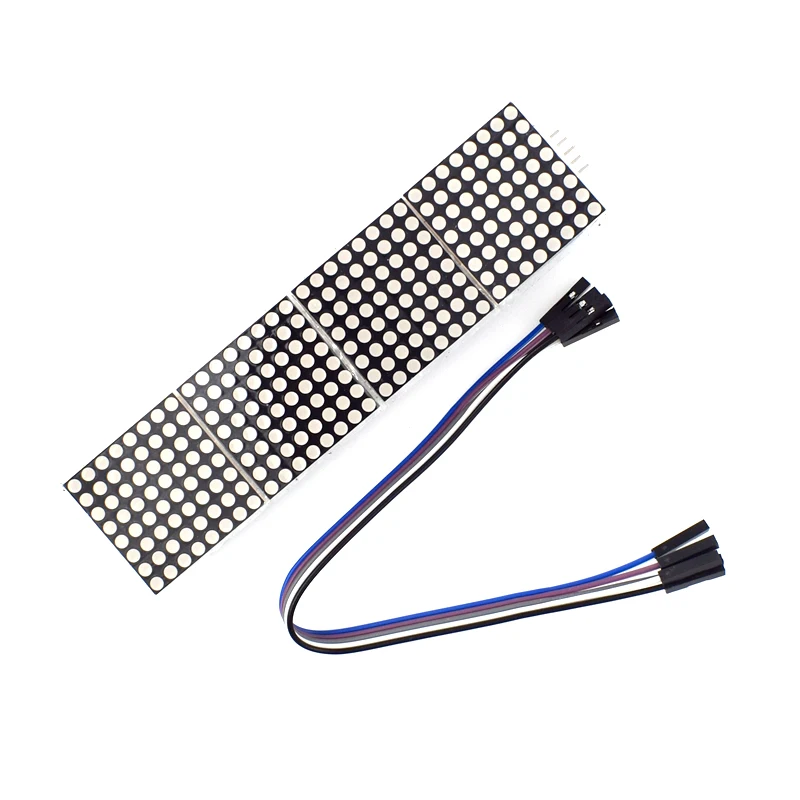

MAX7219 Dot Matrix Module 32×8 4 in 1 LED Display Modules Drive with 5Pin Wires for Arduino Raspberry Pi

説明

This module is an LED display driver module composed of 4 8 * 8 dot arrays, each with a separate MX7219 driver IC. In addition, it can communicate with other controllers through SPI (Serial Peripheral Interface) and control up to 64 individual LEDs to display different effects, such as animation and text flow images. It is widely used in various public places, such as car stop announcements, advertising screens, and billboards.

製品パラメータ：

Working voltage: DC 5V

Communication method: SPI three wire interface

Transmission rate: 10MHz

Module with input/output interface, supporting cascading multiple modules

VCC: Connect the positive pole of the power supply to 5V

GND: Connect to the negative pole of the power supply

DIN: Data Input (DOUT: Data Output, connected to the DIN pin of the next module)

CS: Select signal

LK: Clock signal
