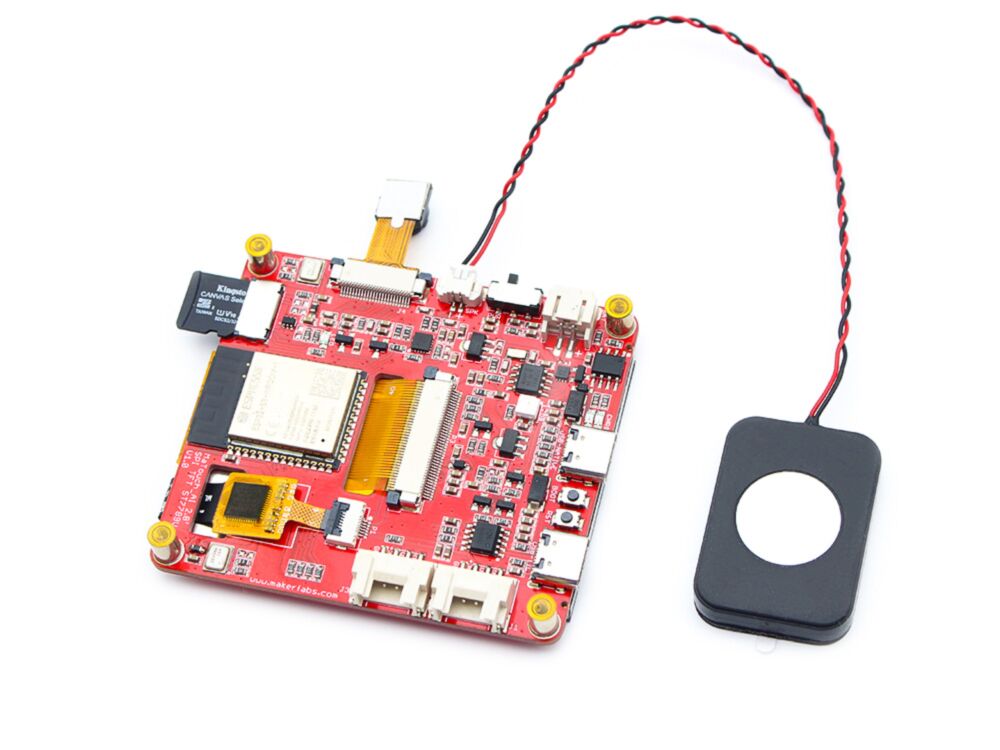

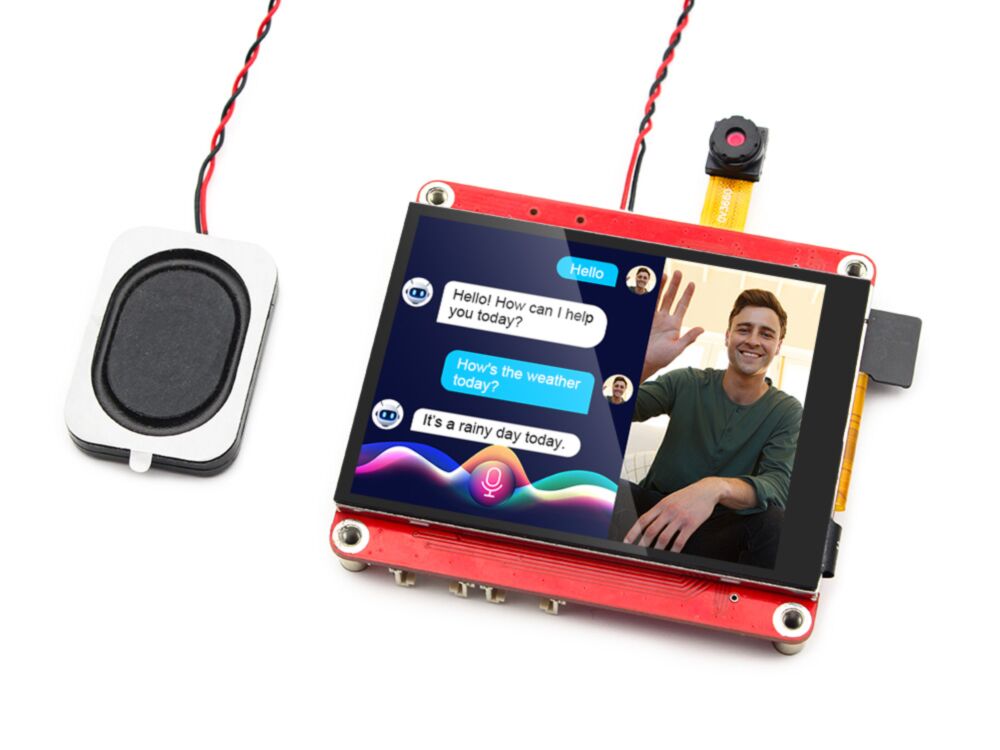

MaTouch AI ESP32-S3 2.8″ TFT ST7789V Display

説明

特徴：

• Controller: ESP32-S3, 16MB Flash, PSRAM 8MB
• Wireless: WiFi& Bluetooth 5.0
• LCD: 2.8″, 320×240 resolution
• LCD Driver: ST7789V
• LCD interface: SPI
• Touch Panel: 5 Points Touch, Capacitive, GT911
• USB: 1 * USB to UART CH340K, 1 * USB_native
• Power Supply: USB Type-C 5.0V(4.0V~5.25V)
• Camera: OV3660
• MicroSD: 32G
• RGB LED: 1XWS2812
• RTC: PCF8563T
• Charger: TP4056
• Microphone input: 2CH INMP441
• Audio output: MAX98357(3.2W@4Ω)

Parts list:

• MaTouch AI ESP32S3 2.8” TFT
