Heltec Meshtastic E290 ESP32 SX1262 LoRa Devboard Kit with 2.90-inch E-Ink Display BLE WiFi Type-C USB Compatible with Arduino

説明



説明

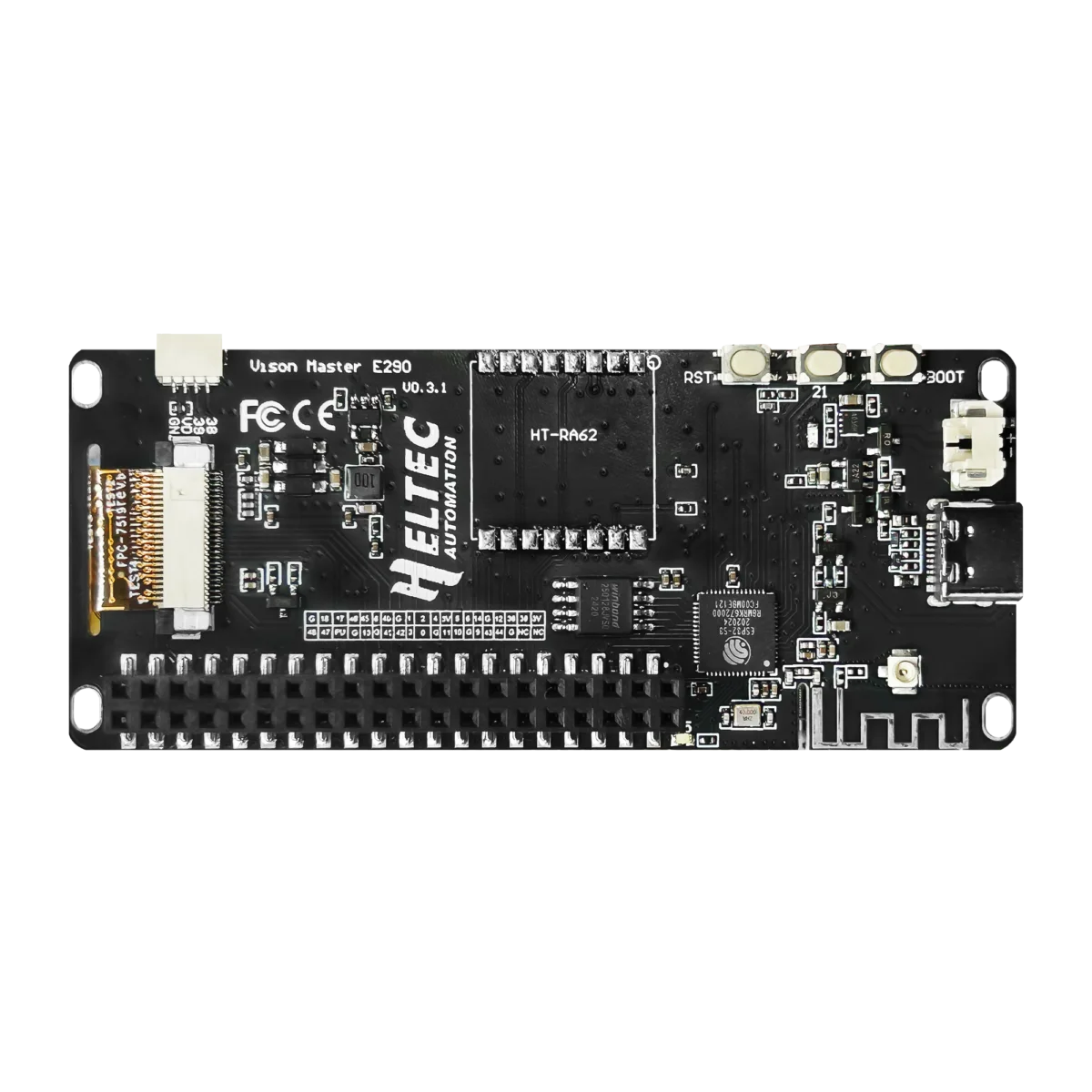

Vision Master E290 (HT-VME290) is an E-Ink development kit with multiple wireless drive methods. Collaborate with the sample programs and development tools we provide, users can operate the display via Bluetooth, Wi-Fi and LoRa.



It is compatible with Arduino, PlatformIO, Micpython and other development frameworks, can be used to develop applications such as electronic tags and identity tags, it is also possible to run open source projects like Meshtastic.



Main Features

• ESP32-S3R8 MCU, support Wi-Fi and BLE.
• LoRa module is optional, compatible with Mashtastic.
• Low power consumption, 18uA in deep sleep, continuous display for 180 days after power outage.
• Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
• Onboard 2.90 inch 296 x 128 pixels display, support for partial refresh.
• Storage condition: -25 ~ 70℃, ≤45%RH.
• Optimal operating condition：0~50℃, 55±10%RH.
• SH2.0-4P sensor interface is perfectly compatible with QuickLink series sensors.
• 2*20 Pin Female Header, perfectly compatible with Raspberry PI.
• Compatible with Arduino, we provide development frameworks and libraries.



仕様



パラメータ	説明
Master Chip	ESP32-S3R8
LoRa Node Chip	SX1262
頻度	470~510MHz, 863～928MHz
Max. TX Power	21±1dBm
Max. Receiving sensitivity	-136dBm@SF12 BW=125KHz
Wi-Fi	802.11 b/g/n, up to 150Mbps
ブルートゥース	Bluetooth 5 (LE)
Hardware Resource	6*ADC_1, 1*ADC_2, 6*Touch, 8M*PSRAM, 3*UART; 2*I2C; 2*SPI. Etc
メモリ	384KB ROM; 512KBのSRAM; 16KB RTC SRAM; 16MB SiP Flash
インタフェース	Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); Wi-Fi ANT(IPEX1.0); 2*20 Pin Famle Header; SH2.0-4P sensor interface.
バッテリー	3.7V lithium battery power supply and charging
動作温度	-20 ~ 70 ℃
E-Ink	2.90 Inch, 128(H)x296(V) Pixel, 29x67mm,
Display Color	Black&White(2 Grayscale)
寸法	87.96*36.63*12mm

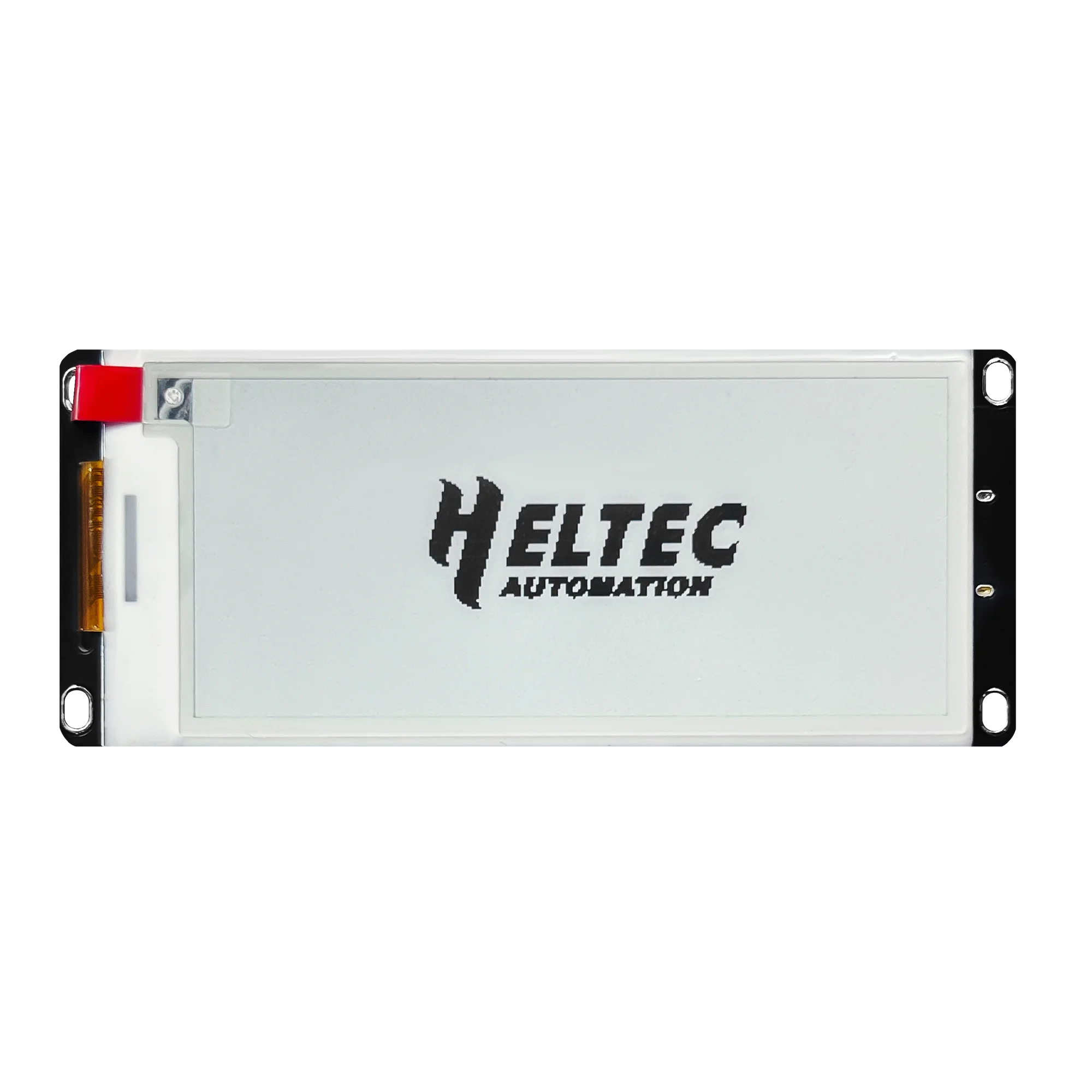

表示	2.90 Inch Black and White E-Ink Display Screen













































































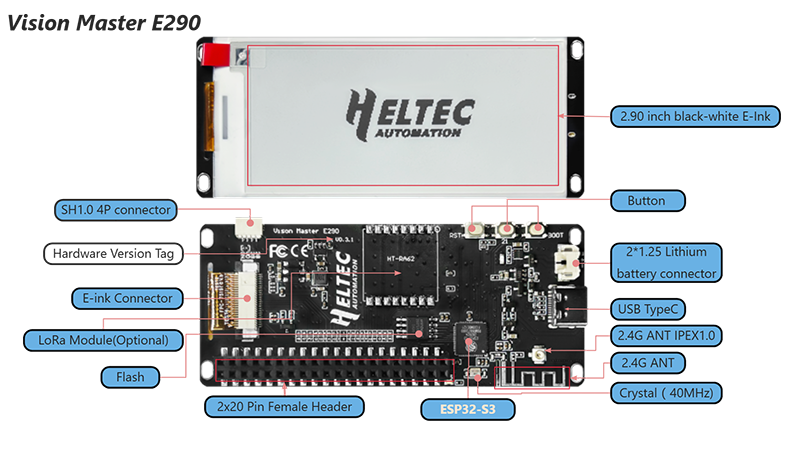

High light



USB/Battery interface Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).



High resolution display rich The integrated E-Ink display has a high resolution of 128×296 pixels, and can show system status and parameters, making it convenient for users to use the development board for their own product design.



Highly extensible Vision Master E290 has a rich set of pins and hardware resources, which will allow you to expand widely. 2*20 Pin Female Header, perfectly compatible with Raspberry PI.

Demension

Docs & Resource



Packing list

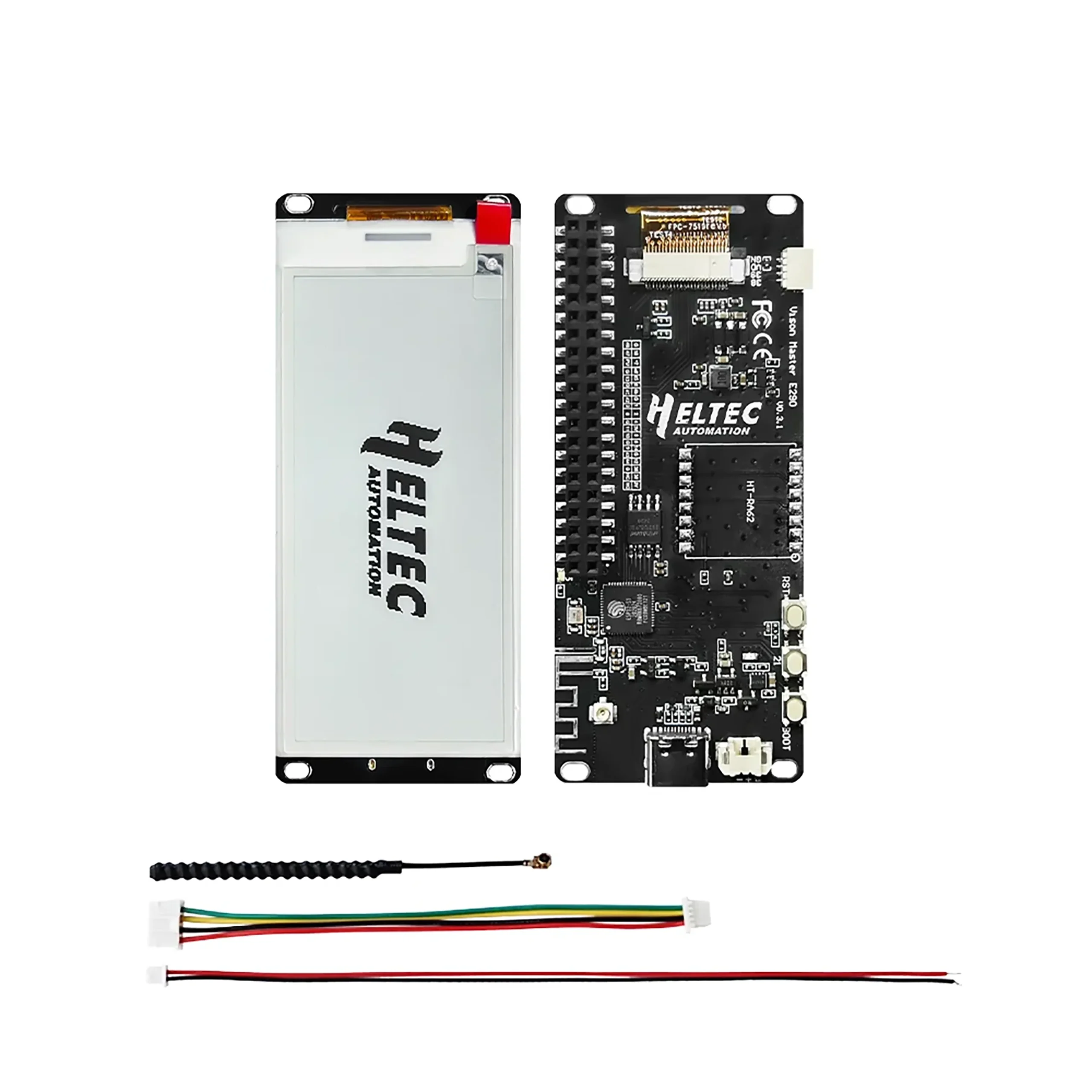

The default packing list without selecting any accessories is as follows:

アイテム	数量
HT-VME290	x1
LoRaアンテナ	x1
SH1.25×2 Battery Connector	x1





製品のカスタマイズ

当社は製品のカスタマイズサービスを提供しています。. お問い合わせ お客様のご要望について話し合うため。.
