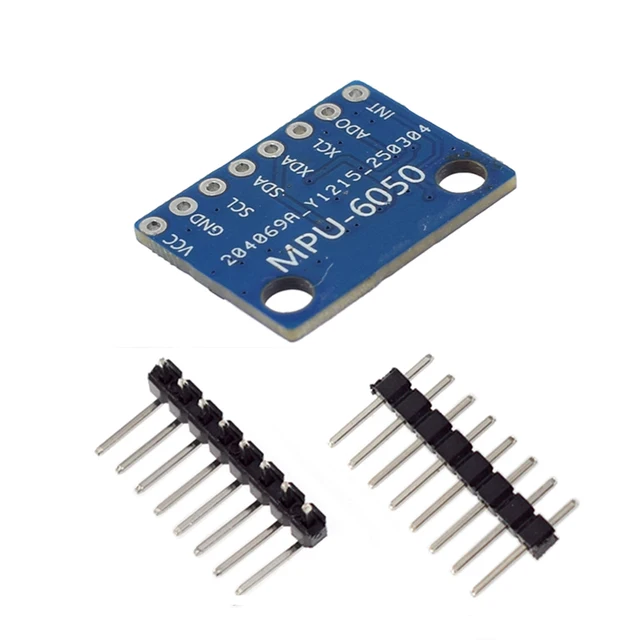

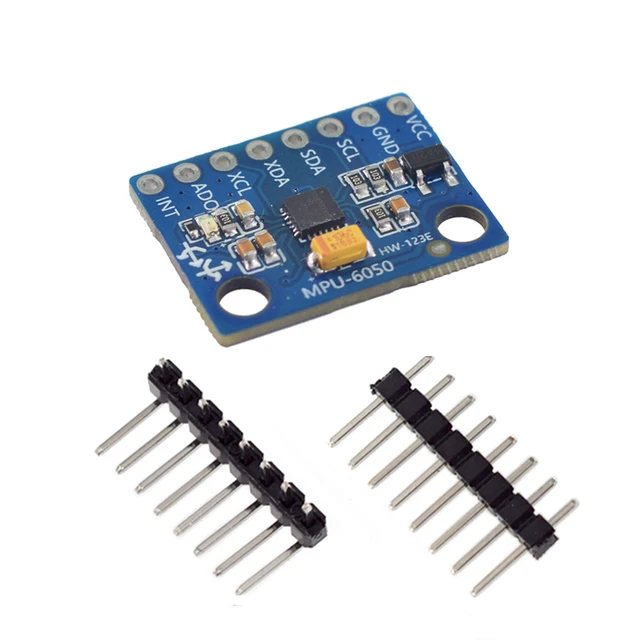

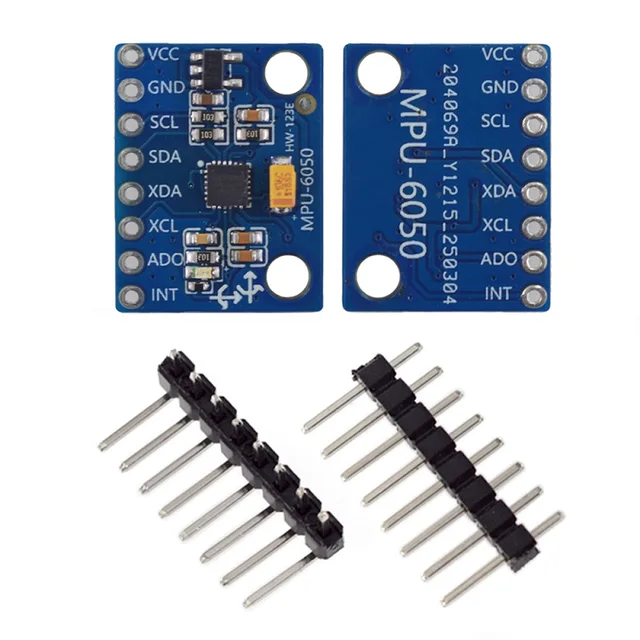

GY-521 MPU6050 3-Axis Accelerometer Gyro Module MPU-6050 6 DOF 6-Axis Accelerometer DIY Kit Compatible with 16-Bit AD Converter

説明

MPU-6050 is a sensor module that integrates a 3-axis gyroscope and 3-axis acceleration. The module uses an I2C interface for communication, calculates acceleration, motion, and direction, and has additional pins for connecting to other external sensor devices via I2C to increase 3-axis functionality. It also has a built-in temperature sensor that reads the temperature of the chip itself, rather than the ambient temperature, which is mainly used for sensor calibration and temperature reading.

製品パラメータ：

Working voltage: DC3V-5V

Communication method: Standard IIC communication protocol

The chip is equipped with a 16 bit AD converter, which outputs 16 bit data

Gyroscope range: ± 250, 500, 1000, 2000 °/s

Acceleration range: ± 2 ± 4 ± 8 ± 16g
