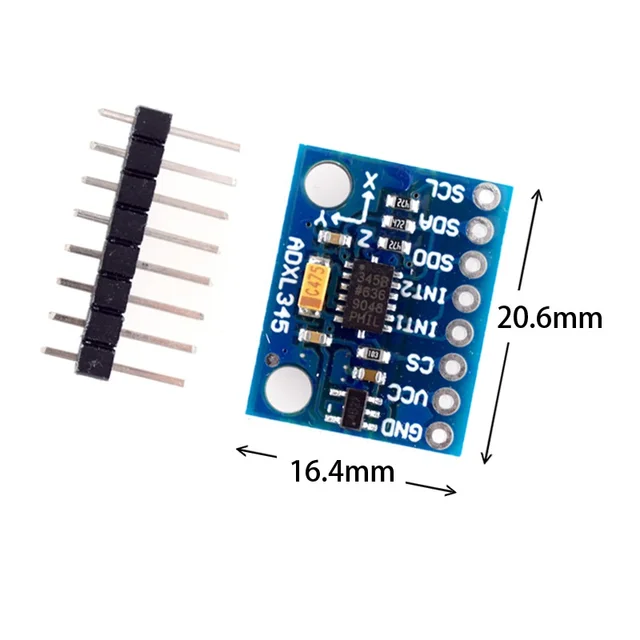

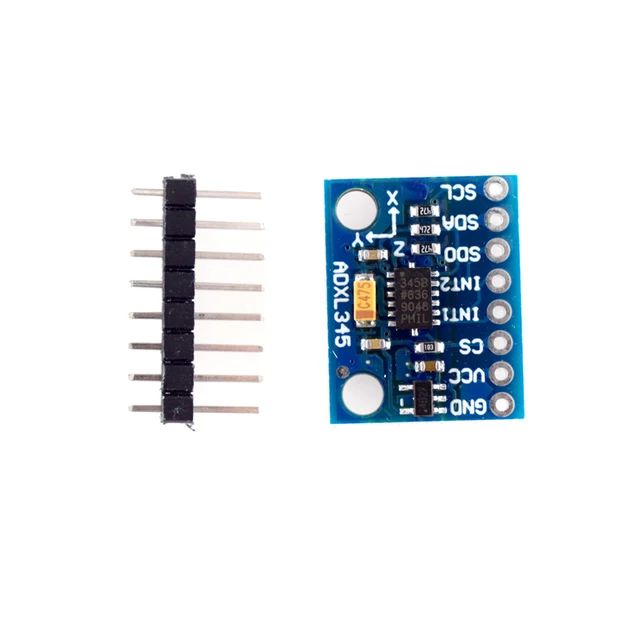

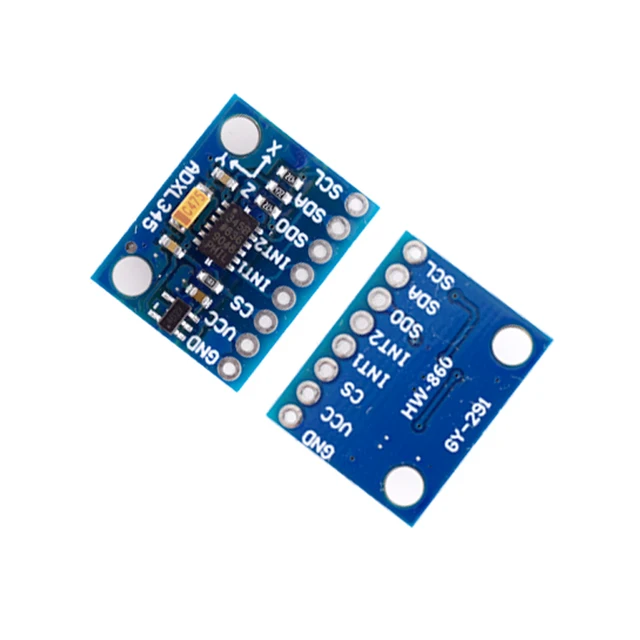

GY-291 ADXL345 デジタル3軸重力加速度傾斜モジュール IIC/SPI伝送 在庫あり

説明

ADXL345 is a small and thin ultra-low power 3-axis accelerometer with high resolution (13 bits) and a measurement range of ± 16g. The digital output data is in 16 bit binary complement format, which can be accessed through SPI (3-wire or 4-wire) or IIC digital interface;

ADXL345 is suitable for mobile device applications. It can measure static gravity acceleration in tilt detection applications, as well as dynamic acceleration caused by motion or impact. It has high resolution (4mg/LSB) and can measure tilt angle changes of 0.25 °. When using ADXL345 digital output acceleration, there is no need for digital to analog conversion, thus saving system costs and circuit board area.

製品の特徴：

Using chip: ADXL345 (three-axis gravity acceleration);

Communication method: IIC/SPI communication protocol;

Measurement range: ± 2g to ± 16g;

Reserve IIC/SPI interface for easy access to other main control boards;

製品パラメータ：

Power supply voltage: DC 3-5V

Power supply current: 400uA

Output: X, Y, Z

Working temperature: -40 ℃~85 ℃

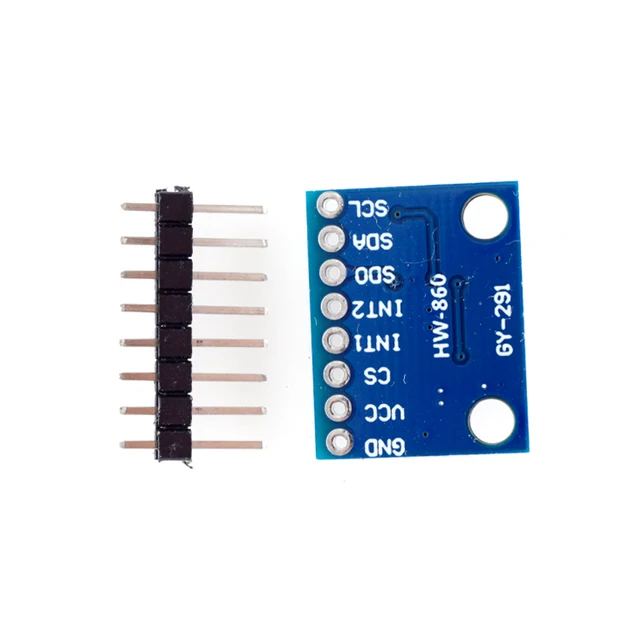

ピンの説明:

GND: Power Ground

VCC: Power supply range DC 3-5V

CS: Film Selection

INT1: Interrupt 1

INT2: Interrupt 2

SDO: SPI data output/IC address setting

SDA: SPI data I/O, IIC data cable (compatible with 5V level)

SCL: SPI clock line, IIC clock line (compatible with 5V level)
