Grove – Water Level Sensor (10CM)

説明

特長

高い測定精度： Since the sensor is based on capacitive sensing, The measurement accuracy is up to ±5 mm.

Outstanding corrosion resistance: Inevitably, some liquids may be corrosive during use, and with the help of corrosion-resistant materials, the sensor can be used for a long time.

Grove統合ソケット： このセンサーは「プラグアンドプレイ」に対応しており、様々な用途に幅広く活用できる。.



説明

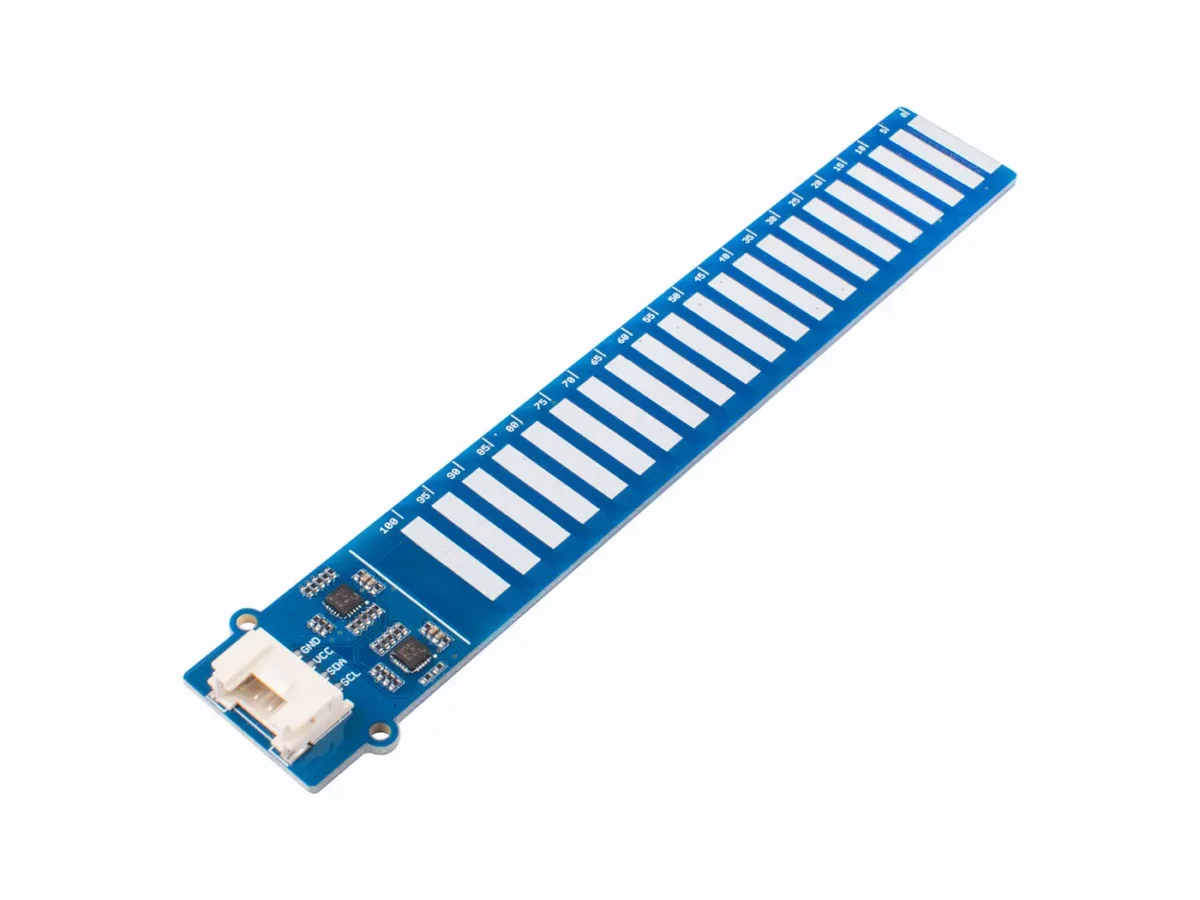

The Grove Water Level Sensor is a very accurate sensor that can be helpful in water level sensing applications. It is completely waterproof and uses capacitive pads to detect water levels up to 10cm.

We used capacitive pads on the PCB of the module and did conformal coating over the PCB to make the sensor protect against moisture, dust, chemicals and high temperatures. We believe that this technique will allow you to make accurate water level measurements (±5mm accuracy) easily



注記

The blue oil layer on the surface of the module’s capacitance sensing area should be kept intact. When the oil layer is damaged and the test object is a conductive liquid, the test data may be abnormal.



注意

When testing, the highest liquid level inserted should not exceed the white dividing line, otherwise it will cause a short circuit.



ハードウェアの概要



部品リスト

Grove – Water Level Sensor (10CM) for Arduino

Grove Cable

製品のカスタマイズ

当社は製品のカスタマイズサービスを提供しています。. お問い合わせ お客様のご要望について話し合うため。.
