Grove – I2C Color Sensor V2:RGB LED Control

説明

特長

🌱Recognize different colors: Enables accurate color and light sensing measurements under varying lighting conditions

🌱Maskable interrupt: Programmable interrupt function with User-Defined Upper and lower threshold settings

🌱Low power – 2.5μA sleep state: Enabling a low-power wait-state between RGBC measurements to reduce average power consumption

🌱Digital output: 16-Bit digital output with I2C at 400 kHz

🌱Grove統合ソケット： The product ensures “Plug and Play” and could be versatile for various applications of Grove

説明

This is an updated version of the Grove – I2C Color Sensor module. The new version is based on the color sensor TCS34725FN with digital output I2C. We also changed the circuit’s layout based on the new sensor. Based on the 3*4 array of filtered photodiodes and 16-bits analog-to-digital converters, you can gain the color chromaticity of ambient light or the color of objects. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters and 4 have no filter(clear). With the synchronization input pin, external pulsed light source can provides precise synchronous conversion control.

This module can be used to detect the color of light source or the color of objects. When used to detect the color of the light source, the led switch should be turned off, and the light source should shine the sensor directly. When used to detect the color of things, the led should be on and you should put the object on the top of the enclosure closely. The theory of sensing the color of objects is Reflective Sensing Theory. Like the picture below

部品リスト

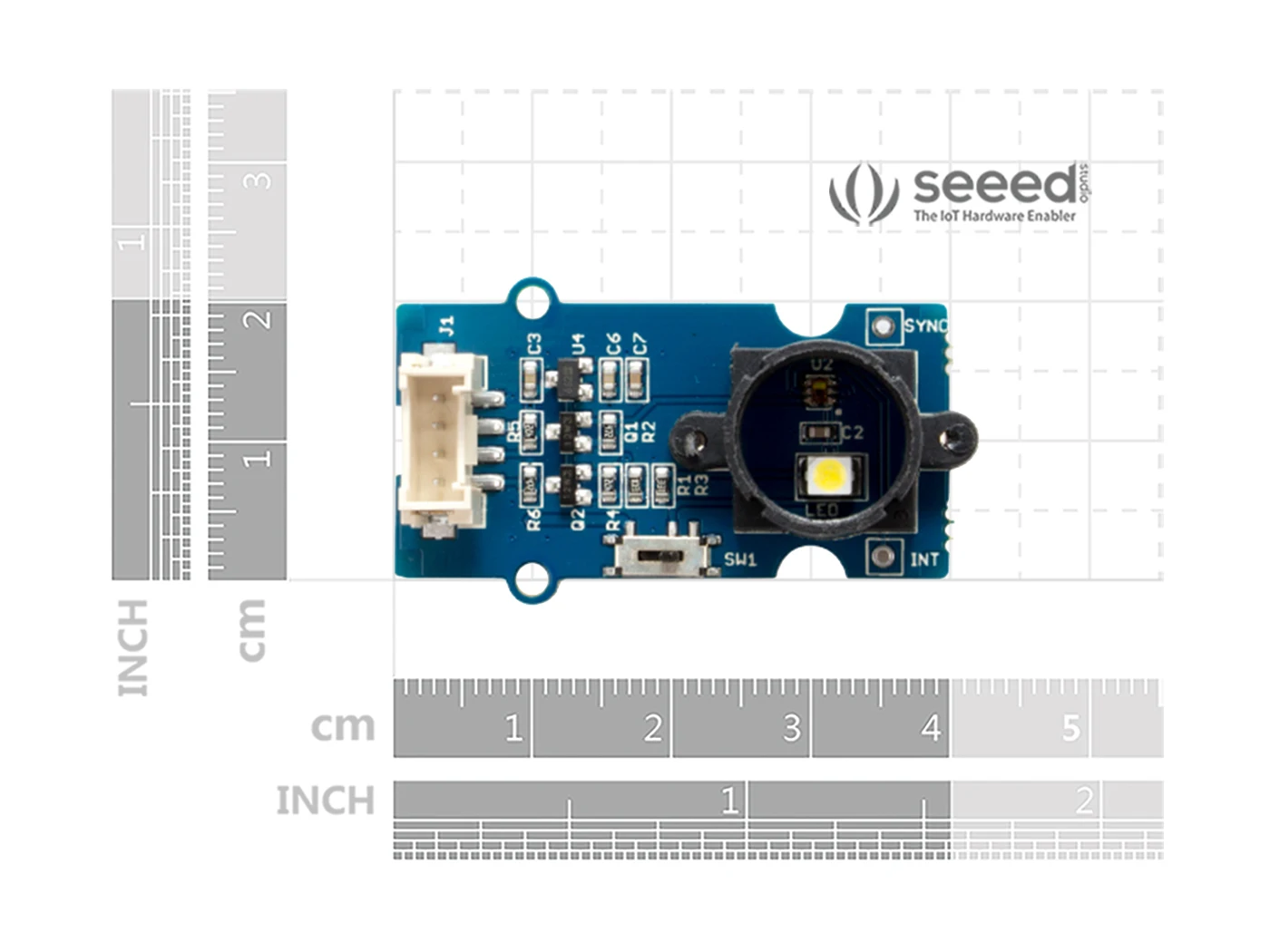

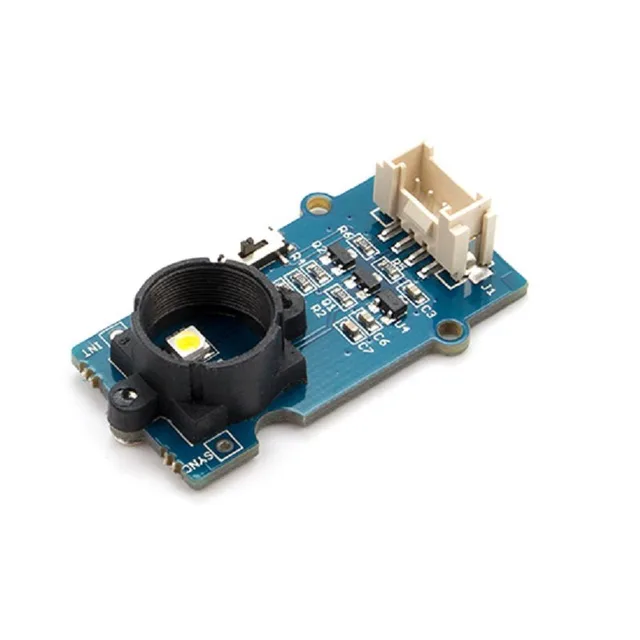

Grove – I2C Color Sensor V2

Grove Cable
