ESP32-S3 1.32inch AMOLED Display Development Board
Embedded with CO5300 Display Driver and CST820 Capacitive Touch Chip
特長
の ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.
- Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
- Built-in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash memory

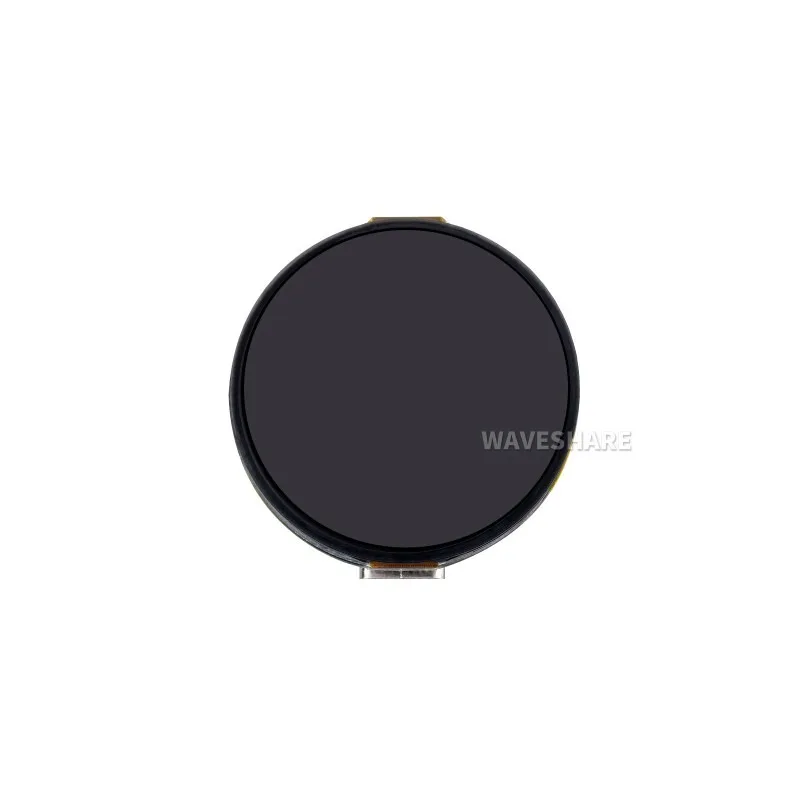

- Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
- Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
- オンボードのPWRおよびBOOTプログラマブルボタンにより、カスタム機能の開発が容易です。
- Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
- Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
- Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
- AMOLEDスクリーンを採用し、高コントラスト、広い視野角、豊かな色彩、高速応答、薄型デザイン、低消費電力などの利点を備えています。.
AMOLEDパラメータ
| ディスプレイパネル |
AMOLED |
表示サイズ |
1.32 inch |
| 解決 |
466×466ピクセル |
表示色 |
1670万 |
| 輝度 |
500 cd/㎡ |
コントラスト比 |
10000:1 |
| 通信インターフェース |
QSPI |
ドライバIC |
CO5300 |
| 触る |
サポート対象 |
タッチIC |
CST820 |
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-machine Interaction Function. Supports connecting to a Batt. for independent operation

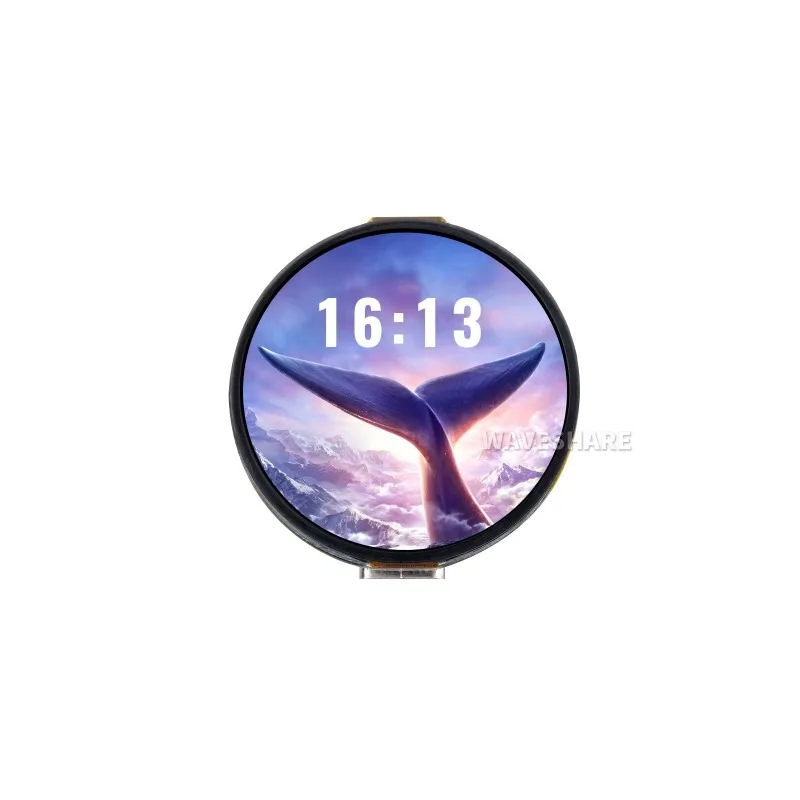

Adopts AMOLED screen
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images
178° wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle
Onboard audio codec chip
Supports high-quality audio processing, providing clear and high-quality audio input and output
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
ESP-IDF、Arduino IDEに対応
Comprehensive SDK, dev resources, tutorials to help you easily get started
Wi-FiおよびBLE 5に対応
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support,
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

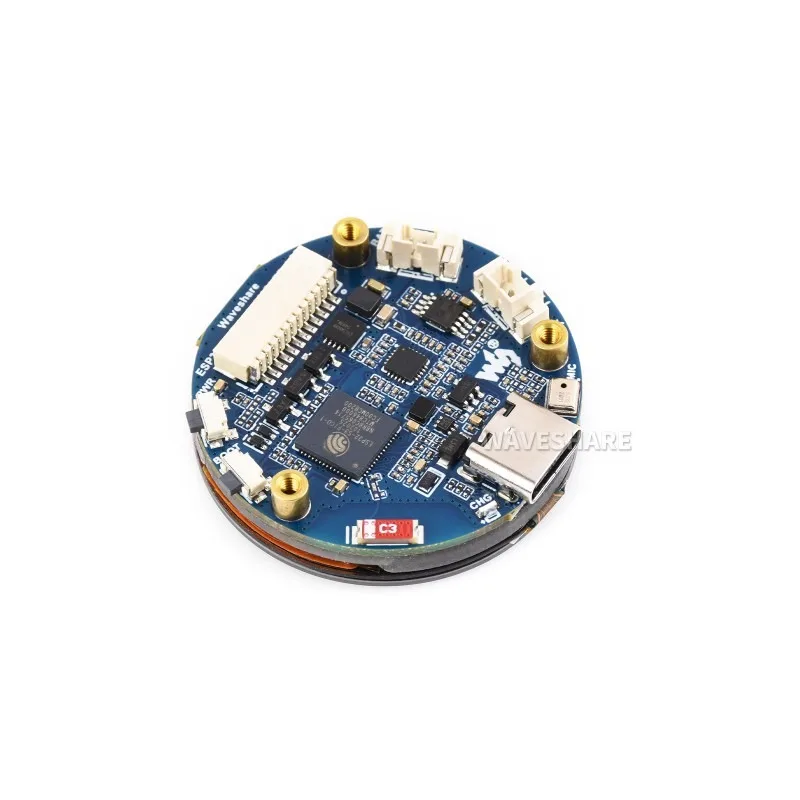

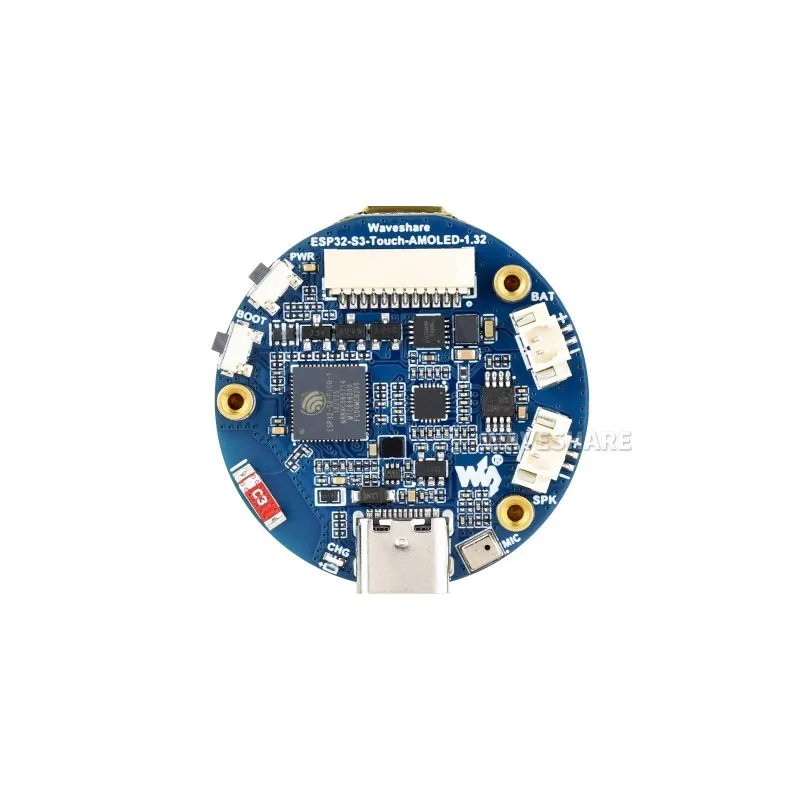

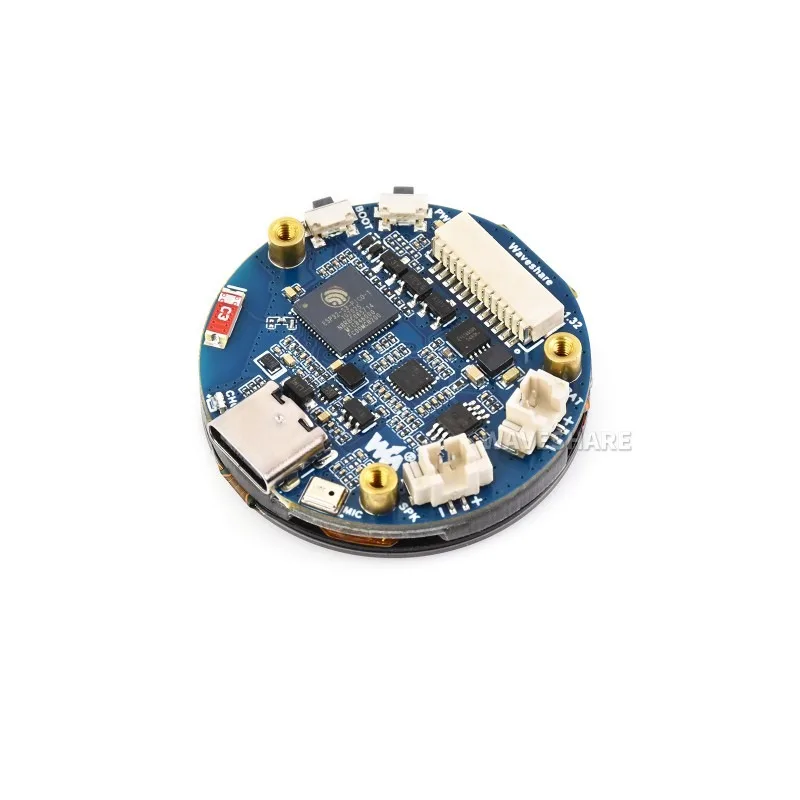

機内設備
- ESP32-S3-PICO-1-N8R8
Wi-Fi and Bluetooth SoC, up to 240MHz operating frequency, with onboard 8MB PSRAM and 8MB Flash memory
- PWR button
for power supply ON/OFF when powered by Lithium Batt., driver required
- ブートボタン
Press and hold the BOOT button, then power up again to enter download mode
- MX1.25 2PIN Lithium Batt. header
for 3.7V Lithium Batt., supports charging and discharging
- MX1.25 2PIN speaker header
Audio signal output, supports connecting external speakers
- SH1.0 12PIN interface
for external device connection and debugging, allowing flexible configuration of peripheral functions
- Type-C port
for program burning and log printing
- Digital microphone
for audio capture
- Onboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- ES8311
High-performance and low-power audio codec chip
