Electronic EYE 0.71インチ 円形LCDディスプレイ画面（Arduino、Raspberry Pi、ESP32、Pico、STM32対応）

説明

  Notes

• It can not be used alone. It Can not display after power on.
• It needs to be used with an additional motherboard such as Arduino/STM32

概要

• Screen size: 0.71inch
• Screen type: IPS
• Resolution: 160×RGB×160(pixels)
• Effective display area: 18(H)×18(V)mm
• Driver IC: GC9D01
• Display interface: 4-Line SPI
• Viewing angle: All View
• Backlight brightness (typical value): 350 (TYP)
• Backlight type: 1 White LED
• Operating temperature: -20℃~ + 70℃
• Storage temperature: -30℃~+ 80℃
• 動作電圧：3.3V
• Backlight current: 20mA
• Power consumption: 0.026W
• LCD screen dimensions: 20.12(H) x 22.3(V) x1.81(D) mm

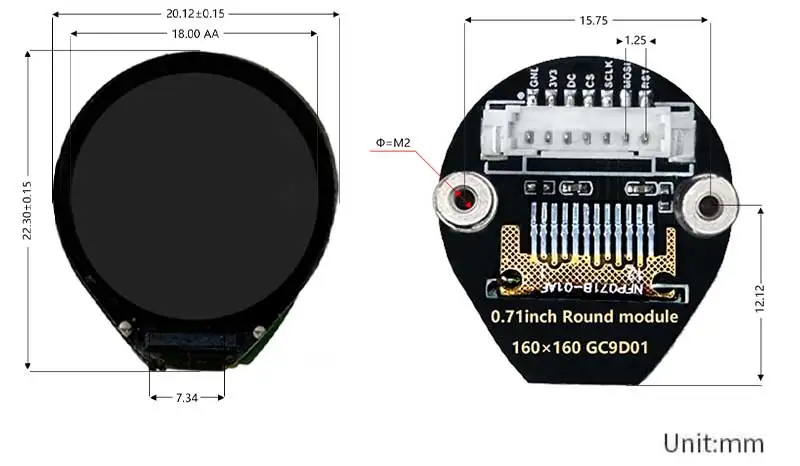

製品サイズ

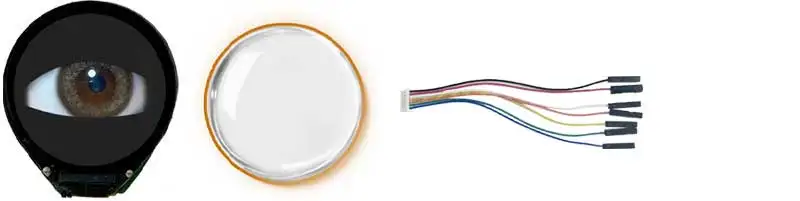

パッケージ内容
