ABMF-ESP32-P4-ETH開発ボード、RJ45イーサネットポート、MIPI-DSIインターフェース、40ピンGPIO、32MB PSRAM、AIディープシーク対応、POE対応

128KB HP ROM,16KB LP ROM,768KB HP L2MEM,32KB LP SRAM,8KB TCM
Powerful image and voice processing capabilities, including image and voice processing interfaces such as JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP) and H264 video encoder,32MB PSRAM in chip package, 32MB Nor Flash externally integrated
Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0, SD card slot, microphone and speaker terminals are brought out on the board

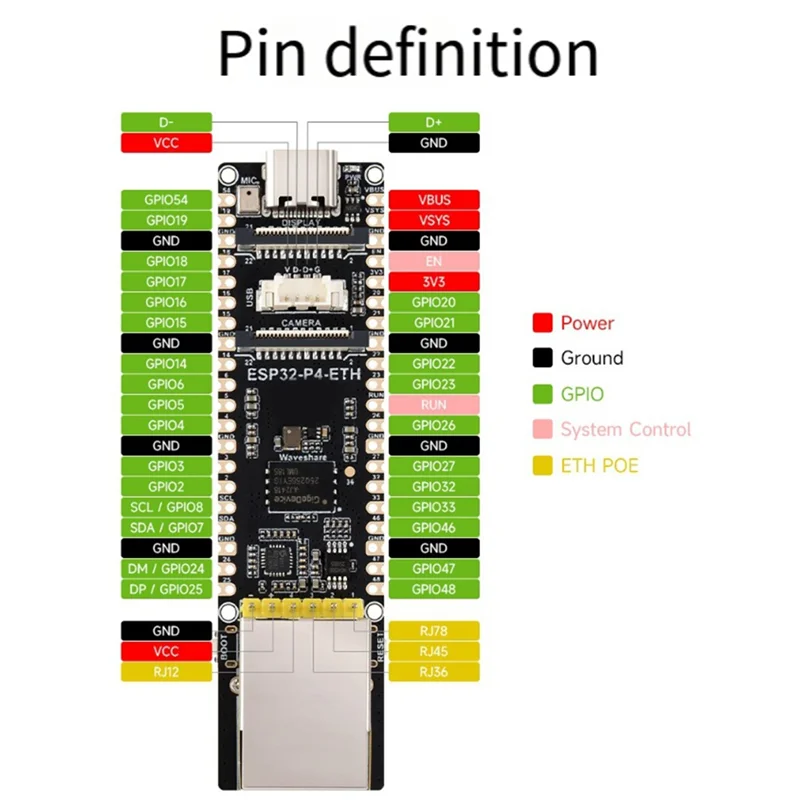

2×20 pin headers are provided on the board, leading to 27 remaining programmable GPIOs
Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. It also supports hardware access protection, enabling access rights management (APM) and privilege separation

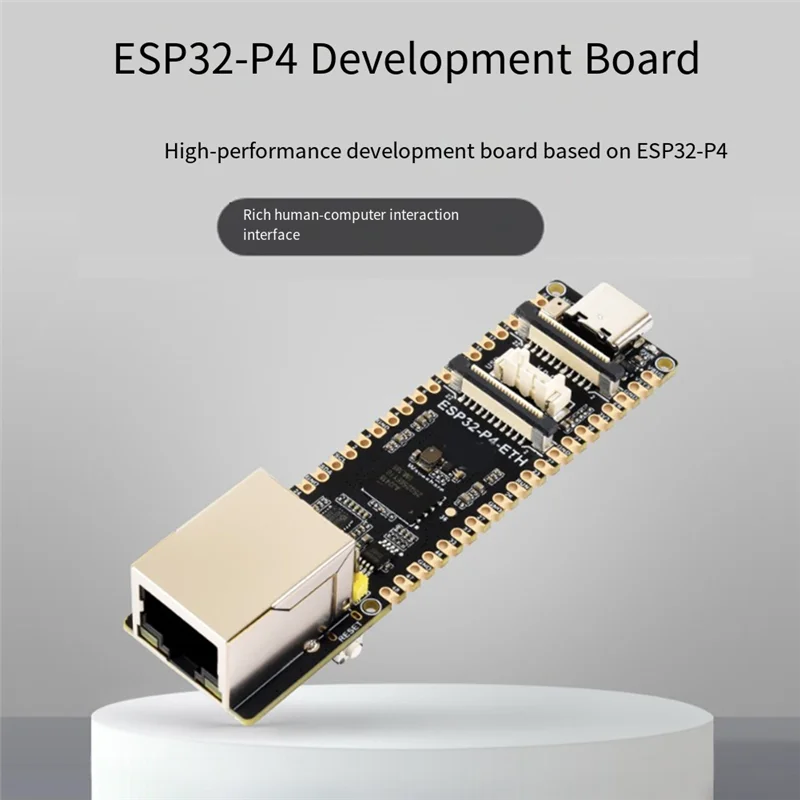

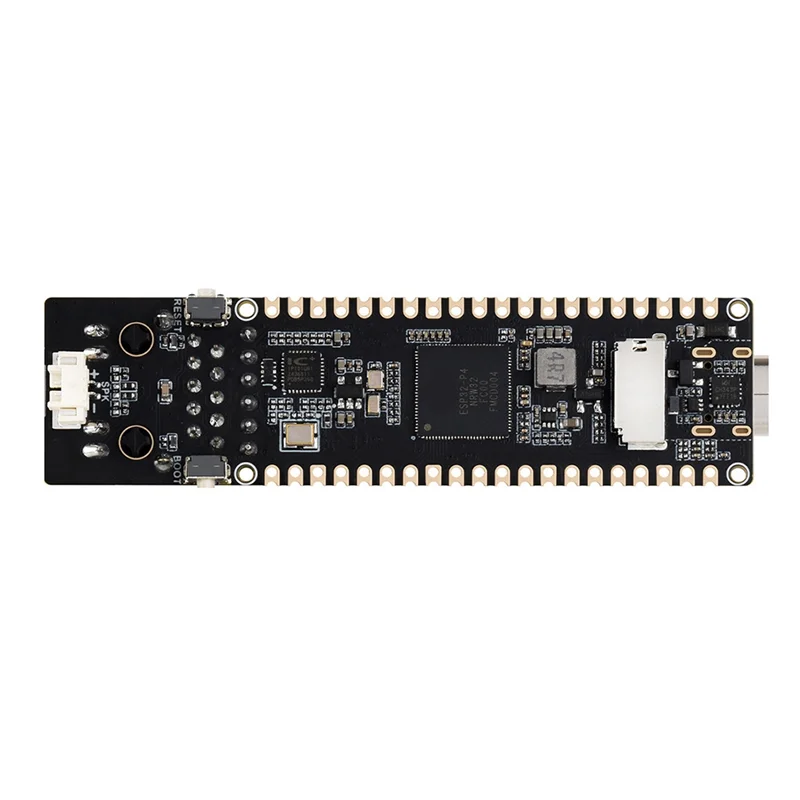

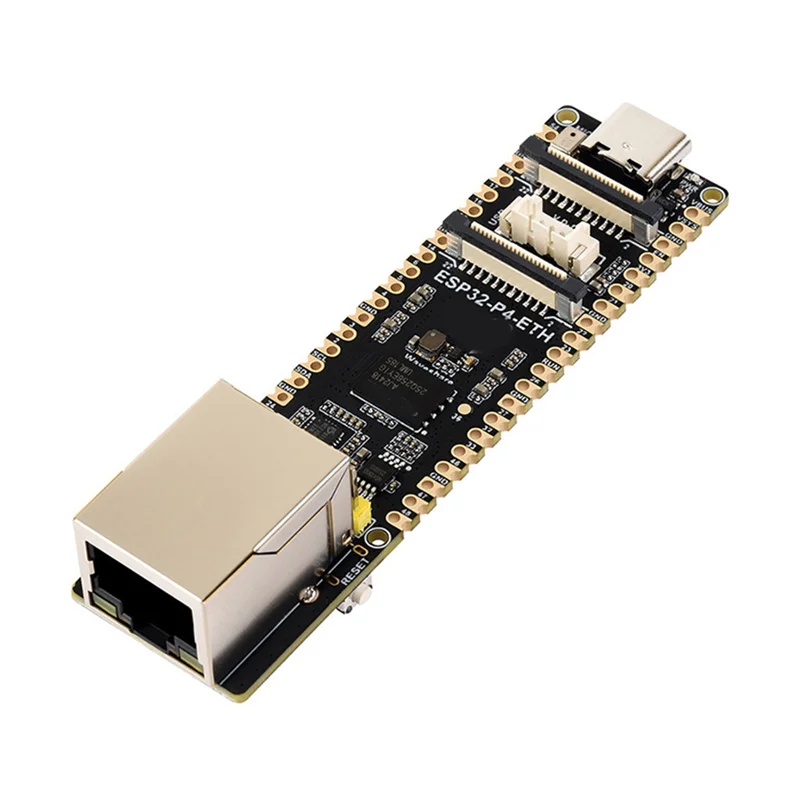

This product is a multimedia development board based on the ESP32-P4. It provides a rich set of human-computer interaction interfaces, including MIPI-CSI (integrated image signal processor, MIPI-DSI), SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. It also supports USB OTG 2.0 HS and Ethernet, and has an onboard 40-pin GPIO expansion header compatible with some for Raspberry Pi Pico expansion boards, enabling a wider range of application adaptability.
The ESP32-P4 is equipped with a RISC-V dual-core processor, supports up to 32MB of PSRAM, and features peripherals such as USB 2.0, MIPI-CSI/DSI, and H.264 encoding, meeting the needs of low-cost, high-performance, and low-power multimedia development.
Furthermore, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. Designed for high-performance and high-security applications, the ESP32-P4-ETH meets the needs of embedded systems for human-computer interaction, edge computing, and I/O expansion.
(The product printed words may vary depending on the batch, but this does not affect use)
Color:As Shown
Material:PCB

Specification:A:welding needle arrangement
パッケージ内容：
1 * Development Board

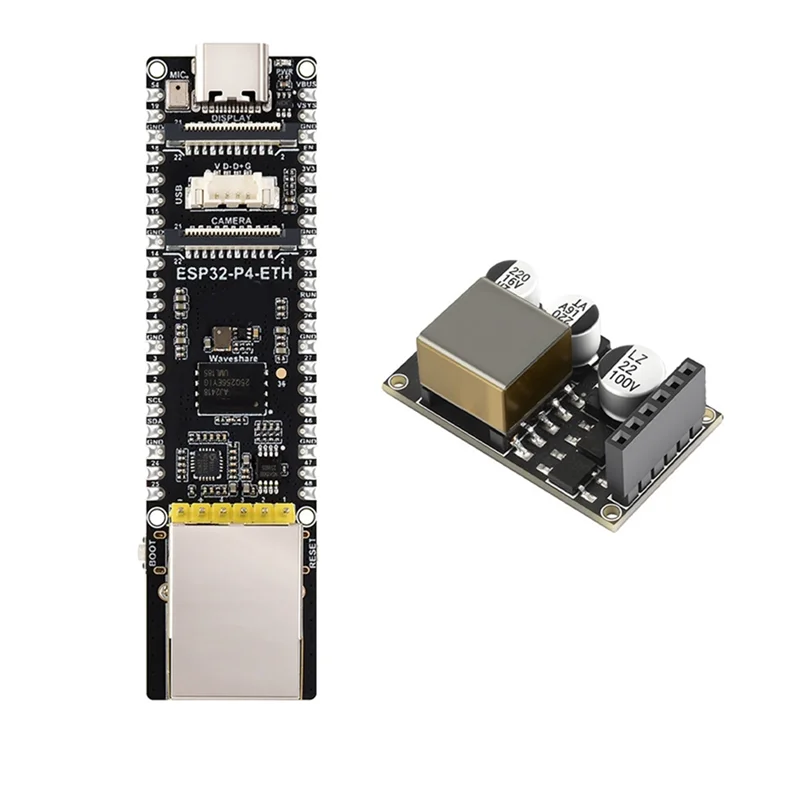

Specification:B:with POE
パッケージ内容：
1 * Development Board
1 * poe.
(The product printed words may vary depending on the batch, but this does not affect use)
Specification:B:with POE
Color:As Shown
Material:PCB

パッケージ内容：
1 * Development Board
1 * poe

上記パッケージの内容物のみが含まれており、その他の製品は含まれていません。.
注：光の反射やディスプレイの違いにより、写真と実物の商品の色が若干異なる場合があります。測定誤差は±1～3cmです。.
