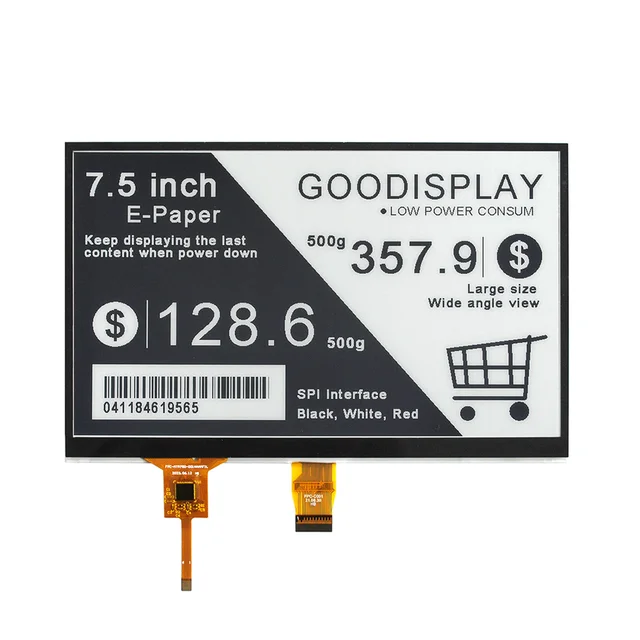

7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display

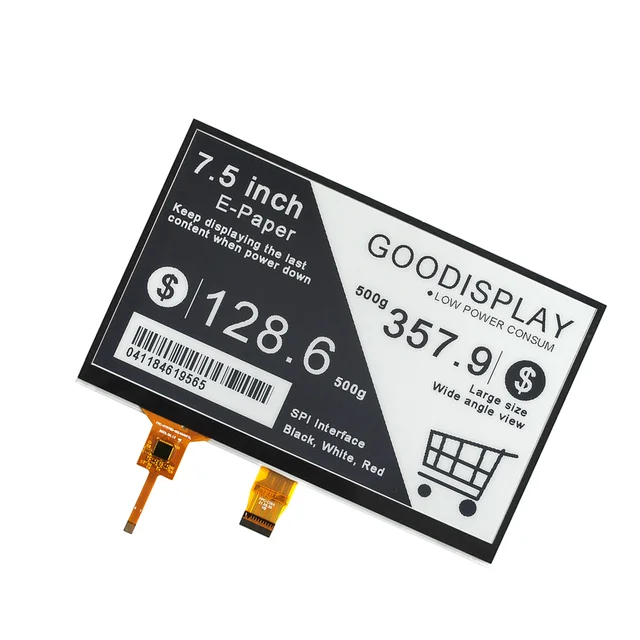

7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display - 画像 (2)

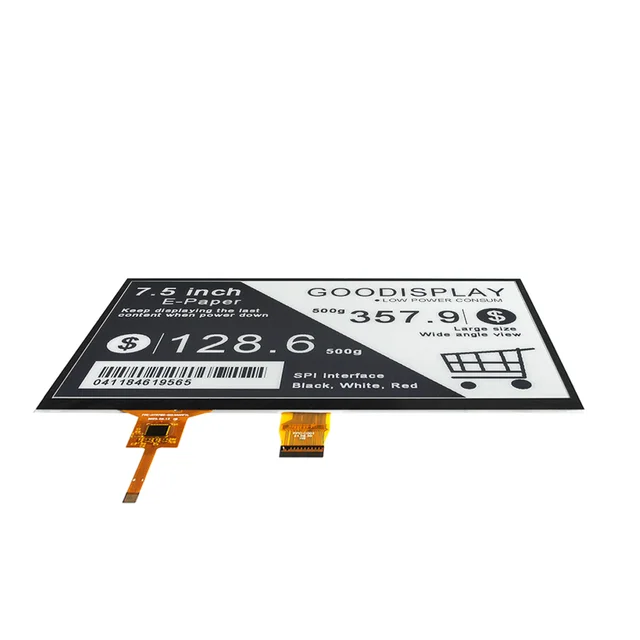

7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display - 画像 (3)

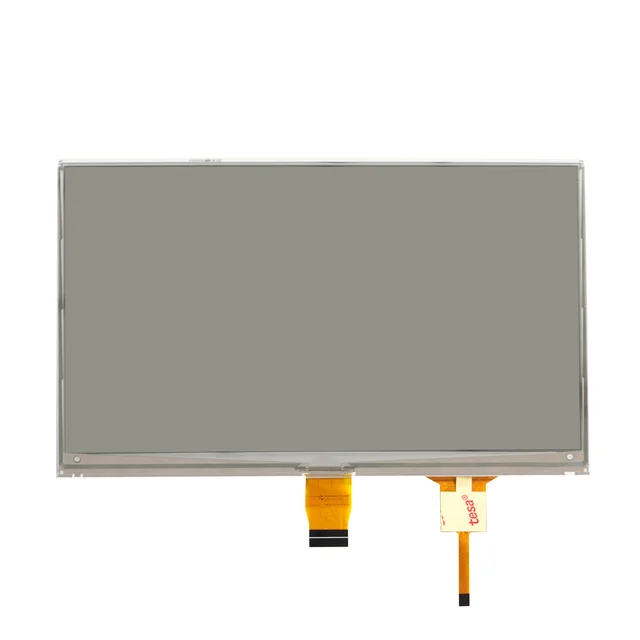

7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display - 画像 (4)

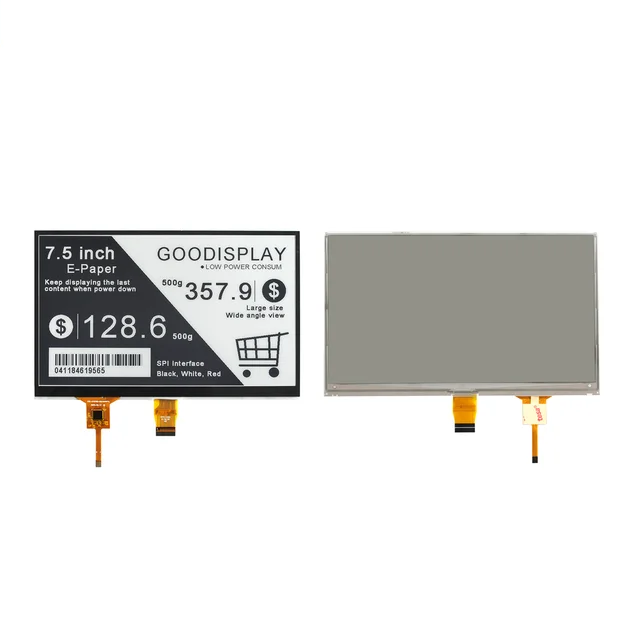

7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display - 画像 (5)

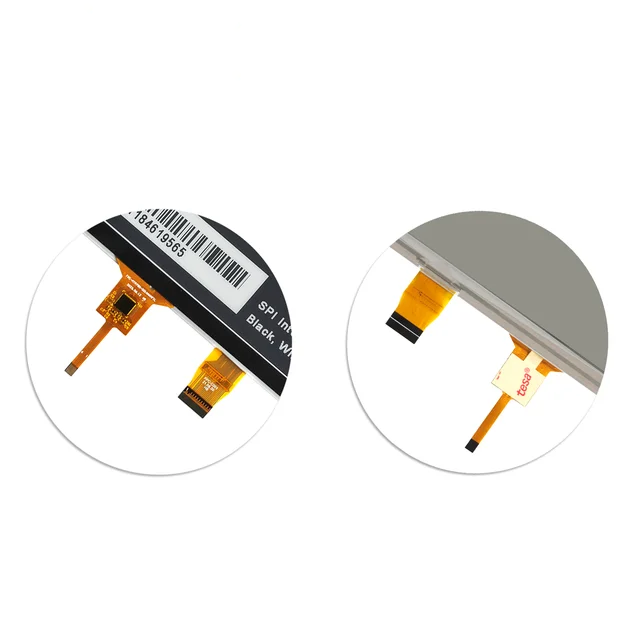

7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display - 画像 (6)

7.5 inch E-Ink Screen Module 4-Grayscale 800×480 E-Paper Raspberry Pi Touch Display

Name: 7.5 inch E-Ink Screen Module 4-Grayscale 800x480 E-Paper Raspberry Pi Touch Display
SKU: 1005006567194430
Availability: InStock

価格帯: $39.80 – $65.90

サイズ

クリア

商品コード: 1005006567194430 カテゴリー: モジュールストア, ディスプレイおよびHMI, 電子ペーパースクリーン

説明

Goodisplay Touch ePaper Supplier

Enhance Interaction with Precision Touch

Good Display, with 17 years of expertise in e-paper technology, is dedicated to bringing the best e-paper solutions to its customers. This touchscreen e-paper panel seamlessly integrates a PET material touch sensor directly onto the top of the E Ink display, creating an advanced touch solution. This design not only reduces power consumption and costs but also improves the aesthetic appeal and visual clarity of the display. It’s an ideal fit for a wide range of smart devices.


New Generation of Touch Screen ePaper

解決： 800×480	Max Grayscale: 4	低消費電力	Fast Update: 1.5s	Partial Update: 0.3s	Full Update: 3s

E Ink Touch Screens for Every Need

Why We’re the Best Choice for You

Advanced Touch Technology: GDEY075T7-T01 is a TFT active matrix electrophoretic display with capacitive touch panel-GT911, Supports 5-point touch and featuring an I2C interface.
Exceptional Transparency: The e-paper touchscreen offers superior light transmission, enhancing contrast and clarity.
Ultra-Low Power Consumption: Both the e-paper display and touchscreen use minimal power.
Fast Refresh Rate: Faster touch response thanks to improved e-paper refresh rates.

Custom Touch Module Solutions

● Designed to be fully compatible with any 7.5-inch E Ink display, ensuring seamless integration.
● Our dedicated quality control team guarantees the highest product standards, delivering only the best to our customers.
● Backed by comprehensive technical support from our expert team, we’re here to ensure your success every step of the way.

		技術詳細

製品仕様

部品番号	GDEY075T7-T01	CONNECTOR OF EPD	24 Pin FPC
タイプ	ドットマトリックス	最大グレースケール	4
サイズ	7.5 inch	色	黒、白
IC	UC8179	FULL REFRESH(s)	3
解決	800×480	FAST REFRESH TIME(s)	1.5

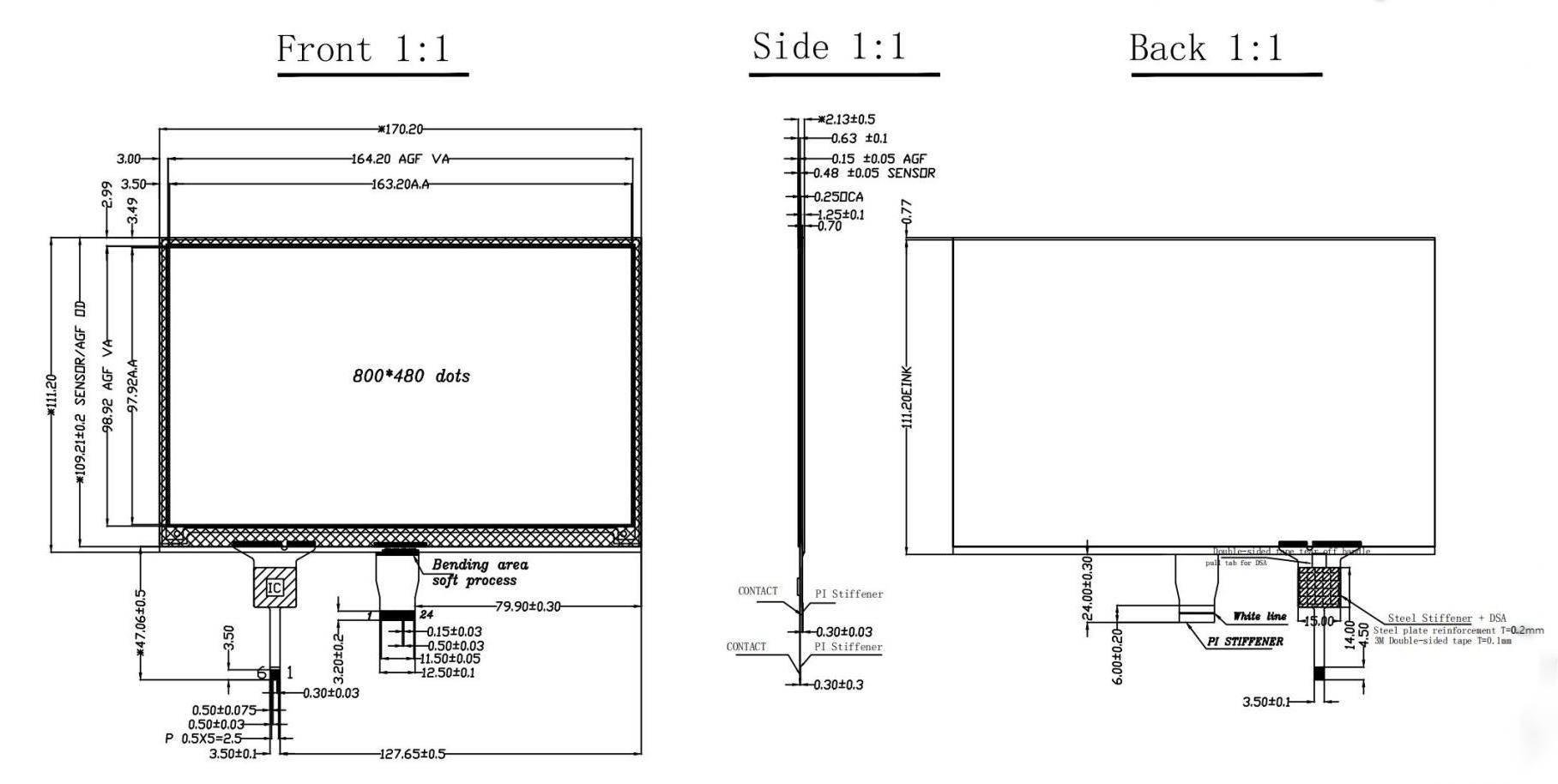

外形寸法（mm）	170.2×111.2×2.13	PARTIAL REFRESH TIME(s)	0.3
有効サイズ（mm）	163.2×97.92	リフレッシュの消費電力（mW）	26.4
ピクセルピッチ（mm）	0.204×0.204	待機時消費電力（mW）	0.0165
OPERATING ENVIRONMENT	0℃～50℃	TOUCHSCREEN CONNECTOR	6 pin FPC
STORAGE ENVIRONMENT	-25℃～70℃	TOUCHSCREEN CONTROLLER IC	GT911
インタフェース	SPI	TOUCHSCREEN OPERATING VOLTAGE	2.8V~3.6V
