3A UPSモジュール 5V 6V 9V 12V 15V 24V 15W 3.7V 4.2V リチウムイオン/リチウムポリマーバッテリー充電・放電ボード（WIFIネットワークルーター用）

説明

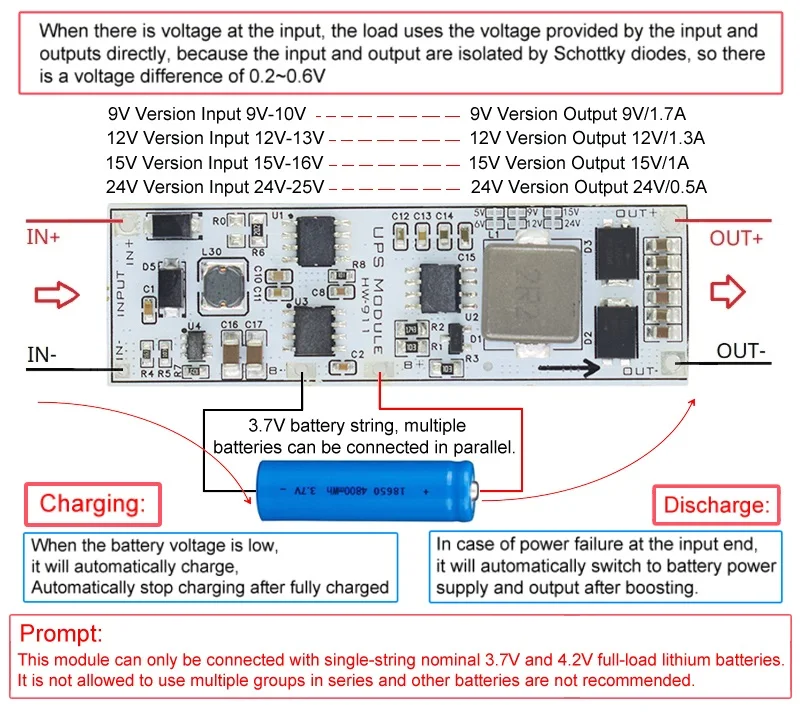

This product is a UPS module. The nominal 3.7V lithium battery is used at the battery end. The input voltage can be supplied according to the position of the resistor on the module. The input and output are isolated, and the output is generally equal to the input voltage, because the input and output are isolated by Schottky diodes, so there is a voltage difference of 0.2-0.6V.

製品パラメータ：

Input voltage: DC 5V/6V/9V/12V/15V/24V

Output voltage: equal to input voltage – 0.2V~0.6V

Output power: 15W for all versions

Number of battery strings: 1 string

充電カットオフ電圧：4.2V ± 1%

Overdischarge protection voltage: 2.6V ± 0.1V

Size: 60*18*6MM(Suitable for 18650 battery)

The maximum allowable load power for all versions is 15W. Parameters for each version are as follows

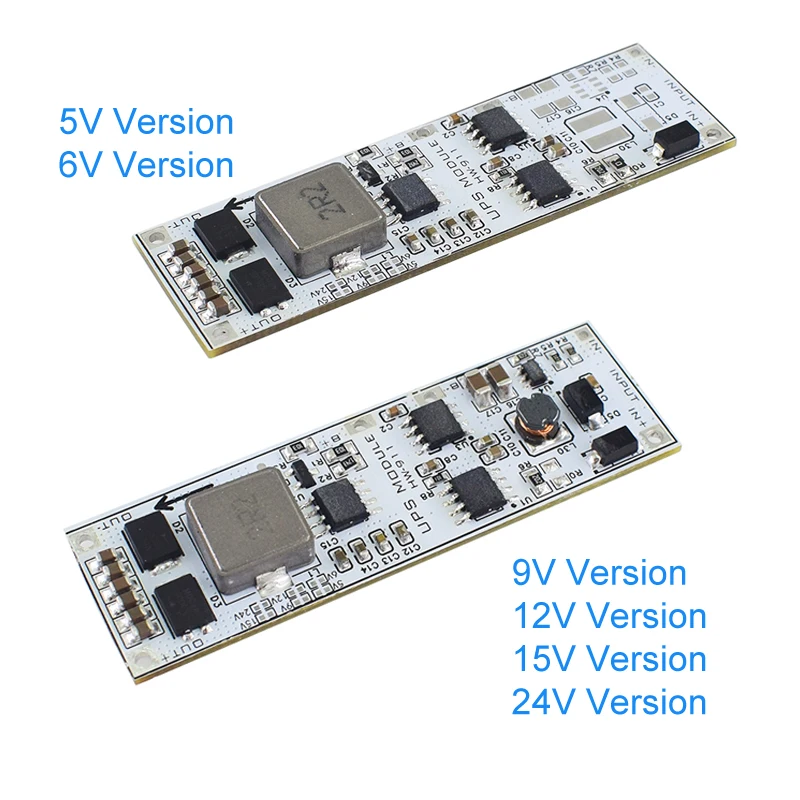

5V version: input 5V-5.5V, output 5V/3A

6V version: input 6V-6.5V, output 6V/2.6A

9V version: input 9V-10V, output 9V/1.7A

12V version: input 12V-13V, output 12V/1.3A

15V version: input 15V-16V, output 15V/1A

24V version: input 24V-25V, output 24V/0.5A
