13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display

価格帯: $195.80 – $240.90

説明

E Ink Spectra 6 color E Ink module 13.3-inch QSPI Big ePaper display 1600×1200

The 13.3-inch color E Ink display, featuring E Ink Spectra 6 technology, delivers enhanced color gamut and advanced color imaging algorithms for significantly improved visual performance. It creates an elegant and standout atmosphere, making it ideal for professional settings.

特別機能

  ● Introducing E Ink Spectra 6: the latest in color e-paper technology. With vibrant hues and lifelike saturation, it’s like bringing your favorite stories to life in full color! Dive into your reading with unparalleled realism.
● With a high resolution of 1600×1200, our color e-paper brings images to life with exquisite clarity, making every picture vivid and dynamic!
●視野角:170度を超える広視野角。.
● Display feature: Bistable display (retains the current content after a power outage)
● 省エネルギー:画面を更新していないときは電力を消費しません。.

E Ink Spectra™ 6を選ぶ理由とは?

比類のない効率性、信頼性、汎用性を備えたE Ink Spectra™ 6ディスプレイは、小売業から物流業まで、幅広い業界に革新的なソリューションを提供します。.

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 1  鮮やかな色彩:6色システム

E Ink Spectra™ 6は、6色(黒、白、赤、緑、青、黄)システムを採用し、鮮やかで彩度の高いフルカラーディスプレイを実現します。.

高解像度と高コントラスト

With a resolution of 150.38 PPI and a contrast ratio of 1600×1200, your content will stand out with stunning clarity and sharpness.

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 2
13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 3  あらゆる環境に適応可能

E Ink Spectra™ 6は、屋内でも屋外でも、0℃から50℃までの温度範囲でスムーズに動作するため、多様な用途に最適です。.

インタラクティブ・スパークル・テクノロジー

E Ink Sparkle™を使用して局所的な画像点滅効果で注目を集め、コンテンツに対する顧客のエンゲージメントを高めます。.

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 4

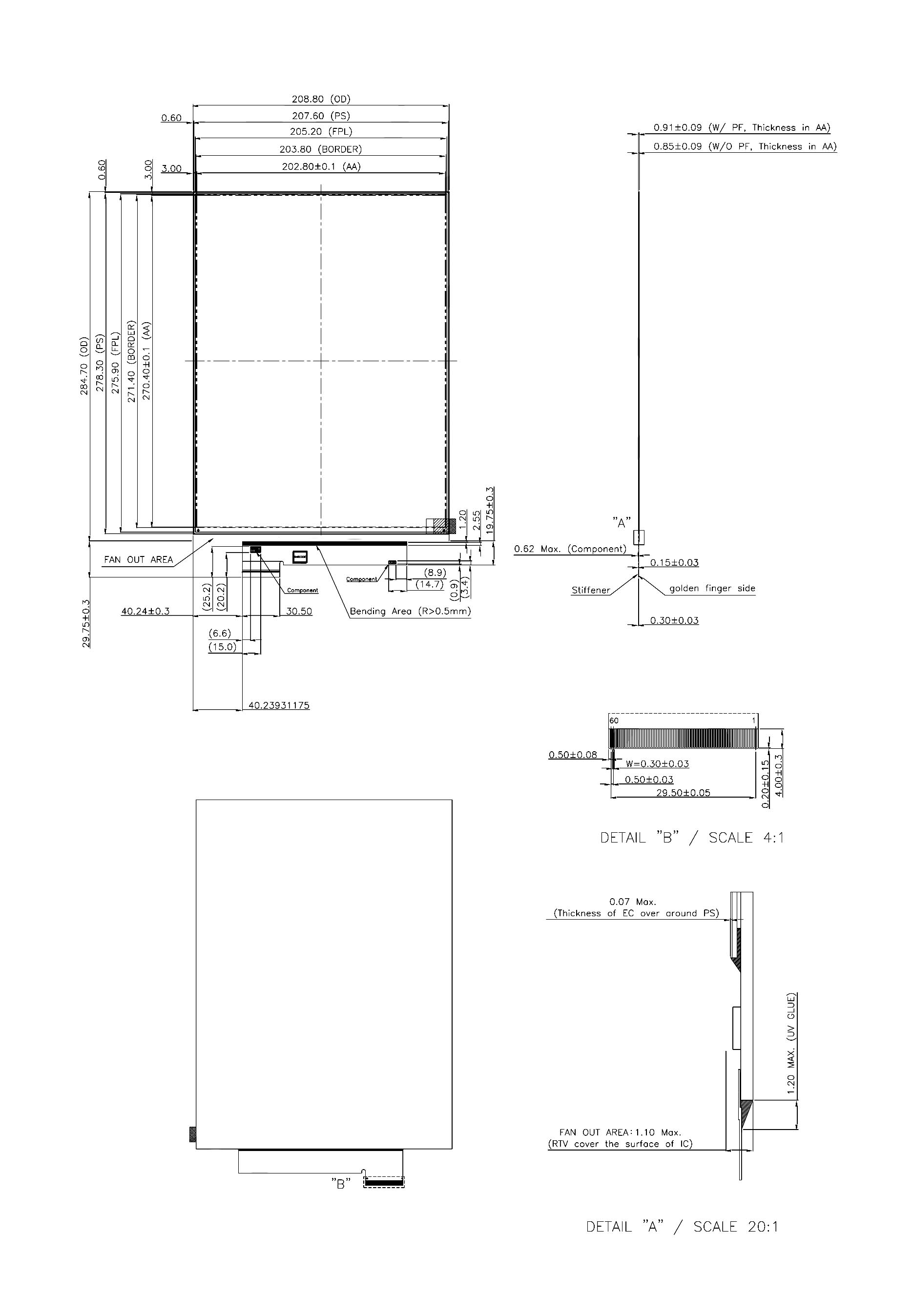

技術詳細

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 5

製品仕様

部品番号 GDEP133C02 コネクタ 60 Pin FPC
サイズ 13.3インチ 色 6 color(E Ink Spectra 6)
タイプ ドットマトリックス 完全更新時間 未定
IC NC 動作温度. 0℃~50℃
PPI 150.38 保管温度. -25℃~50℃
解決 1600×1200 リフレッシュの消費電力(mW) 未定
外形寸法(mm) 208.8×284.7×0.85 待機時消費電力(mW) 未定
有効サイズ(mm) 202.8×270.4 インタフェース QSPI
ピクセルピッチ(mm) 0.169×0.169

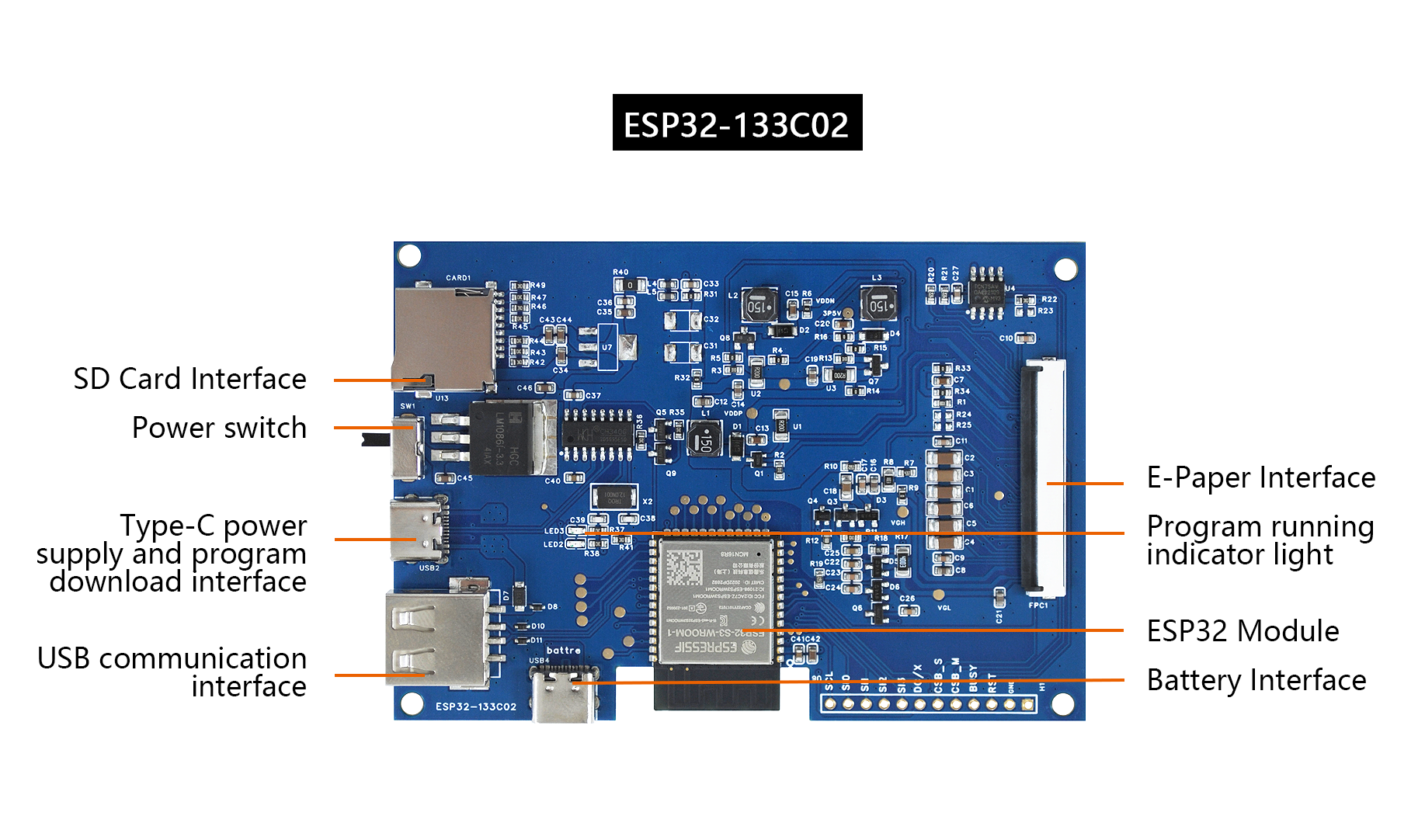

Matching Driver Boards

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 6

部品番号

ESP32-133C02

FUNCTION

Drive  13.3inch E Ink Spectra 6 display
DEVELOPMENT ENVIRONMENT ESP-IDF or Arduino IDE

OUTLINE SIZE

98.298mm x 69.215mm

POWER SUPPLY

Powered via Type-C adapter or Type-C lithium battery
EXAMPLE PROGRAM Basic image refreshing/demo program provided

OPERATING TEMP

0℃~50℃
MAIN FUNCTION  Learn how to drive an e-paper display

Test and evaluate e-paper display performance

Secondary development based on this board: SD card storage/WiFi & BLE functionality/USB communication features

AUXILIARY FUNCTIONS Indicator light, Lithium battery power supply

製品用途

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 7 13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 8 13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 9 13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 10 13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display — reference image 11

Furniture central

Smart Deskplate

Bus Stop Signs

Smart Logistics

スマートな新小売



製品のカスタマイズ

当社は製品のカスタマイズサービスを提供しています。. お問い合わせ お客様のご要望について話し合うため。.
