1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use

価格帯: $9.90 – $27.90

商品コード: 1005007383188207 カテゴリー: , ,

説明

1.54-inch E-paper Display Module Wide Temperature  -25℃~50℃

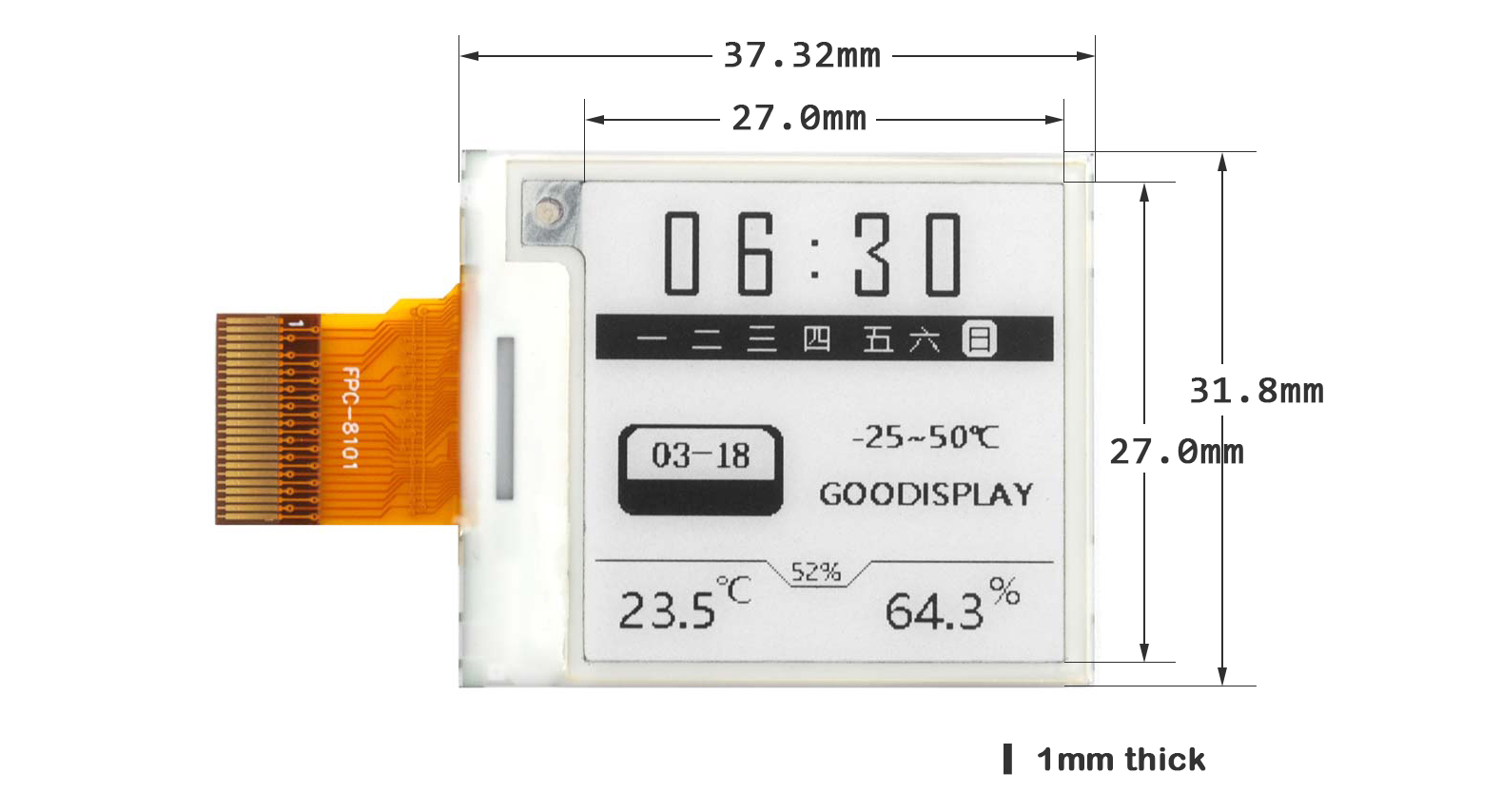

1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 1

This 1.54-inch wide-temperature E-Ink display withstands extreme cold and heat while retaining images even without power (it cannot be used outdoors). With ultra-low power consumption and a 3.5s fast refresh, it’s perfect for smart tags, wearables, and industrial instruments in demanding environments. Whether in freezing snow or scorching heat, it stays rock solid!

Friendly Reminder:The wide-temperature display is designed for extreme environments, but content suitability should be carefully considered. For specific solutions, please contact customer support.

1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 2

1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 3

1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 4
Operates in extreme temperatures

– Working temperature: -25℃~50℃(-4°F to 122°F)

– Storage temperature: -25℃~70℃(-13°F to 158°F)

 Paper-Like, Eye-Friendly Display

– Wide Viewing Angle: Nearly 170° with no glare.

– No Eye Strain: No blue light.

 Low Power & Eco-Friendly

– Bistable Display: Nearly zero in static mode.

– Energy Efficient: Over 90% less power than LCDs.

Wide-Temperature E-Paper Display

Designed for Extreme Environments

This product utilizes wide-temperature e-paper technology, ensuring stable operation between -25°C to 50°C. However, due to e-paper characteristics, high-density dynamic graphics (such as scatter plots and line charts) may not appear as clear as on standard e-paper displays.

Recommended Applications

Recommended Applications: Best suited for static text, simple icons, data tables, barcodes, and other high-contrast, low-refresh-rate content.
1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 5 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 6 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 7 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 8

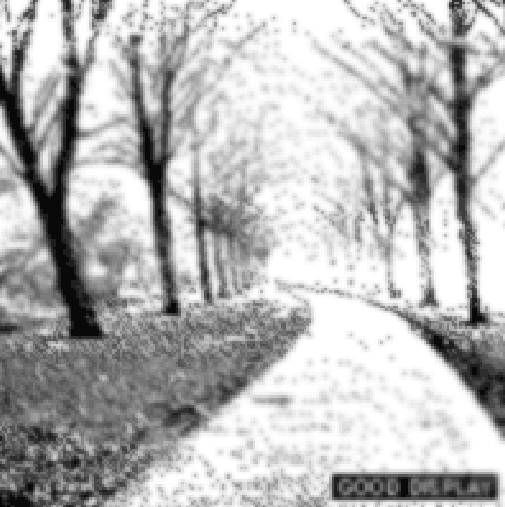

Why Scatter Plots May Not Perform Well

E-ink displays rely on microcapsule charge flipping to render content. Due to low refresh rates and limited grayscale levels, high-density scatter plots may appear grainy, especially at 30-50°C.

To enhance visibility, consider simplifying the graphics or emphasizing key data points.

1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 9 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 10
Disclaimer: Due to the nature of e-ink technology, complex graphics may have display limitations. Please ensure it meets your specific usage needs before purchasing. For technical support or customized solutions, contact customer service.

技術詳細

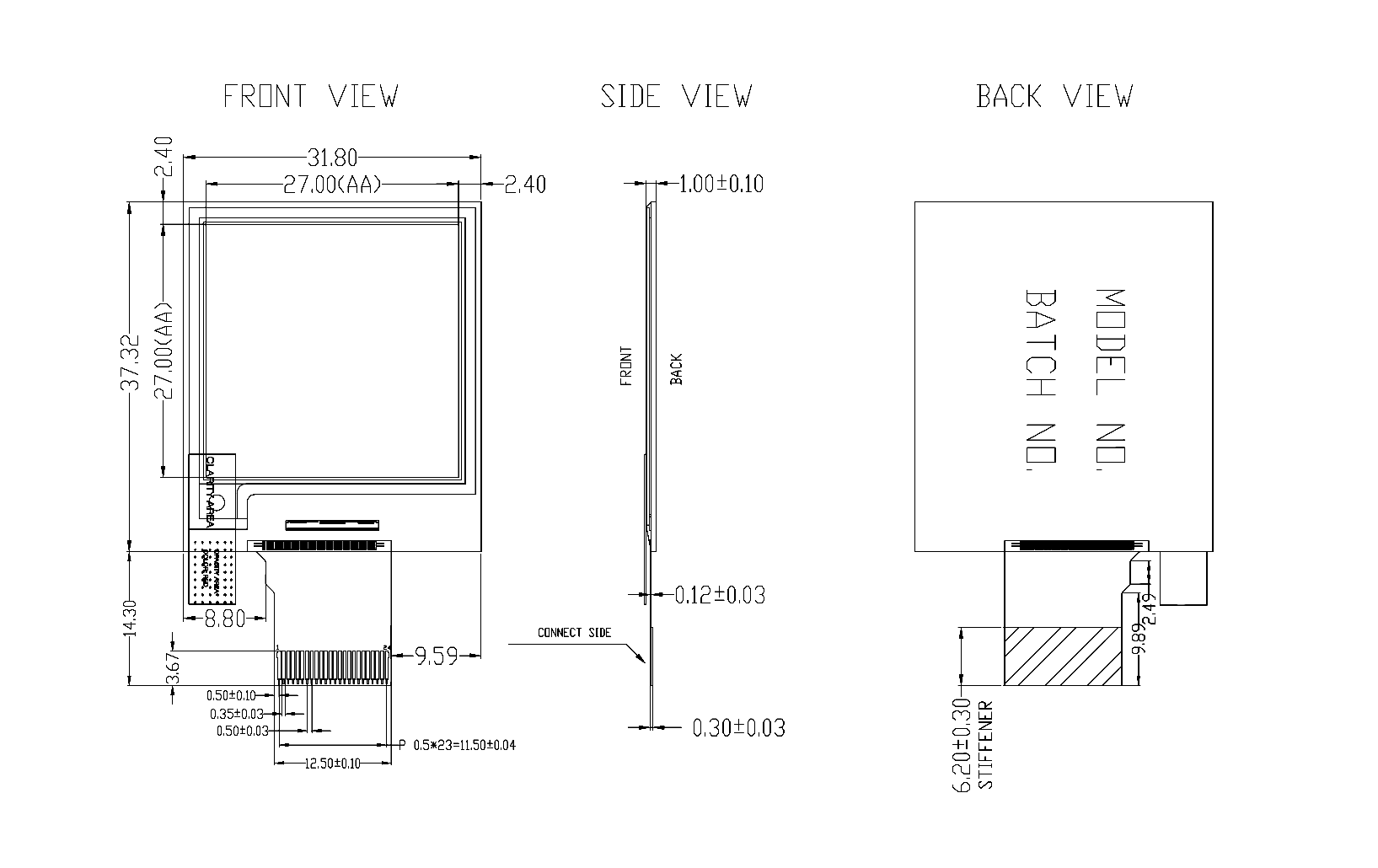

1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 11

製品仕様

部品番号 GDEM0154D67WT コネクタ 24 Pin 0.5mm
タイプ ドットマトリックス 最大グレースケール 4
サイズ 1.54 inch 色 黒、白
IC SSD1681 完全更新時間 2
解決 200×200 動作温度. -25℃~50℃
PPI 183.66 保管温度. -25℃～70℃
外形寸法（mm） 37.32×31.8×1.0 TYPICAL POWER (MW) 9.6
有効サイズ（mm） 27.00×27.00 DEEP SLEEP POWER (MW) 0.003
ピクセルピッチ（mm） 0.135×0.135 インタフェース SPI

製品用途
1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 12 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 13 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 14 1.54 inch E-Paper Display Module 200×200 Resolution Wide Temperature Range for Industrial Use — reference image 15

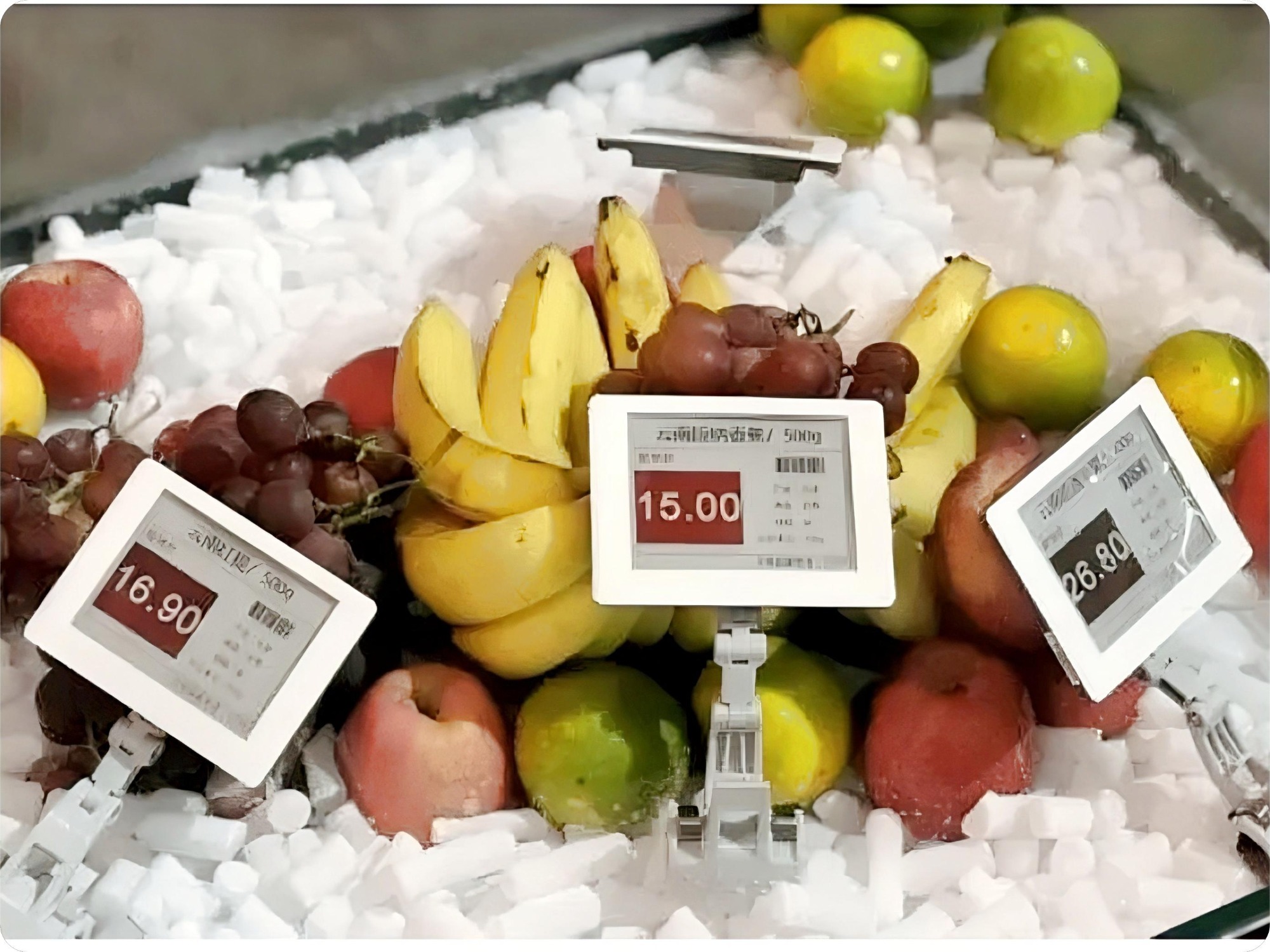

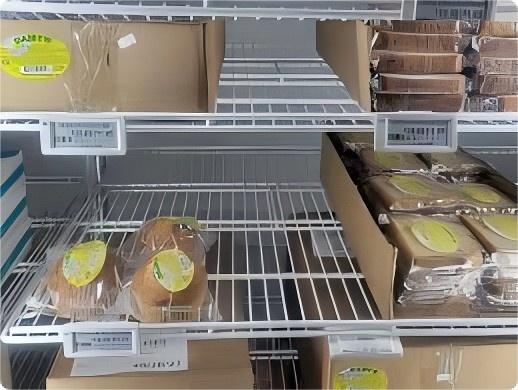

Low temperature shelf tag

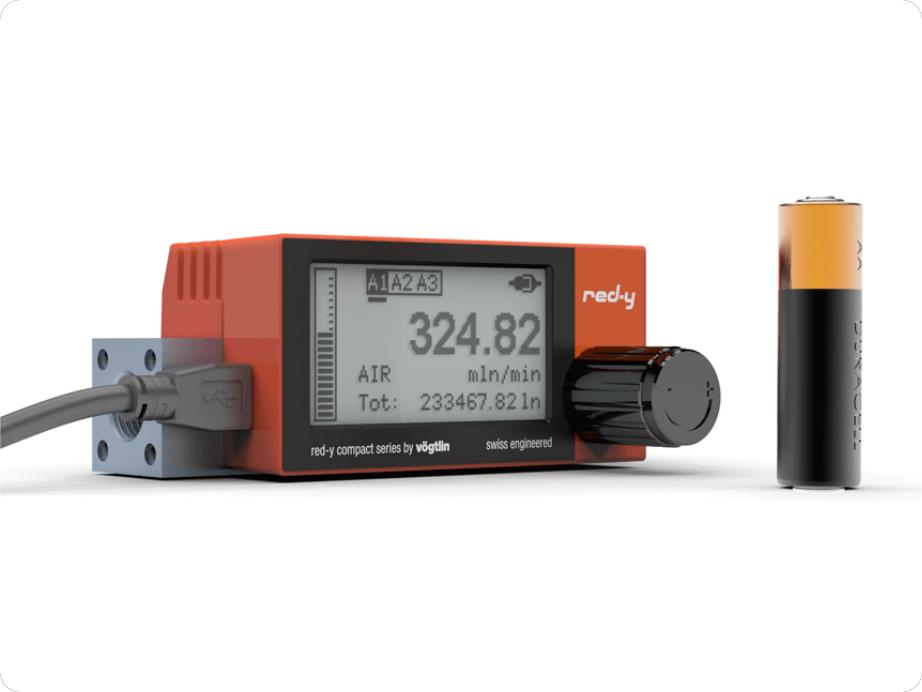

工業用計測機器

Logistics Label

Pharmaceutical Storage

製品のカスタマイズ

当社は製品のカスタマイズサービスを提供しています。. お問い合わせ お客様のご要望について話し合うため。.
