Adaptador de corriente USB-C PD STUSB4500 de 12 V (PCB sin carcasa)
$4.00
US$4.00 por placa. 4 capas de cobre. Peso de envío indicado: 50 g.
Entrada USB-C Power Delivery con salida regulada de 12 V y raíles auxiliares de 5 V y 3,3 V.
Una placa de circuito impreso sin componentes. Los componentes electrónicos y accesorios no están incluidos.
Plazo de producción de PCB: 2-3 días. Plazo de producción de PCBA: 5-10 días. El tiempo de tránsito del envío es adicional. El precio de la placa de circuito impreso (PCBA), la disponibilidad de componentes y el alcance del ensamblaje se confirman mediante cotización.
Ponte en contacto con nosotros para PCBA
Elige el color de tu PCB: Verde, morado, rojo, amarillo, azul, blanco, negro o negro mate.
Para pedidos de PCB sin enmascarar, indique el color de la máscara de soldadura que prefiera en las notas del pedido al finalizar la compra. Si solicita varios productos, especifique el nombre y el color de cada uno. Ejemplo: PCB Arisu – Morado. Las imágenes de los productos son solo de referencia; el color de la PCB suministrada corresponde a los requisitos de su pedido confirmado.
¿Prefiere realizar el pedido con sus archivos Gerber? Sube tus archivos Gerber a nuestra página de pedidos en línea de PCB/PCBA, selecciona el color y las especificaciones de fabricación de tu PCB y realiza tu pedido directamente. El precio se calcula en función de los archivos que subas y las opciones seleccionadas.
El 5% de las ventas netas de este producto se destina al fondo común DIYIPCB Open Hardware Fund, sin coste adicional.
Ver el fondo y el reglamento →Hay existencias
Descripción
Adaptador de corriente USB-C PD STUSB4500 de 12 V (PCB sin carcasa)
Fabricado por DIYIPCB utilizando el diseño de hardware abierto de antmicro/usb-c-power-adapter. Diseño original de Antmicro. Se trata de una placa de circuito impreso (PCB) sin carcasa, fabricada de forma independiente; no es un producto oficial del diseñador original.
Funciones de diseño
Entrada USB-C Power Delivery con salida regulada de 12 V y raíles auxiliares de 5 V y 3,3 V.
Aplicaciones típicas
Proyectos integrados alimentados por USB-C, interfaces de alimentación compactas y fuentes de alimentación para equipos personalizados.
Principales chips y componentes del diseño
Controlador de sumidero PD STUSB4500; regulador reductor SIC477; reguladores reductores auxiliares AP62301.
Estas funciones y componentes describen el diseño ensamblado. La placa de circuito impreso (PCB) sin componentes electrónicos no realiza estas funciones por sí sola.
Lo que recibirás
Una placa de circuito impreso sin componentes. US$4.00 por placa.
El diseño de la etapa de entrada especifica una salida continua de 12 V / 55 W. La placa de circuito impreso requiere programación del perfil PD, una fuente de alimentación USB-C PD adecuada y pruebas de carga y térmicas. La carga real admitida se confirma para el pedido de ensamblaje; la placa de circuito impreso sin carcasa no realiza conversión de energía.

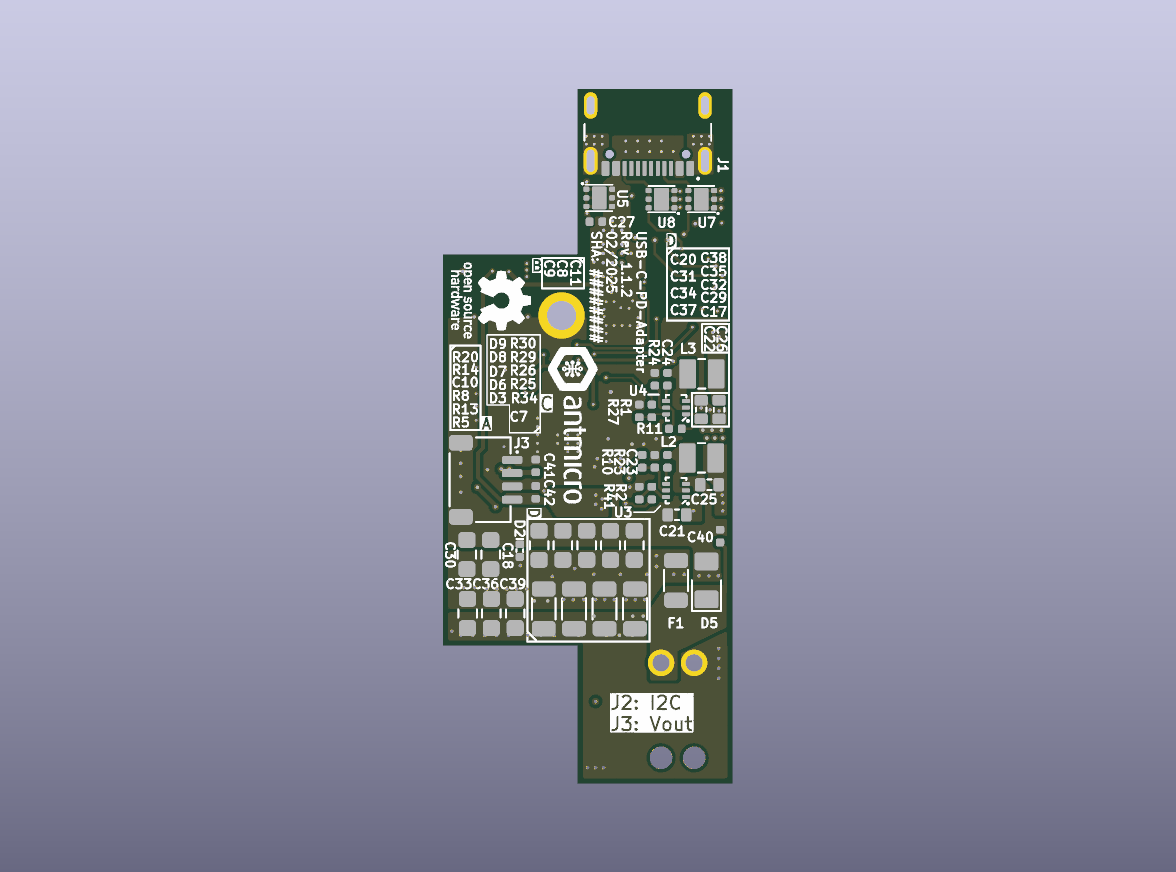

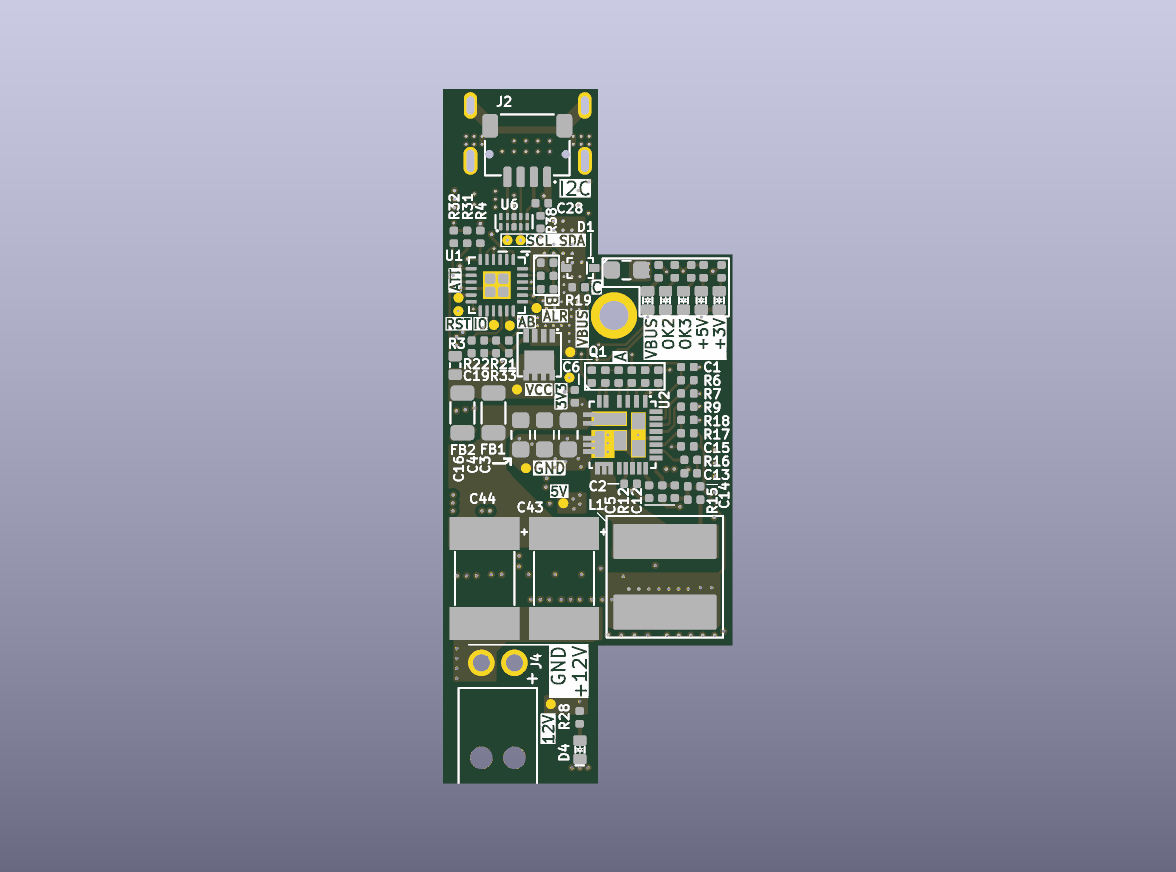

Las imágenes son previsualizaciones CAD de la placa base sin componentes, generadas a partir de la fuente seleccionada. El color de la máscara de soldadura y el acabado de la superficie pueden variar.
Detalles de la placa de circuito impreso y del pedido
- Capas de cobre: 4
- Espesor nominal de la placa de circuito impreso: 1,59 mm
- Cantidad de PCB por unidad de compra: 1
- Plazo de producción de la placa de circuito impreso: 2-3 días.
- Plazo de producción de la placa de circuito impreso (PCBA): de 5 a 10 días, sujeto a la disponibilidad de componentes y a la confirmación del alcance del ensamblaje.
- El tiempo de tránsito del envío es adicional.
- Peso estimado para el envío: 50 g por placa, incluyendo el embalaje.
Servicio integral de montaje de placas de circuito impreso (PCBA)
DIYIPCB ofrece asistencia en la búsqueda de componentes de proveedores internacionales y de Shenzhen, ensamblaje SMT, soldadura manual y de orificio pasante, programación de firmware y pruebas funcionales acordadas, ensamblaje final y envío internacional. Un gestor de proyectos coordinará sus necesidades. Para placas ensambladas, especifique la cantidad, los componentes o conectores, el firmware, las pruebas y los accesorios.
Ponte en contacto con nosotros para PCBA o por correo electrónico service@diyipcb.com. El ensamblaje de la placa de circuito impreso (PCBA) se suministra bajo presupuesto y no está incluido en el precio de la placa de circuito impreso (PCB) sin ensamblar.
Código fuente y versión de hardware abierto
- Proyecto y documentación originales
- Fuente de PCB seleccionada
- Revisión de la fuente seleccionada: 4d3e9e289a29
- Licencia original: Apache-2.0
Versión de origen: fuente seleccionada. La producción se prepara a partir de esta revisión seleccionada; los requisitos de montaje y prueba se revisan con la cotización de PCBA.
Licencia y atribución
Diseño original de Antmicro. Licencia de hardware: Apache-2.0. Las marcas comerciales originales identifican el origen del diseño y su compatibilidad; no implican ningún tipo de respaldo. Se conservan los avisos de diseño original.
