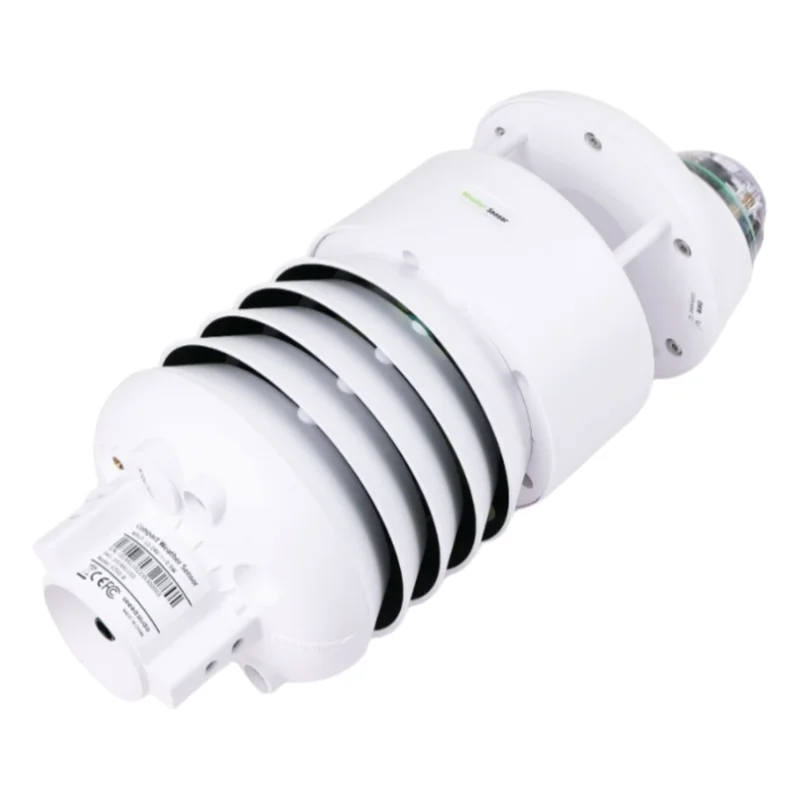

Estación meteorológica compacta SenseCAP S700-B 7 en 1 con protección contra la radiación solar, temperatura, humedad, lluvia, viento, presión, ultrasonido y óptica.
SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic& Optical - Imagen 2
SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic& Optical - Imagen 3
SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic& Optical - Imagen 4
SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic& Optical - Imagen 5

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic& Optical

$1,000.00

Hay existencias

SKU: 1005008824191377 Categorías: , ,

Descripción

Nota:

What’s the difference between S700-B and S700 V2 ?

There is a total solar radiation on S700-B replaced the light intensity sensor on S700 V2,

other functions are the same as the S700 V2.

Comprehensive 7-parameter Measurement

The S700-B is equipped with multiple sensors measuring crucial parameters for gathering a wealth of enviromental data, including air temperature, relative humidity, barometric pressure, total solar radiation, sunshine duration, percipitation intensity, wind speed and wind direction.

Industrial-level Design

Wide operating temperature range from -40°C to +85°C and High Protection Rating of IP66

Versitile Output Interface

The S700-B offers 2 common and reliable output interfaces, namely RS485(supports MODBUS-RTU protocol) and SDI-12.

Thermostatically-controlled Heating System

This heating system is thermostatically controlled, ensuring that the device can maintain its normal working state and accurate measurement capabilities at extremely cold temperature.

Powerful Components

Long Cable for Mounting: A 3-meter cable is provided for pole mounting,

Accuracy-enhancing Shields: Radiation shields are equipped which minimized the impact of external factors on the sensor’s readings.

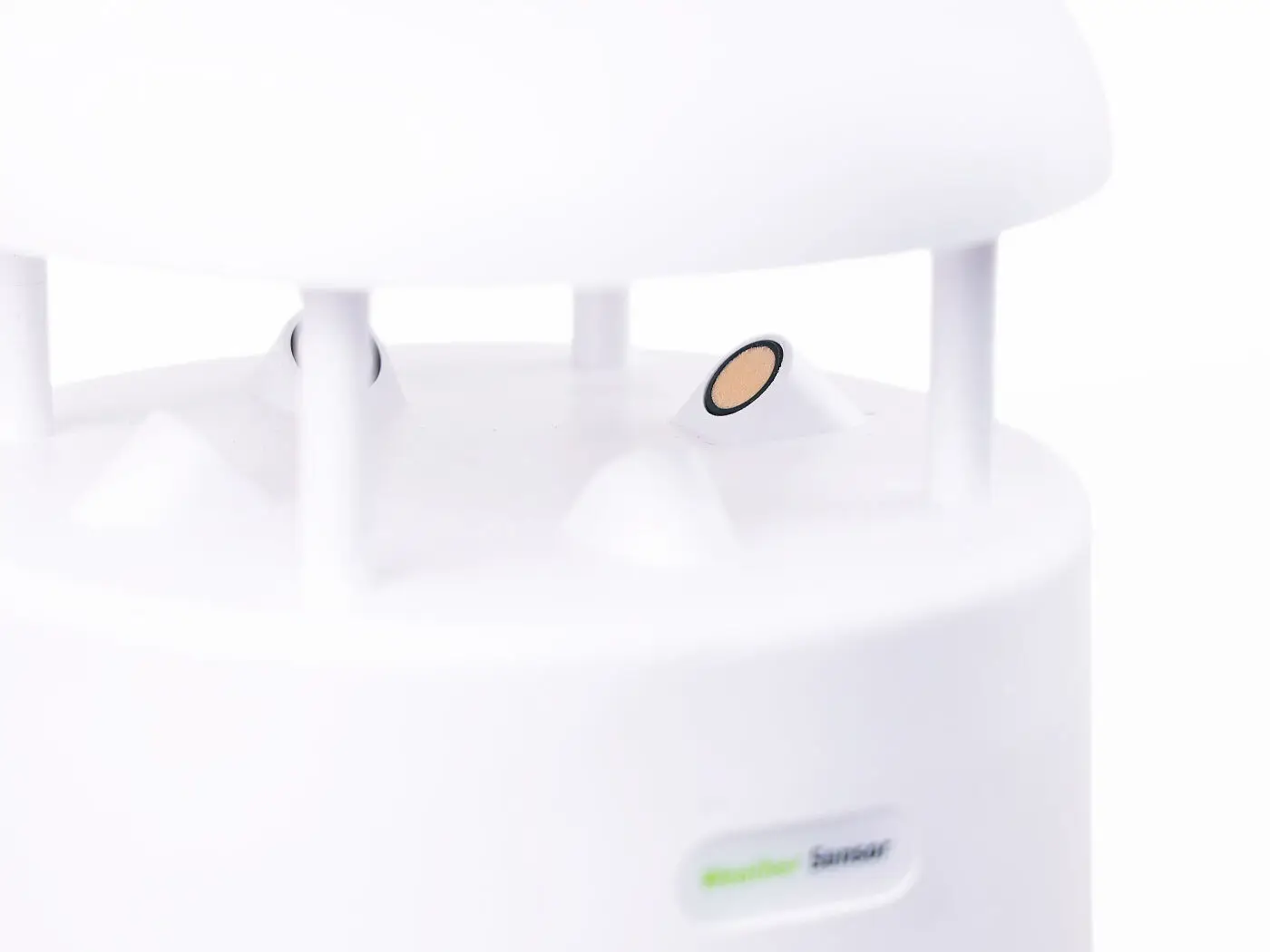

Advanced Wind Sensors: It uses ultrasonic wind speed and direction sensors without movable component. This design with bird-proof structure not only reduces the risk of mechanical wear and tear but also improves the durability and accuracy of wind measurement.

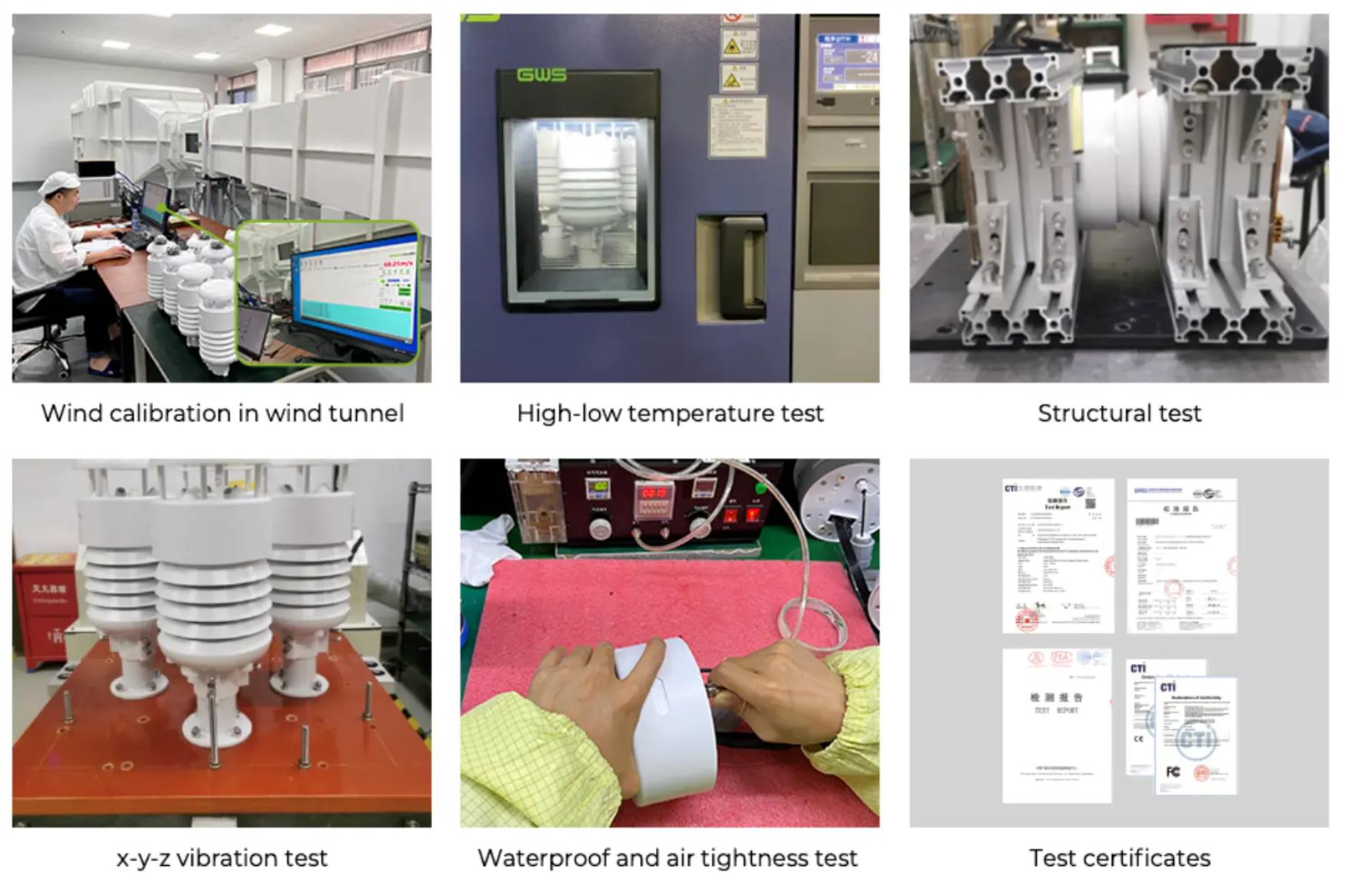

Reliable and High Standard Test Performance

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic& Optical — reference image 1

Especificación

General Specification

Especificación

Parámetro

Measurement parameters

Air temperature(℃)

Relative humidity(%)

Barometric pressure(Pa)

Global solar radiation(W/m²)

Sunshine duration(h)

Percipitation intensity(mm/h)

Wind speed(m/s）

Wind direction(°)

Interfaz

M12 connector

Protocolo de comunicación

RS485(Modbus-RTU)/SDI-12/ASCII

Fuente de alimentación

12V~24V

24V(Heating power supply)

Consumo de energía

0.6W(heating 21W)

Longitud del cable

3m

Ambient Condition

Clasificación IP

IP66

Temperatura de funcionamiento

-40 °C ~ + 85 °C

Humidity

0 ~ 100%RH(no condensation)

Mecánico

Dimensión

140x140x350mm

Peso

1580g

Technical Parameters

Measurement parameter

Principle

Rango

Respond Time

Resolución

Response spectrum

Exactitud

Annual Drift

Stability Time

Air temperature(℃)

–

– 40 °C ~ + 85 °C

–

0.01 ℃

–

± 0.1℃

–

–

Relative humidity(%)

–

0 ~ 100% RH

–

0.01% RH

–

± 1.5% RH

–

–

Barometric pressure(Pa)

–

300 ~ 1250 hPa

–

10 Pa

–

± 50 Pa

–

–

Percipitation intensity(mm/h)

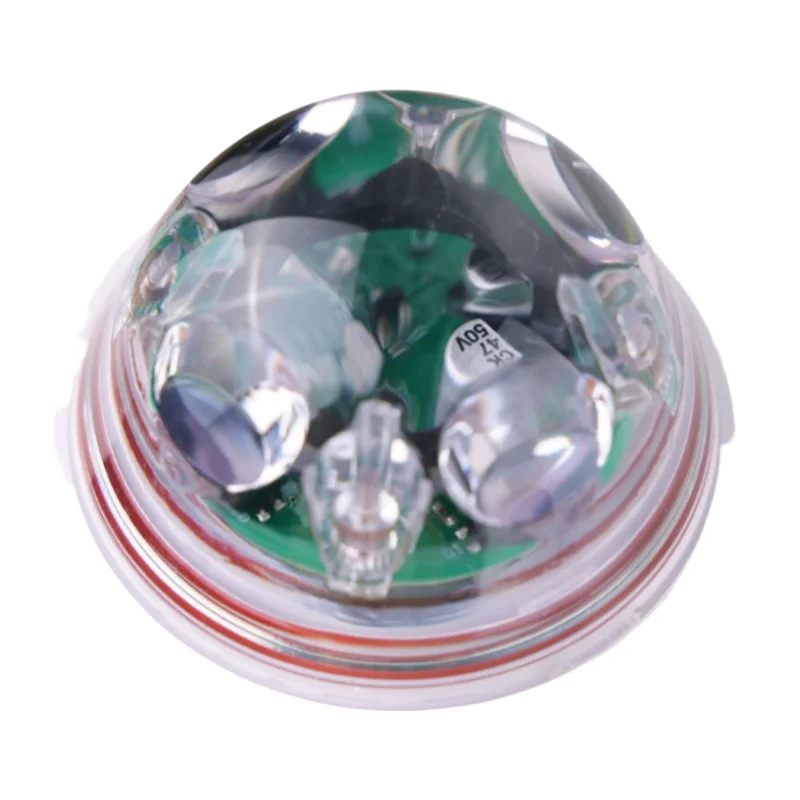

Optical

0 ~ 200 mm/h

–

0.2 mm/h

–

± 10%

–

–

Wind speed(m/s）

Ultrosonic

0~60 m/s standard range

0~75m/s extended range

Up to 80m/s withstand range

–

0.1 m/s

–

±0.3m/s(≤10m/s);

±3% (10m/s ~ 50m/s)

±5% (>50m/s)

–

–

Wind direction(°)

Ultrosonic

0 ~ 360 °

–

0.1°

–

± 3.0°

–

–

Global solar radiation(W/m²)

photoelectric

0~2000 W/m²

<=1S

1 W/m²

300~1100nm

±3%

less than 3%

<=1S

Sunshine duration(h)

photoelectric

0~6553.5 h

<=100ms

0.1 h

300~1100nm

±3%

less than 3%

<=1S

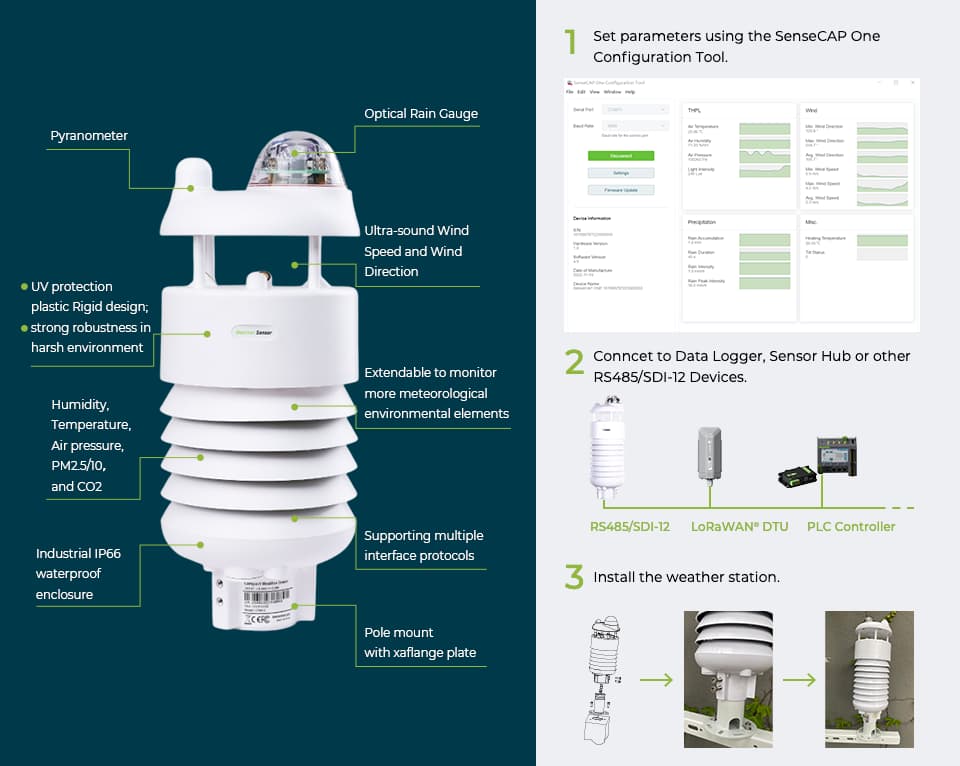

Descripción general del hardware

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic&#038; Optical — reference image 2

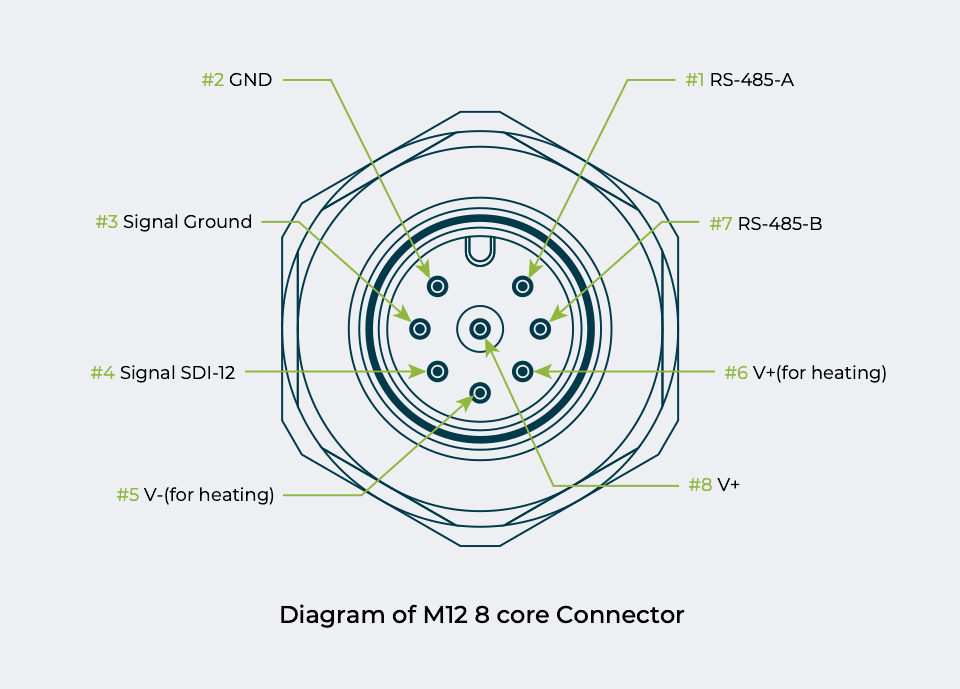

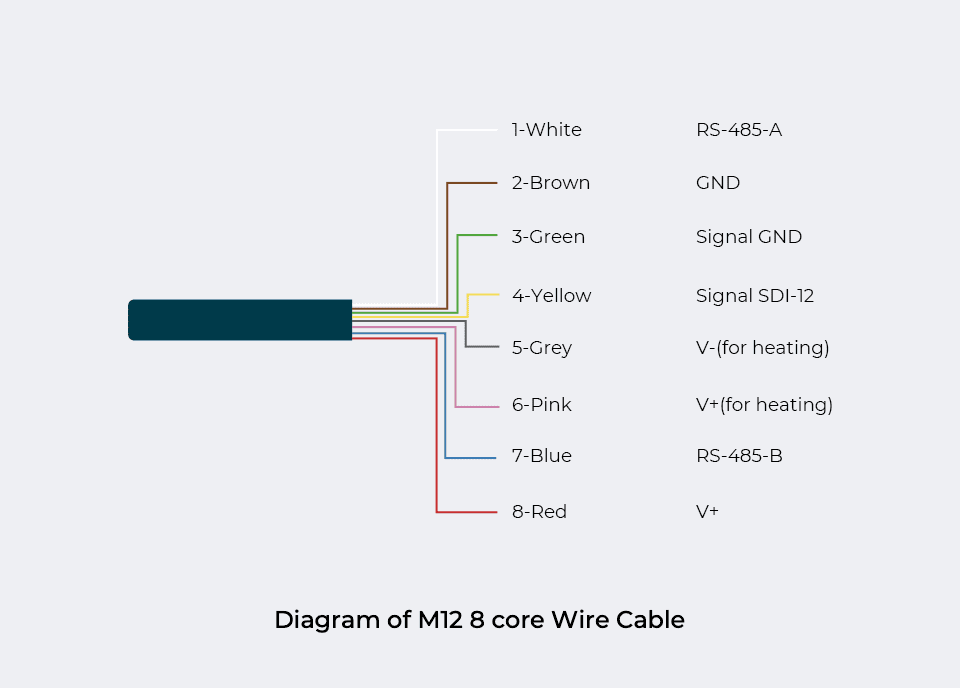

Wire Connection

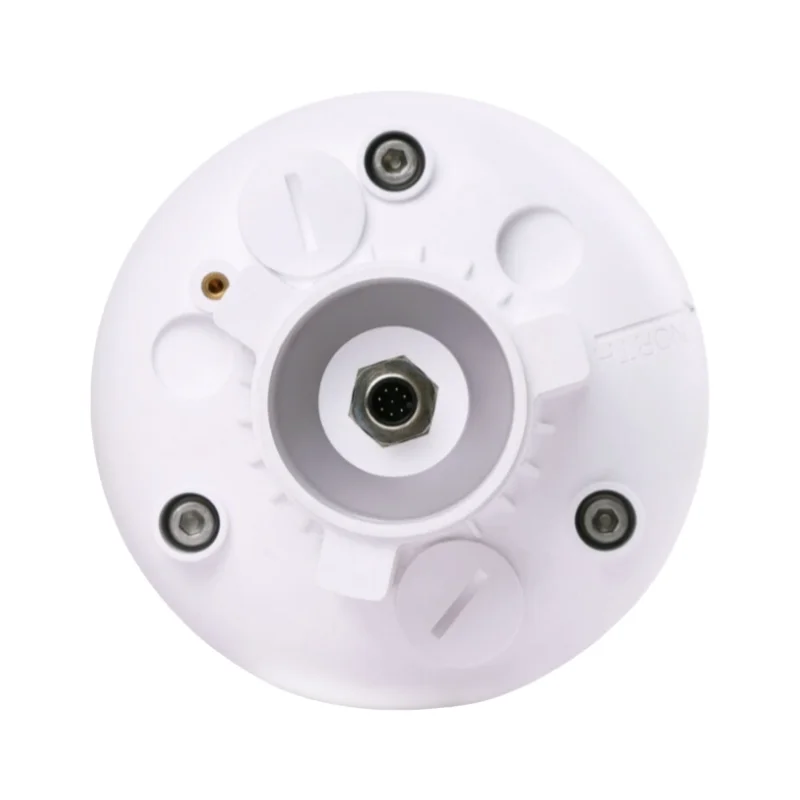

The equipment uses M12 connectors with an 8-core specification. Cables in 8 different colors are used to supply power to the equipment and for data communication.

The bottom wire outlet is 3m. There is a six-core wire cable, including wires in colors of white, brown, green, yellow, gray, pink, blue and red.

The SenseCAP ONE series supports connection to various data acquisition devices, Programmable Logic Controllers (PLCs) or Host Computers via RS485, ASCII and SDI-12 protocols.

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic&#038; Optical — reference image 3

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic&#038; Optical — reference image 4

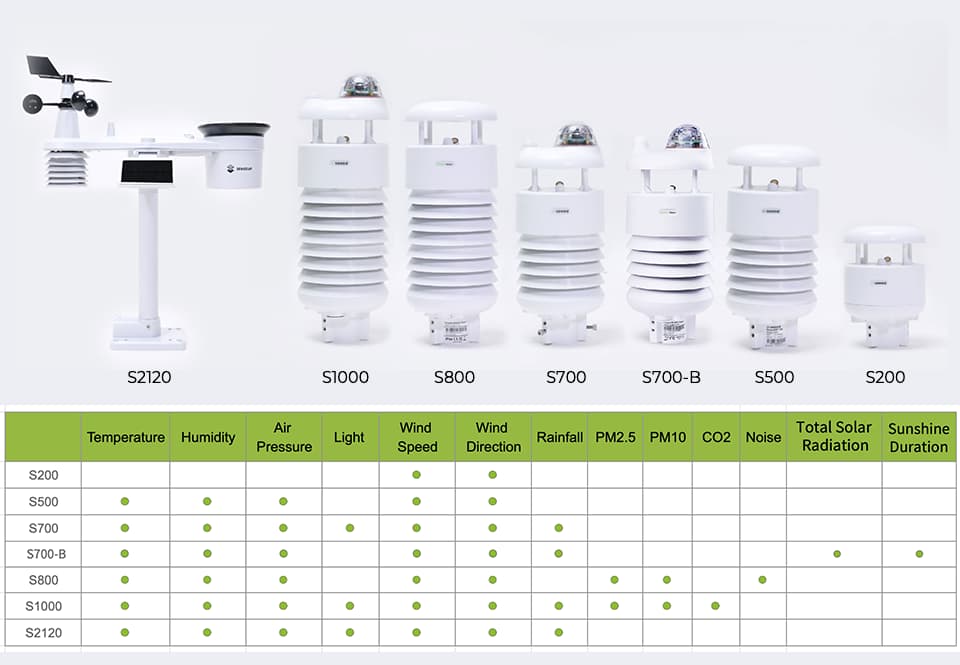

SenseCAP ONE Series Comparison

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic&#038; Optical — reference image 5

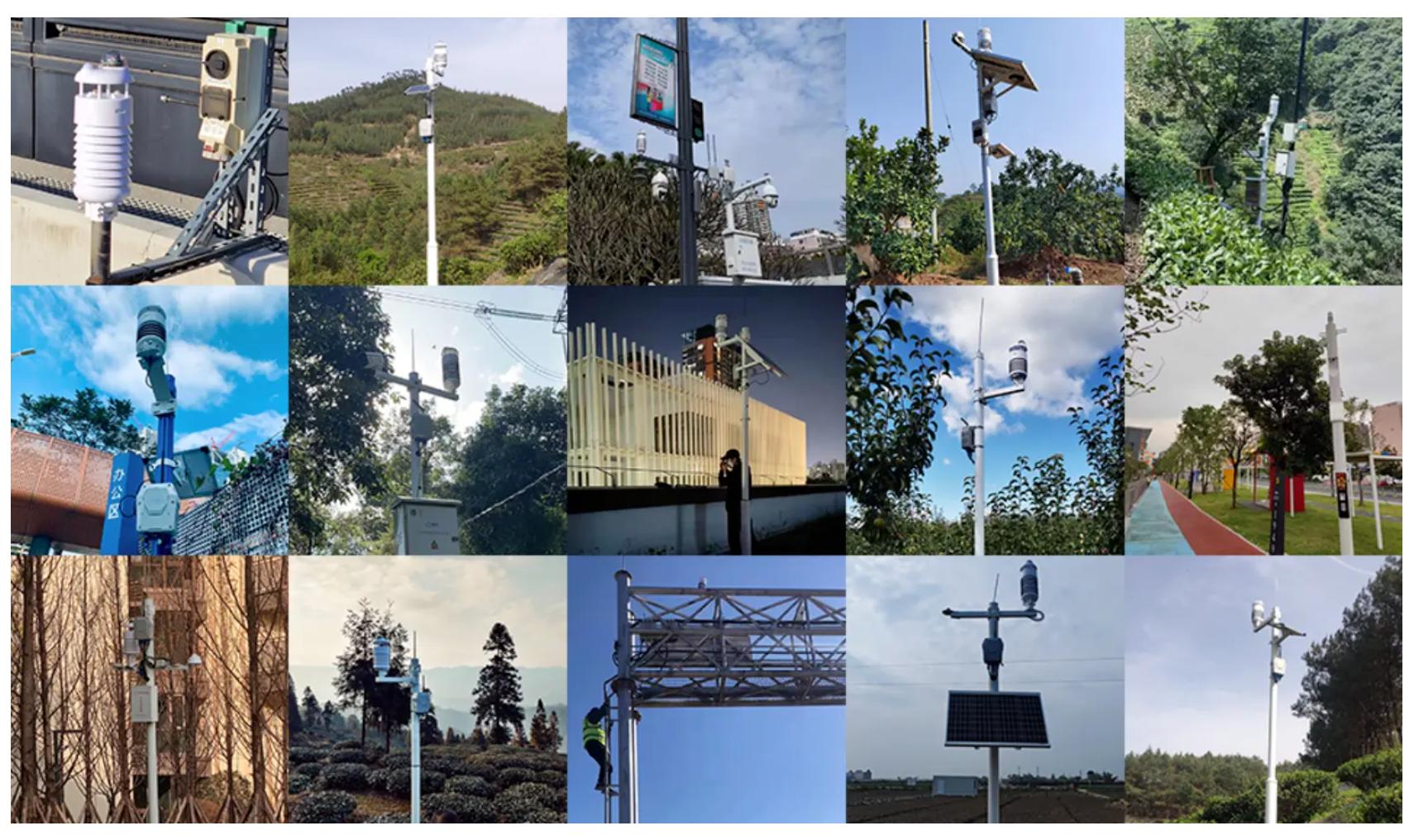

Solicitud

Smart Agriculture

Smart City

Power Transmission

Renewable Energy

Transportation and Traffic

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic&#038; Optical — reference image 6

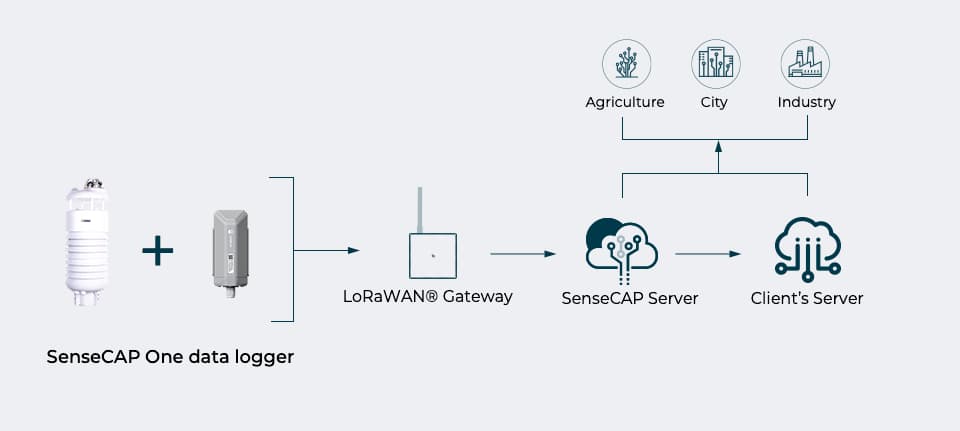

LoRaWAN Application

SenseCAP S700-B 7-in-1 Compact Weather Station with Solar Radiation Shield,Temp,Humidity,Rain,Wind,Pressure,Ultrasonic&#038; Optical — reference image 7

Documentos

SenseCAP ONE/SenseCAP ONE V2 Compact Weather Station User Guide

SenseCAP ONE (Standard)

SenseCAP ONE (V2)

Personalización de productos

Ofrecemos servicios de personalización de productos. Contáctanos para hablar de sus necesidades.

Información adicional

Peso 0.6 kg
