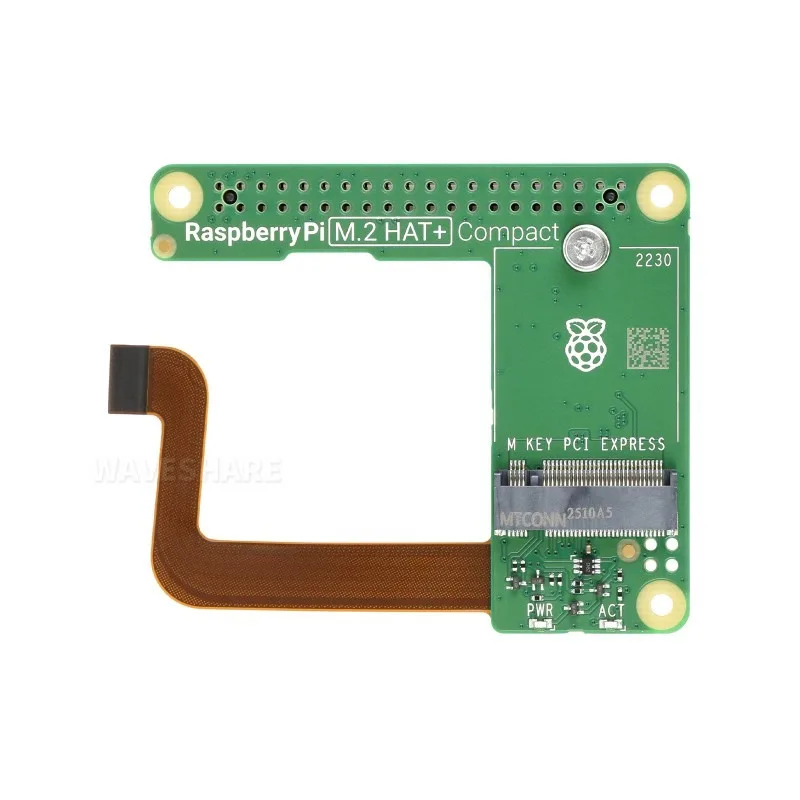

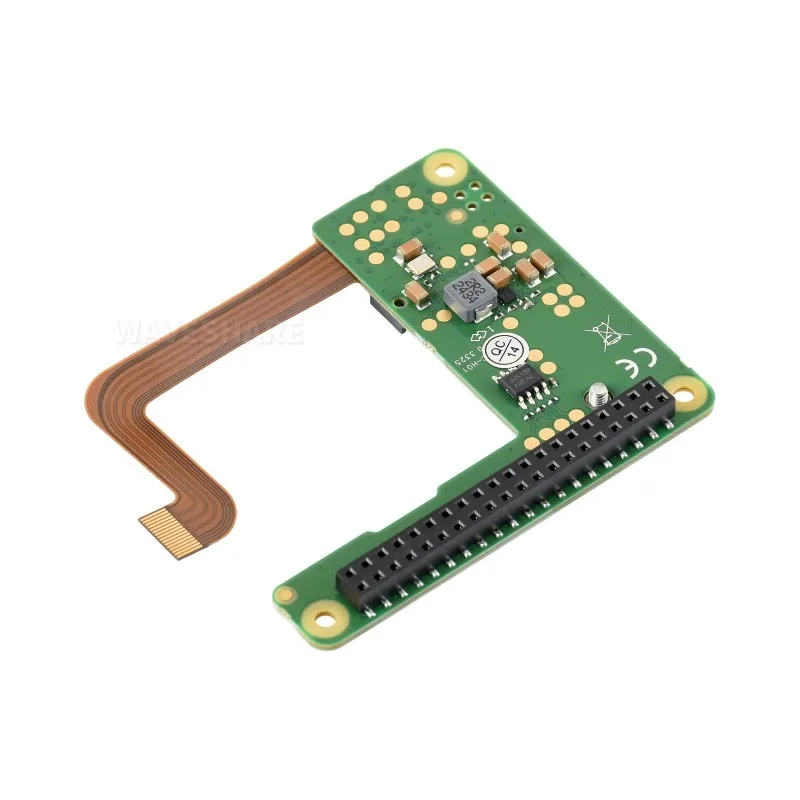

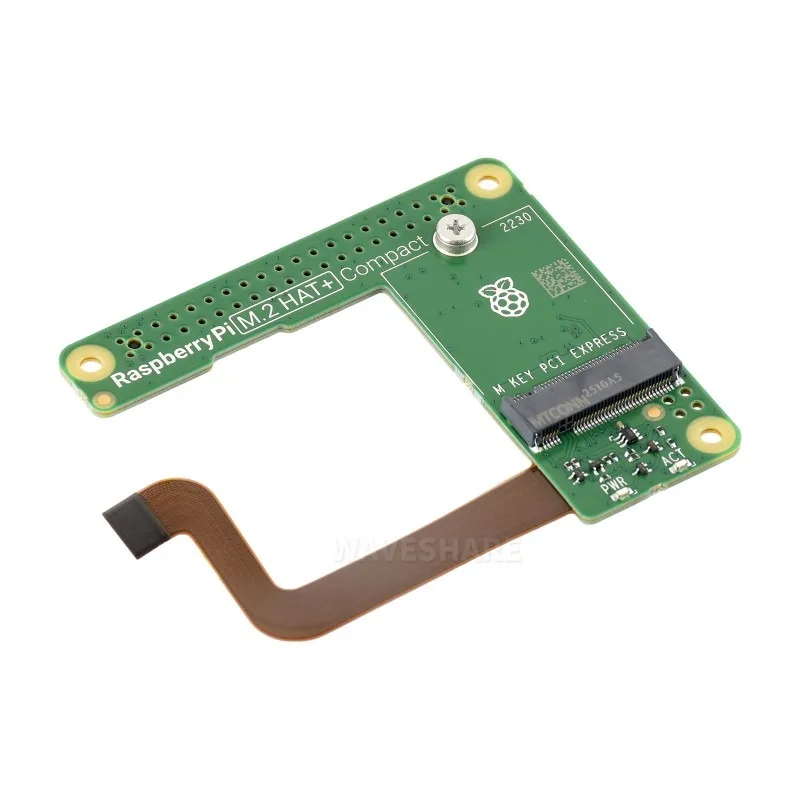

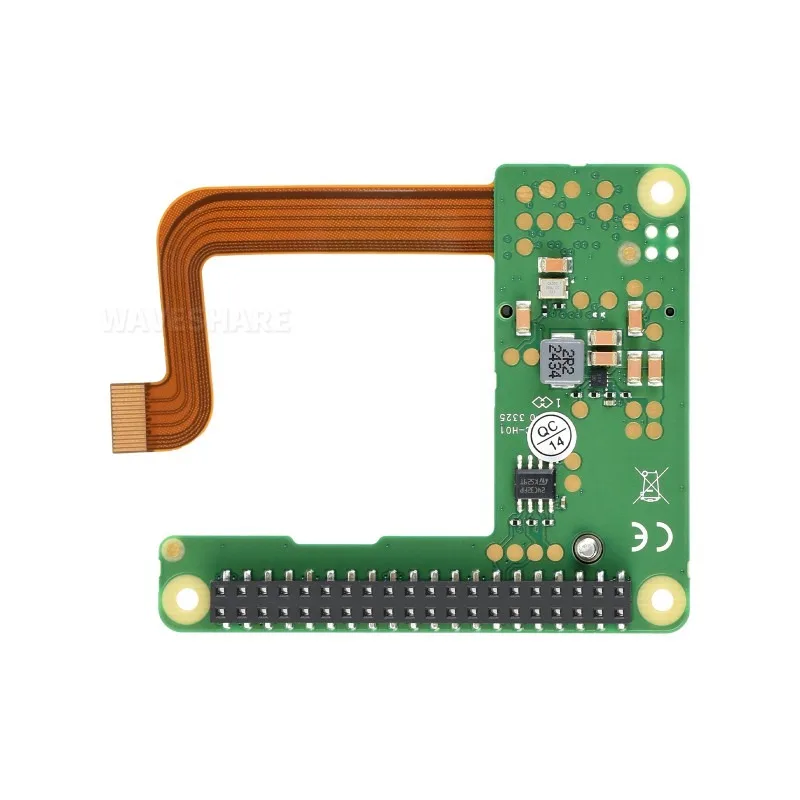

Official Raspberry Pi M.2 HAT+ Compact, Designed For Raspberry Pi 5, HAT + Standard, Supports NVMe Protocol M.2 Solid State

El Raspberry Pi M.2 HAT+ Compact is designed for use with the Pi case for Raspberry Pi 5. The Compact form factor enables you to connect M.2 M key peripherals with the 2230 form factor to Raspberry Pi 5, while allowing space for the case’s integrated cooling fan.

Las características principales incluyen:

• Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)

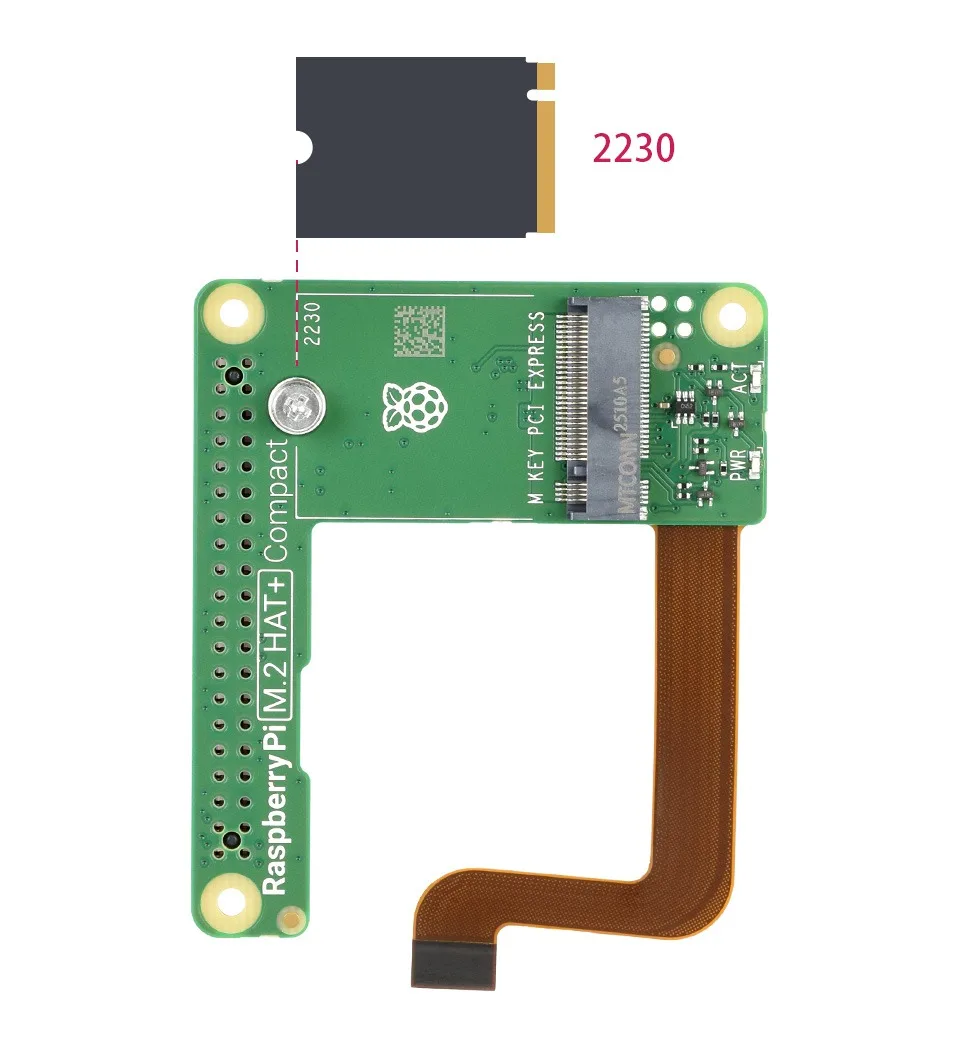

• Supports devices that use the M.2 M key edge connector, only supports 2230 form factor M.2 Solid State Drive
• Capable of supplying up to 3A to connected M.2 devices
• Conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software / firmware

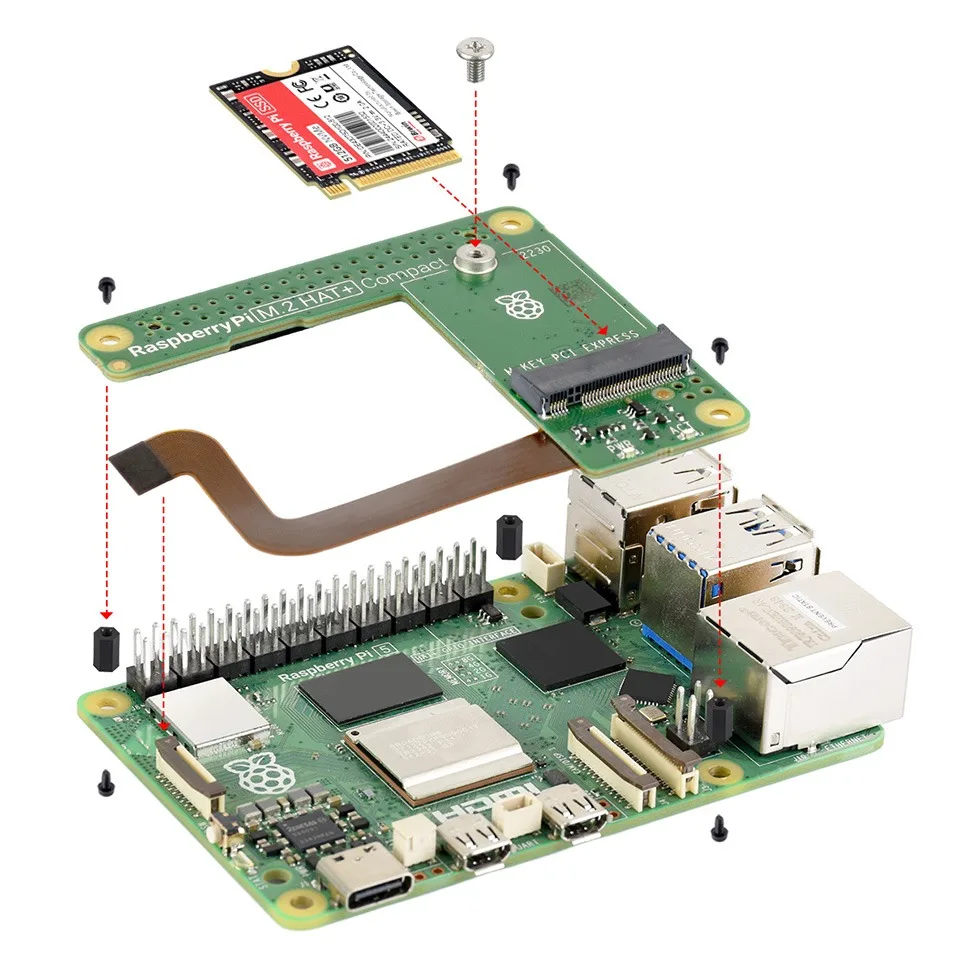

• Compact layout, can be fitted inside the official Raspberry Pi 5 Case, while allowing space for the case’s integrated cooling fan
• Supports power and activity LEDs
• Specifically designed for stacking with the built-in fan in the Raspberry Pi 5 official case
