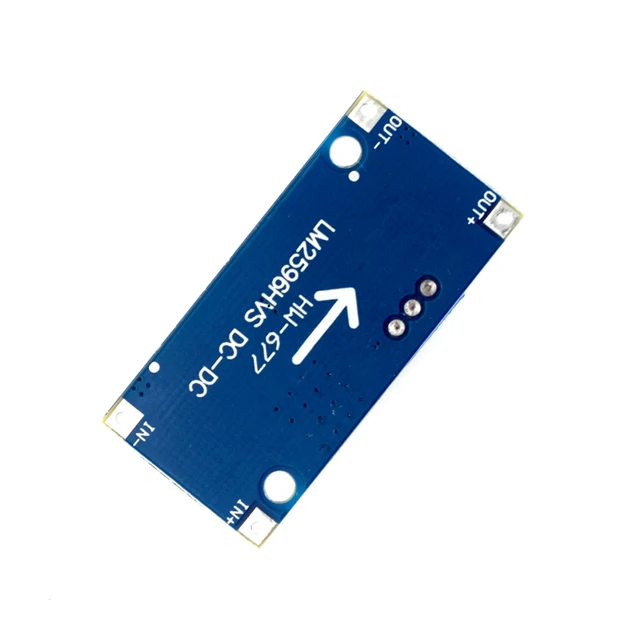

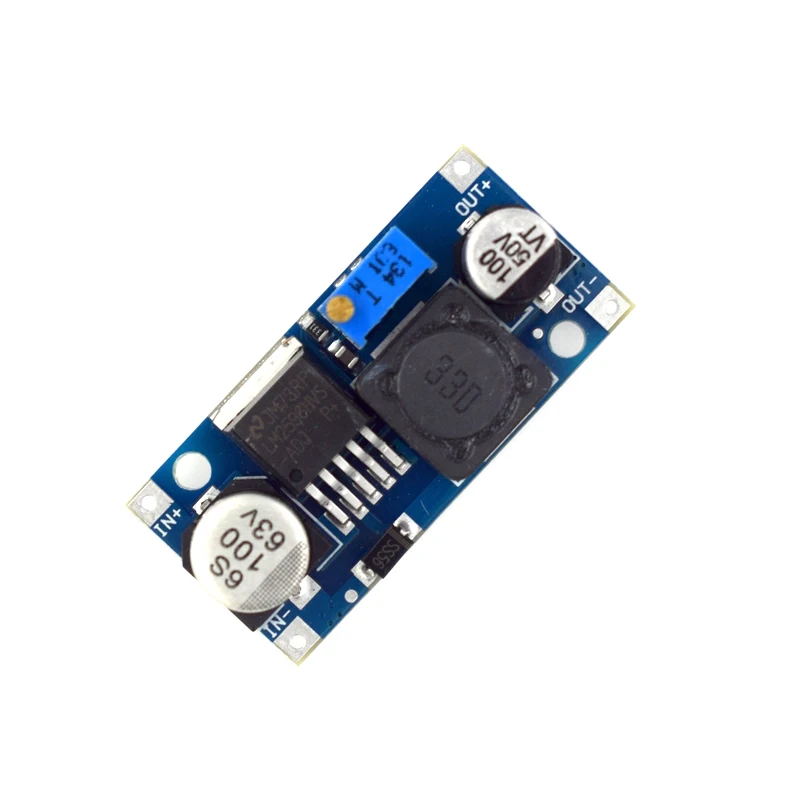

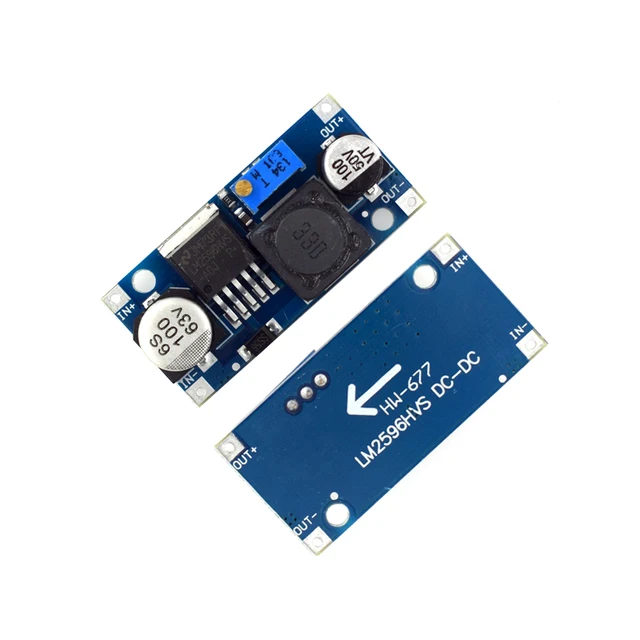

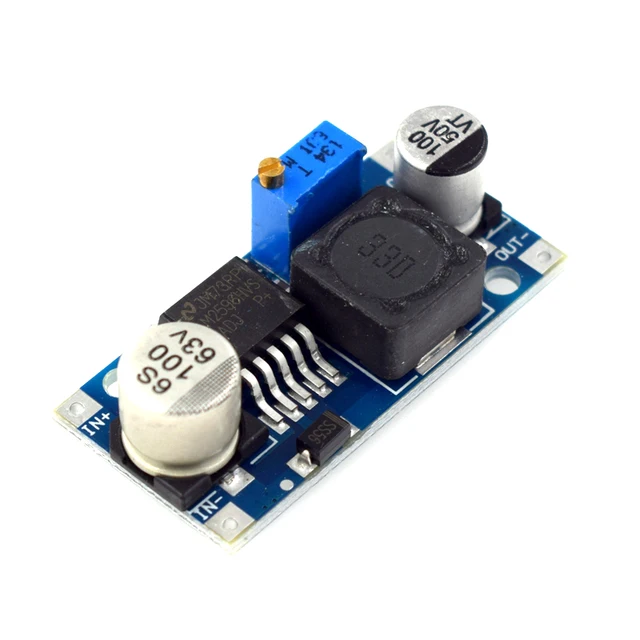

LM2596HVS LM2596 HV LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module DC 4V – 48V To 3V – 40V Urrent limiting

Descripción

1. Input voltage: DC4V-48V;

2. Output voltage: DC3V-40V;

3. Output current: maximum 3A;

4. Conversion efficiency: maximum 92%;

5. Output Ripple:<30mV

6. Switching frequency:150KHz

7. Operating Temperature:-45 ° ~ +85 °

special note

1. The positive and negative terminals of the input and output terminals cannot be reversed, otherwise the module will be damaged;

2. This is a voltage reduction module, and the input voltage should be higher than the output voltage, so it cannot be boosted;

3. The conversion efficiency is related to the voltage difference between the input and output voltages;

4. If the output current is greater than 2.5A or the output power exceeds 10W, and if working for a long time, please strengthen heat dissipation;

When using near the limit voltage, caution should be exercised and high-power loads should not be connected. And high voltage, high current, and hot swappable can easily damage the module;

6. Adjust the potentiometer clockwise or counterclockwise to adjust the output voltage;
