LiPo Charger & 5V Booster — PCB / PCBA
Price range: $2.00 through $4.50
Compact USB-C lithium-battery charger and 5V boost-converter design using BQ24075 and PAM2401 for portable electronics.
Choose PCB Only — $2.00, 50 g or PCBA — $4.50, 60 g, per piece.
PCBA is made to order: 5-10 days of production after payment confirmation, excluding shipping transit time.
Images show bare PCB renders. The PCB-only option contains no components.
PCB production lead time: 2-3 days. Shipping transit time is additional.
Choose your PCB color: Green, Purple, Red, Yellow, Blue, White, Black or Matte Black.
For bare PCB orders, please enter your preferred soldermask color in the order notes at checkout. If ordering multiple products, specify the product name and color for each item. Example: Arisu PCB – Purple. Product images are references; the supplied PCB color follows your confirmed order requirements.
Prefer to order with your Gerber files? Upload your Gerber files on our PCB/PCBA online ordering page, select your PCB color and manufacturing specifications, and place your order directly. Pricing is calculated from your uploaded files and selected options.
5% of this product’s net sales goes to the shared DIYIPCB Open Hardware Fund, at no extra charge.
See the fund & rules →Description
Design functions and applications
Compact USB-C lithium-battery charger and 5V boost-converter design using BQ24075 and PAM2401 for portable electronics.
Main chips and their roles
| Chip | Role in the design |
|---|---|
| BQ24075 | Lithium-battery charging IC identified in the upstream design. |
| PAM2401 | Boost-converter IC used for the target 5V output. |
Key design functions
- Combines battery charging and voltage boosting in a 24 × 34 mm upstream layout.
- USB-C input and charging/status indicators in the assembled design.
- Upstream documentation describes a 500mA default charging setting; confirm the actual component configuration before selecting a battery.
Typical applications
- Power subsystems for portable microcontroller projects.
- Rechargeable sensor nodes and small electronic prototypes.
- Learning battery charging and DC-DC boost-converter integration.
Application examples require suitable firmware and external hardware. Functions and chips describe the assembled design; the PCB-only option contains no components. Actual PCBA population and any programming or testing requirements should be confirmed for the order.
LiPo Charger & 5V Booster — PCB / PCBA
A compact power-board design based on the open-source LiPo Charger Booster / Compact Power Combo project by DIY GUY Chris (BEEMB). Choose a bare PCB or an assembled board.
| Option | Price per piece | Shipping weight | Contents | Production lead time |
|---|---|---|---|---|
| PCB Only | USD $2.00 | 50 g | One bare PCB; no electronic components | 2-3 days |
| PCBA | USD $4.50 | 60 g | One populated and soldered board | 5-10 days after payment confirmation |
PCBA is made to order. The production lead time excludes shipping transit time.
About the design
The upstream project combines a BQ24075 lithium-battery charger with a PAM2401 boost converter, USB-C input and status LEDs on a 24 × 34 mm board. It targets a 5V boosted output. These are upstream design details, not an independently verified performance rating for this listing.
What is included?
- PCB Only: one unpopulated printed circuit board; all components are excluded.
- PCBA: one assembled circuit board. Battery, cables and enclosure are not included.

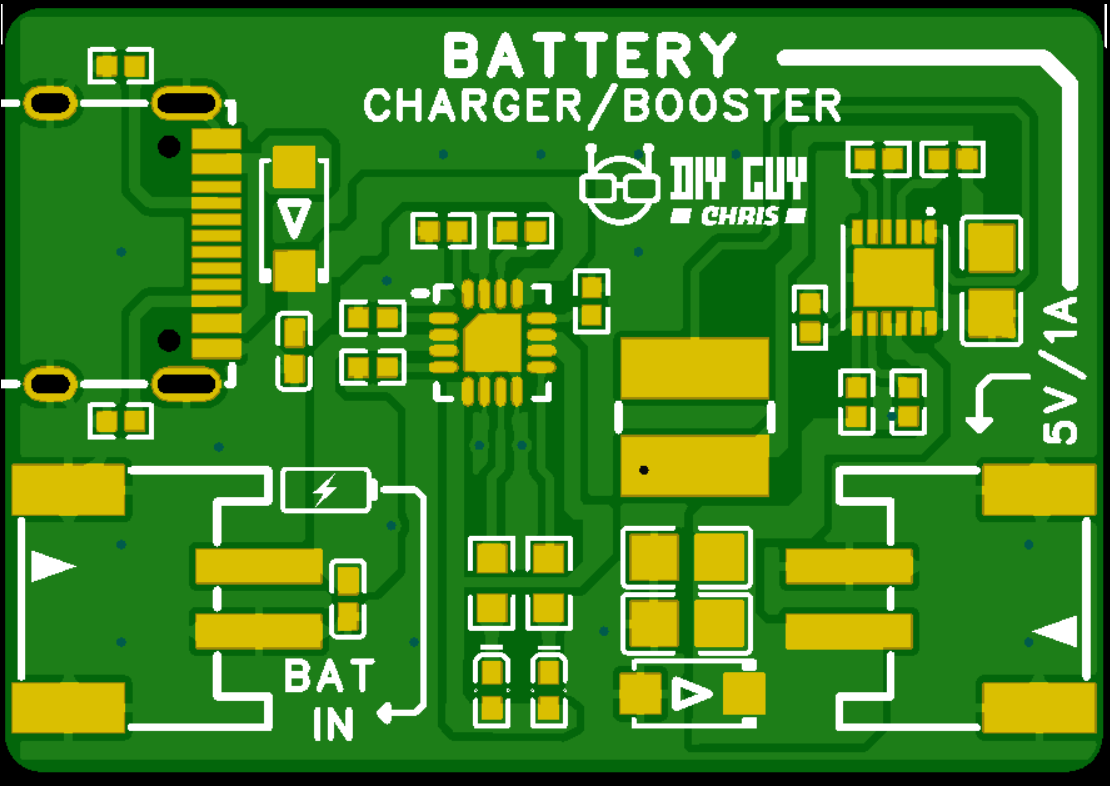

The supplied image is a bare PCB render, not a photograph of an assembled or tested PCBA.
Design notes
The original author reports charger/booster output contention in early versions. Review the upstream design notes and confirm the manufacturing revision and output isolation before production/use. Match the battery type, charging settings and polarity to the design, and verify the output before connecting a load. The markings on the render are not a DIYIPCB test certificate.
Open-source resources
Copyright (c) 2025 DIY GUY Chris. Manufactured/supplied by DIYIPCB. No endorsement by the original designer is implied.
Contact DIYIPCB to confirm assembly scope, revision or specific testing requirements.
5% of eligible net sales supports the Open Hardware Fund, at no extra charge.
Original MIT license
MIT License Copyright (c) 2025 DIY GUY Chris Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Additional information
| Weight | N/A |
|---|---|
| Build Option | PCB Only, PCBA — 5-10-day production |
| PCB Production Lead Time | 2-3 days |
| PCBA Production Lead Time | 5-10 days |
| PCB Color (Order Notes) | Green, Purple, Red, Yellow, Blue, White, Black, Matte Black |
Maker & product resources
Maker / seller: DIYIPCB · Upstream: DIY GUY Chris / BEEMB
Hardware license: MIT
Source repository: https://github.com/BEEMB/-LiPo-Charger-Booster---Compact-Power-Combo
Documentation: https://github.com/BEEMB/-LiPo-Charger-Booster---Compact-Power-Combo#readme
Check the product description for specifications, included items, stock and fulfillment details.
