Glasgow revC3 Interface Explorer Bare PCB — FPGA Debug Tool

Description

PCBA production lead time: 5-10 days, subject to component availability and assembly-scope confirmation. Shipping transit time is additional.

Glasgow revC3 Interface Explorer PCB

A four-layer bare main-board PCB based on the Glasgow revC3 open hardware design. Intended for engineers, embedded developers and electronics enthusiasts building a configurable FPGA-based interface tool.

Price and package contents

US$4.00 per board; listed shipping weight 50 g. Includes one unpopulated revC3 main PCB only. No FPGA, USB controller, other components, connectors, enclosure, cables or probes are included. PCB production lead time: 2-3 days.

Design functions and applications

• 16 configurable I/O pins grouped into two ports, with 1.8 V to 5 V I/O standards.
• Independent pin direction control and programmable pull-up/pull-down resistors.
• USB 2 connectivity for power, configuration and communication.
• UART, SPI, I2C and JTAG interface work using the appropriate Glasgow software applets.
• Memory access, supported-device programming and embedded electronics debugging.

These functions describe the assembled upstream design with compatible firmware, gateware and host software. The bare PCB alone does not provide these functions. Actual PCBA test coverage is specified in the assembly quotation.

Main chips in the revC3 design

• iCE40HX8K-BG121: FPGA for configurable interface logic.
• CY7C68013A: high-speed USB controller.
• SN74LVC1T45: I/O voltage-level translation.
• DAC081C081 and TPS73101: programmable I/O supply circuitry.

Assembled PCBA enquiries

Contact Us for PCBA or email service@diyipcb.com. Please provide quantity and required assembly scope. Component availability, connectors, factory initialization, functional tests, weight, price and lead time are confirmed in the quotation. PCBA is not included in the $4.00 bare-board purchase.

Images and manufacturing identity

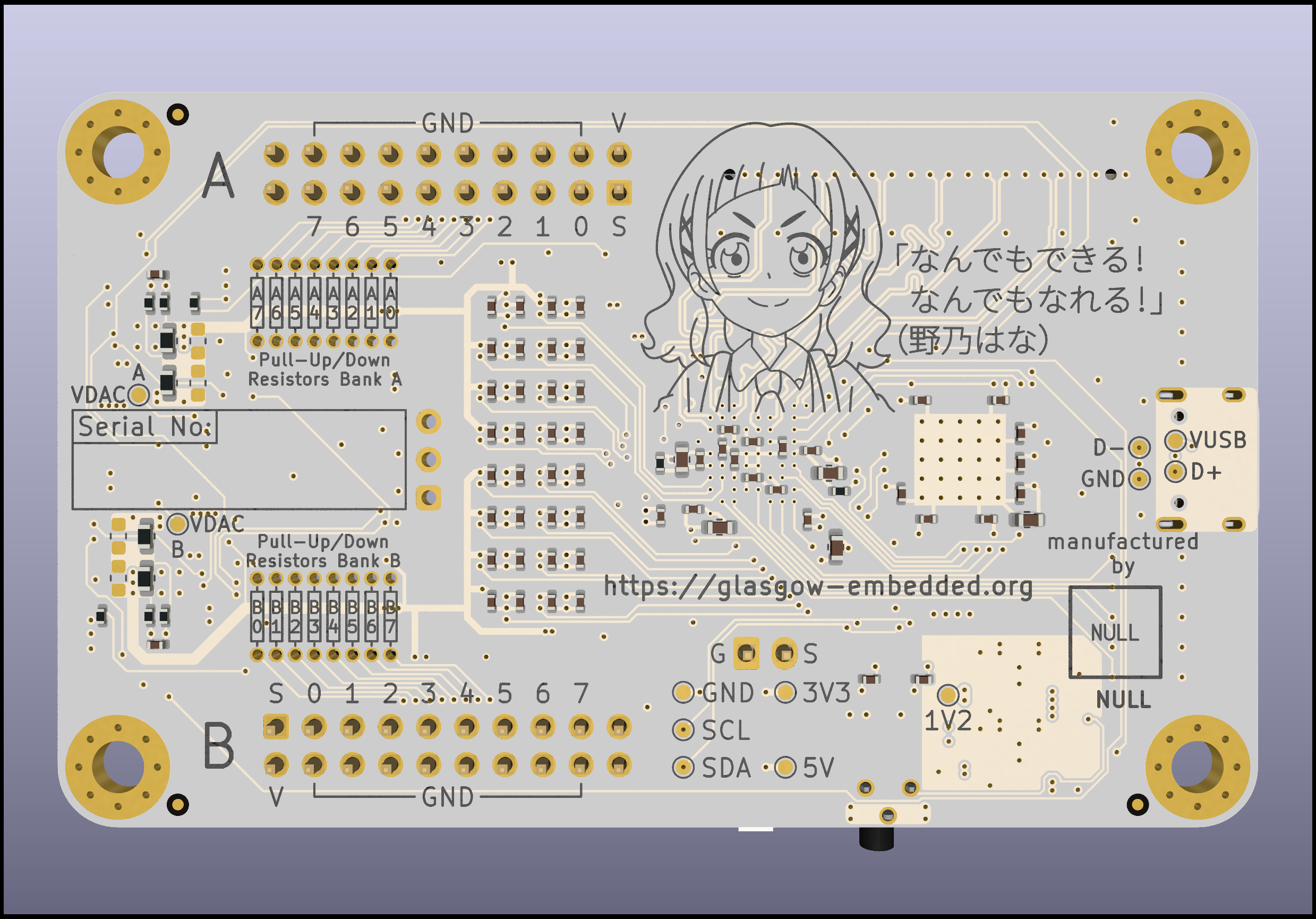

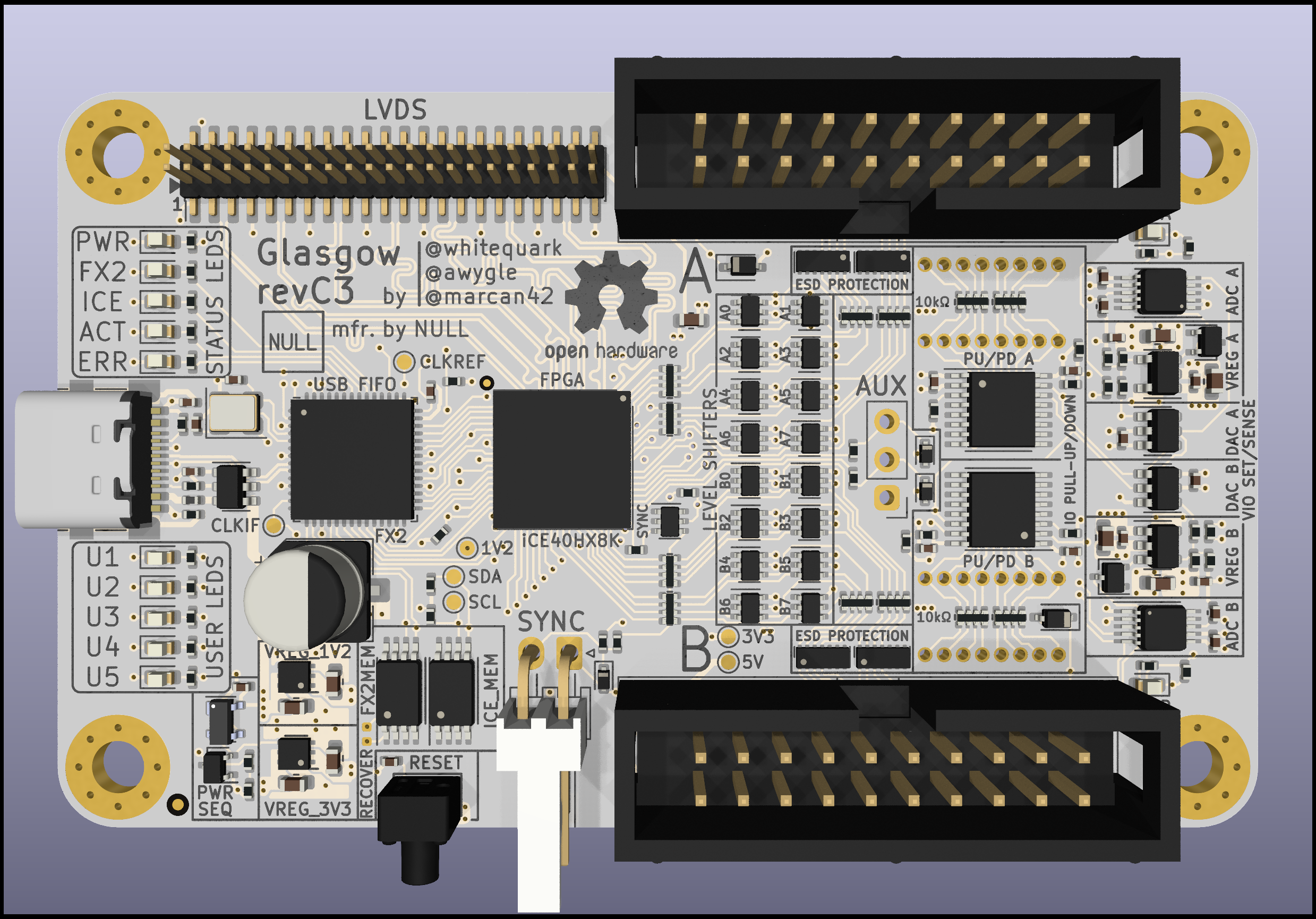

The front and back images are upstream assembled-design renders for reference, not photographs of the bare PCB supplied. Production boards will identify DIYIPCB as the manufacturer in place of the upstream manufacturer placeholders. Original designer attribution is retained. This is independently manufactured hardware; it is not an official 1BitSquared product and no endorsement by the Glasgow project is implied.

Open hardware resources

• revC3 KiCad source files
• Upstream fabrication files and schematic PDF
• Hardware revision specifications
• Manufacturer identification and factory initialization guidance

Download links reference the upstream design, including its original manufacturer placeholders. These are not a released DIYIPCB production package. Before fabrication, manufacturer identification must be updated and the resulting manufacturing files reviewed.

License and attribution

Copyright Glasgow Interface Explorer contributors. The upstream project offers its design files under a choice of 0BSD or Apache-2.0; this listing uses the 0BSD option. Original source and license: GlasgowEmbedded/glasgow.

5% of eligible net product sales supports the Open Hardware Fund, at no extra charge.

Copyright (C)  Glasgow Interface Explorer contributors

Permission to use, copy, modify, and/or distribute this software for
any purpose with or without fee is hereby granted.

THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR
ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN
AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT
OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
