DeepSeek XiaoZhi AI Voice Chat Robot Xmini-C3 ESP32 C3 DIY AI Development Board

Note

• Do not include Battery ：603020(60x30x20mm) / 300mah / 3.7V Li-Battery

• Support AI : Qwen2.5, DeepSeekV3, Doubao (1.5 Professional Edition), QwenMax2.5

• AI Voice Chat Only Support the Following Country  :

+86 Mainland China、+852 Hong Kong China、+853 Macau China、+886 Taiwan China、+1 United States/Canada、+44 United Kingdom、+33 France、+39 Italy、+49 Germany、+48 Poland、+41 Switzerland、+34 Spain、+60 Malaysia、+61 Australia、+62 Indonesia、+63 Philippines、+64 New Zealand、+65 Singapore、+66 Thailand、+81 Japan、+82 South Korea、+84 Vietnam、+91 India、+92 Pakistan、+234 Nigeria、+880 Bangladesh、+966 Saudi Arabia、+971 United Arab Emirates、+55 Brazil、+52 Mexico、+56 Chile、+54 Argentina、+20 Egypt、+27 South Africa、+254 Kenya、+255 Tanzania

Overview

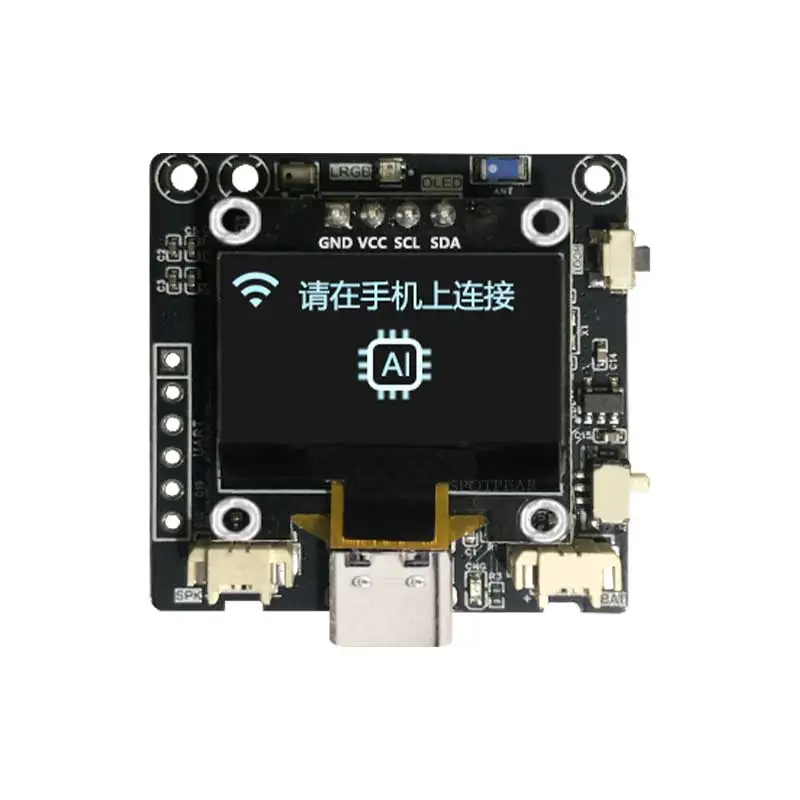

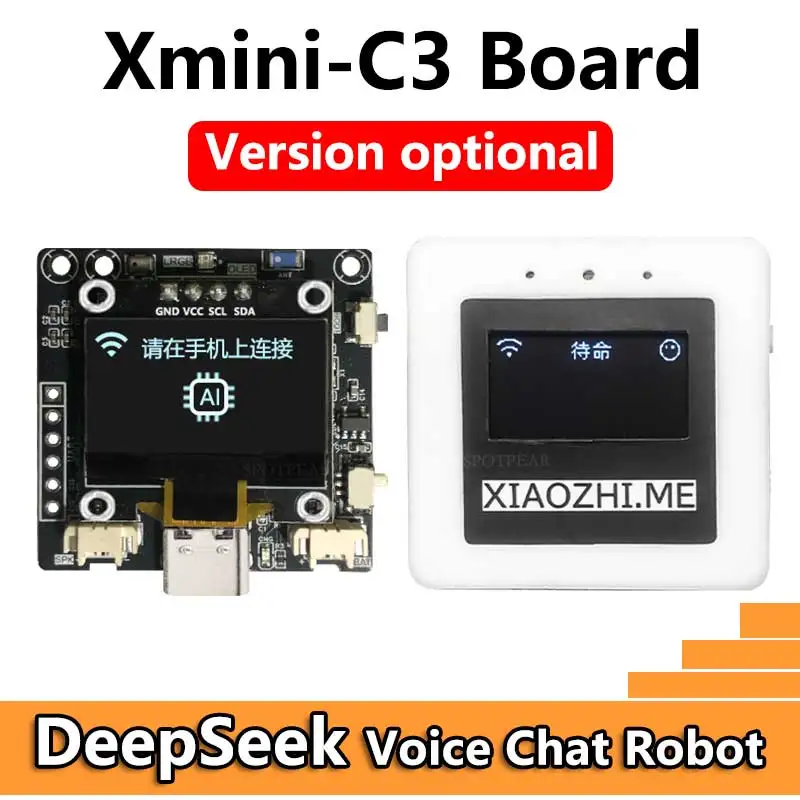

• The Xmini-C3 development board was designed and open-sourced by Xiaozhi AI creator Xia Ge. It uses Espressif Technology’s ESP32-C3 as the main control chip, with an onboard 16MN0RFLASH. The audio uses ES8311 audio decoding and NS4150 power amplifier IC solutions. It uses a ceramic antenna and can run the latest version of Xiaozhi A1 smoothly and normally.
• Supports B0OT button wake-up (does not support offline voice wake-up)
• Supports automatic 0TA upgrade of the new version (16MFLASH)
• Supports continuous multi-round dialogues and interrupts the dialogue with the BOOT button.
• Supports 0.96-inch SSD13060LED display (monochrome/dual color), supports expression and status display (the subtitle version cannot be automatically updated for the time being, you can join the group and burn it yourself)
• Supports 3.7V lithium battery power supply and charging (battery power detection is not supported yet)
• Supports 3W-5W cavity speaker interface
• The expansion interface is 6Pin, two-way power supply and two 10 interfaces, supporting external I0 devices (to be developed)

Development board configuration

• Main control: ESP32-C3QFN-32-EP
• Flash: NOR FLASH 16MB
• Audio + amplifier: ES8311 + NS4150B
• Power chip: LGS4056 (single lithium battery)
• Expansion interface: UORXD, UOTXD, VSys + GND (VSys voltage is about 4.5V), 3V3 + GND

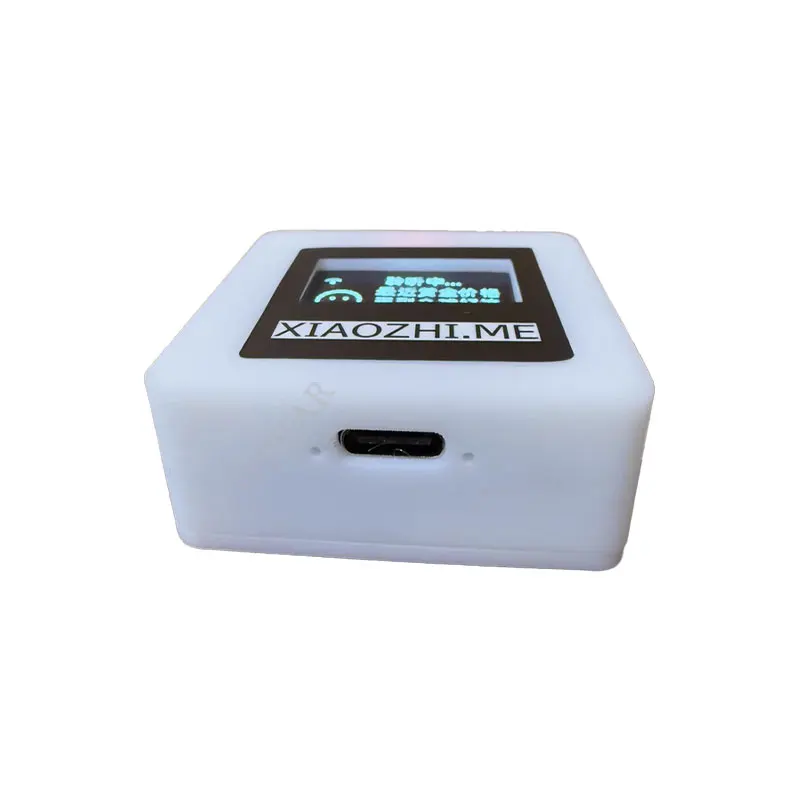

• USB interface: supports burning programs and computer serial port communication, supports TYPE-C standard 5V charging/power supply
• Accessory interface: battery, standard 1.25mm interface
• Speaker, standard 1.25mm interface (recommended speaker about 3W)
• Development board size: 36*36mm, PCB thickness 1.6mm (default)/1.2mm

Kit Configuration

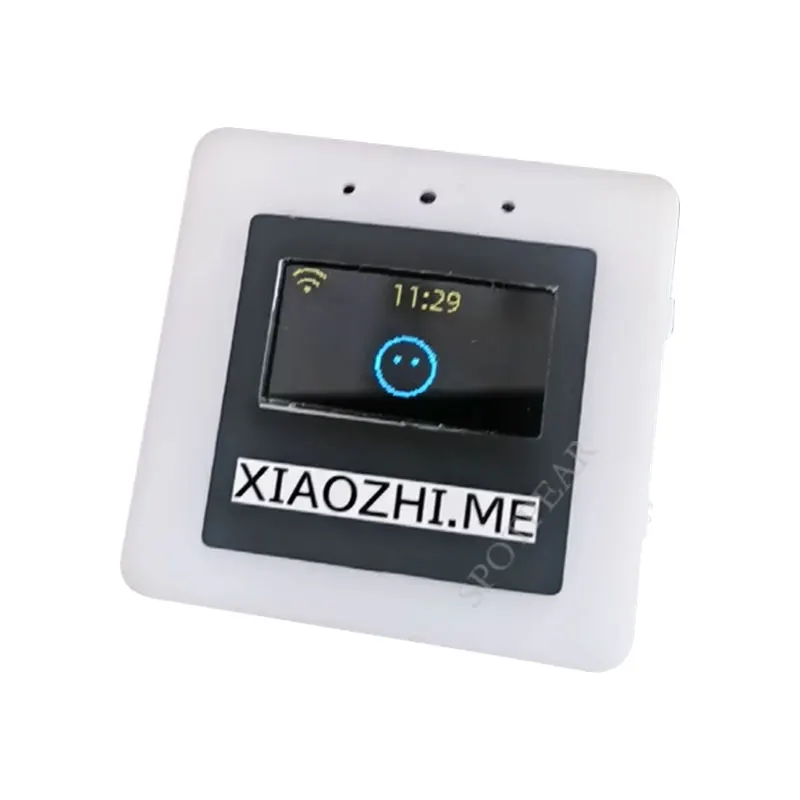

• Screen: default 0.96-inch OLED screen, SSD1306 driver, pin I starts with GND, resolution 128×64
• Battery: default 603020300mah lithium battery (battery power detection is not supported yet), standard 1.25mm interface (supports charging and discharging at the same time)
• Speaker: default 3514 ultra-thin cavity speaker (8 ohms 2 watts), standard 1.25mm interface
