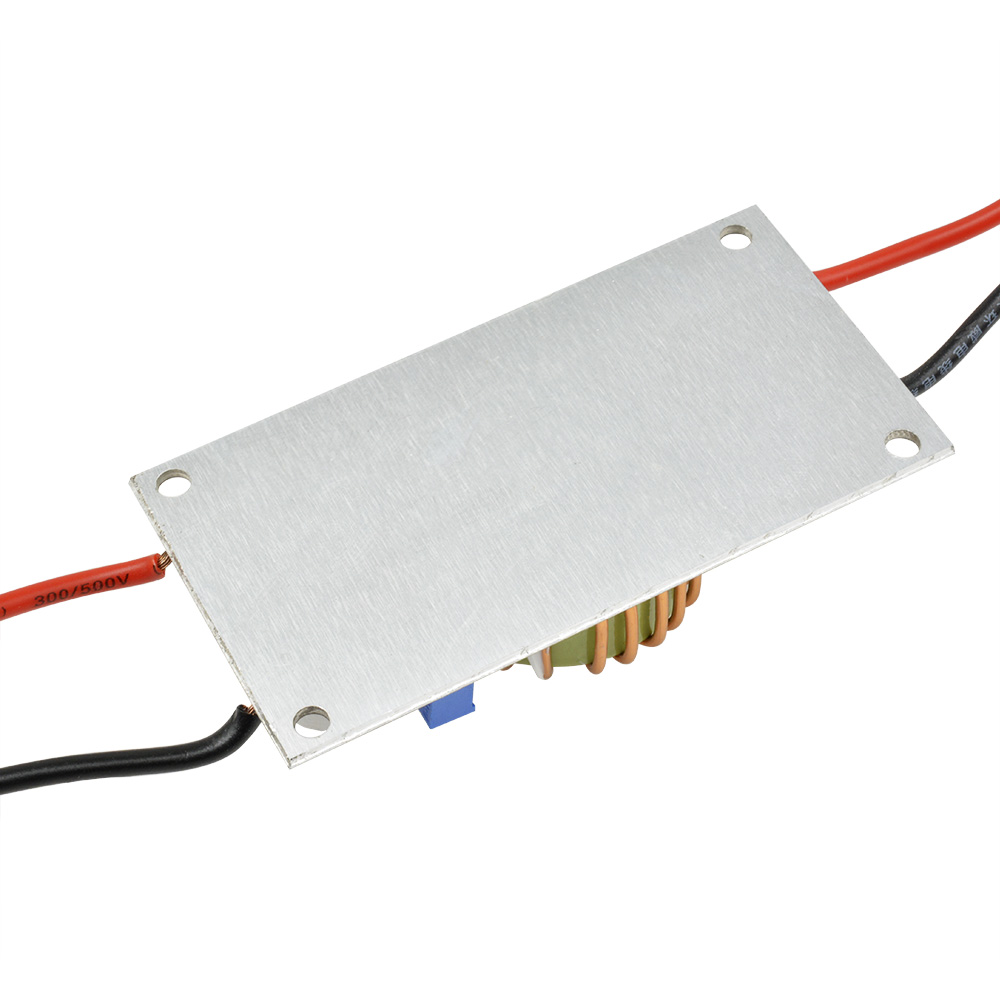

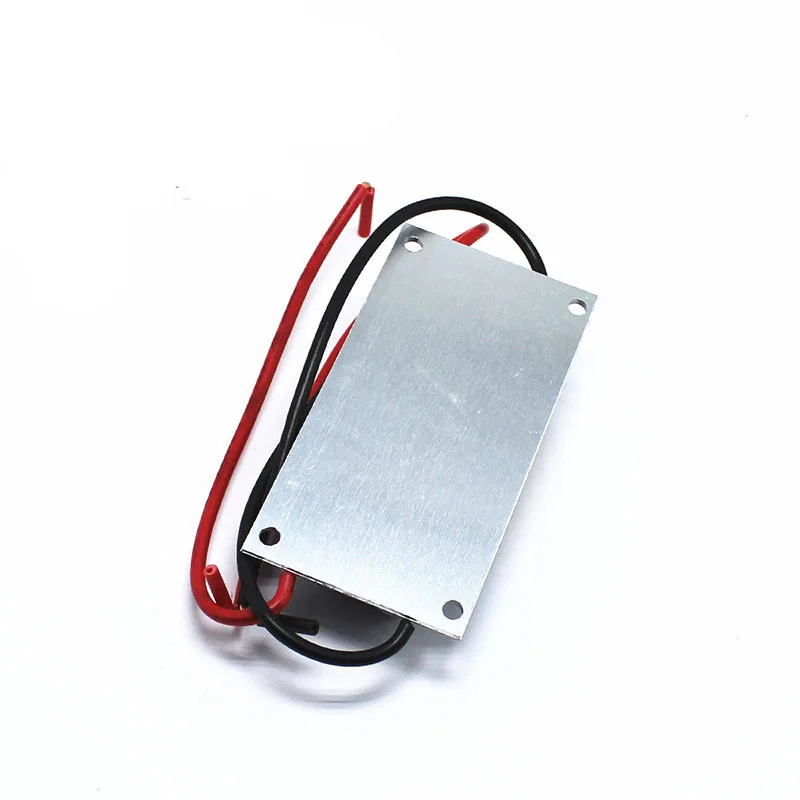

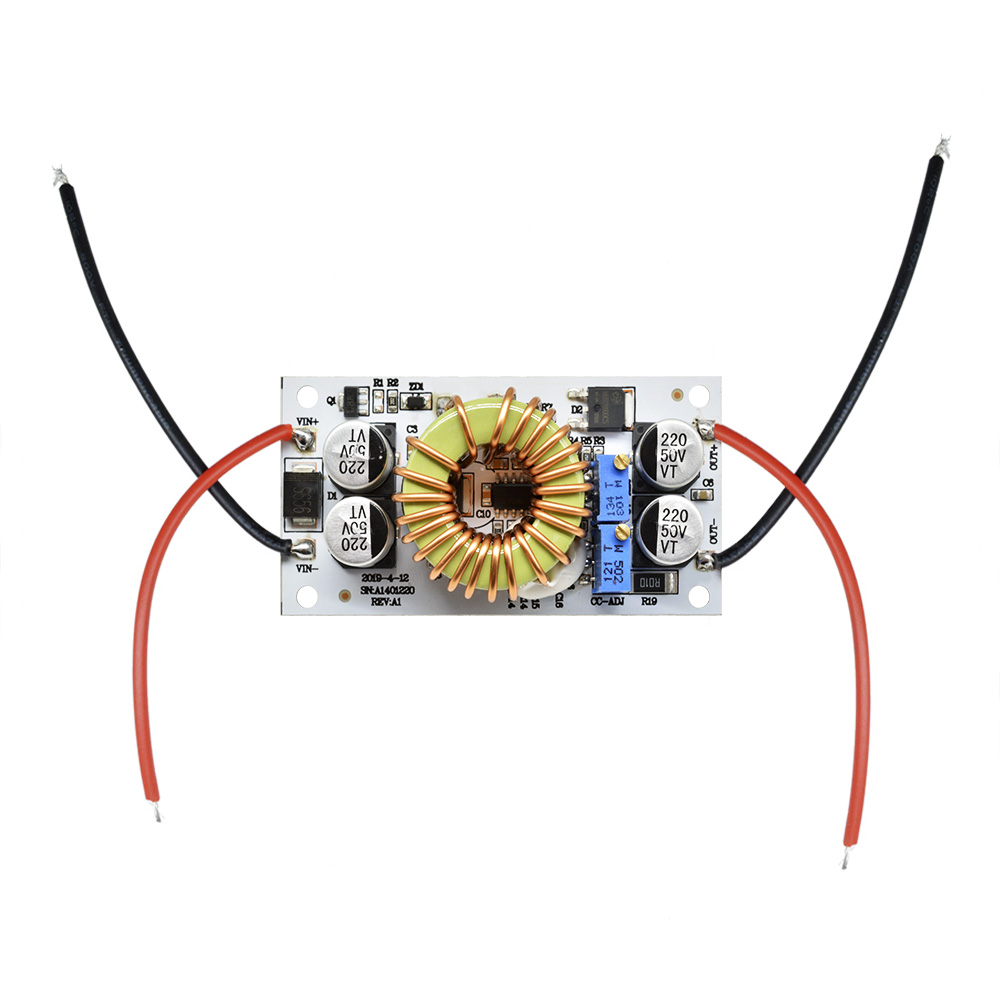

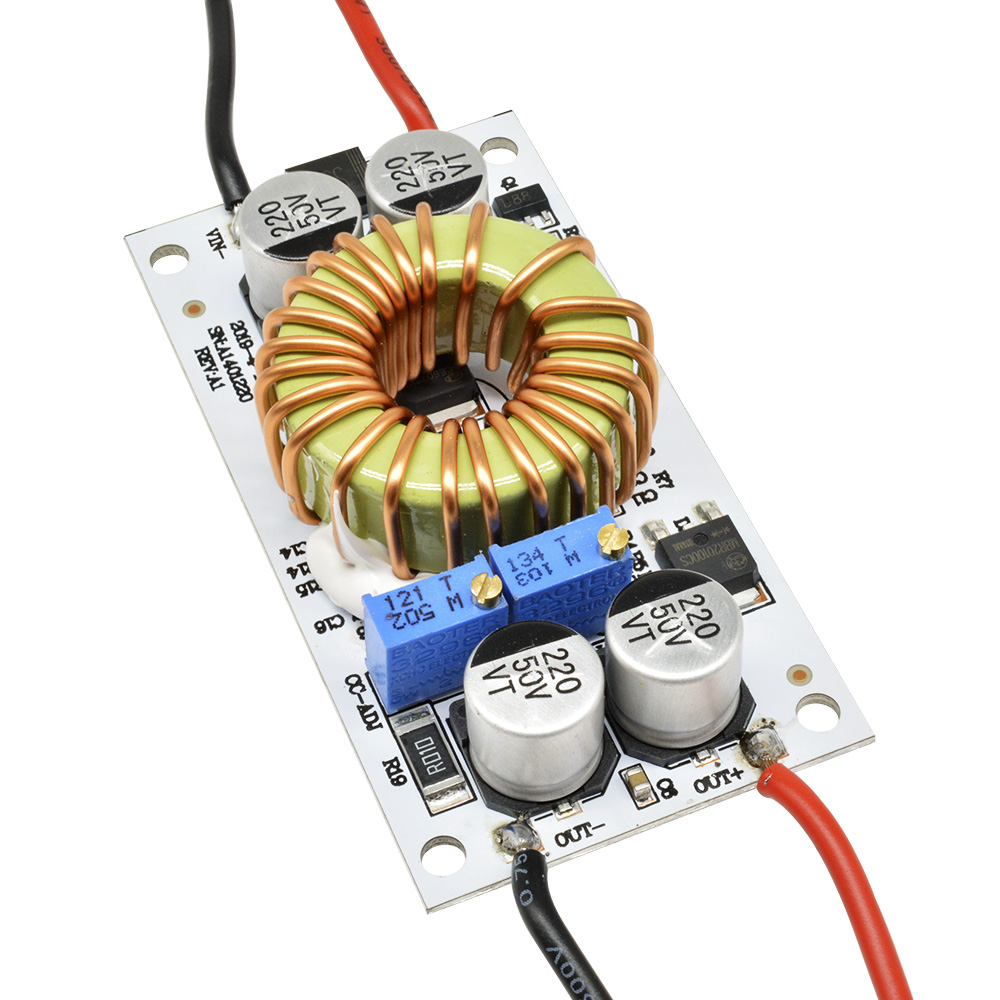

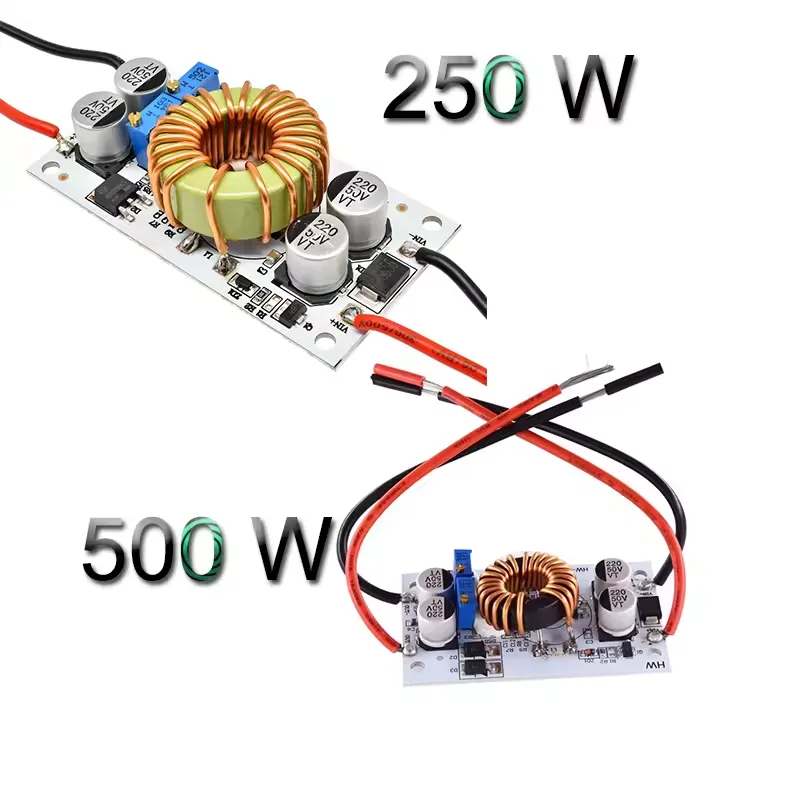

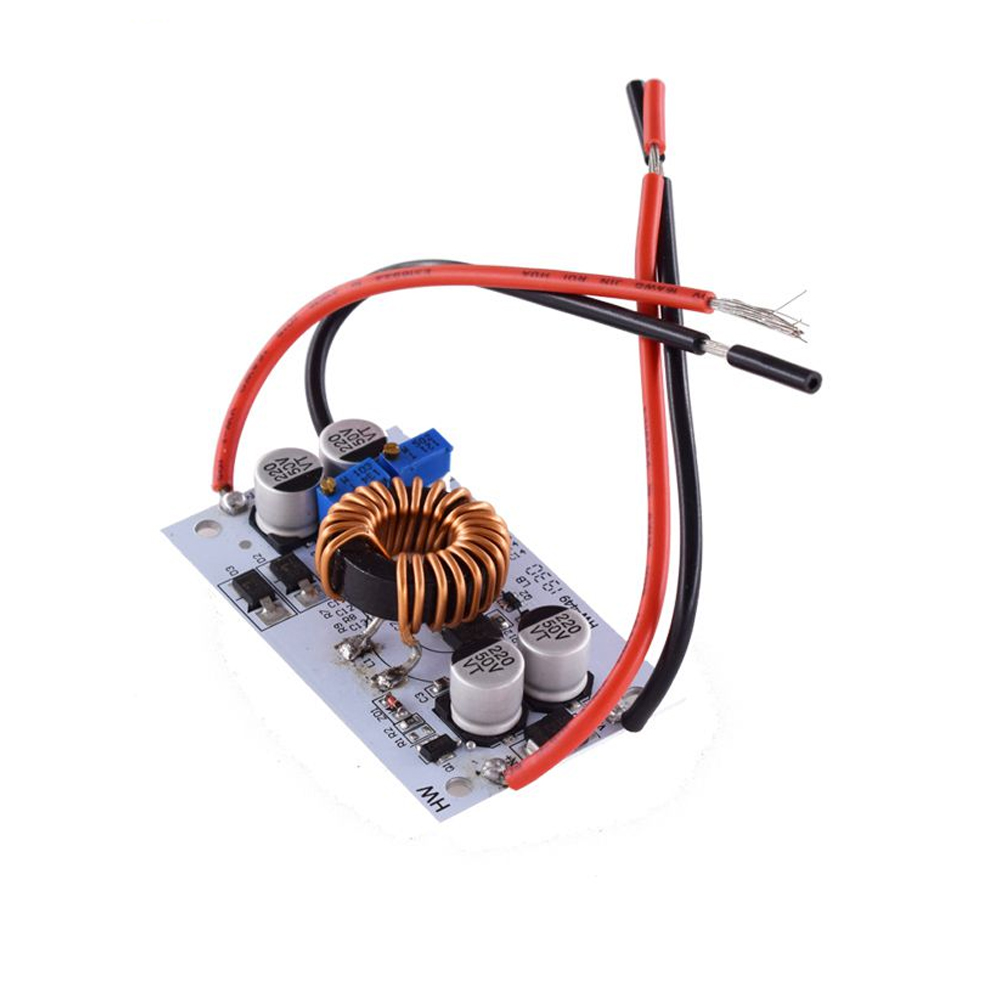

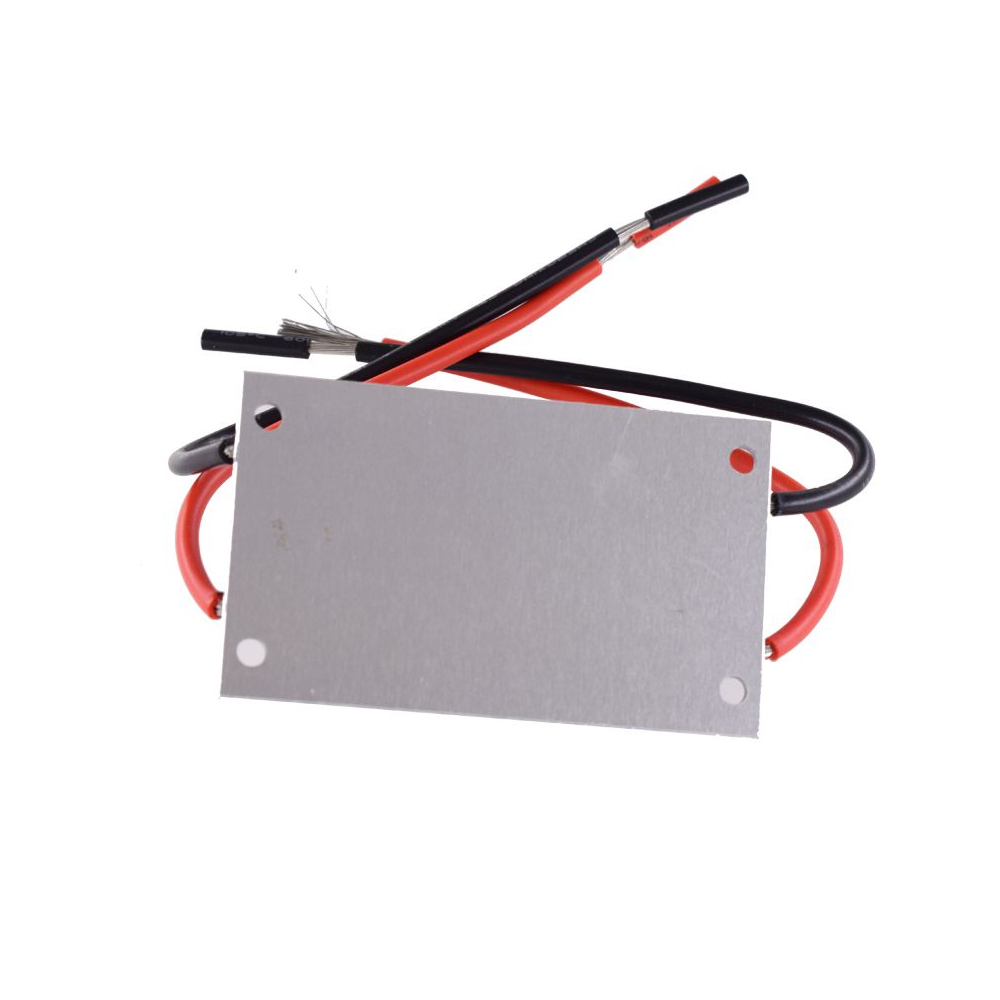

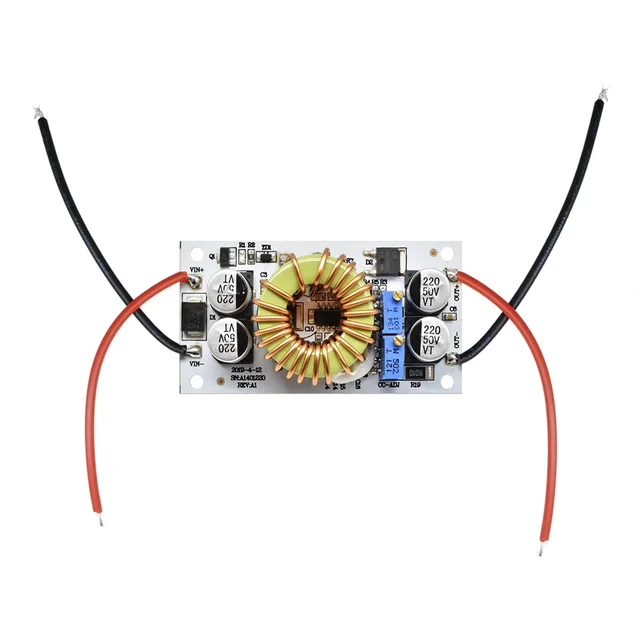

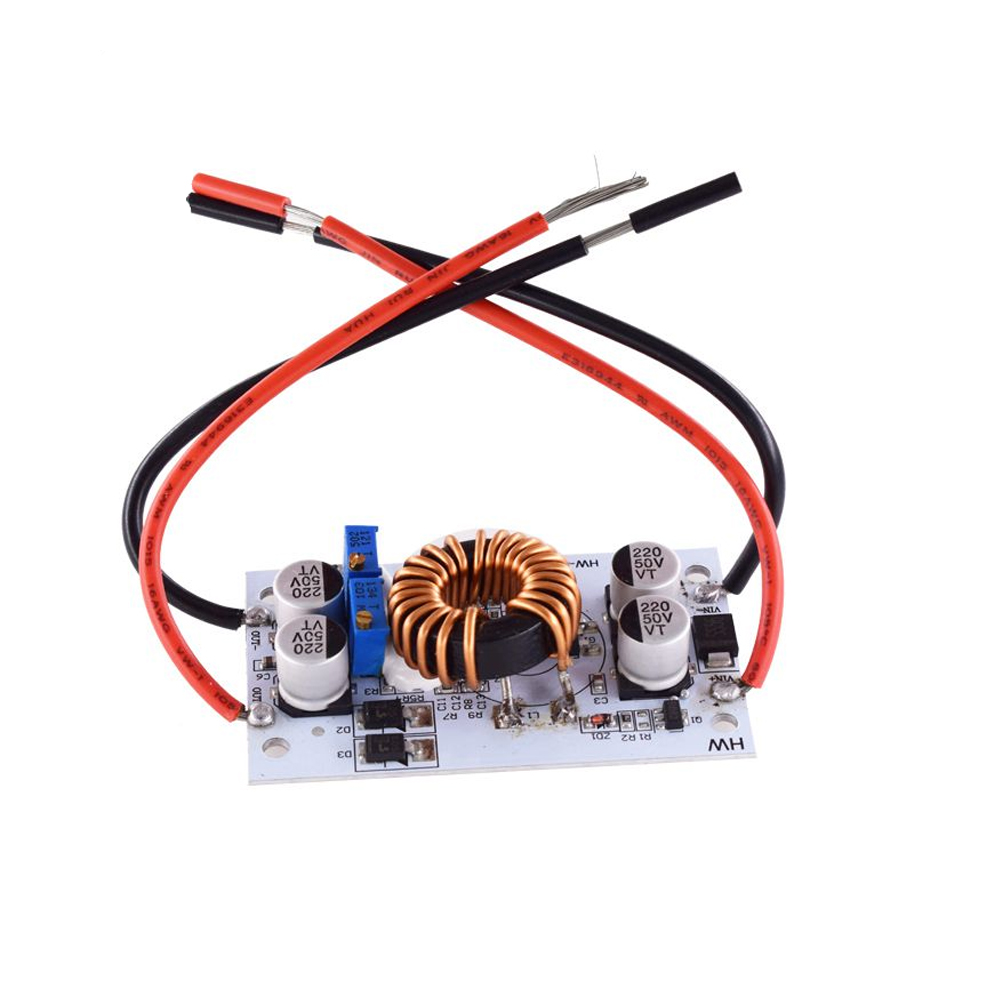

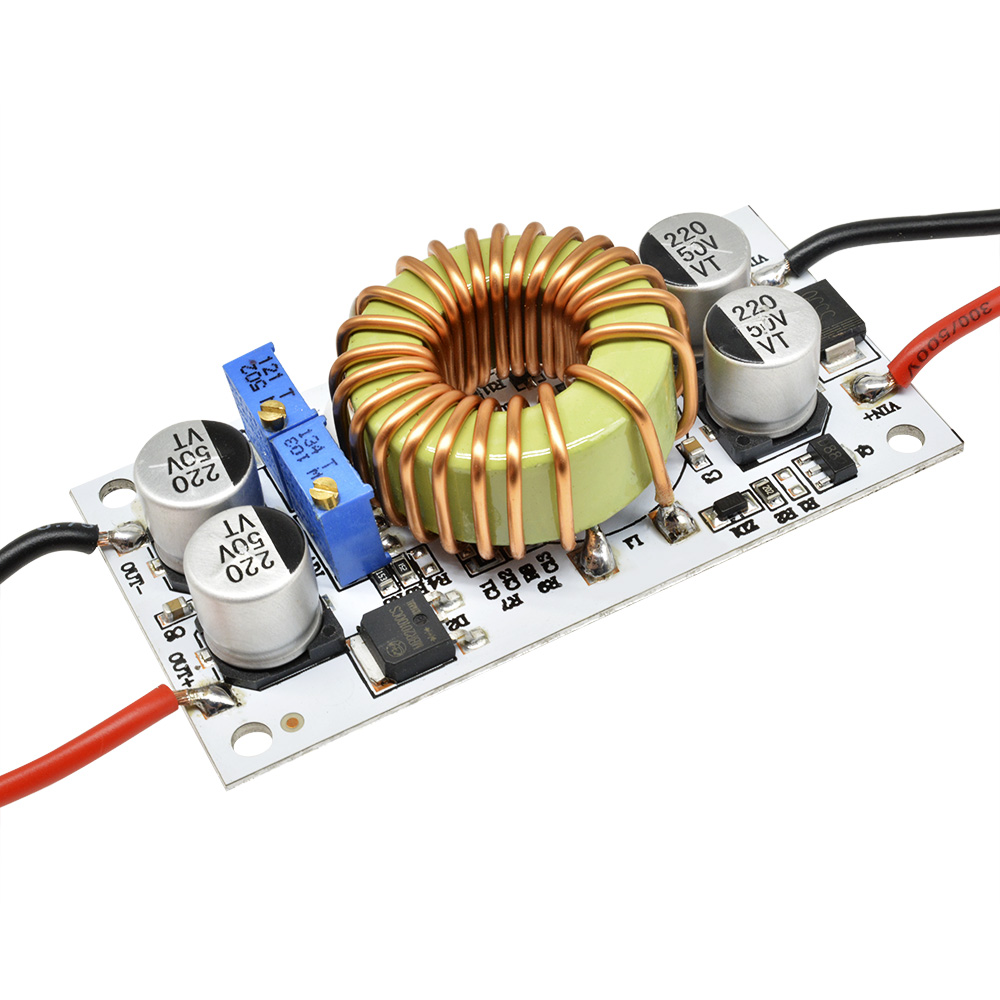

250W/500W 10A Step Up Power Supply DC 8.5V-48V to 10-50V Boost Converter Constant Voltage Current Drive Module Adjustable CC CV

Description

Features:

Module name :250W boost constant current module

Module properties: non-isolated step-up module (BOOST)

Input voltage: DC8.5V-48V

Input current: 10A (MAX) exceeds 8A please enhance heat dissipation

Quiescent current: 10mA (12V liter 20V, the output voltage, the higher

the current will increase too quiet)

Output voltage: 10-50V continuously adjustable

Constant range: 0.2-8A

Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 150KHz

Conversion efficiency: up to 96%

Overcurrent protection: There

Input reverse polarity protection: Yes

Installation: 4 3mm screw holes

Connection method: Connection Output

Module size: Length 70mm width 36mm height 13mm

Single module: 50 g

Applications:

1. DIY a power supply, 12V can input and output can 12-50V adjustable.

2. The power supply for your electronic device, according to your

system can set the output voltage value.

3. As the car power supply for your laptop, PDA or a variety of digital

products supply.

4. DIY a mobile notebook power supply: 12V coupled with high-capacity

lithium battery pack, so you can go where light where books.

5. Solar panel regulator.

6. To the battery, rechargeable lithium batteries.

7. Driving high-power LED lights.
