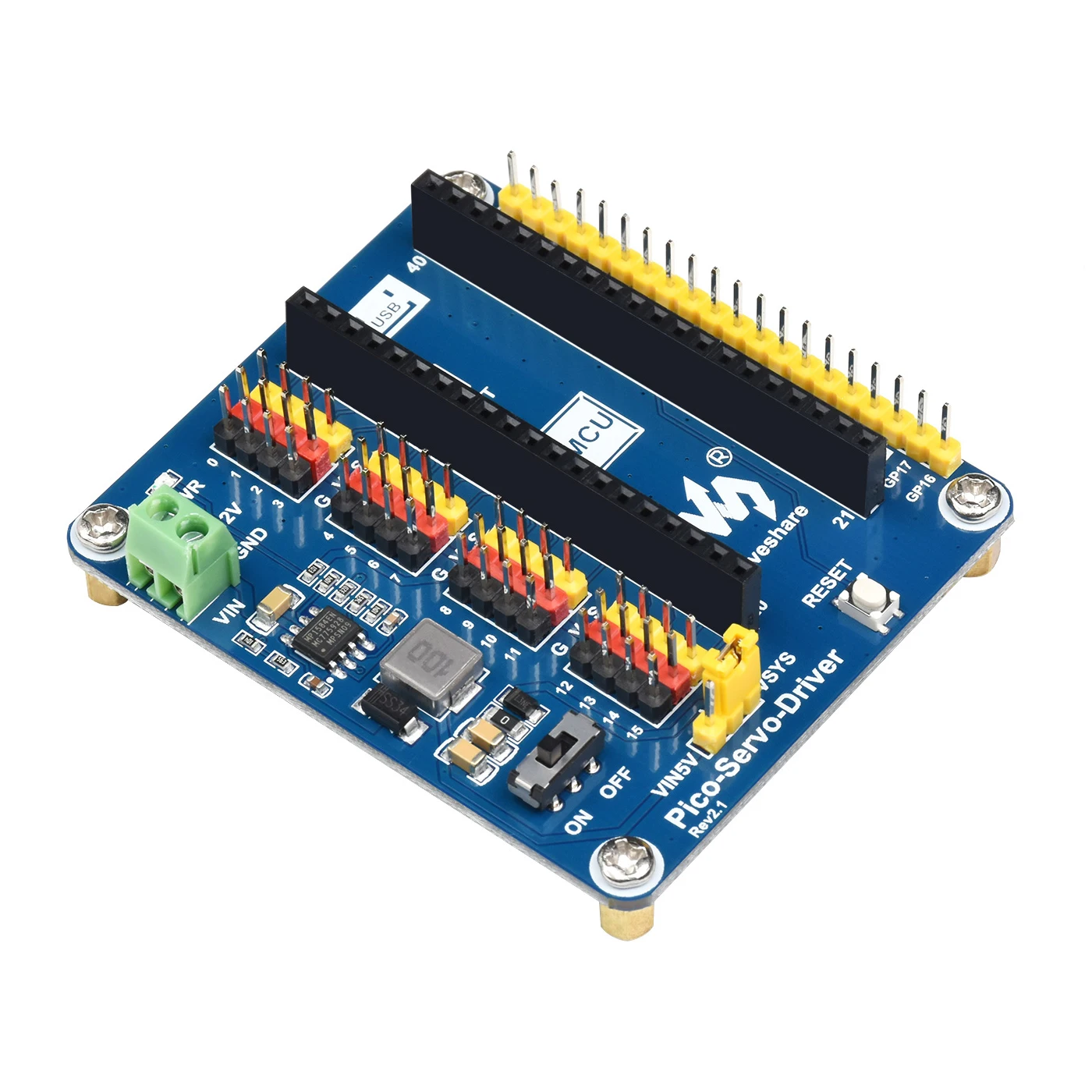

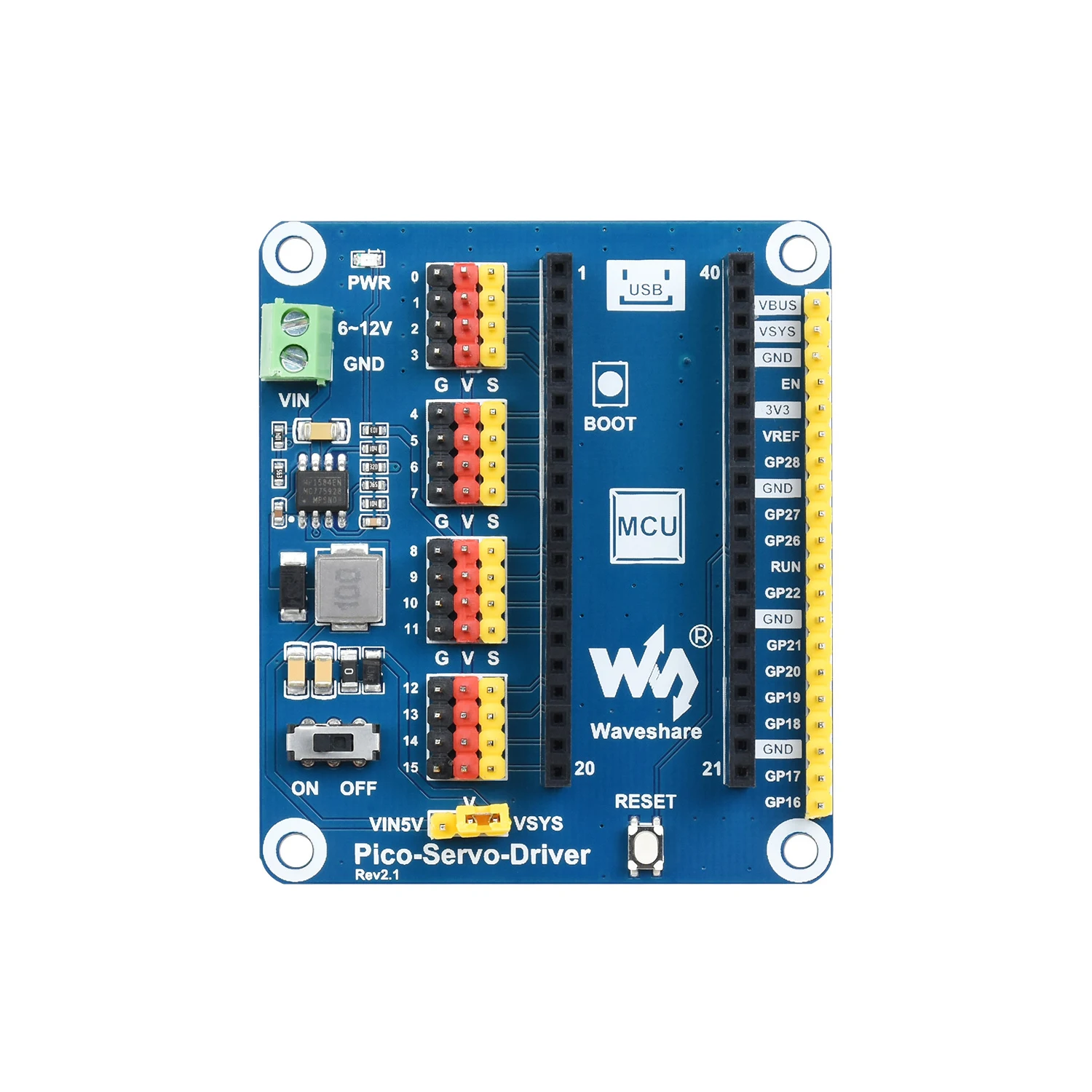

16-Channel PWM Micro Servo Motor Driver Controller Shield for RasPi RPI Raspberry Pi PICO 2 W RP2040 RP2350 Expansion Board HAT
$13.90
In stock
Description
Features ：
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

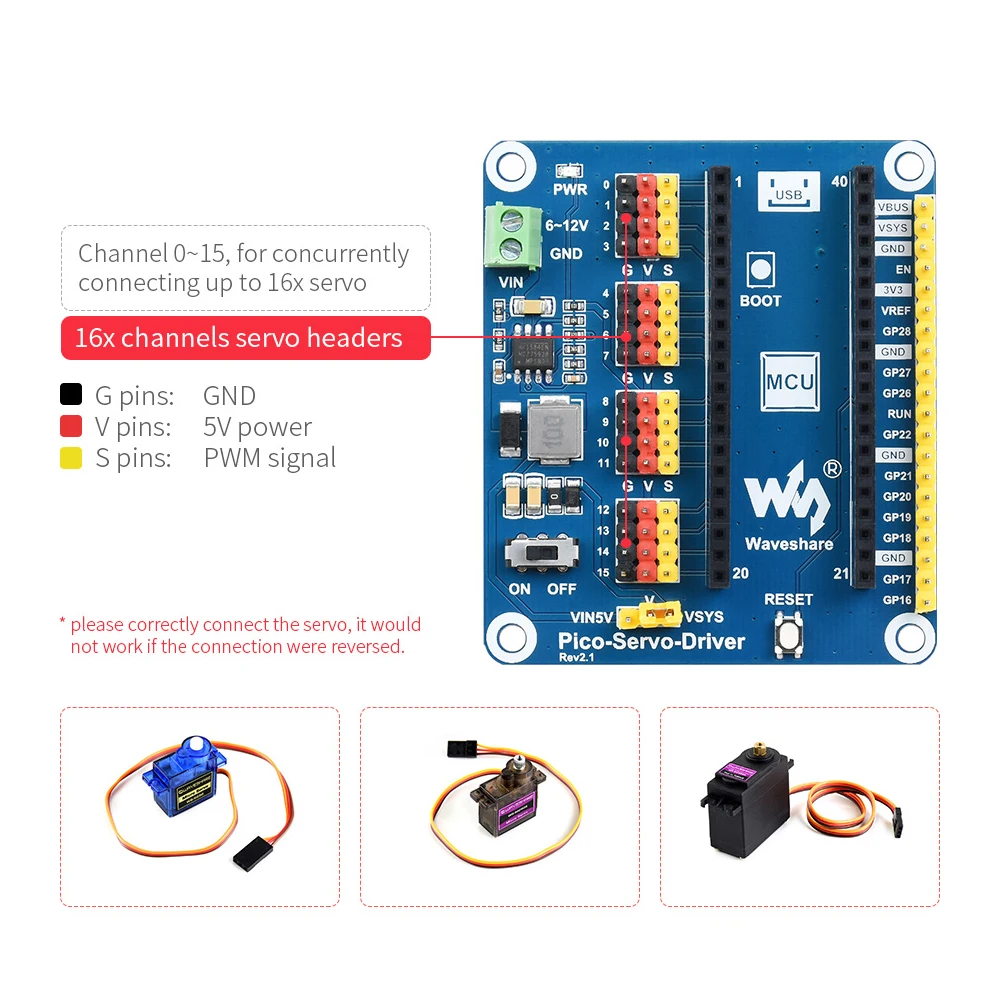

- Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel

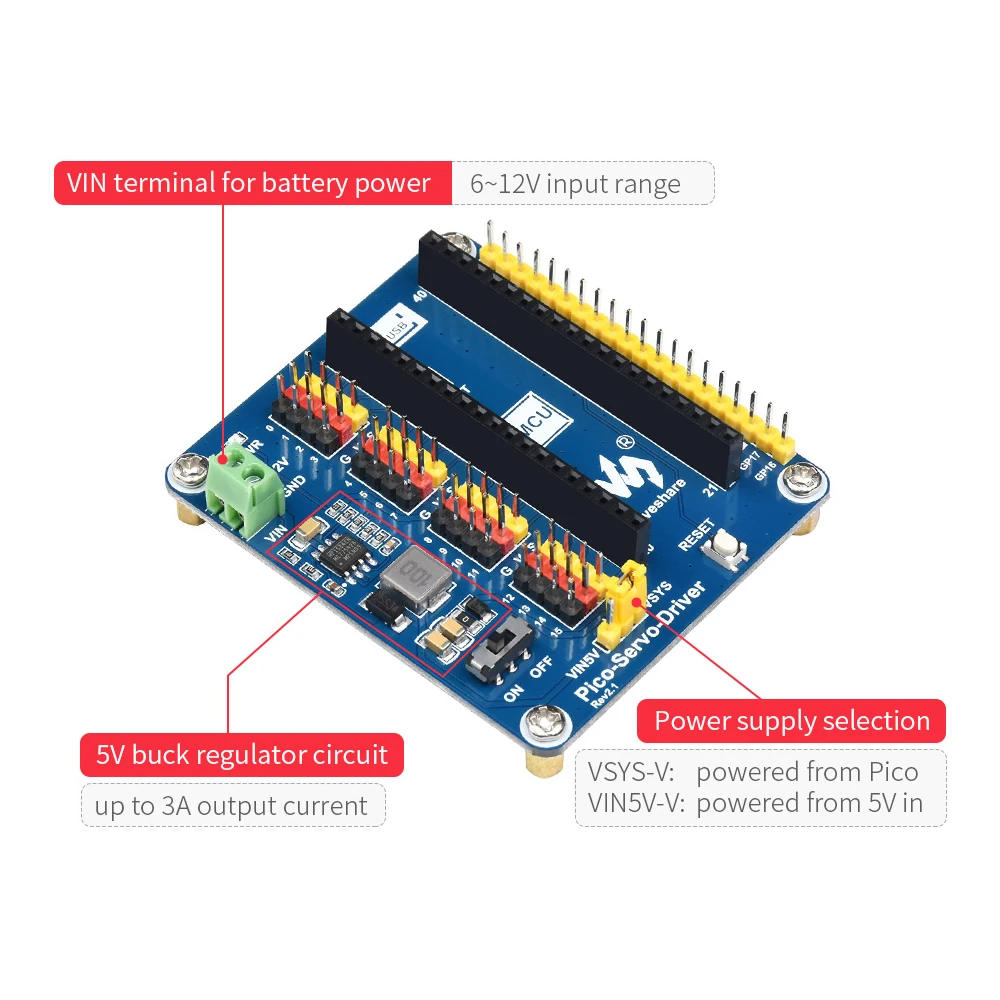

- Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal

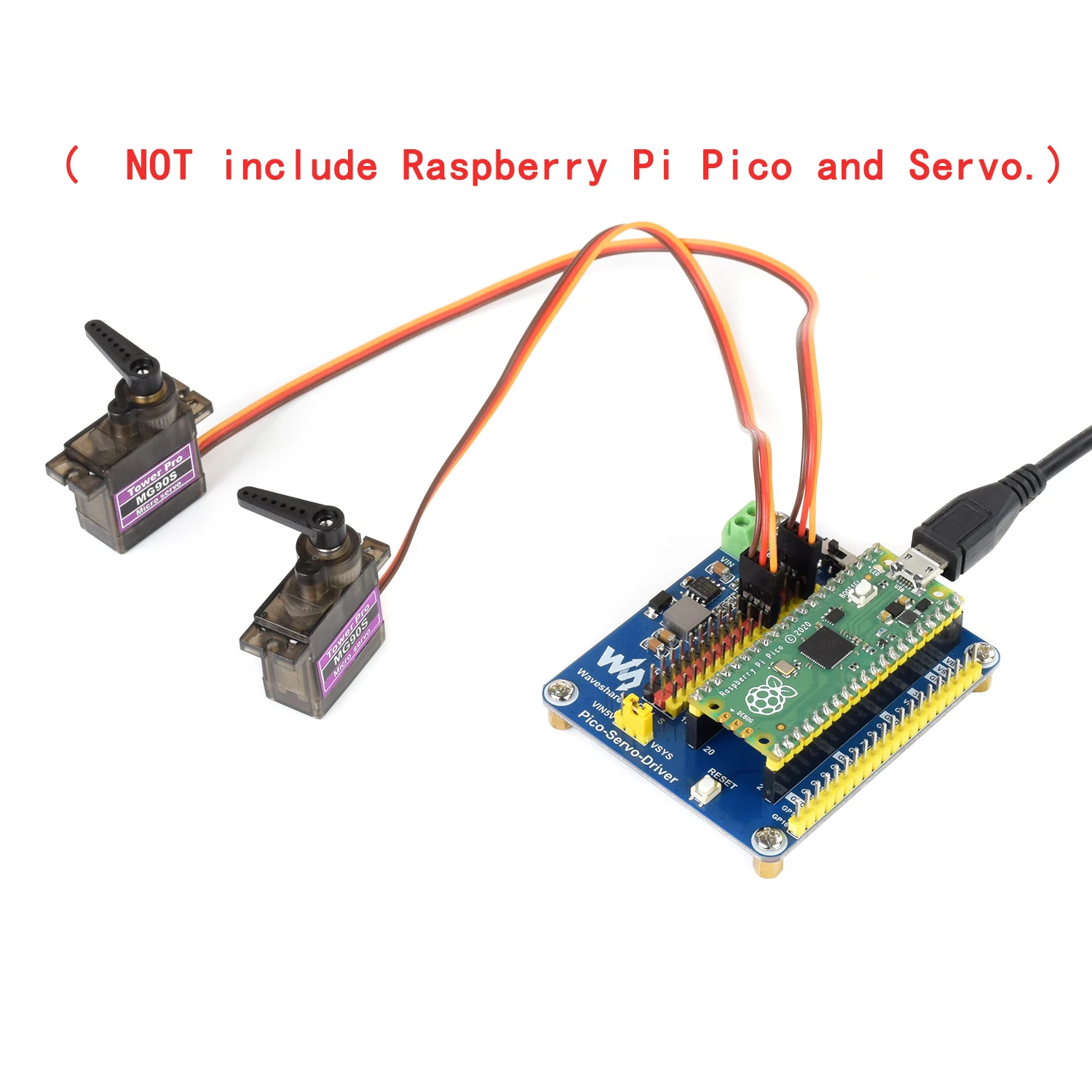

- Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
- Exposes unused pins of Pico, easy expansion
- Wiki English manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 5V (Pico) or 7.5~12V (VIN terminal) | SERVO VOLTAGE LEVEL | 5V |
| LOGIC LEVEL | 3.3V | CONTROL INTERFACE | GPIO |
| MOUNTING HOLE SIZE | 3.0mm | DIMENSIONS | 65 × 56mm |
Product Customization
We support product customization services. Contact us to discuss your requirements.
Additional information
| Weight | 0.15 kg |
|---|
Maker & product resources
Check the product description for specifications, included items, stock and fulfillment details.
