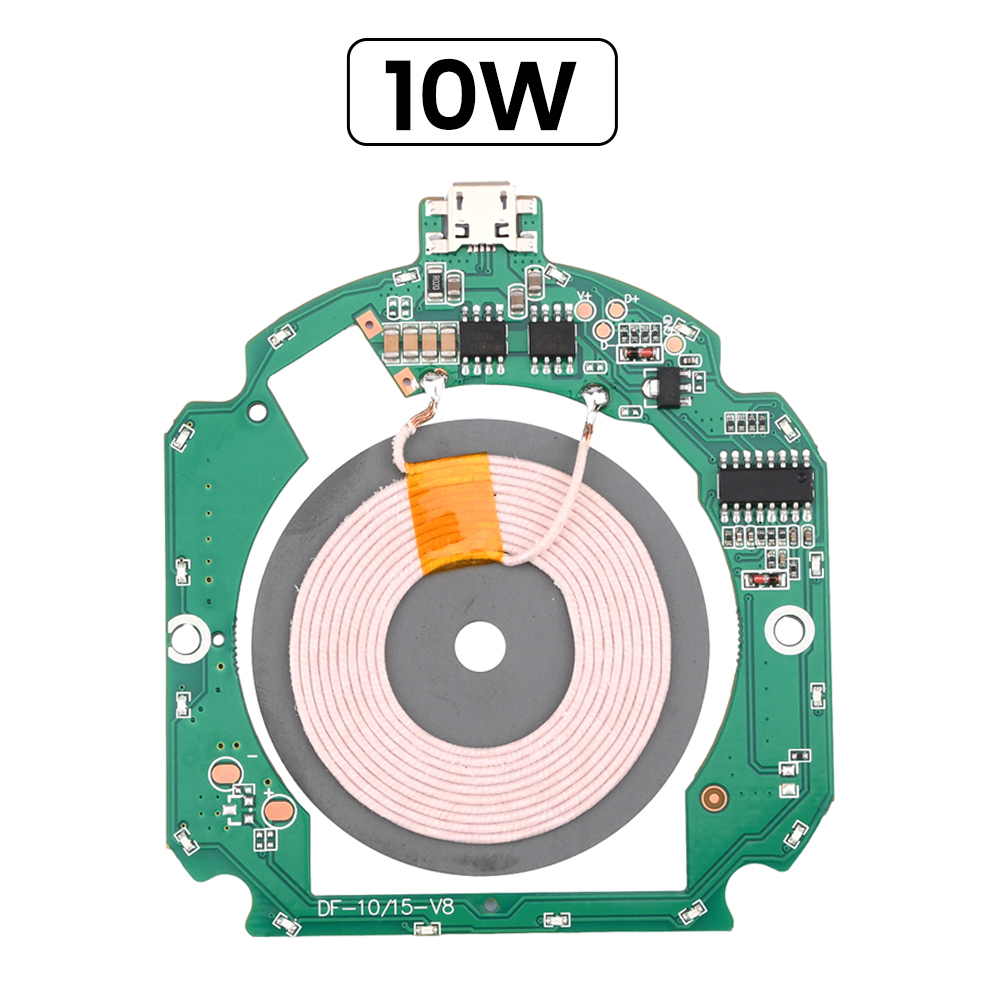

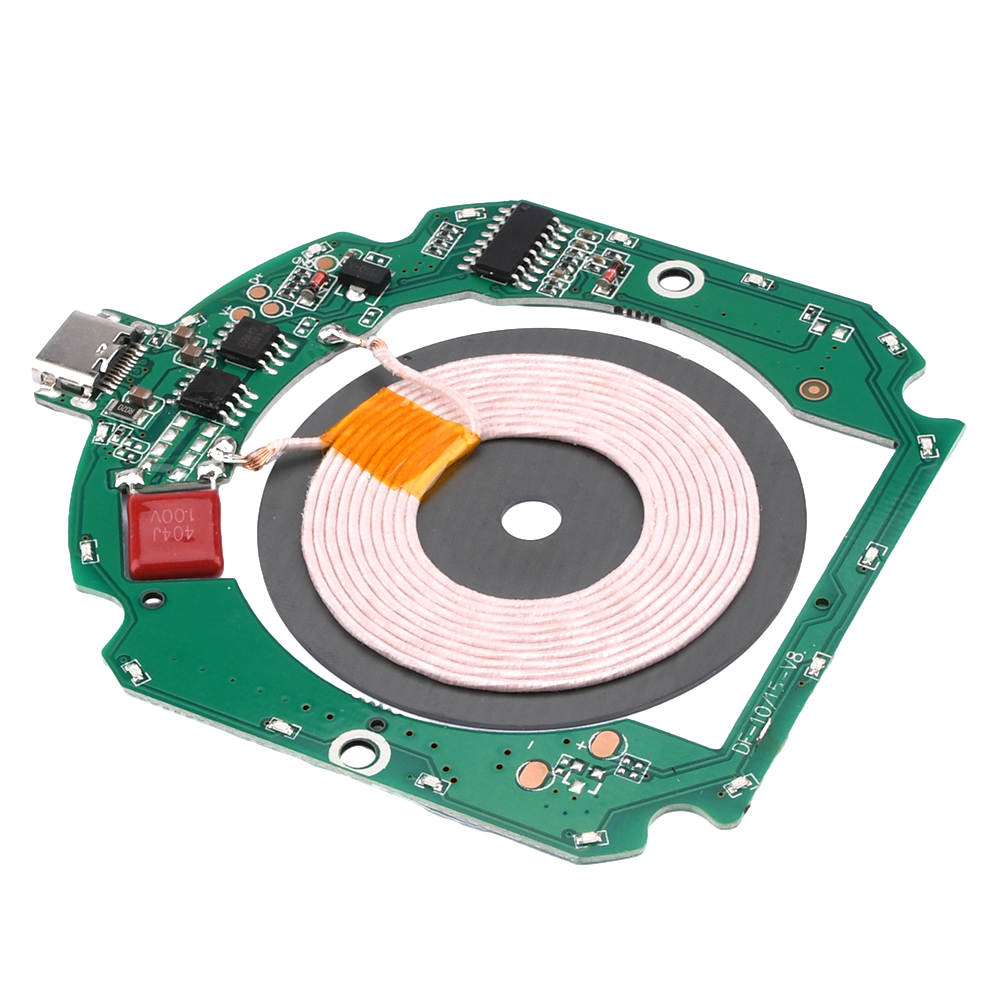

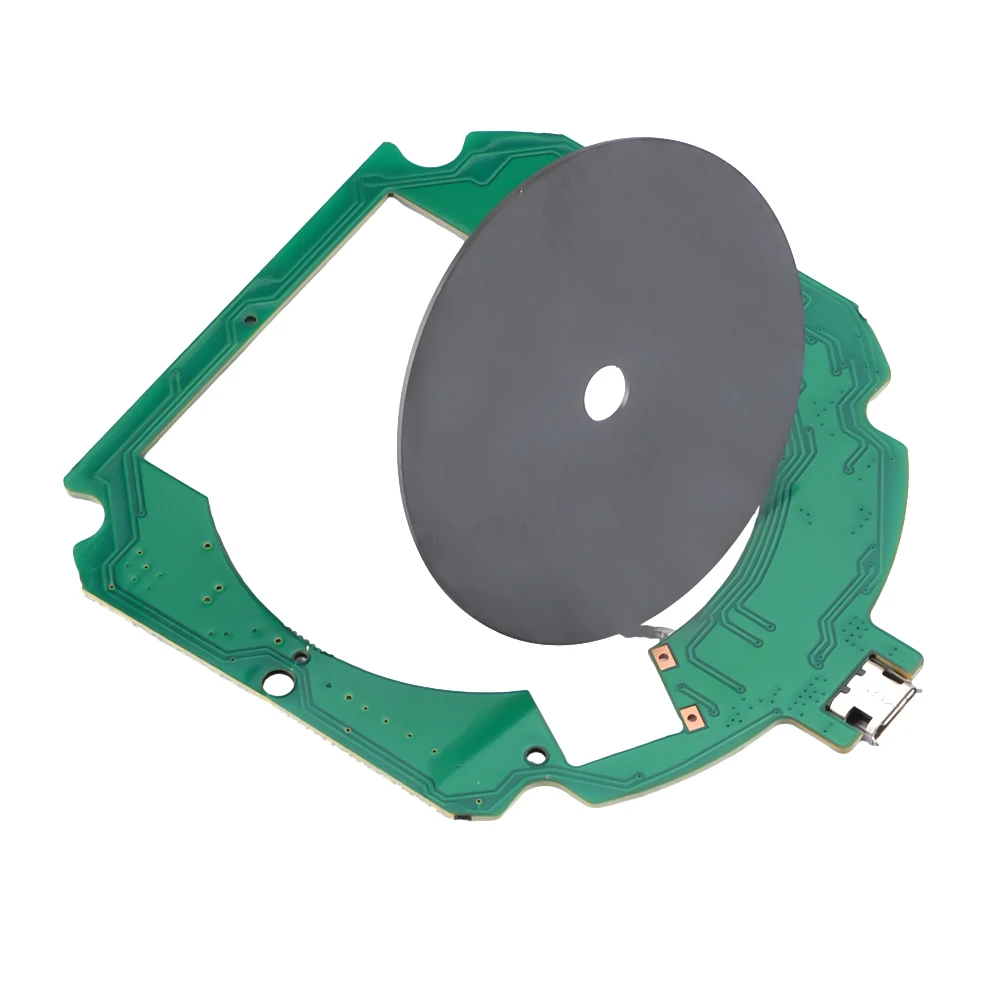

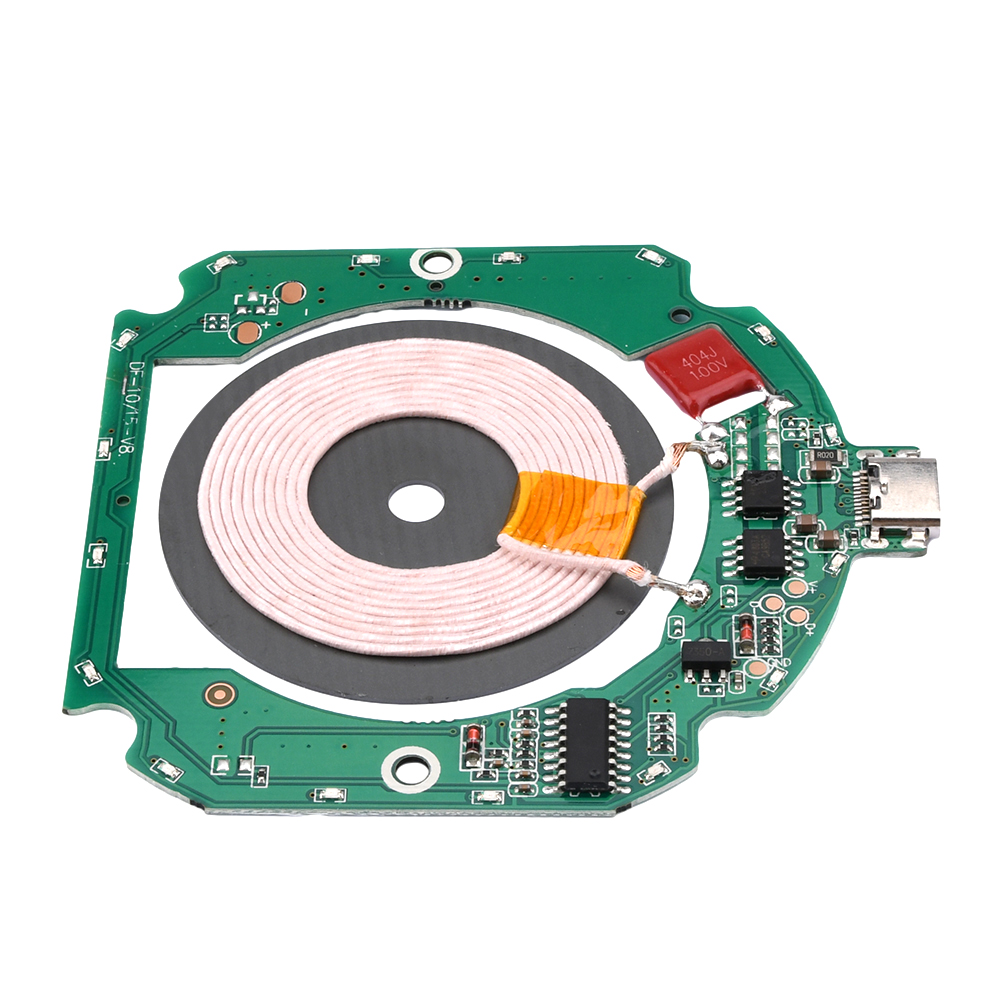

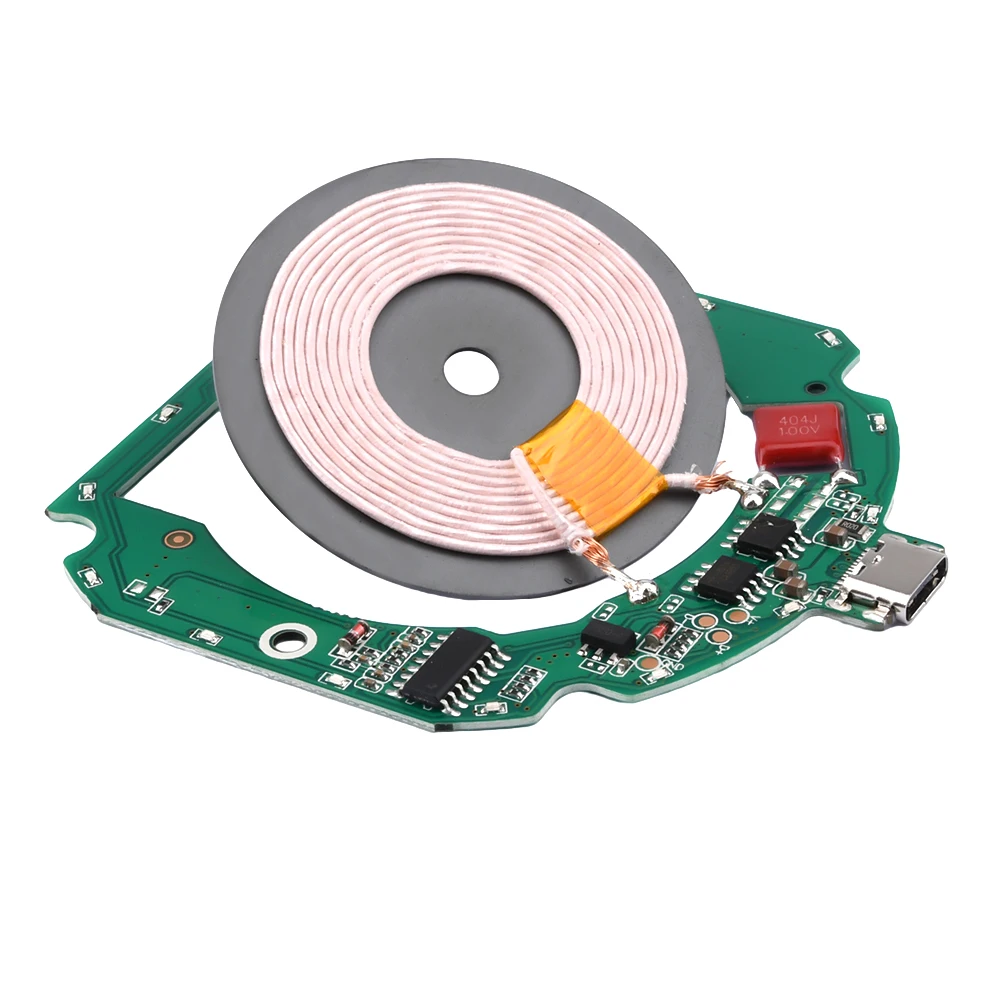

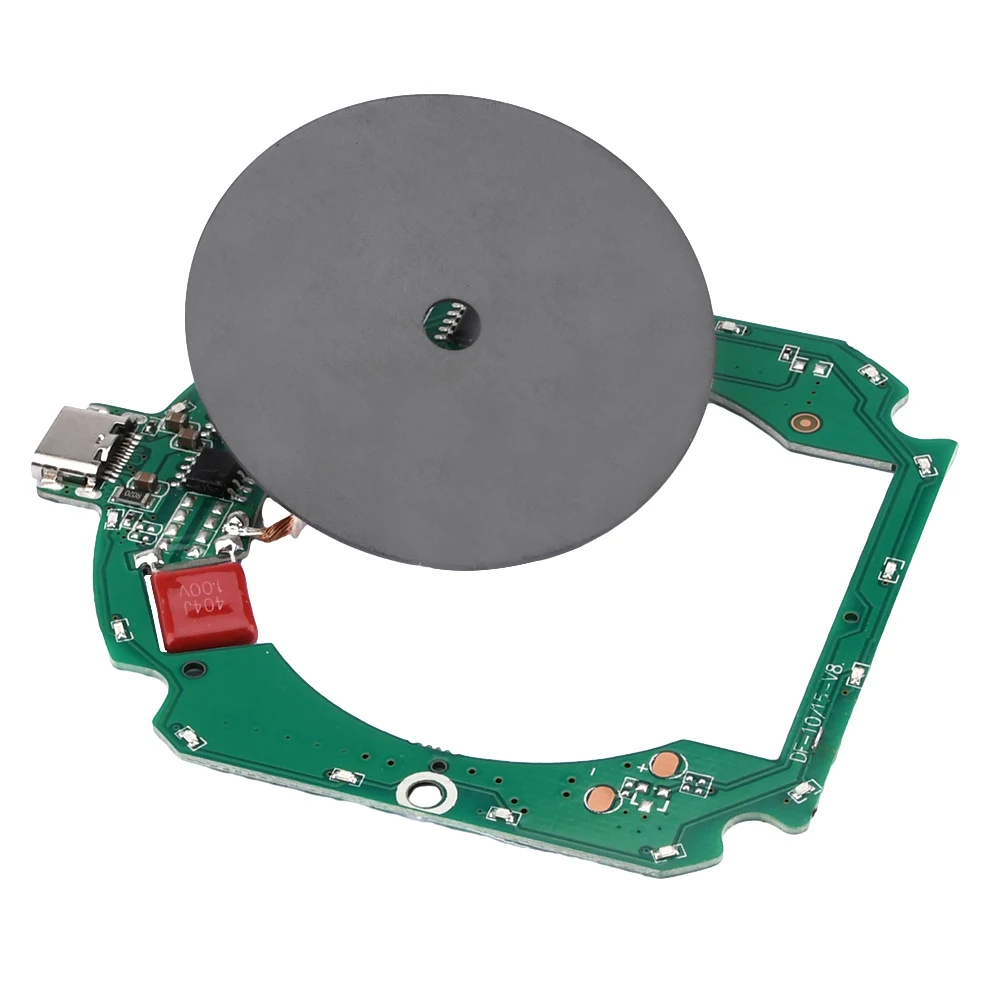

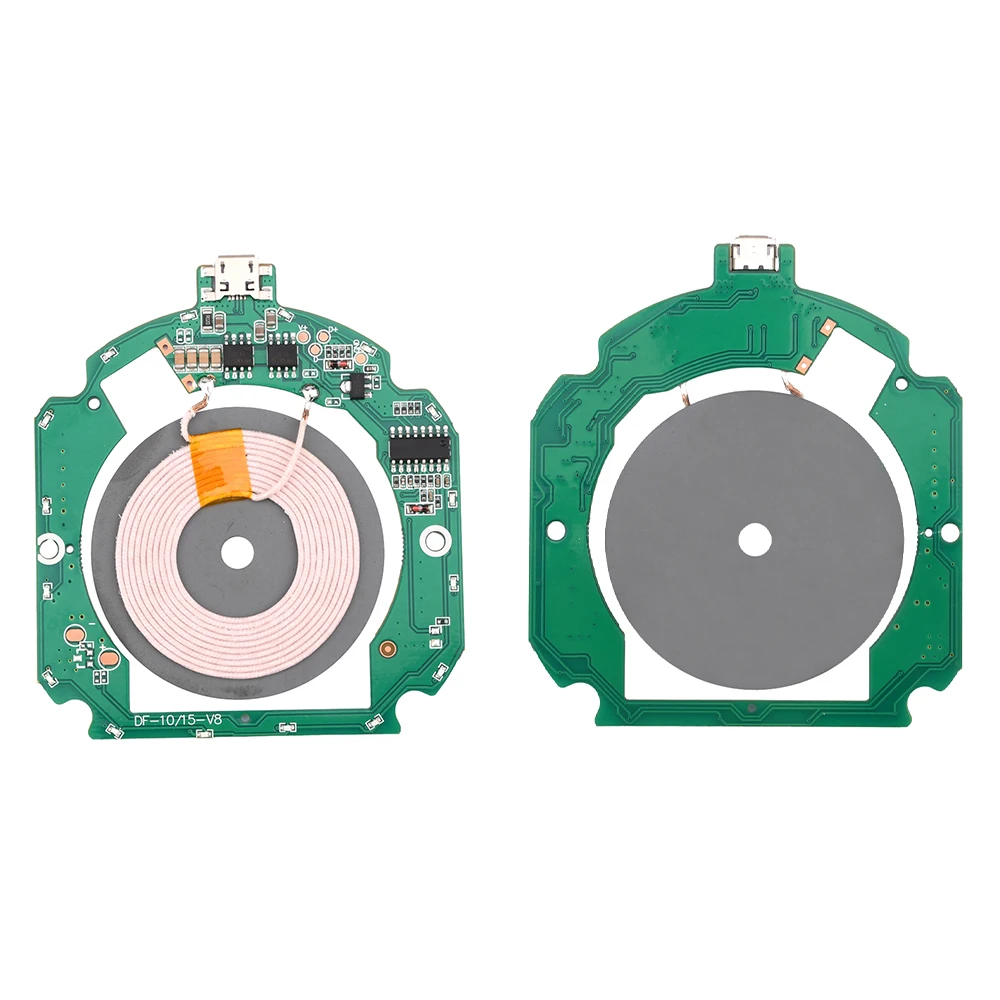

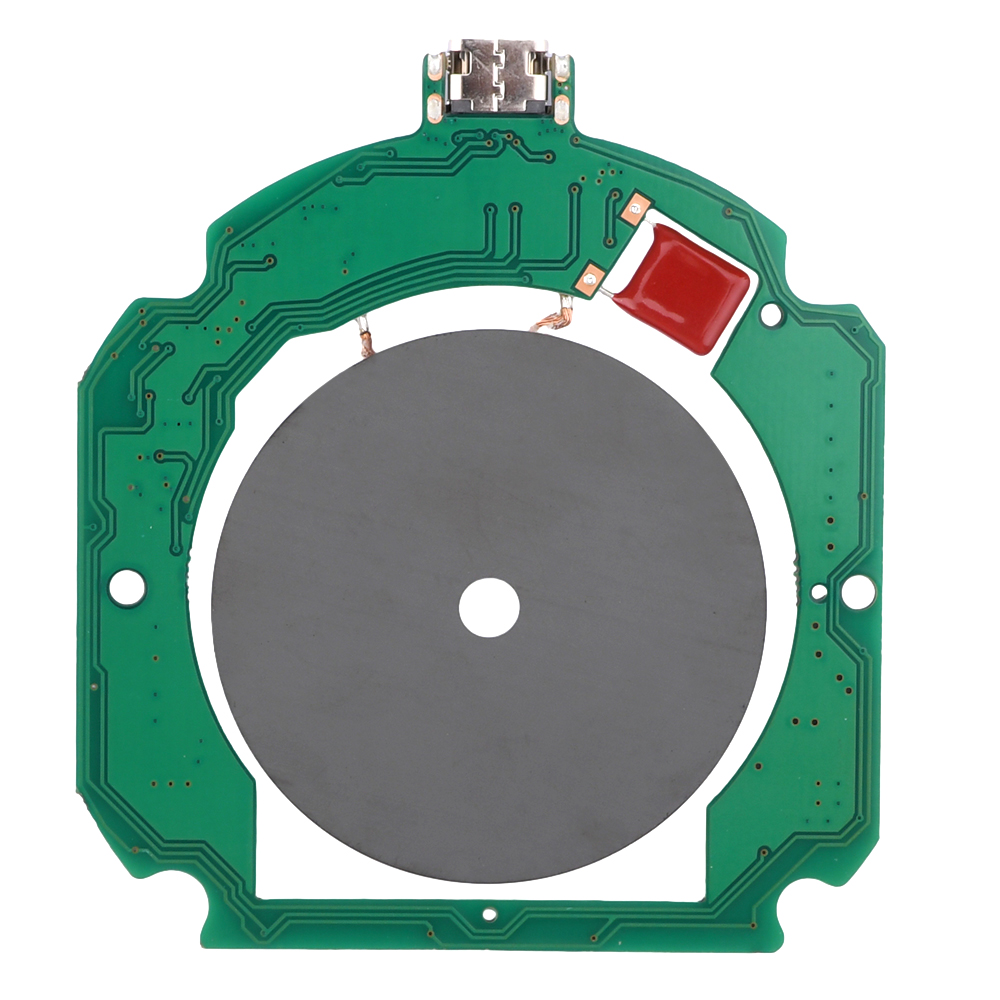

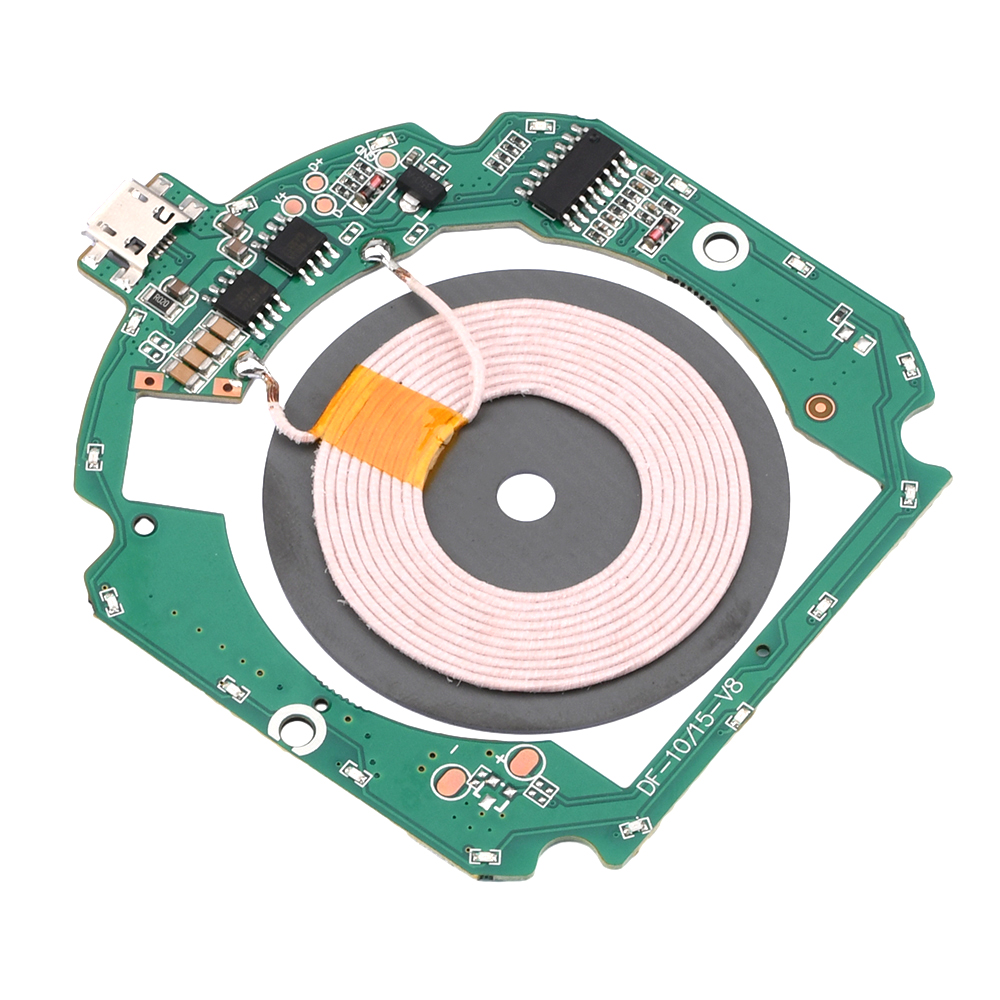

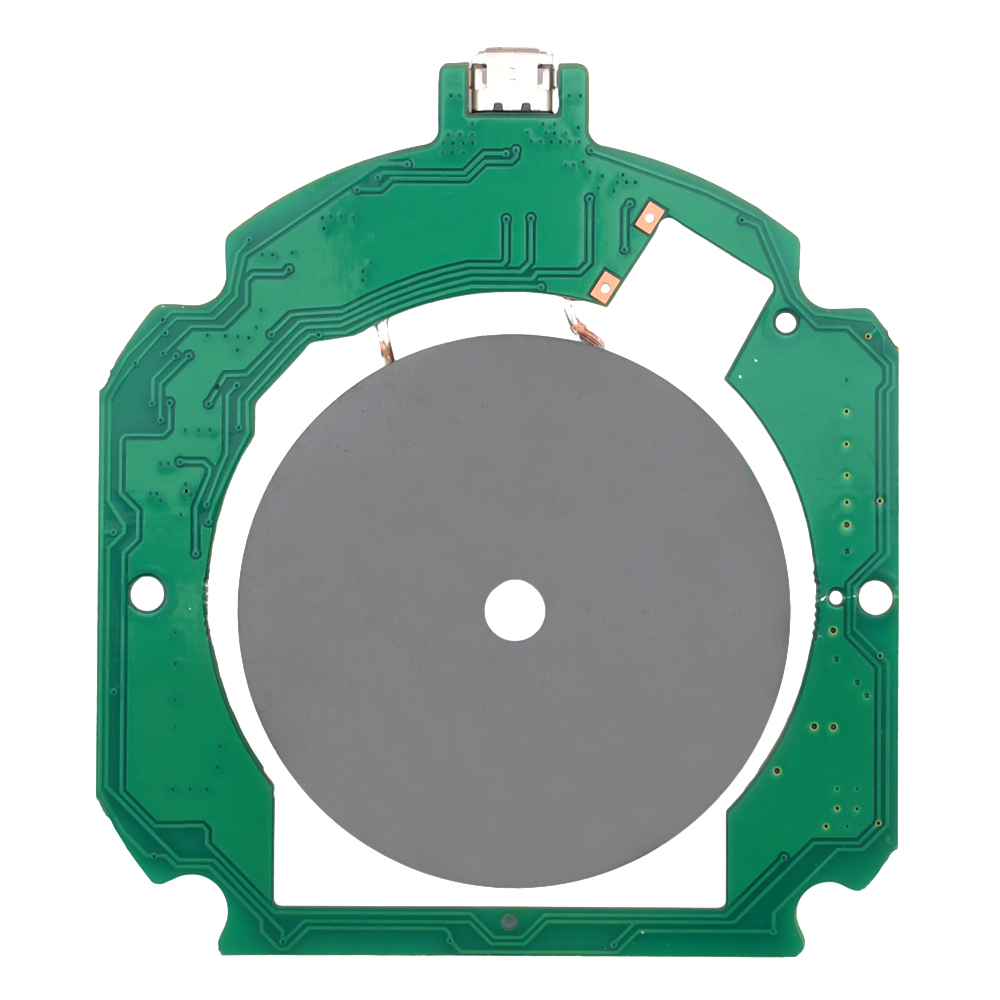

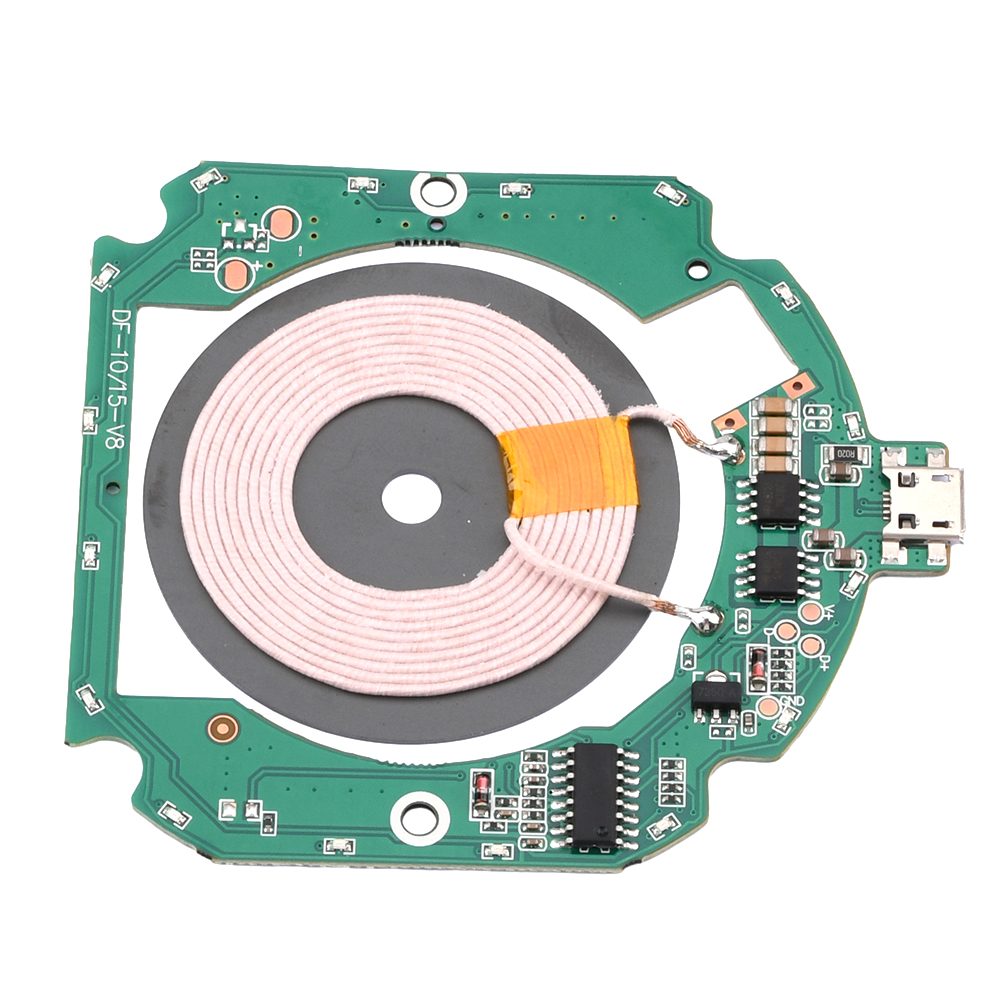

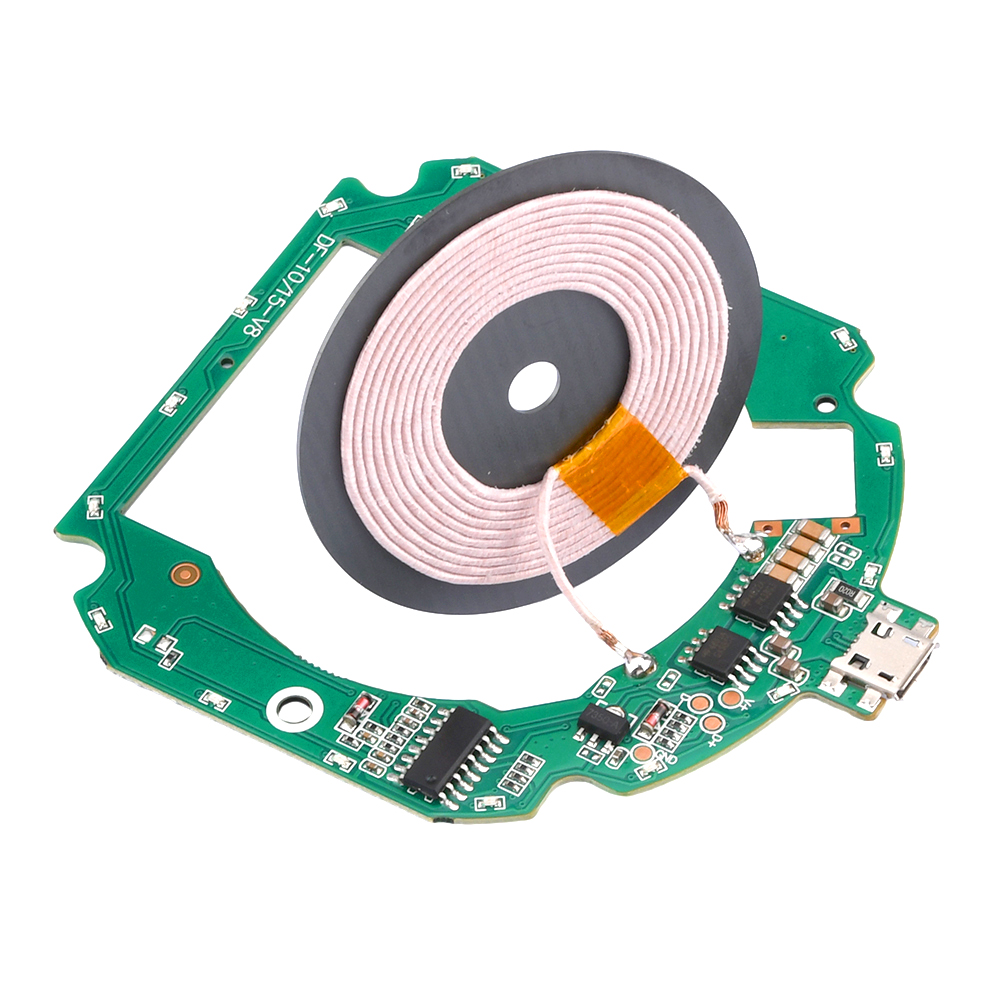

10-15W wireless charging PCBA motherboard transmitter module wireless charger 5V9V12V DIY RV Wireless Charger pcba

Description

Product selling points:

1. Using high-quality materials, product quality is guaranteed

2. Small size, high power, high efficiency, complete protocols

3. Equipped with four protection functions such as overcurrent, overvoltage, overtemperature and short circuit.

4. Wireless charger suitable for smartphones and wearable applications and compliant with WPC standards

5. The product has a wide range of applications and is suitable for various industrial DIY occasions.



Parameter:

Comply with WPC V1.2.3 wireless charging specification

Product Standard: QI

Built-in MCU, 12 bits high-precision ADC, communication decoding

Input voltage/current: 5V-3A, 9V-1.67A, 12V-1.5A

Output current: 5V-1A, 9V-1.66

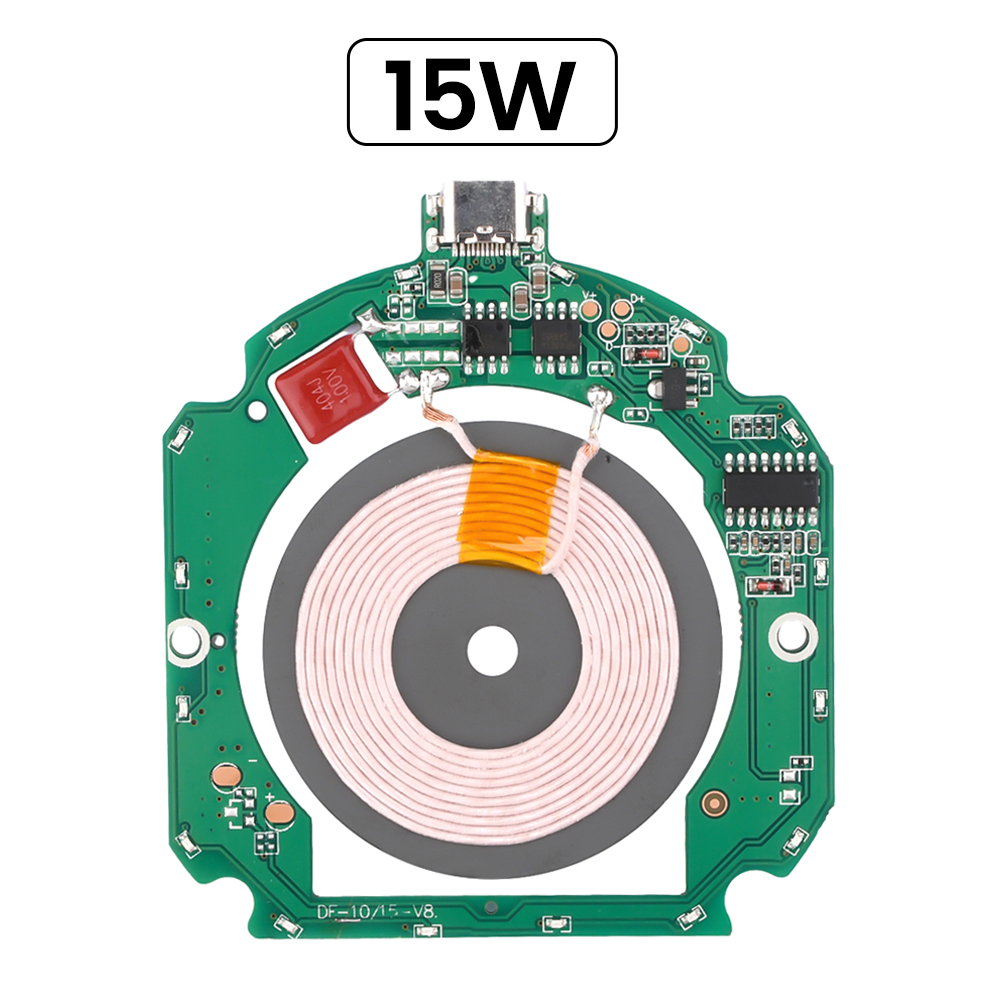

Supports maximum 15W power output

Efficiency reaches 75%-85%

Sensing distance: 0-8mm

Working frequency: 100-200Khz

Supports dynamic energy balance

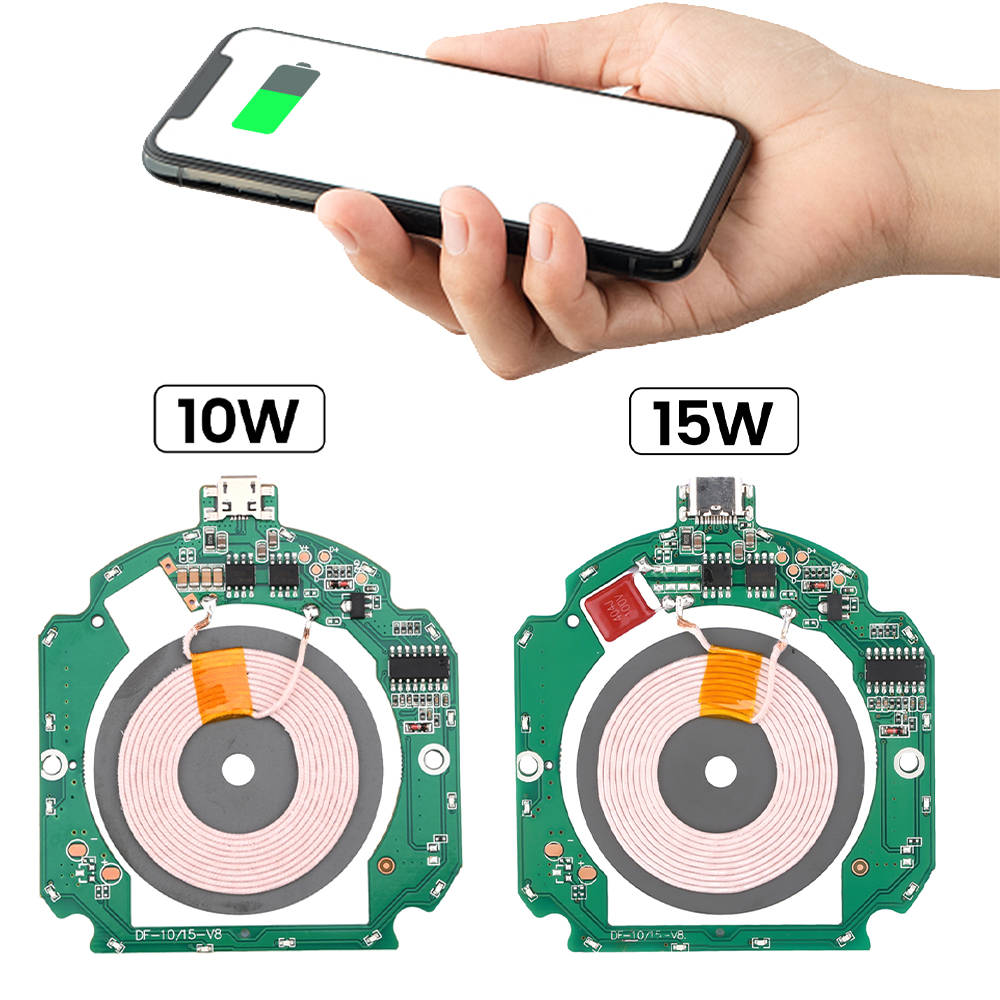

Intelligent identification, 5W/7.5W/10W/15W charging

Equipped with four protection functions such as overcurrent, overvoltage, overtemperature and short circuit.

Supports dual foreign object inspection (FOD)



Package list:

Wireless charging module*1

Product Customization

We support product customization services. Contact us to discuss your requirements.
