0.85 Inch 128×128 SPI TFT LCD Display Module – GC9107 Driver IC, Square Screen for Smart Wearables IoT Devices

Price range: $4.50 through $4.90

SKU: 1005009936487554 Categories: , ,

Description

  • Display Size: 0.85 Inch

  • Screen Technology: IPS TFT LCD

  • Resolution: 128 x 128 Pixels

  • Display Colors: 262K / 65K Colors (Full Color)

  • Viewable Area: 15.21 x 15.21 mm

  • Driver IC: GC9107

  • Interface: SPI (Serial Peripheral Interface)

  • Connection: 8-Pin

  • Backlight: White LED, Side-Light Type

  • Operating Voltage: 3.3V (2.8V ~ 3.3V Range)

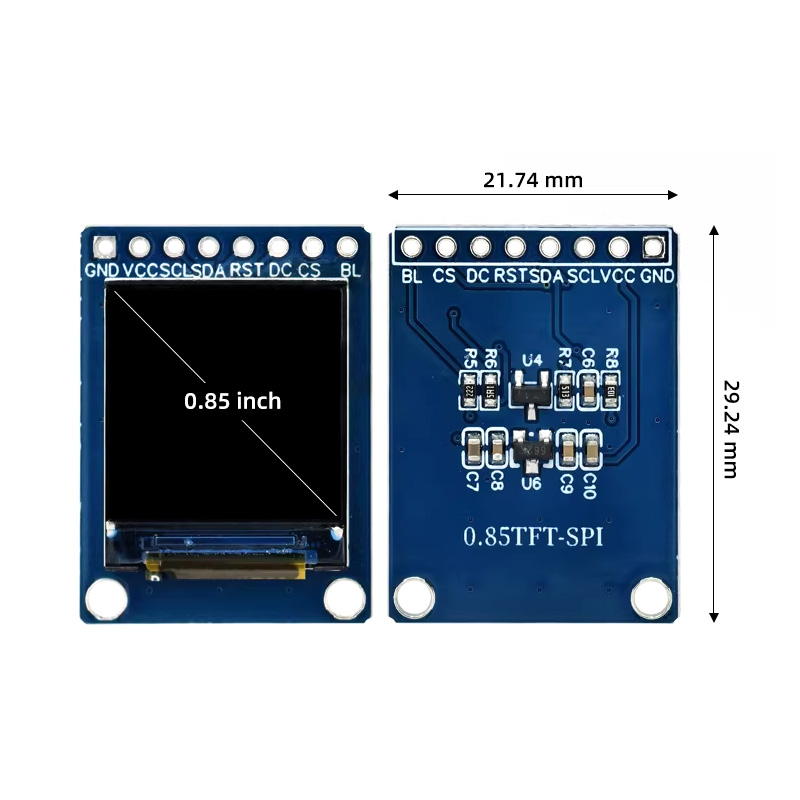

  • Module Dimensions: ≈ 21.74 (W) x 29.24 (L) x 1.4 (H) mm

  • Operating Temperature: -20°C ~ +70°C

  • Key Features: Wide Viewing Angle 178°

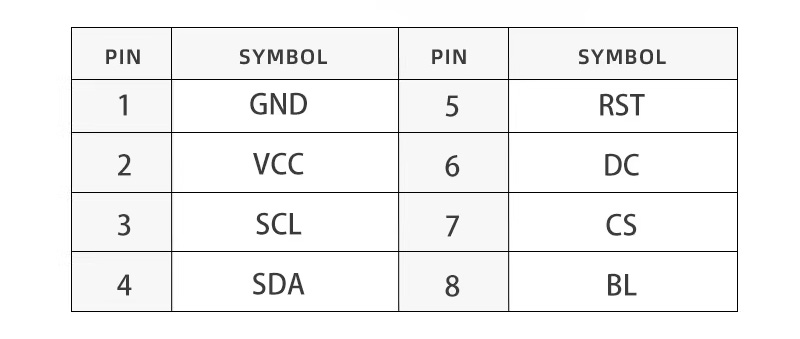

Pin definition

0.85 Inch 128×128 SPI TFT LCD Display Module – GC9107 Driver IC, Square Screen for Smart Wearables IoT Devices — reference image 1

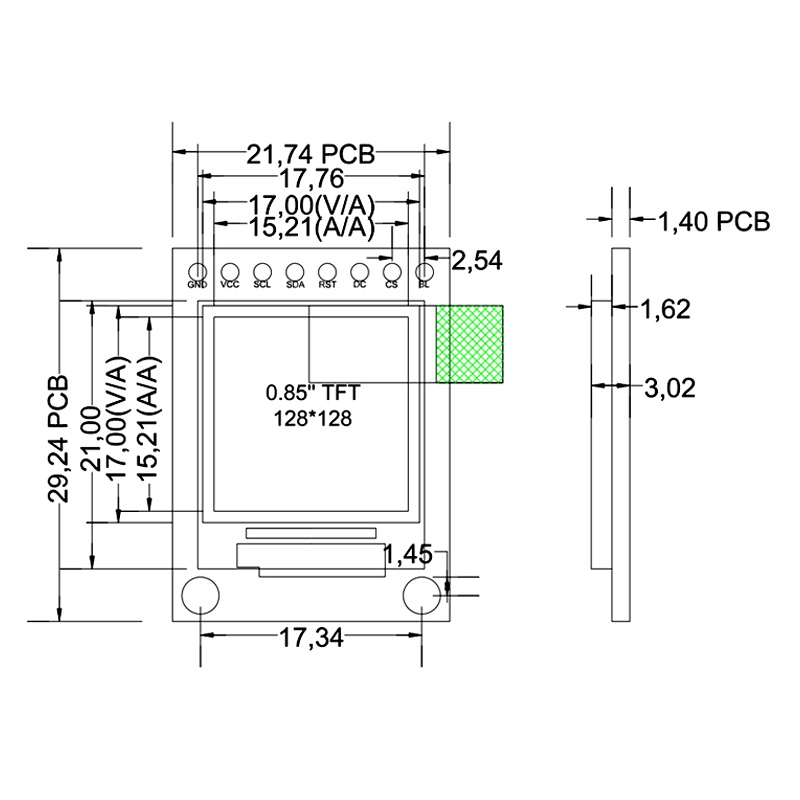

Schematic Showcase

0.85 Inch 128×128 SPI TFT LCD Display Module – GC9107 Driver IC, Square Screen for Smart Wearables IoT Devices — reference image 20.85 Inch 128×128 SPI TFT LCD Display Module – GC9107 Driver IC, Square Screen for Smart Wearables IoT Devices — reference image 30.85 Inch 128×128 SPI TFT LCD Display Module – GC9107 Driver IC, Square Screen for Smart Wearables IoT Devices — reference image 40.85 Inch 128×128 SPI TFT LCD Display Module – GC9107 Driver IC, Square Screen for Smart Wearables IoT Devices — reference image 5

Product Customization

We support product customization services. Contact us to discuss your requirements.
