Seeed Studio Grove Base for XIAO – with embedded battery management chip

Descripción

Grove Shield for Seeed Studio XIAO is a plug-and-play Grove extension board for Seeed Studio XIAO series. With the on-board battery management chip and battery bonding pad, you could easily power your Seeed Studio XIAO with lithium battery and recharge it. 8 Grove connectors onboard includes two Grove IIC and one UART. It acts as a bridge for Seeed Studio XIAO and Seeed’s Grove system. Flash SPI bonding pad allows you add Flash to Seeed Studio XIAO to expand its memory space, providing Seeed Studio XIAO with more possibilities.

Características:

🌱 On-board Lithium Battery Charging and Management Function

🌱 Grove connectors (Grove IIC*2, Grove UART*1), all 14 GPIO led out

🌱 Compact and Breakable Design

🌱 SPI-Flash Bonding Pad Reserved

🌱 On-board Power Switch and Charging Status Indicator Light

Descripción del Producto:

Seeed Studio XIAO has been becoming more and more popular in our community since it was released! As we have Grove Shield for many mainstream boards for easy test and better use of our Grove modules, many fans of Seeed Studio XIAO have been asking whether we will have a Grove Shield for it, the much-anticipated Grove Shield for Seeed Studio XIAO is now on board!

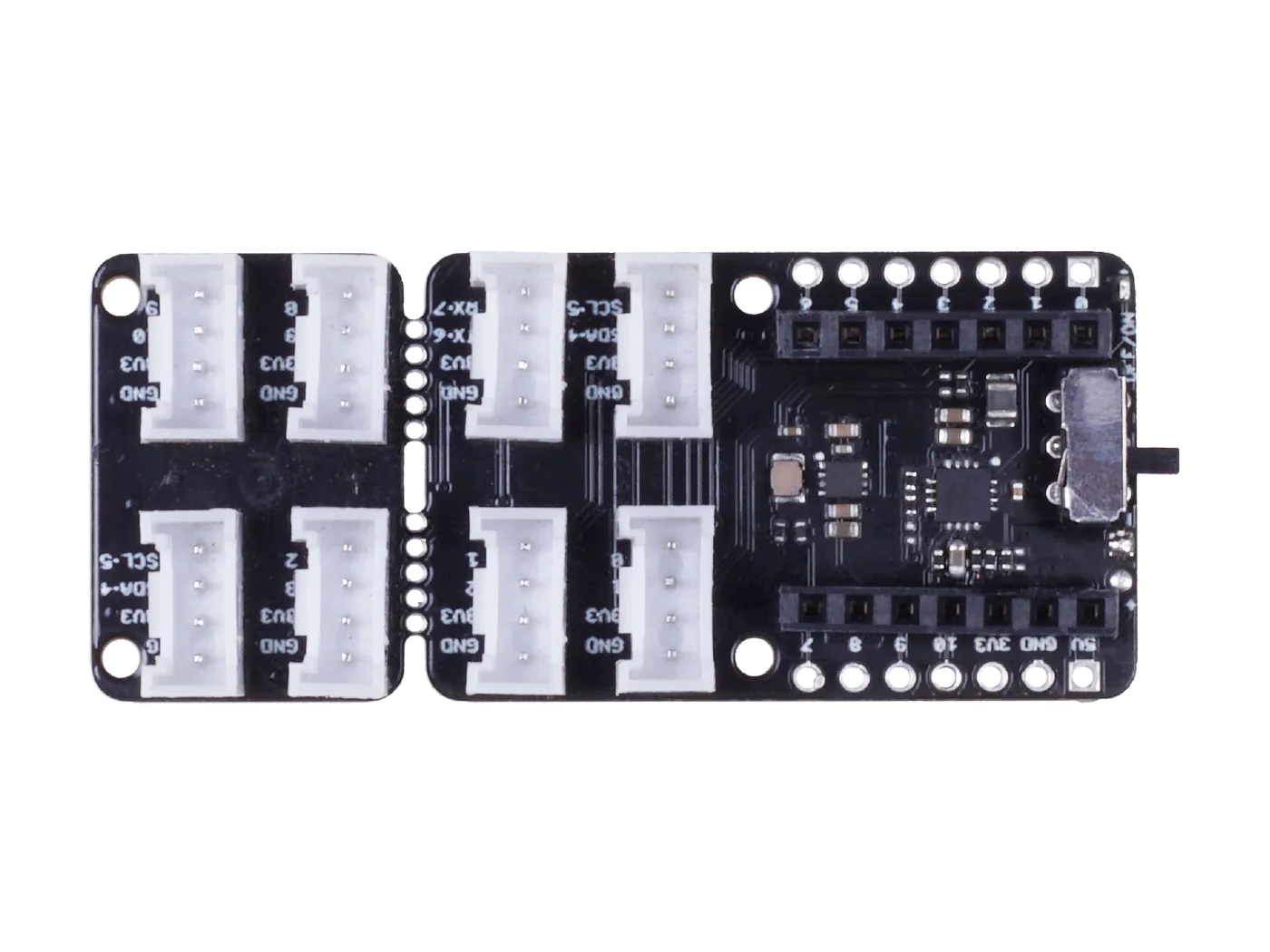

It’s a plug-and-play Grove extension board for Seeed Studio XIAO. This Shield helps you get rid of jumper wires and soldering work by pulling out the pins of the Seeed Studio XIAO and expands to 8 Grove connectors, including two Grove IIC and one UART. It acts as a bridge for Seeed Studio XIAO and Seeed’s Grove system, which provides 300+ of different Grove modules including sensor, actuator, communication, display, etc. No more jumper wires and soldering work, you could enjoy creating more projects with Seeed Studio XIAO easily and quickly.

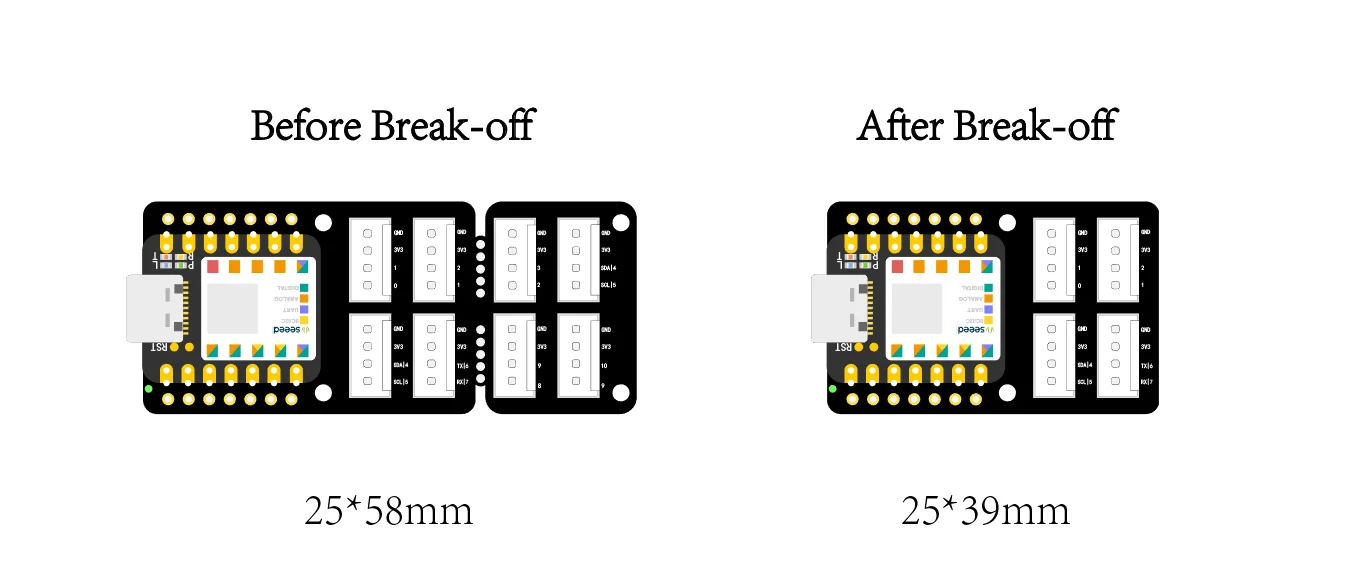

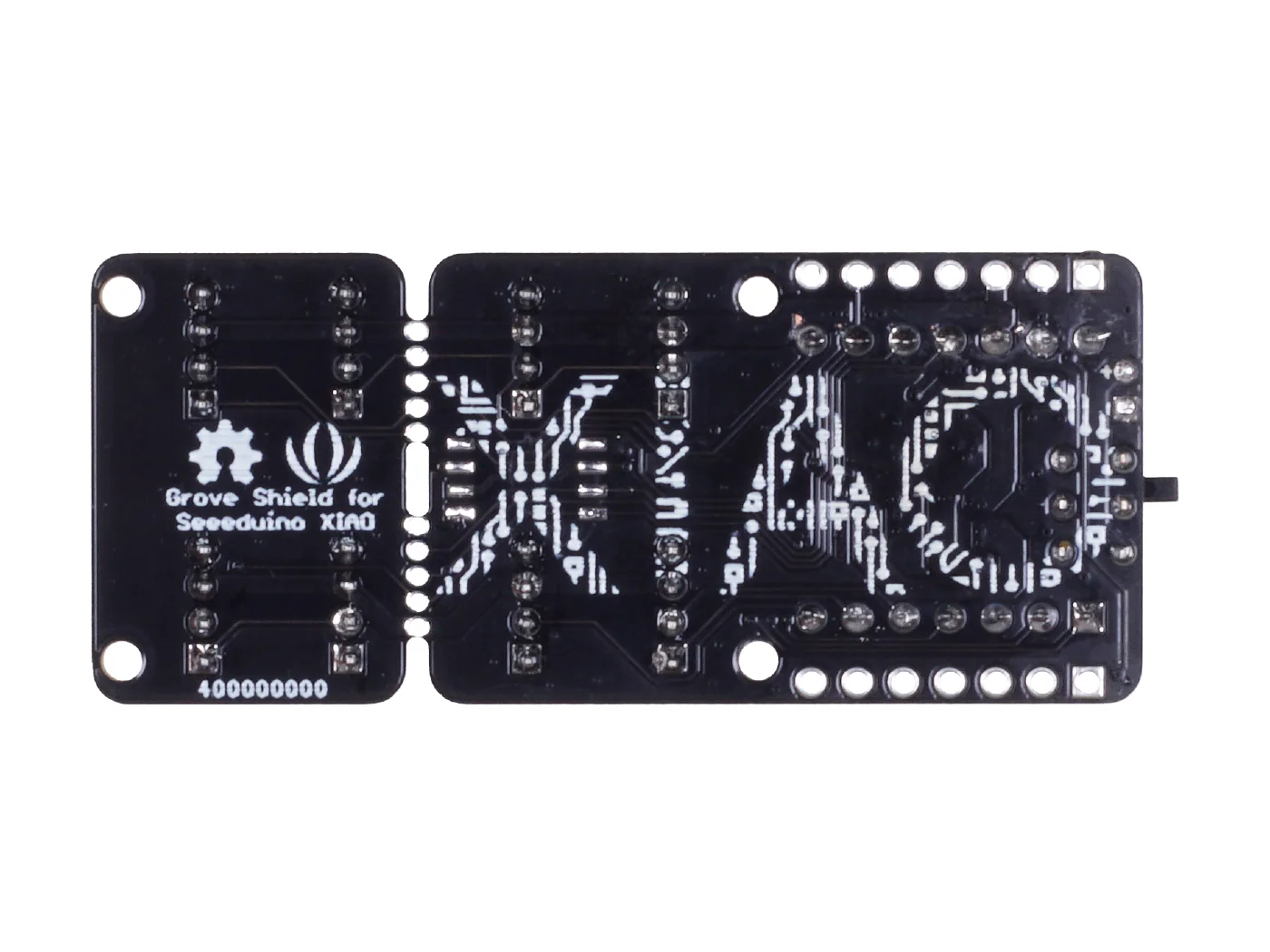

With the on-board battery management chip and battery bonding pad, you could easily power your Seeed Studio XIAO with lithium 3.7V battery and recharge it, making your projects, especially wearables ones, more flexible and in portable. You could even break the board through the onboard PCB stamp holds according to your actual needs of the project (only 25*39mm in dimension after break-off), making it smaller than smaller.

As an extension board, the Grove Shield for Seeed Studio XIAO also pulls all 14 pinout from Seeed Studio XIAO, and its on-board power switch and charging status indicator light makes it more user-friendly. The Shield even reserves the SPI-Flash bonding pad for an advanced developer who may need to add Flash to Seeed Studio XIAO to expand its memory space, providing Seeed Studio XIAO with more possibilities.

If you are a fan of Seeed Studio XIAO already, you would not miss this Grove Shield; if you are hesitating to have one because of the scare of soldering works, it is the chance to start the wonderful experience with Seeed Studio XIAO now!

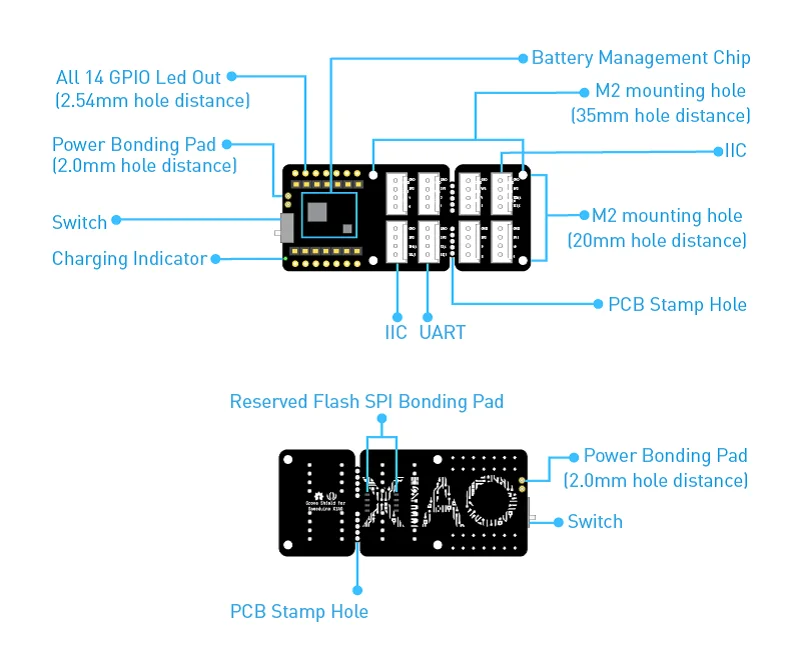

Descripción general del hardware

Solicitud:

• Dispositivos portátiles
• Prototipado rápido
• Grove modules testing
• Projects require small size

Especificación

• Fuente de alimentación:5V / 3.7V Lithium Battery
• Load Capacity:800mA
• Charging current:400mA (Max)
• Temperatura de funcionamiento:– 40°C to 85°C
• Storage Temperature:-55°C to 150°C
• Grove Interface:Grove * 8 (IIC*2 / UART*1)

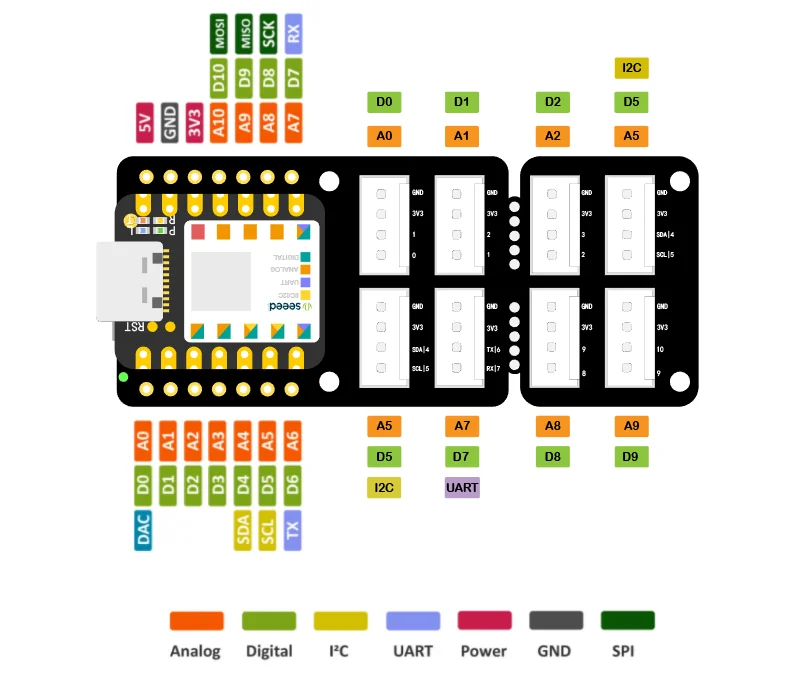

Diagrama de pines

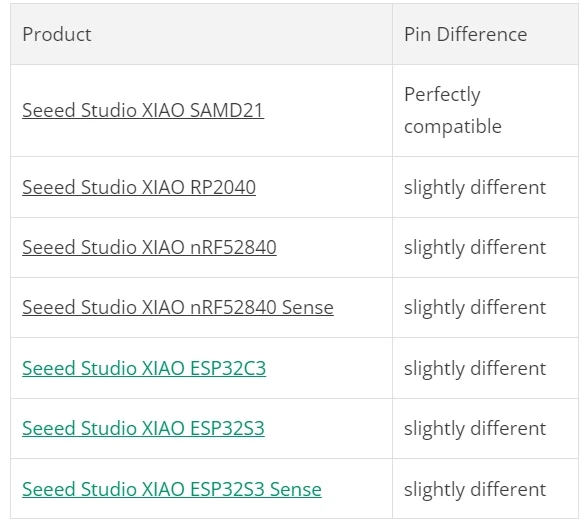

Supported Boards

Lista de piezas:

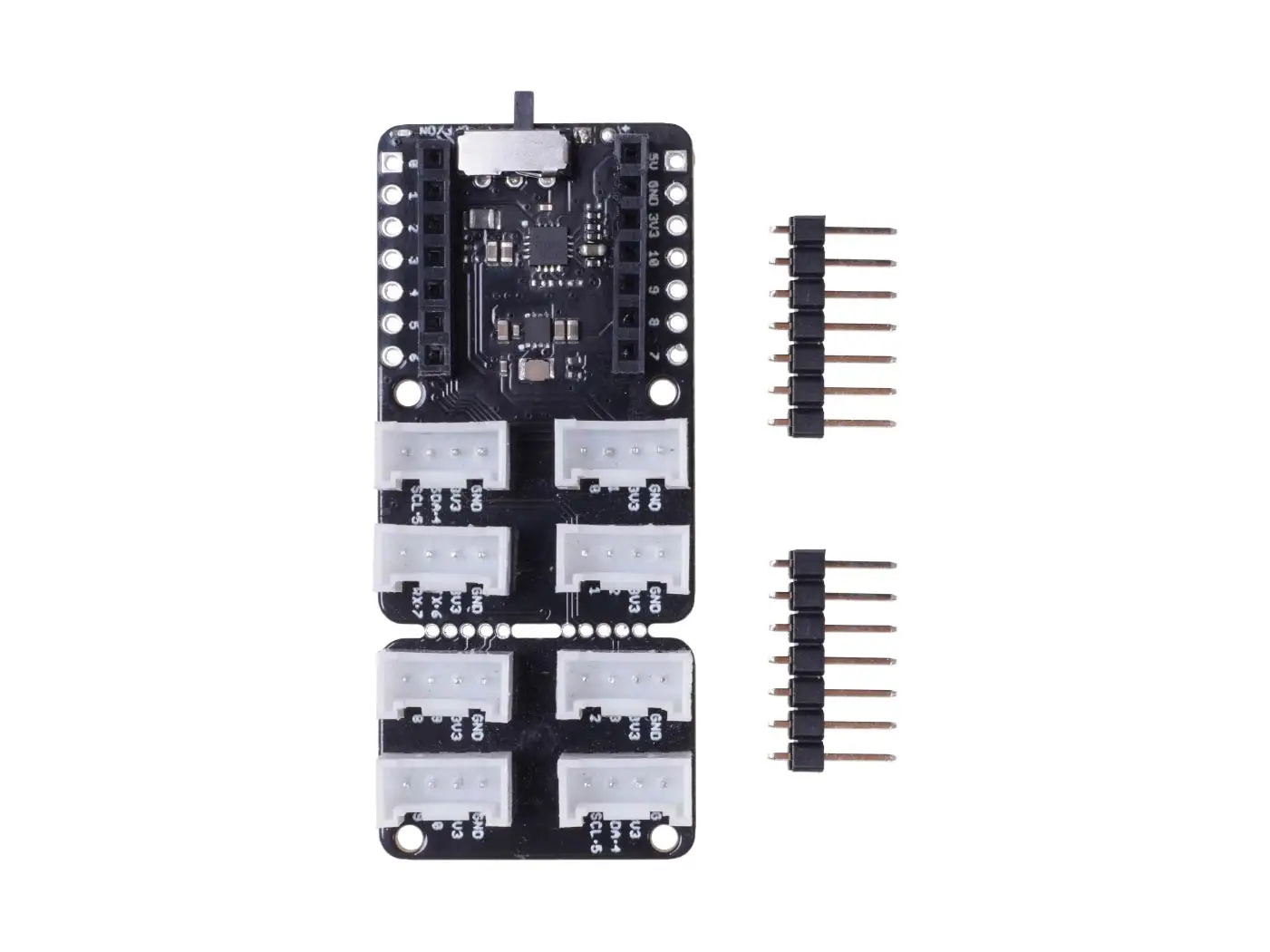

• Grove Shield for Seeed Studio XIAO 1
• 1*7pins male header 2

Aprendizaje y documentos:

• Grove Shield for Seeeduino XIAO with embedded battery management chip
• Estudios de caso sobre impresión 3D
• Diseño de referencia XIAO
