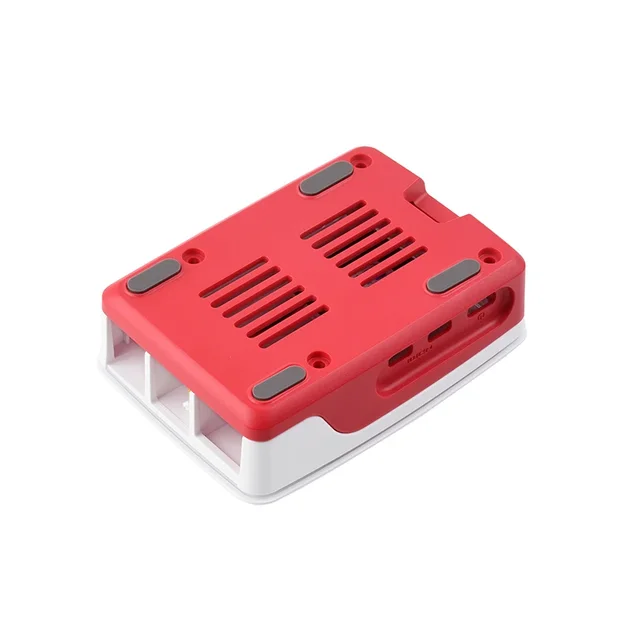

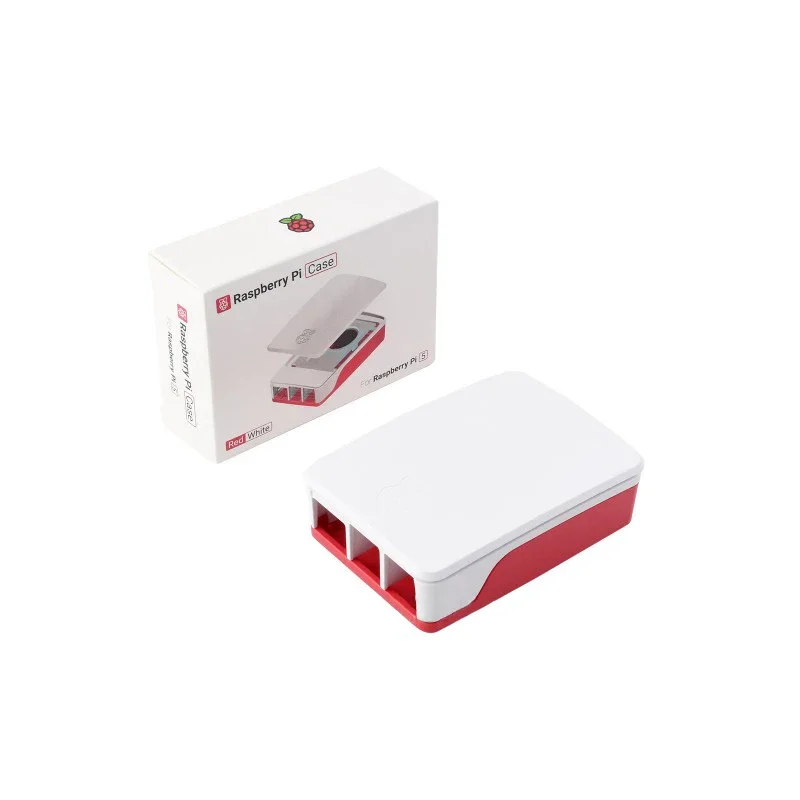

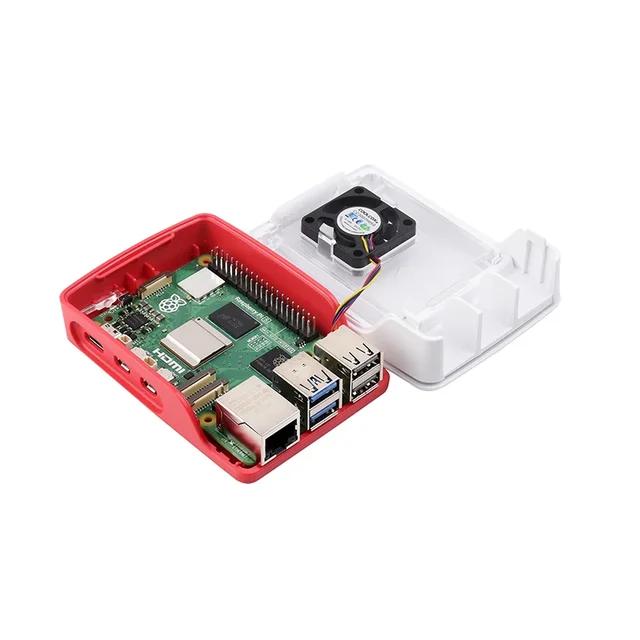

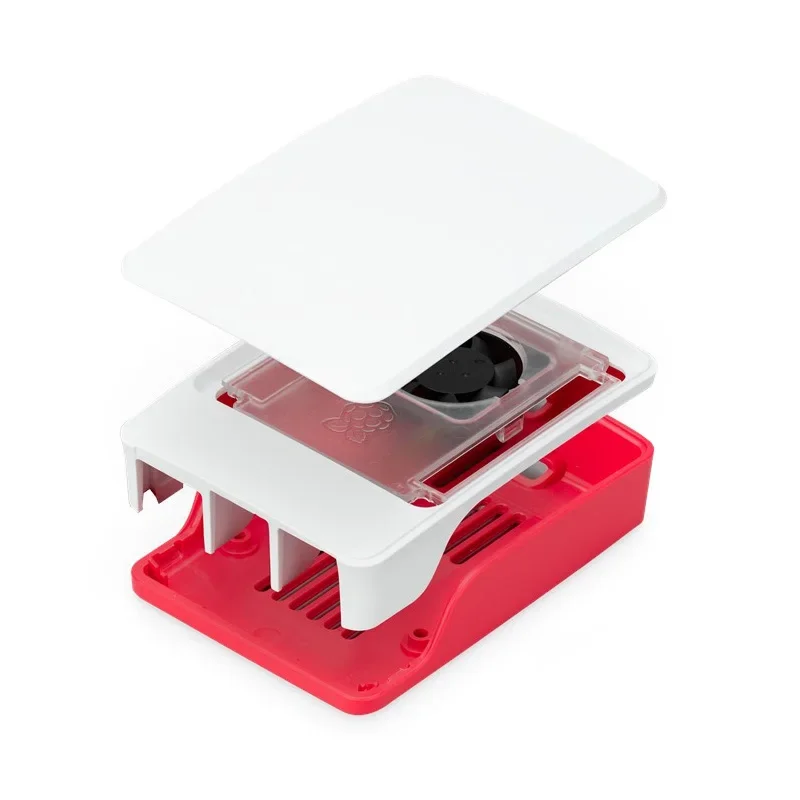

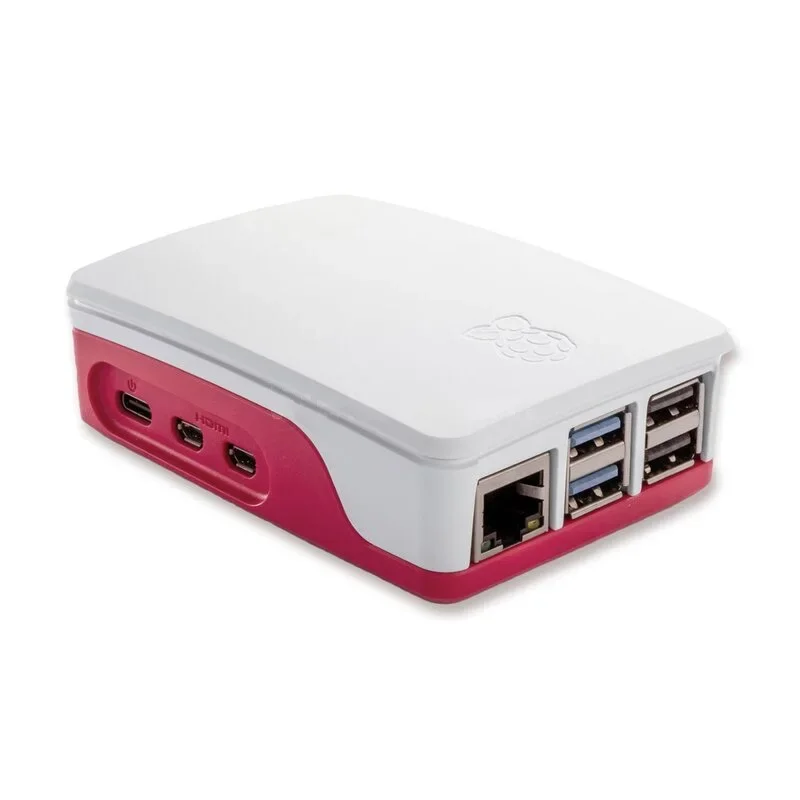

Carcasa oficial Raspberry Pi 5, carcasa de ABS roja y blanca con soporte para ventilador, apilamiento en clúster para RPI 5 P

Official Raspberry Pi 5 Case Red White ABS Shell with Fan Support Cluster Stacking for RPI 5 P - Imagen 2

Official Raspberry Pi 5 Case Red White ABS Shell with Fan Support Cluster Stacking for RPI 5 P - Imagen 3

Official Raspberry Pi 5 Case Red White ABS Shell with Fan Support Cluster Stacking for RPI 5 P - Imagen 4

Official Raspberry Pi 5 Case Red White ABS Shell with Fan Support Cluster Stacking for RPI 5 P - Imagen 5

Carcasa oficial Raspberry Pi 5, carcasa de ABS roja y blanca con soporte para ventilador, apilamiento en clúster para RPI 5 P

$15.90

Color

Limpiar

SKU: 1005008712714021 Categorías: Tienda de módulos, Placas de desarrollo, Equipos

Descripción

1. Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5

2. 2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor

3. Easily removable lid exposes fan and breakout slot for cables and GPIO

4. Integrated mounting features allow for case stacking

5. HATs can be mounted to the enclosure with stand-offs and GPIO header extenders
(no incluido)

6. Four silicone feet for the case are included

Especificación

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

Fan speed control: Pulse width modulation control with tachometer

Maximum airflow: 2.79 CFM

Maximum fan speed: 8000 RPM +/- 15%

Case material: ABS (base, frame, lid) and PC (fan assembly)
