Placa de desarrollo Jetson Orin Nano/NX basada en el módulo Jetson Orin Nano y Jetson Orin NX, 5 puertos USB

Placa de desarrollo Jetson Orin Nano/NX basada en el módulo Jetson Orin Nano y Jetson Orin NX, 5 puertos USB

$87.90

Hay existencias

SKU: 1005009458177007 Categorías: , ,

Descripción

  • Batería incluida: No
  • Sustancia química altamente preocupante: Ninguno
  • Número de modelo: JETSON-ORIN-IO-BASE
  • Demo Board Type: FPGA
  • Nombre de la marca: cbhioarpd
  • Origen: China continental
  • Proceso de dar un título: Ninguno
  • Feature 1: Compatible With Orin Module
  • Feature 2: Connect To CSI Camera
  • Feature 3: 5x USB Ports
  • Feature 4: 4K High Definition Output
  • Feature 5: Color-Coded 40PIN GPIO Header

DESCRIPCIÓN

Jetson Orin Nano/NX AI Development Board, Waveshare Orin Nano/NX Development Board Based On Jetson Orin Nano And Jetson Orin NX Module
JETSON-ORIN-IO-BASE

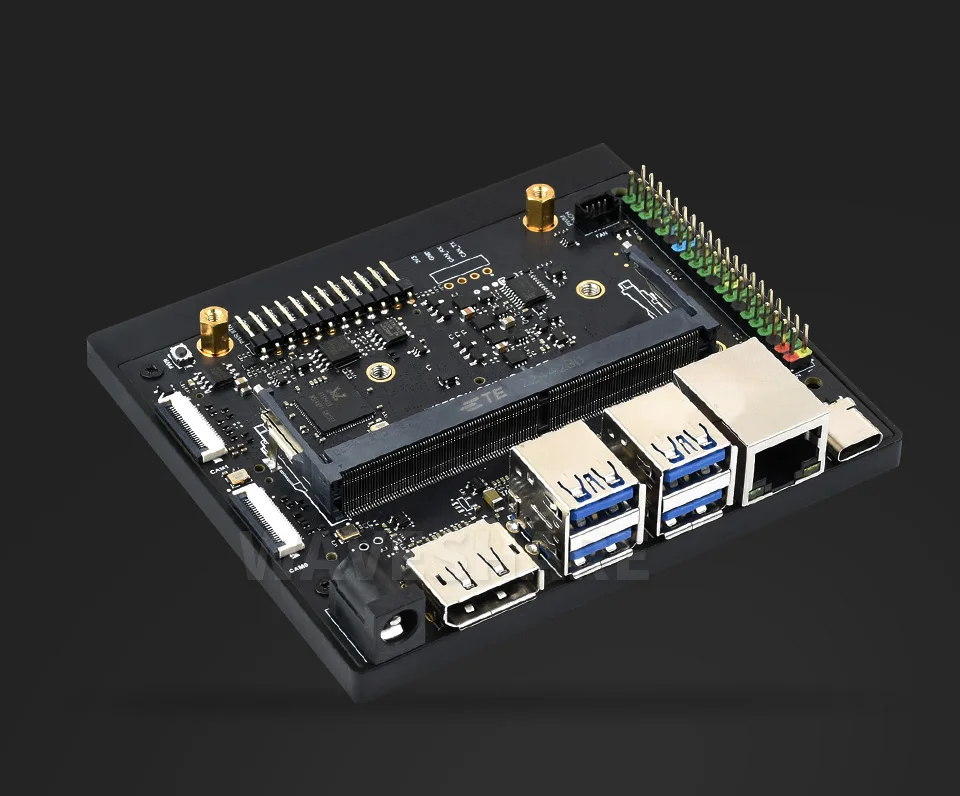

Waveshare Jetson Orin Nano/NX Development Board

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 1

Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

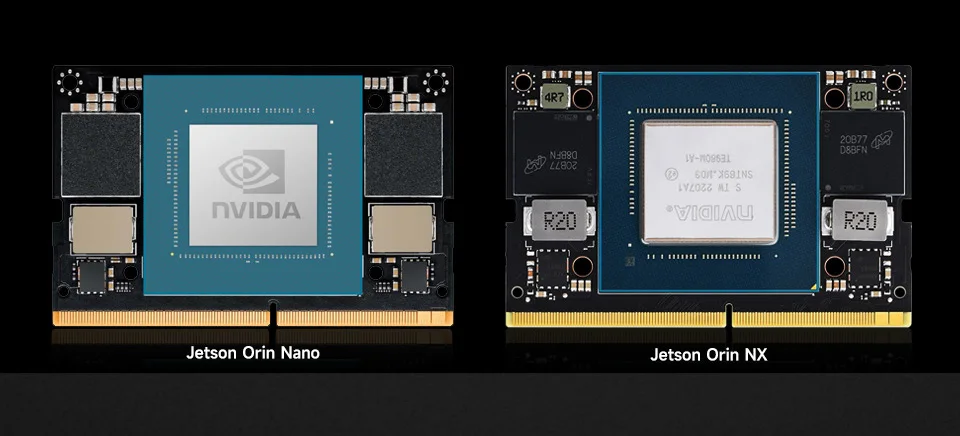

Compatible With Orin Module

Supports Connecting To N-VIDIA Jetson Orin Nano Module And Jetson Orin NX Module

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 2

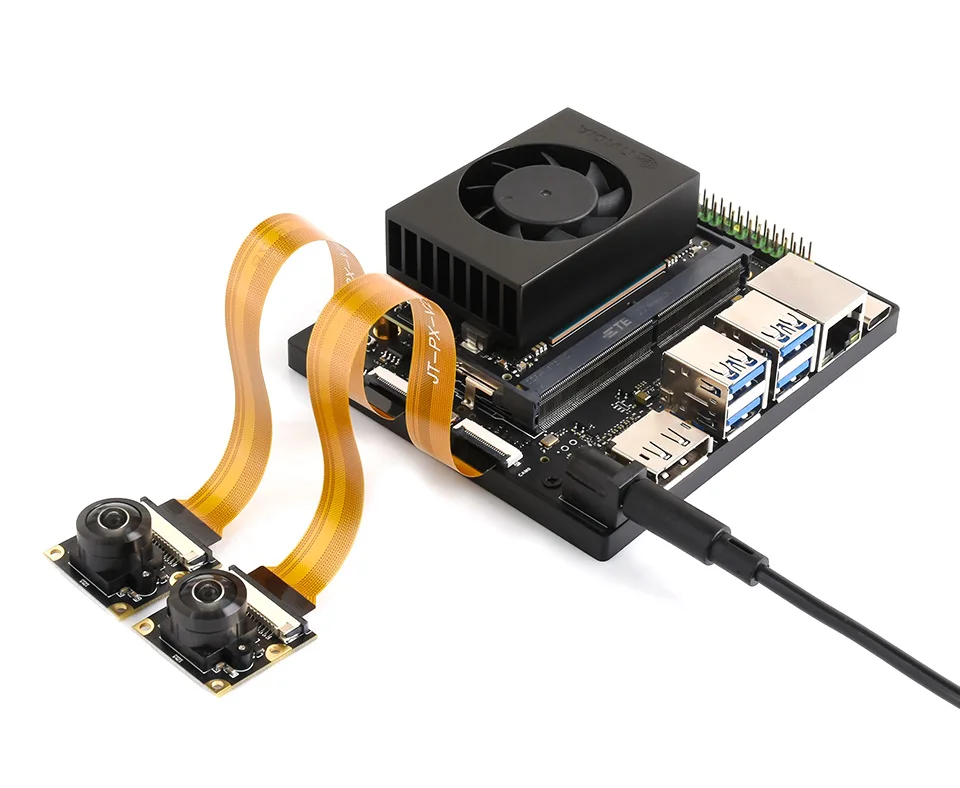

Connect To CSI Camera

2× 4-Lane CSI Camera Ports For AI Applications Such As Face Recognition, Road Sign Recognition And License Plate Recognition

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 3

* Note: the adapter cable is required for connecting the camera.

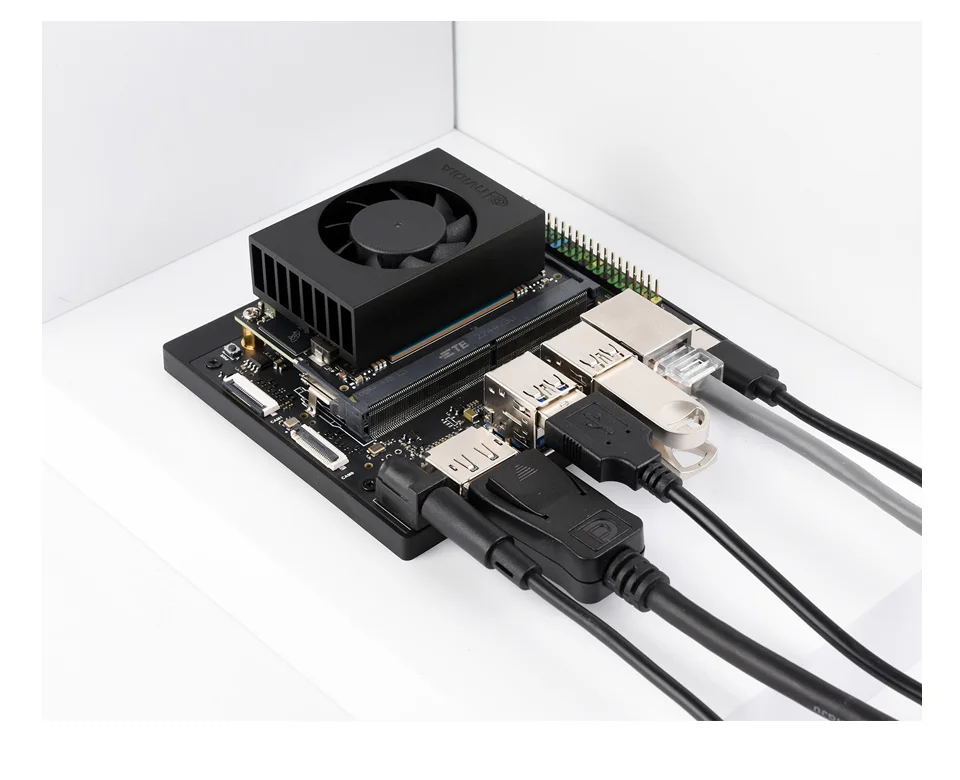

5× USB Ports

4× Tyep-A + 1× Tyep-C

Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission Up To 10Gbps, And The Type-C Port Can Be Used For System Burning

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 4

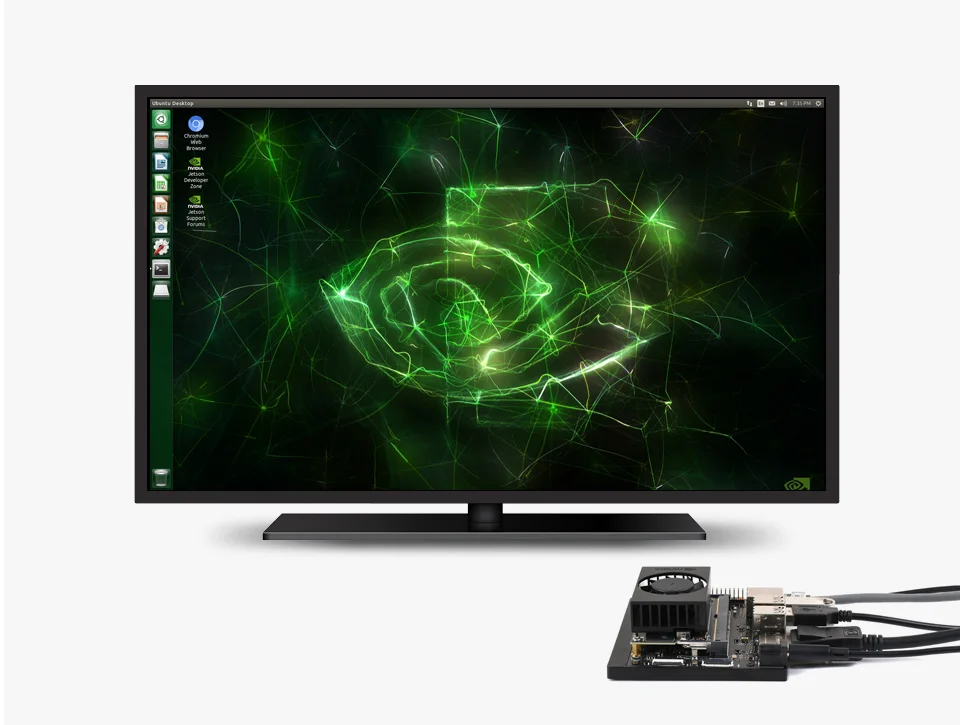

4K High Definition Output

Supports DP High-Definition Port

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 5

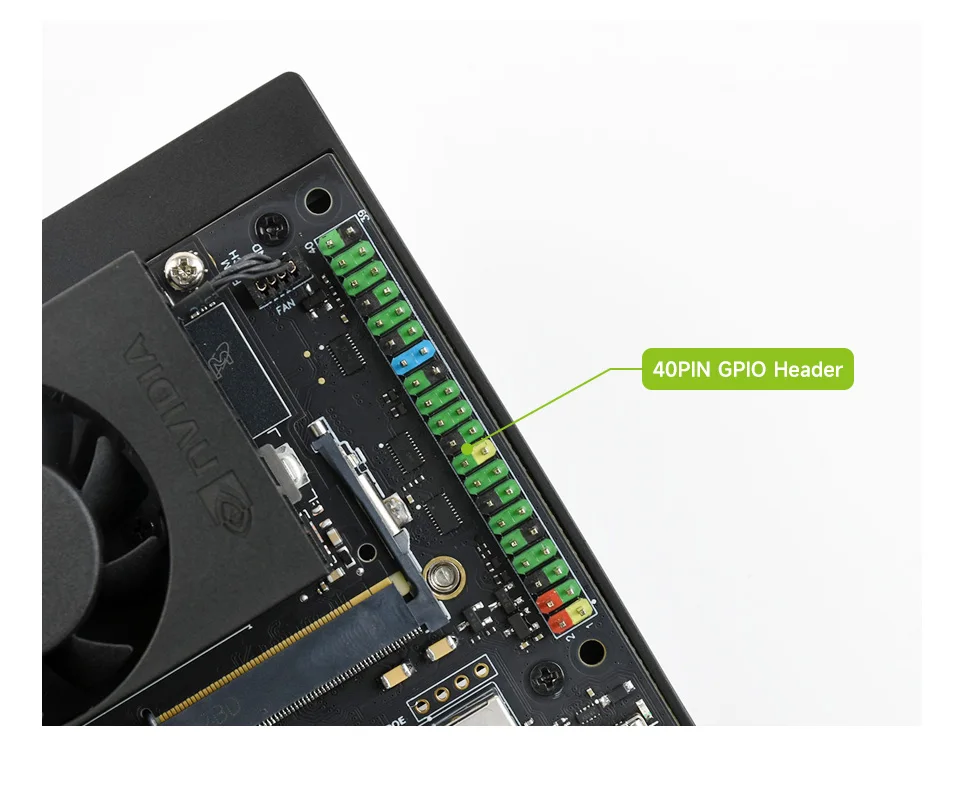

Color-Coded 40PIN GPIO Header

Color-Coded Header Pins To Differentiate IO Resources Such As I2C, SPI, I2S, UART, GPIO, Etc.

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 6

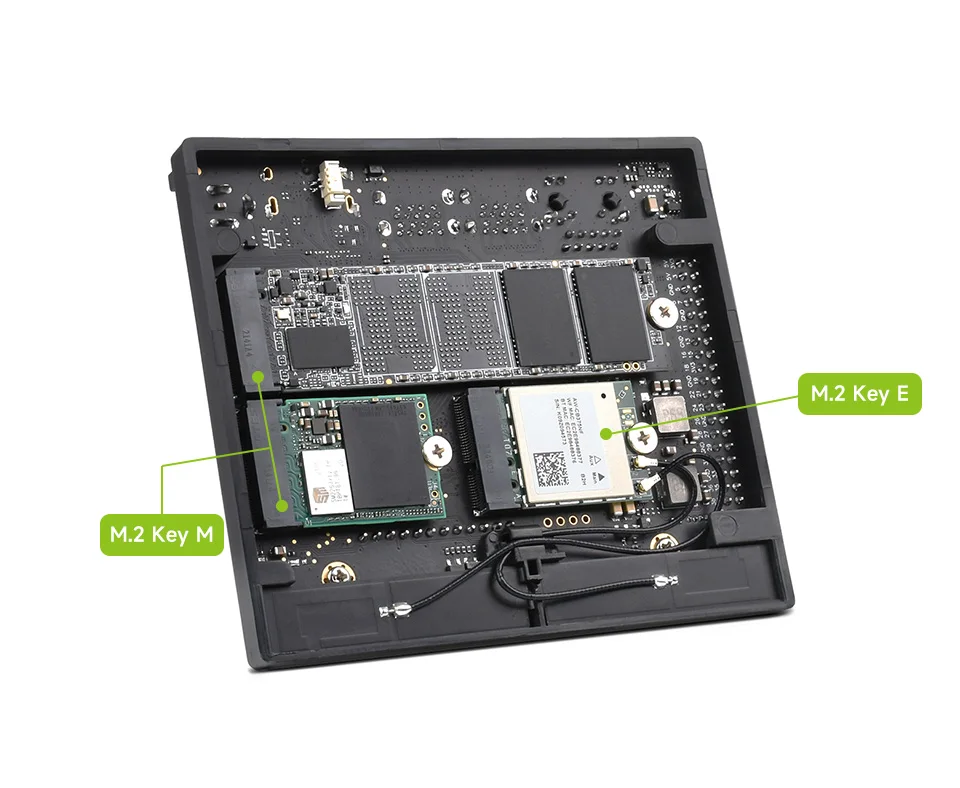

Flexible Storage And Wireless Expansion

Onboard 2× M.2 Key M Ports For Easy Connecting Solid State Drives And 1× M.2 Key E Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 7

* for reference only, the Solid State Drive and wireless network card are NOT included.

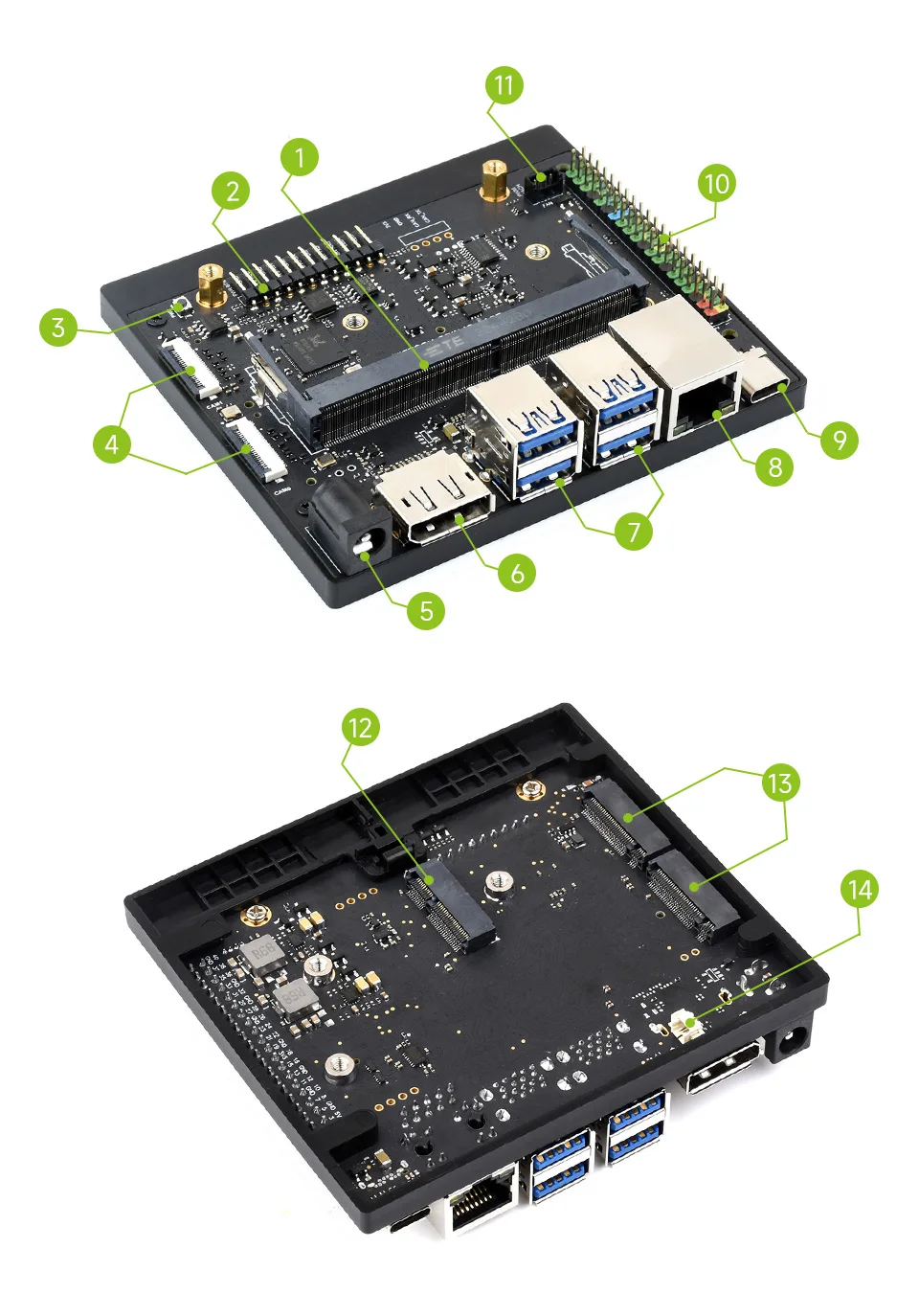

Onboard Resource
Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 8

  1. 260PIN DO-DIMM socket
    for connecting Jetson Orin Nano/NX module

  2. 12PIN header
    Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions

  3. Power button

  4. 2× 22PIN CSI camera connectors

  5. DC Power jack
    Supports wide range 9V~19V power supply, compatible with 5.5 × 2.4mm male plug

  6. DisplayPort connector
    Supports 4K display

  7. 4× USB 3.2 Gen2 Type A ports
    Supports up to 10Gbps data transmission

  1. RJ45 Gigabit Ethernet port

  2. USB Type-C Interface
    for system burning and data communication

  3. 40PIN header

  4. 4PIN PWM fan header

  5. M.2 Key E
    for connecting wireless NIC

  6. 2x M.2 Key M
    for connecting NVME solid state drives

  7. RTC backup battery header

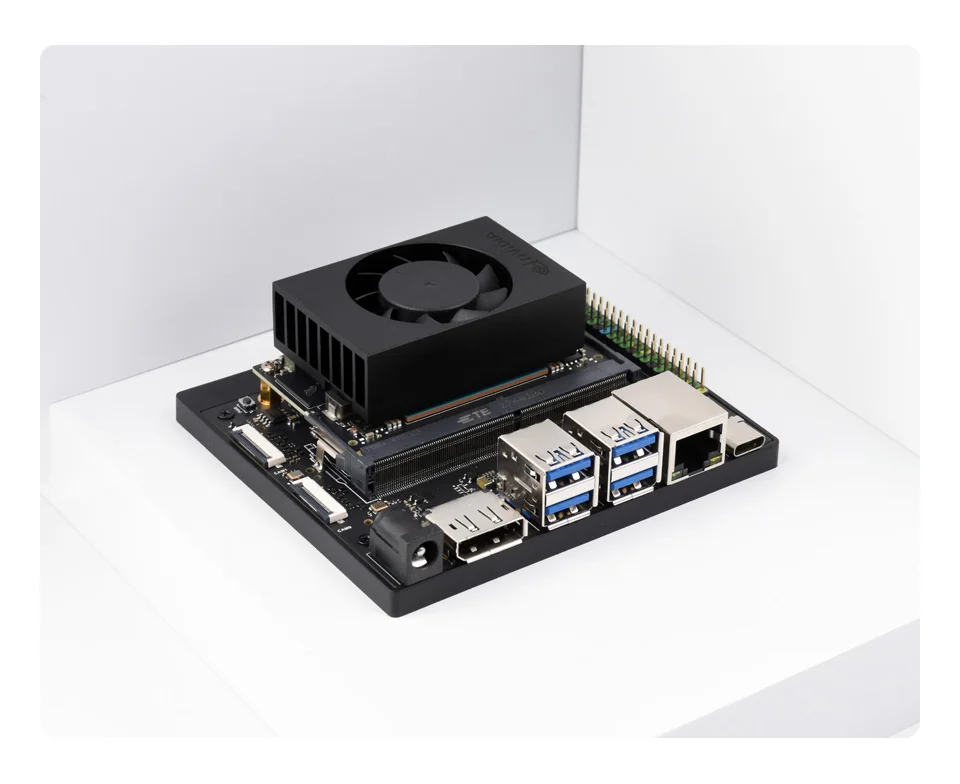

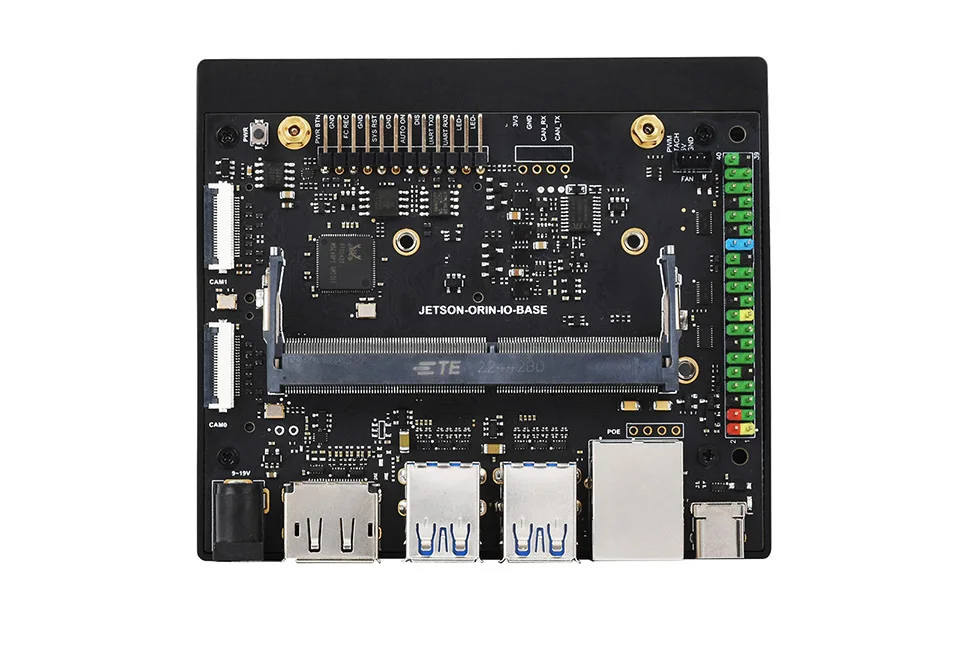

Product Show
Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 9

* for reference only, the Orin module and cooling fan are NOT included.

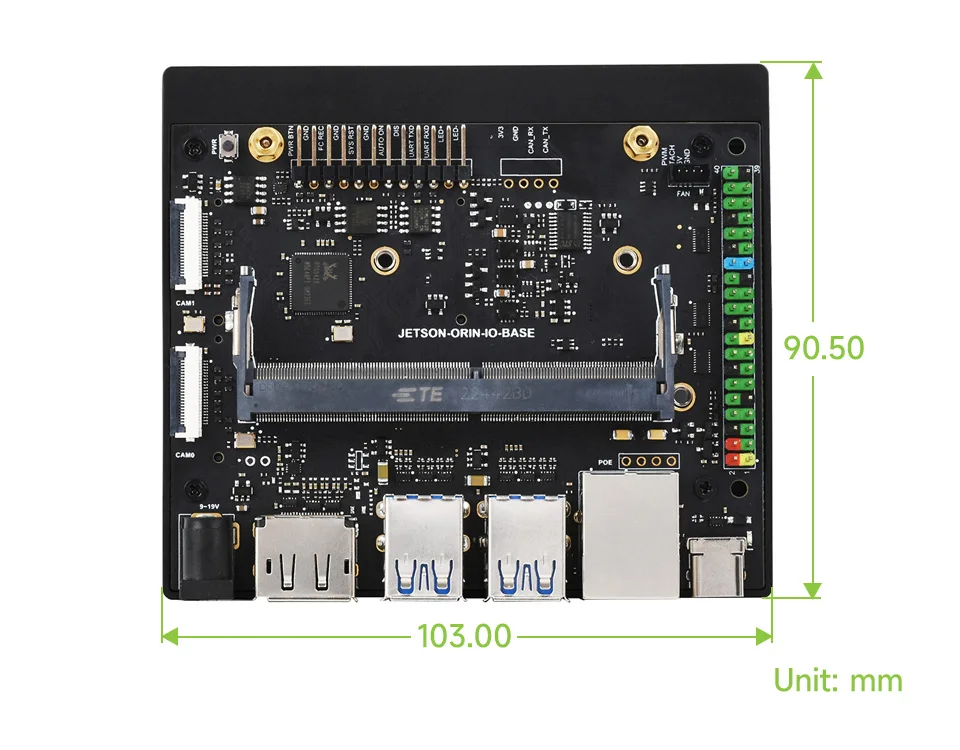

Dimensiones del contorno
Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 10

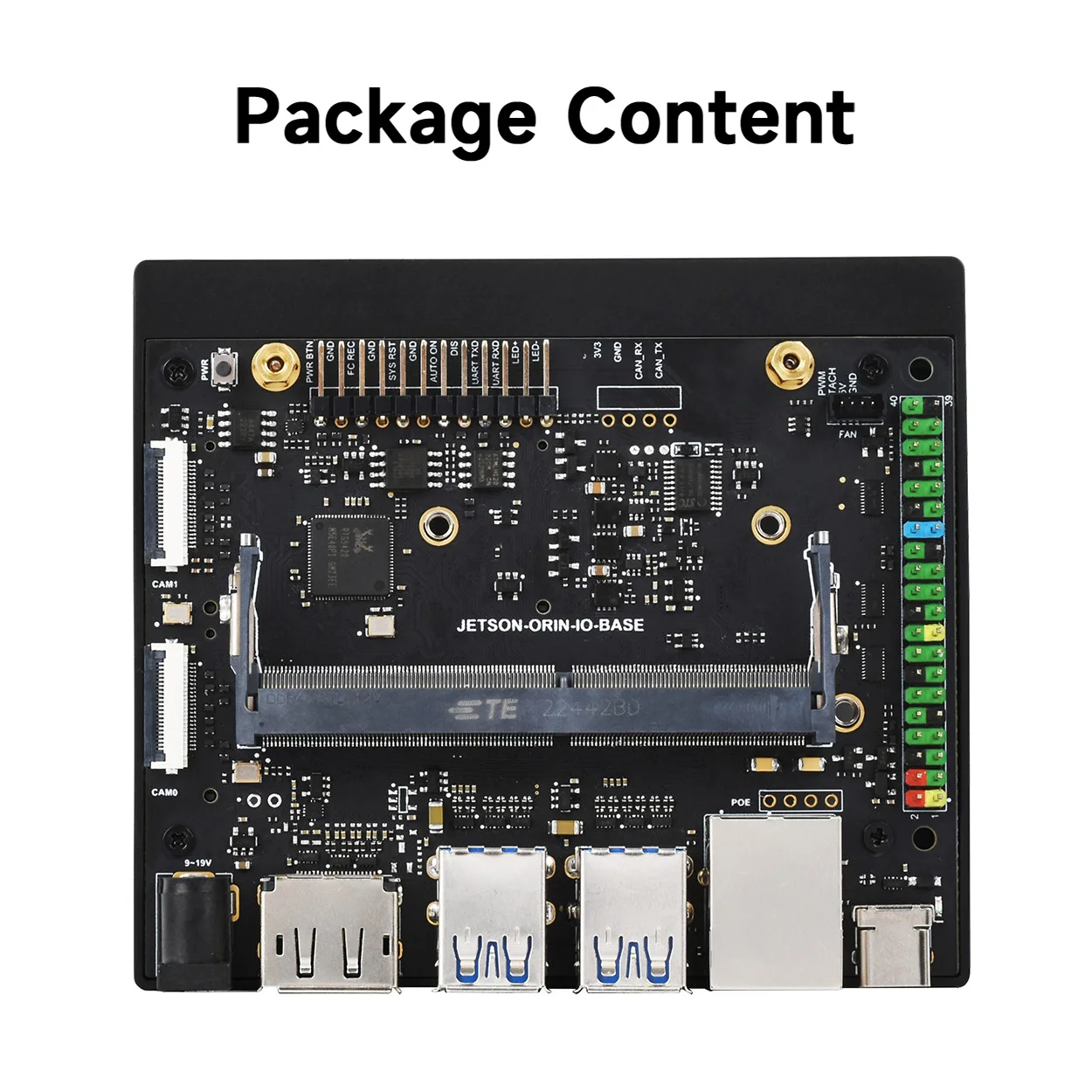

CONTENIDO DEL PAQUETE

JETSON-ORIN-IO-BASE x1

Jetson Orin Nano/NX Development Board Based on Jetson Orin Nano and Jetson Orin NX Module, 5× USB Ports — reference image 11

Personalización de productos

Ofrecemos servicios de personalización de productos. Contáctanos para hablar de sus necesidades.

Información adicional

Peso 0.2 kg
