GNSS add on Module for Seeed Studio XIAO – UART Interface, mini GPS/Tracker, Powered by Quectel L76K

Características:

🌱 Enhanced Reception

Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction.

🌱 High Precision

32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity.

🌱 Energy Efficiency

41mA tracking/acquisition, 360µA standby.

🌱 Multi-GNSS Systems

Powered byQuectel L76K, supporting GPS, BeiDou, GLONASS and QZSS.

🌱 Ceramic Antenna

Enhanced signal reception, superior to traditional antennas.

Descripción del Producto:

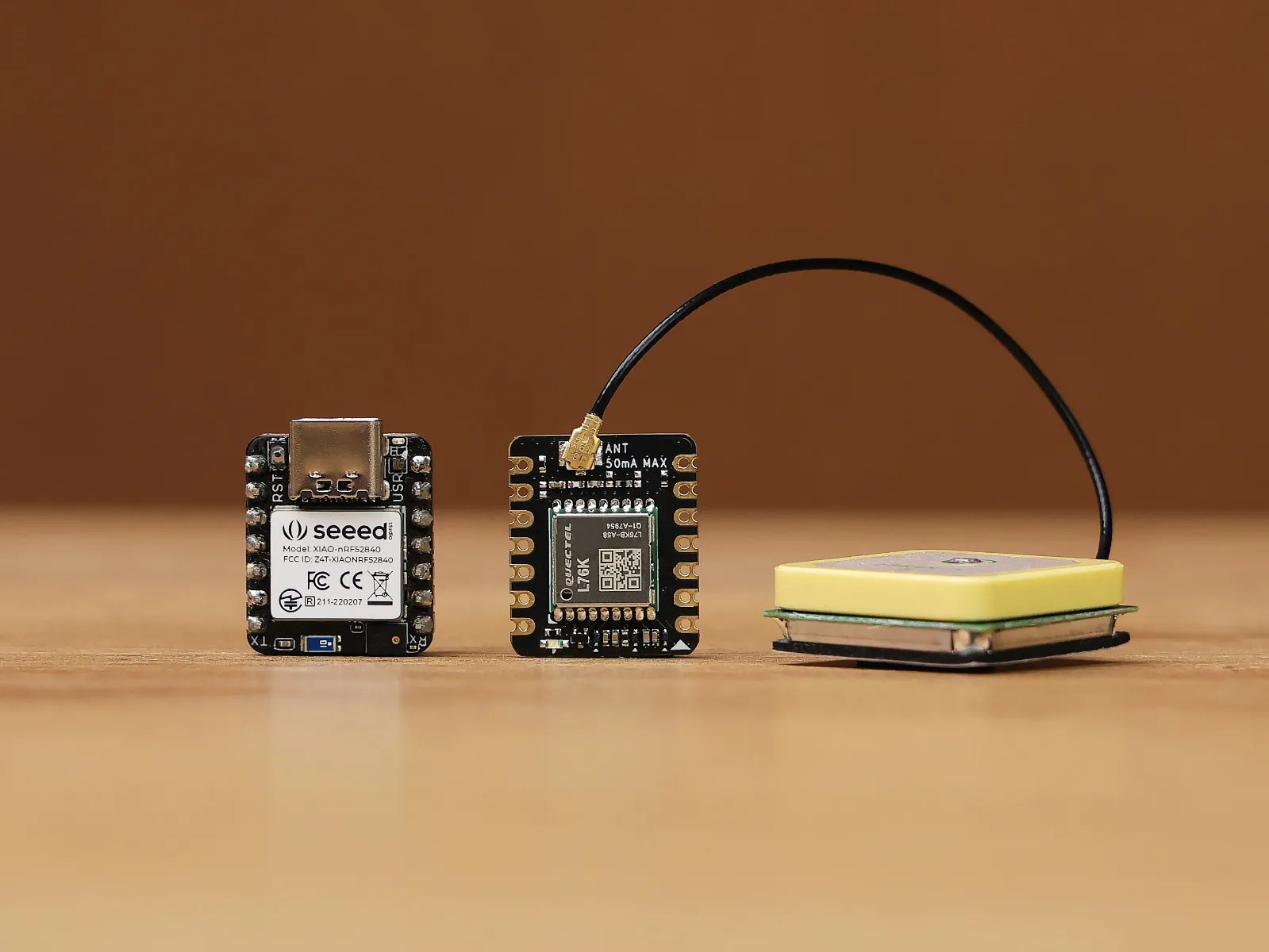

Looking for an easy-to-use GPS module for your XIAO projects? The L76K GNSS Module is your answer. The L76K GNSS Module, specifically designed for SeeedStudio XIAO, is a versatile and efficient Multi-GNSS receiver. Compatible with all XIAO development boards, it offers comprehensive support for various satellite systems including GPS, BeiDou, GLONASS, and QZSS. This module is capable of both combined multi-system and independent single-system positioning, ensuring flexibility and precision in various applications.

Enhanced with AGNSS functionality, the module boasts a built-in low-noise amplifier and surface acoustic wave filter, delivering fast and precise positioning performance. It comes equipped with a high-performance active GNSS antenna, optimized for GPS L1 C/A, BeiDou B1, and GLONASS L1 frequencies, ensuring wide coverage and reliable signal reception.

Additionally, the module features a small, bright green LED, providing visual confirmation of the 1PPS (one pulse per second) output when a fix is established, simplifying troubleshooting and enhancing user experience.

Solicitud

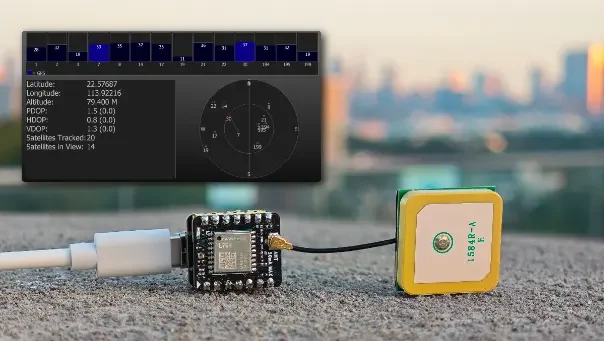

• GPS navigation
• GPS Tracker
• Smart City
• Logistics and Freight Management

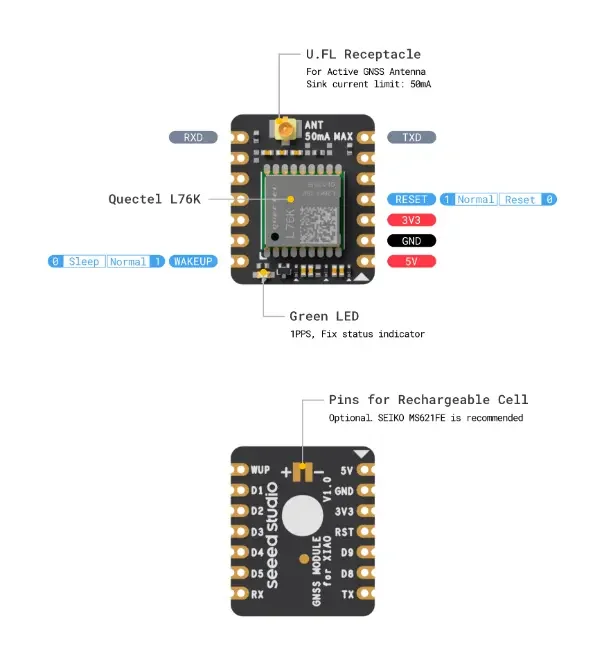

Descripción general del hardware

Lista de piezas

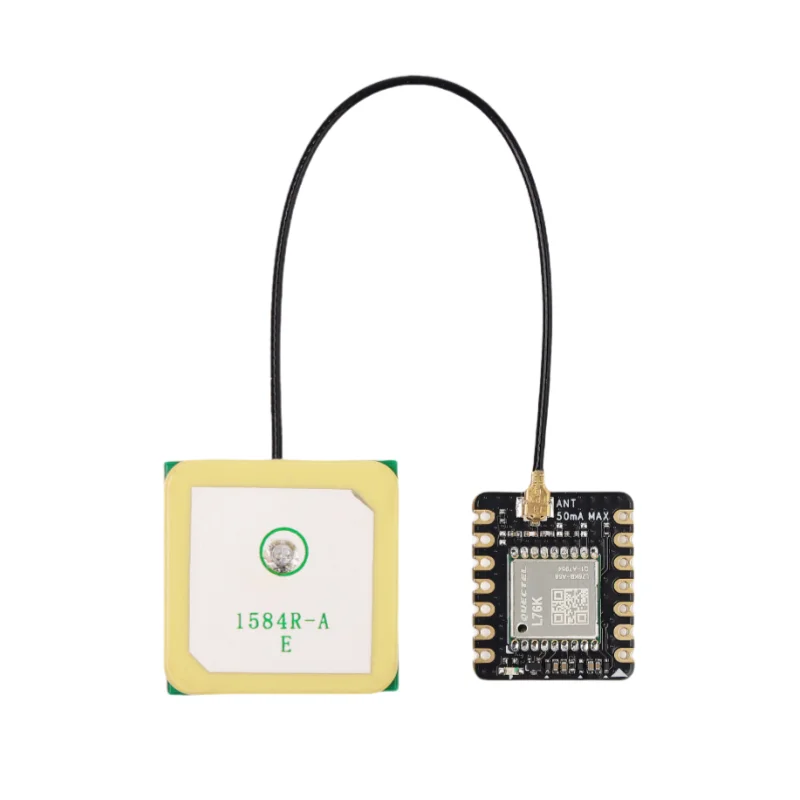

. L76K GNSS Module   x1

. Active Antenna with iPex connector   x1

. 7 Pin Female Header 2.54mm   x2

Documentations

• L76K GNSS Module for Seeed Studio XIAO
• Getting Started with L76K GNSS Module for SeeedStudio XIAO
