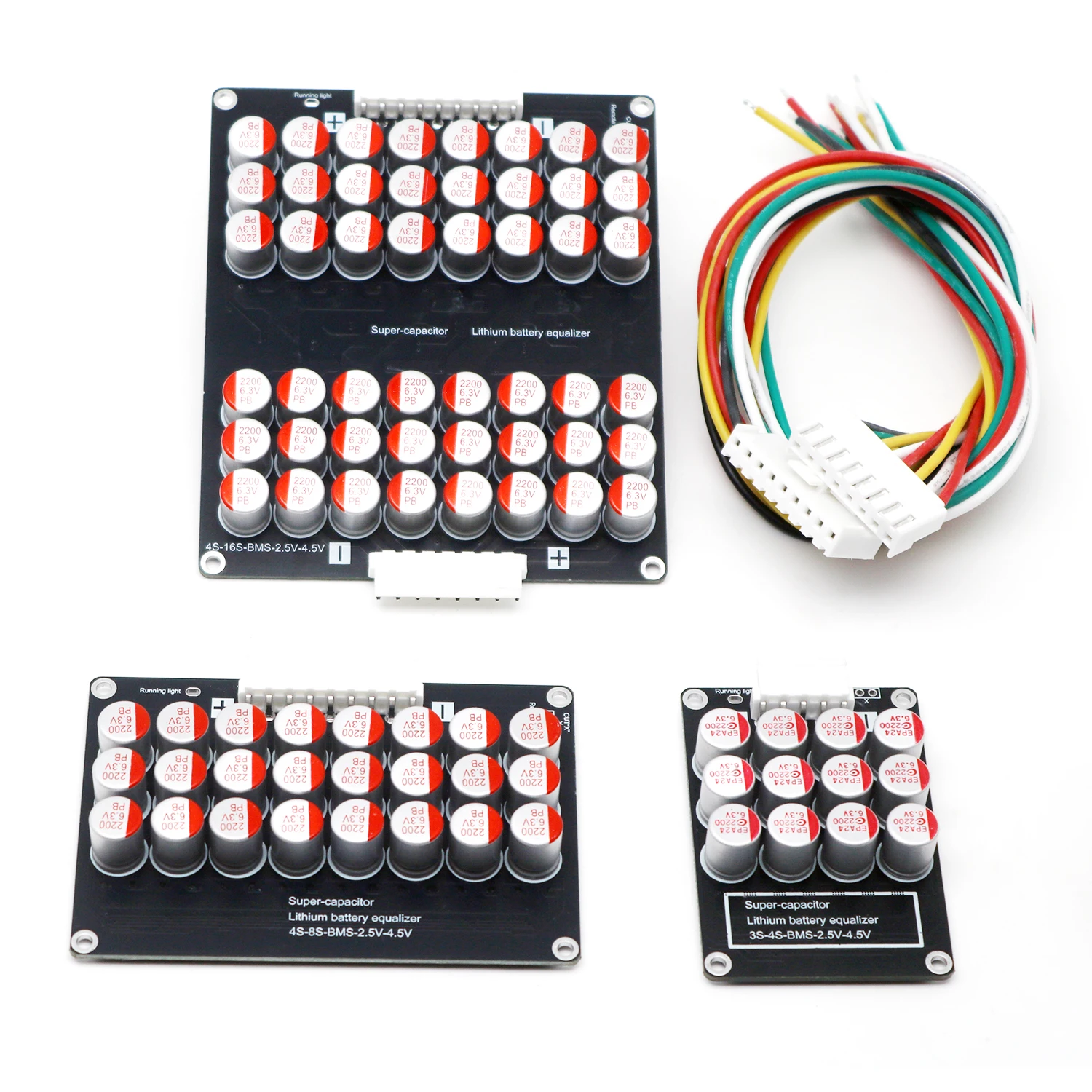

Balanceador de energía para baterías de litio 4S 8S 16S 6A con ecualizador activo, transferencia de energía, 10S 13S 14S Lifepo4 Li-ion 12V 24V 36V 48V BMS.

The pressure difference also determines the current

The length of the line also determines the current

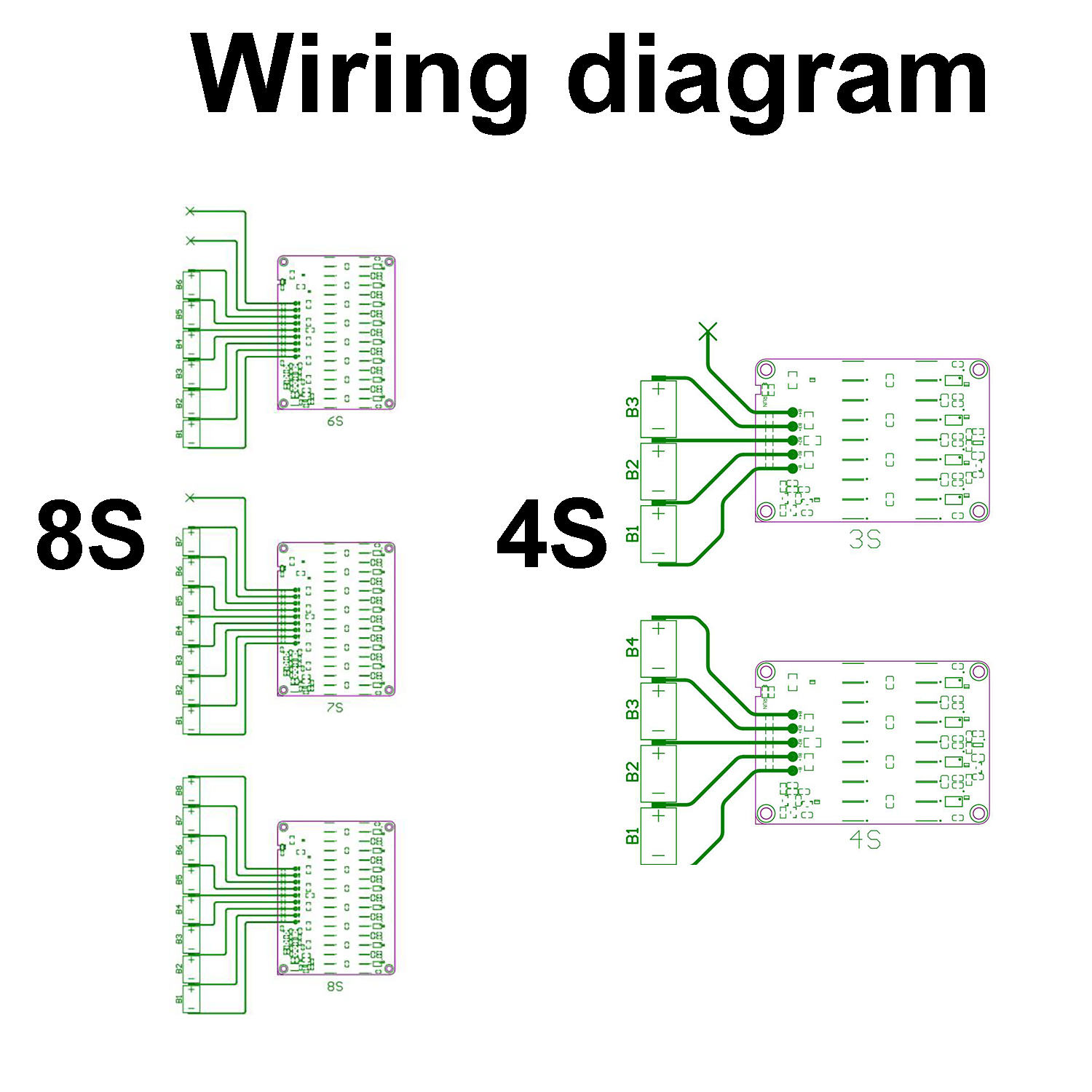

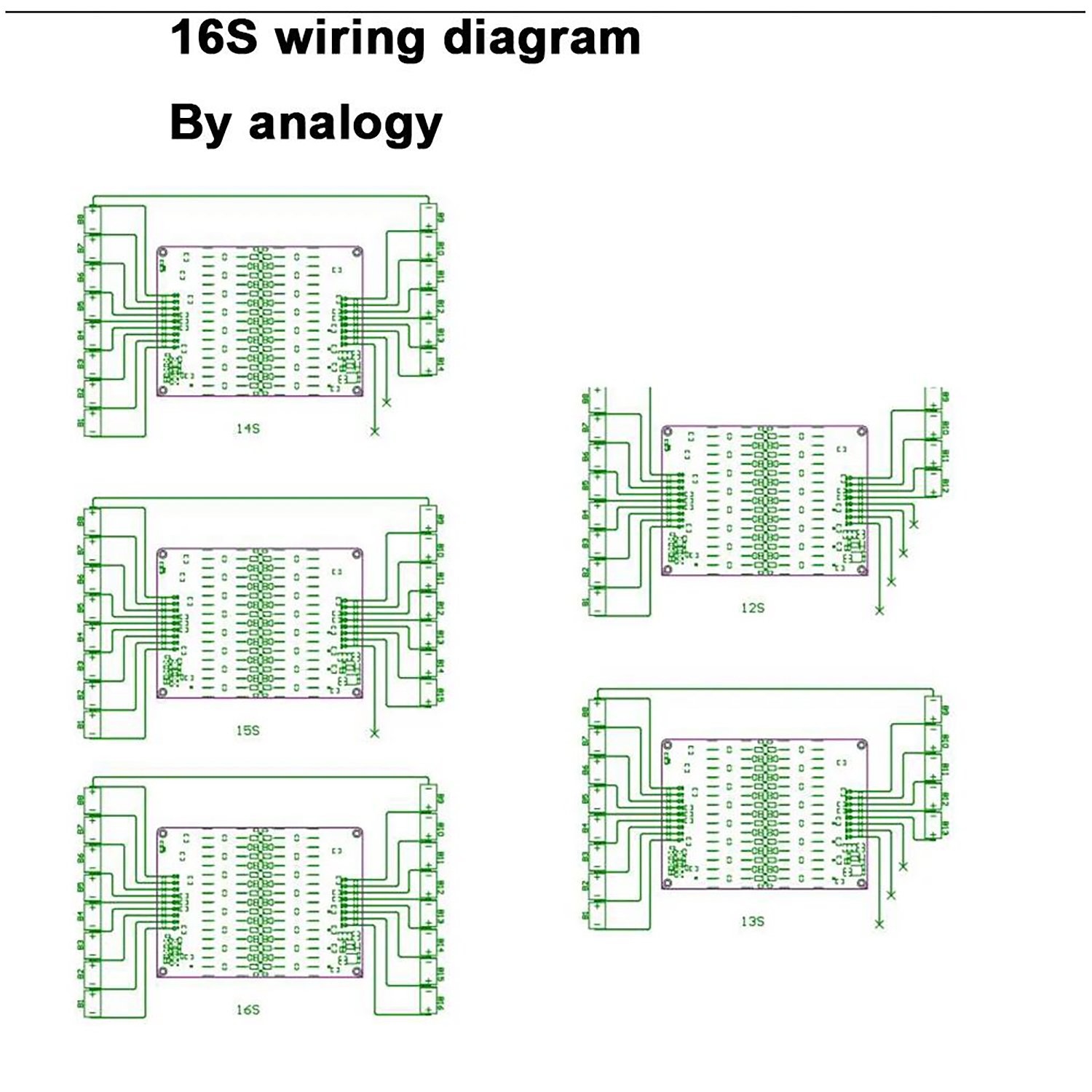

Be sure to wire it correctly otherwise it may cause the board to burn out

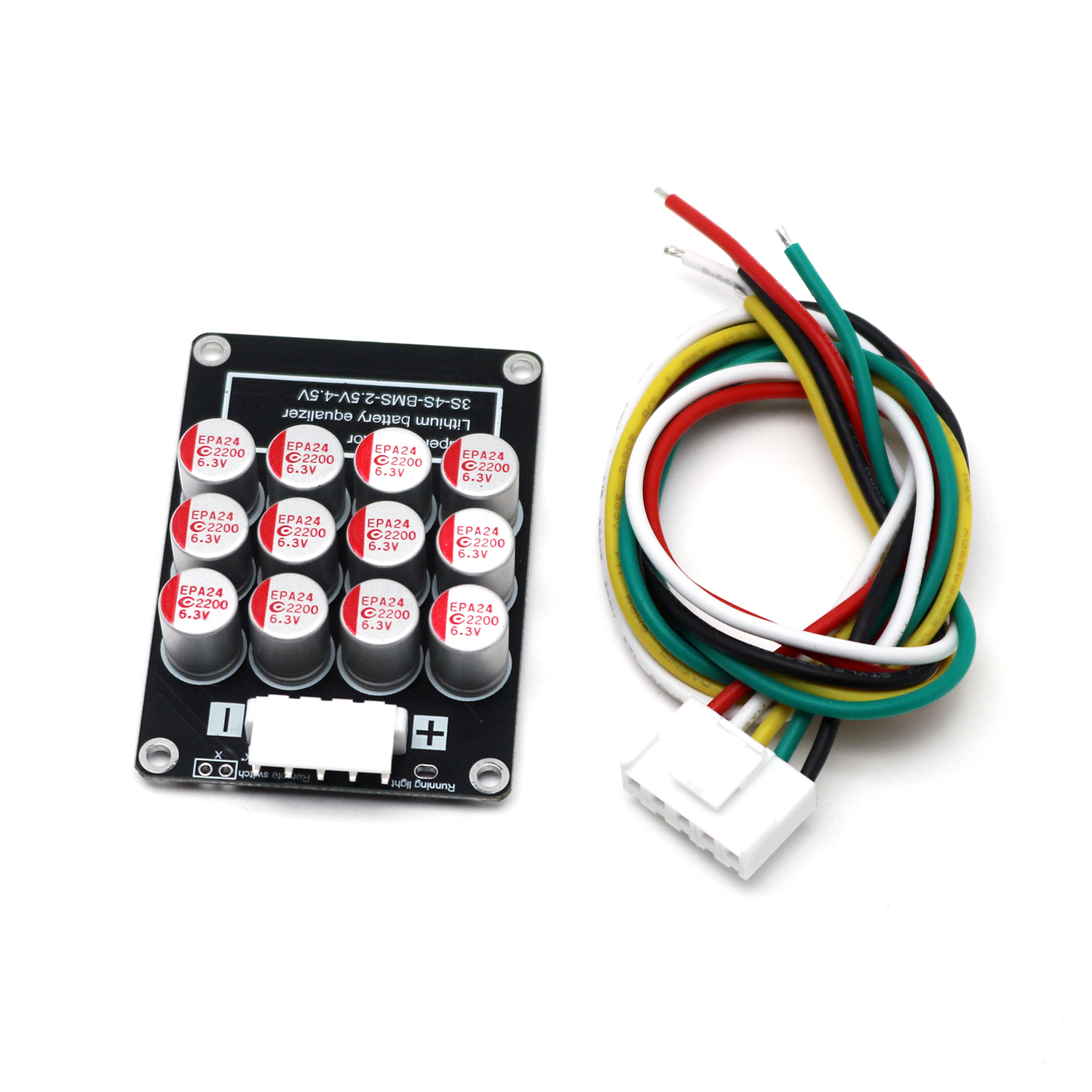

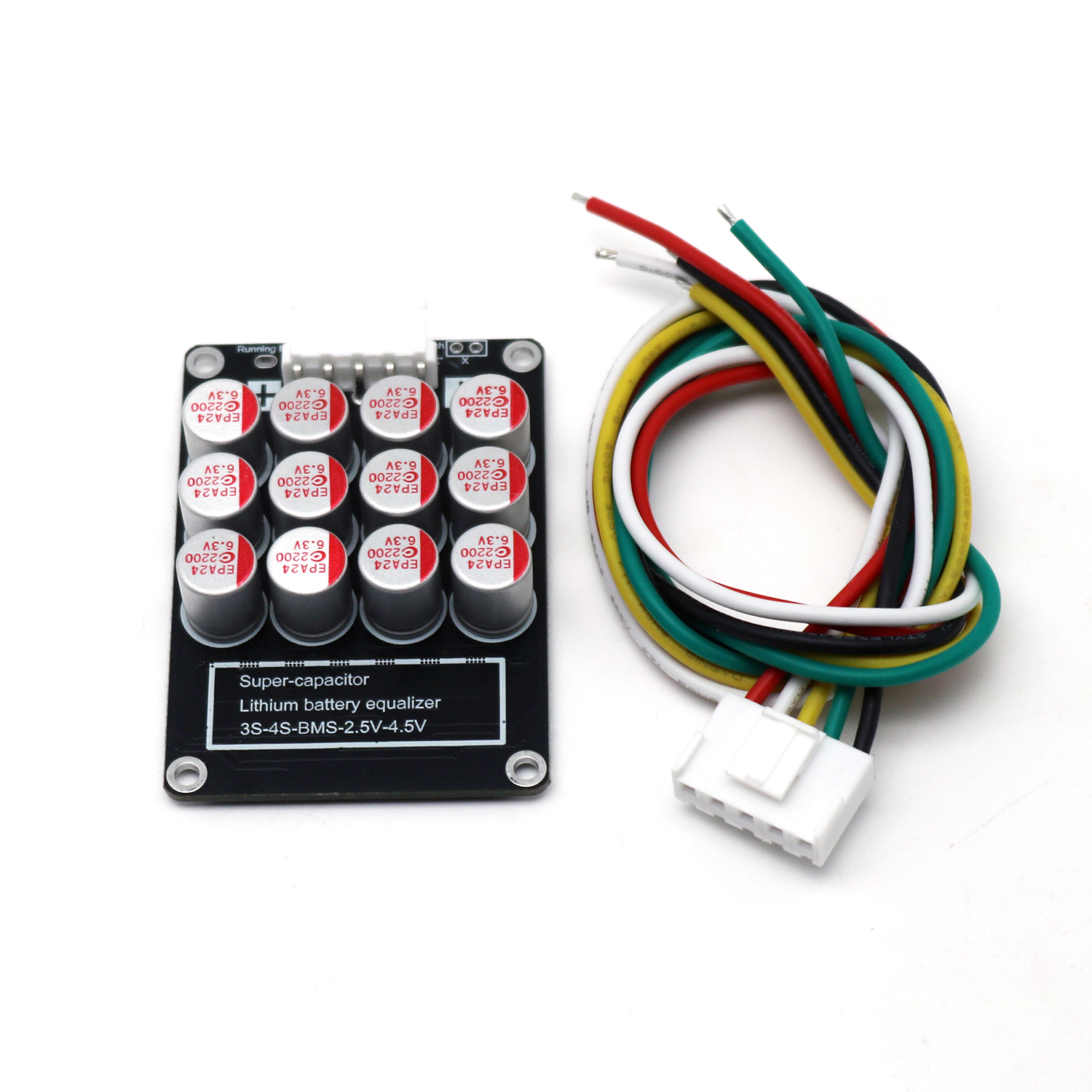

4S Supports 3S-4S SIZE : 6.8X4.9X2CM

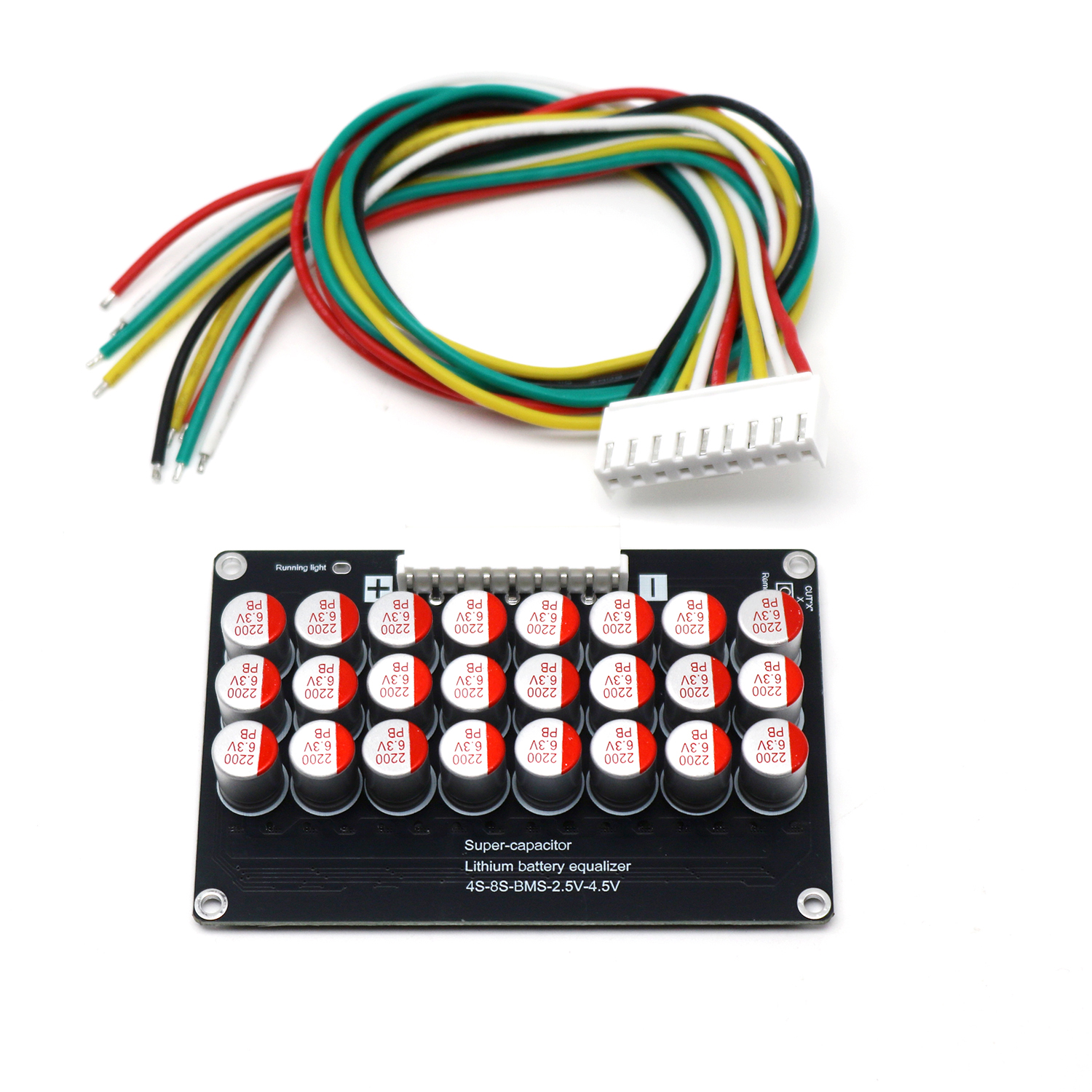

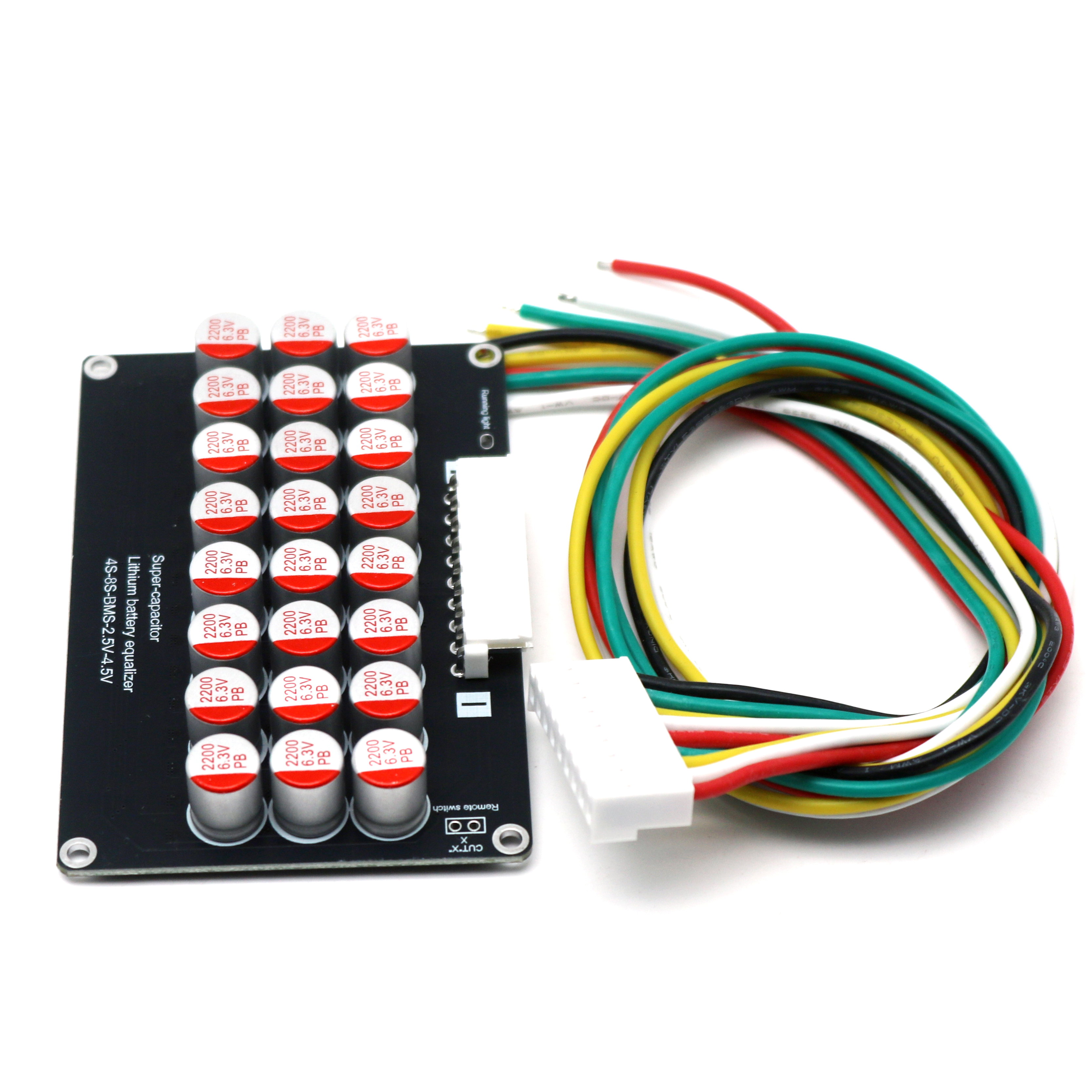

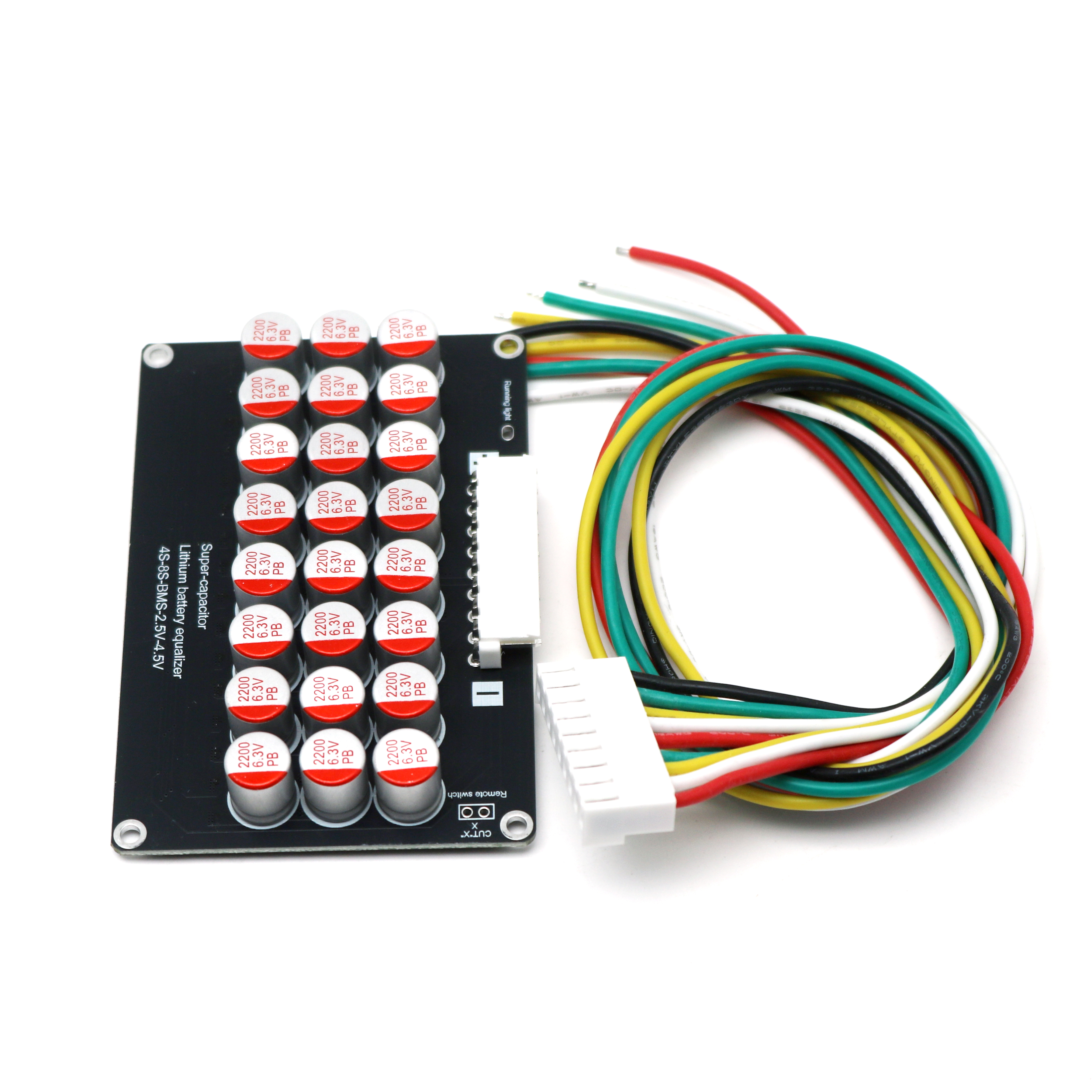

8S Support: 4S-8S SIZE 9.8X6.5X2CM.

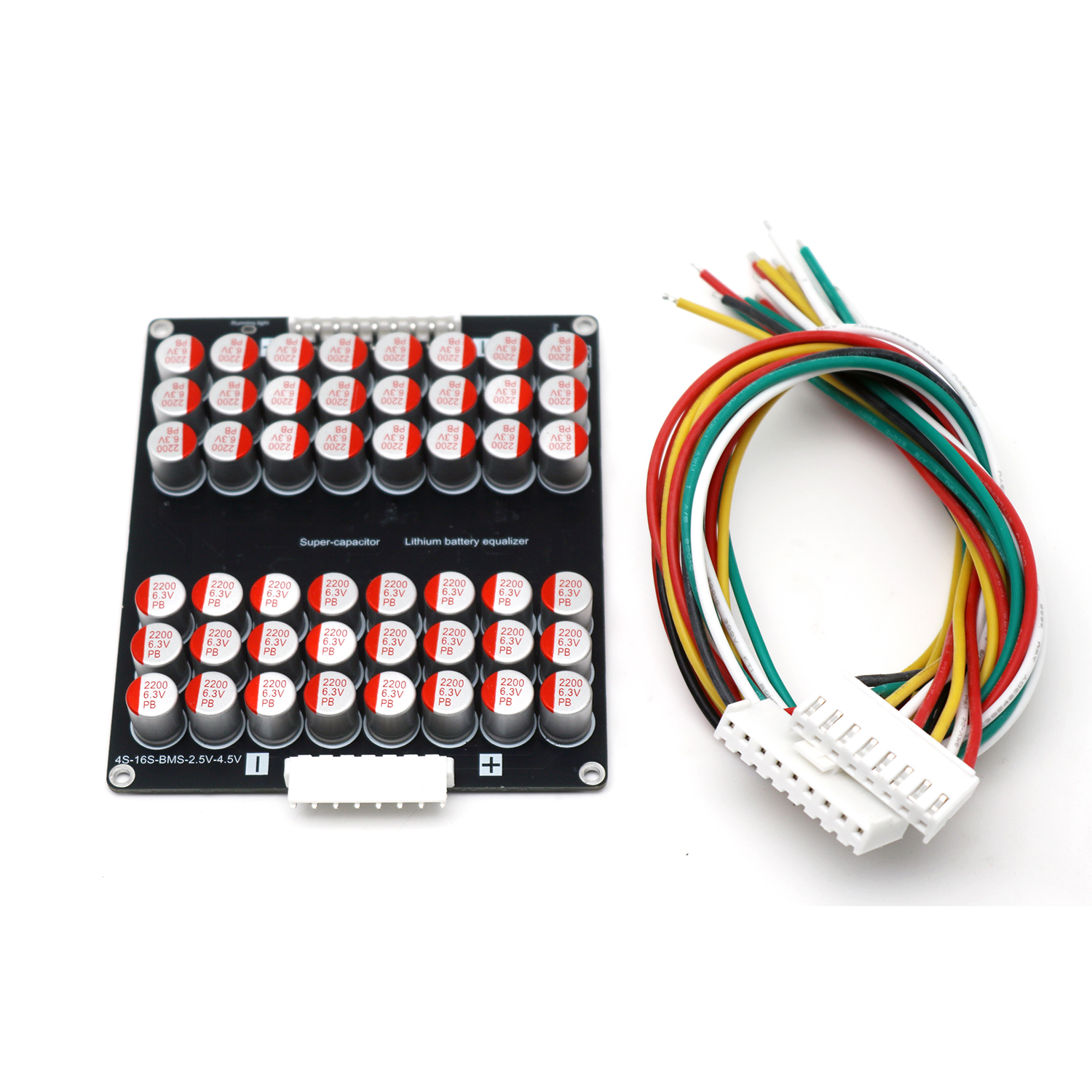

16S Supports 4S-16S SIZE : 12X9.4X2CM

Applicable Battery Type:Lifepo4 Li-ion battery

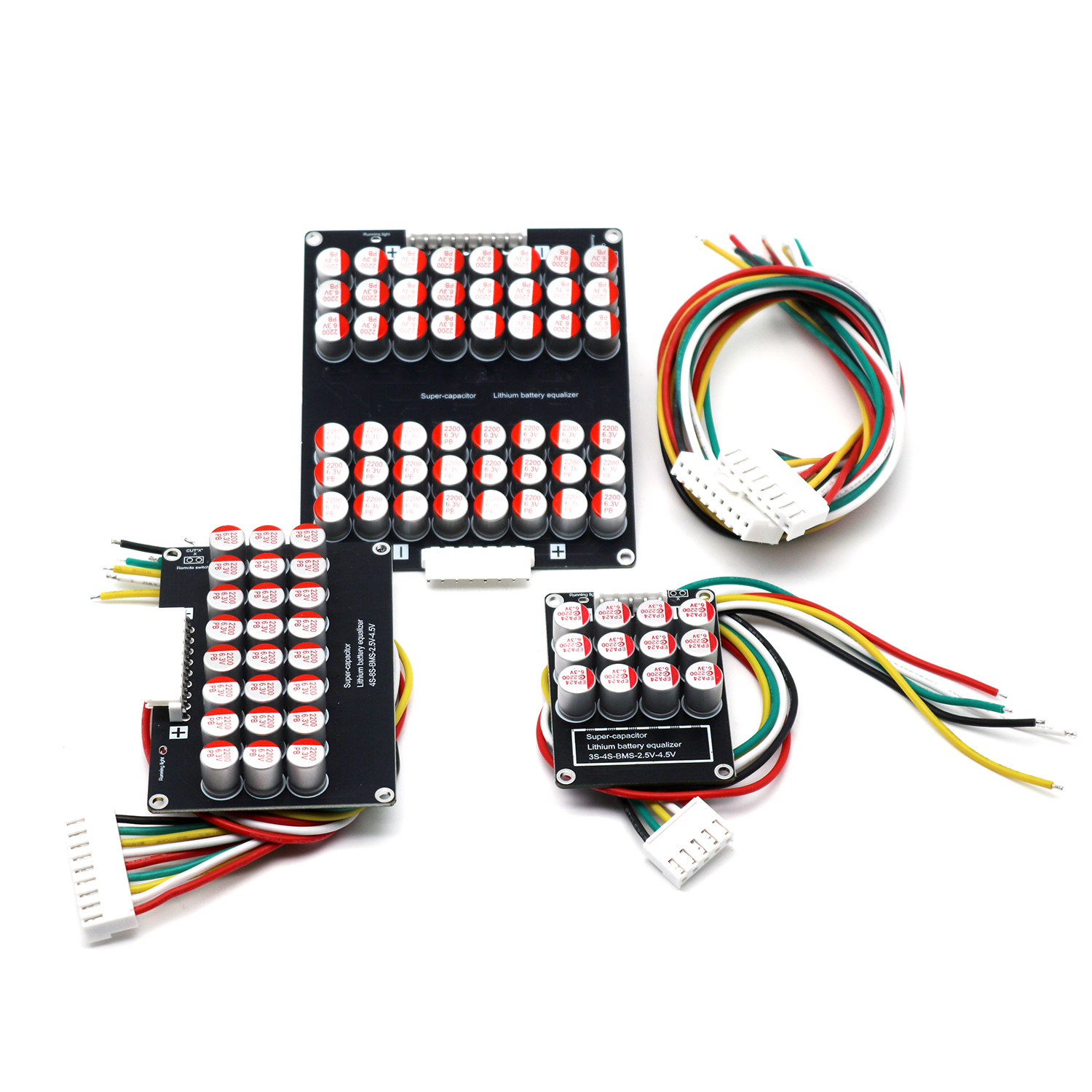

Lithium battery active balance energy transfer board Lithium battery active equalizer high-efficiency energy transfer balance.

Capacitive energy transfer equalization board (high precision 5mv, whole group equalization, not adjacent equalization).

Working voltage 2.5-5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.

Working principle, the capacitive fit transfers the charge transporter, the

equalization board is connected to the battery to start the equalization

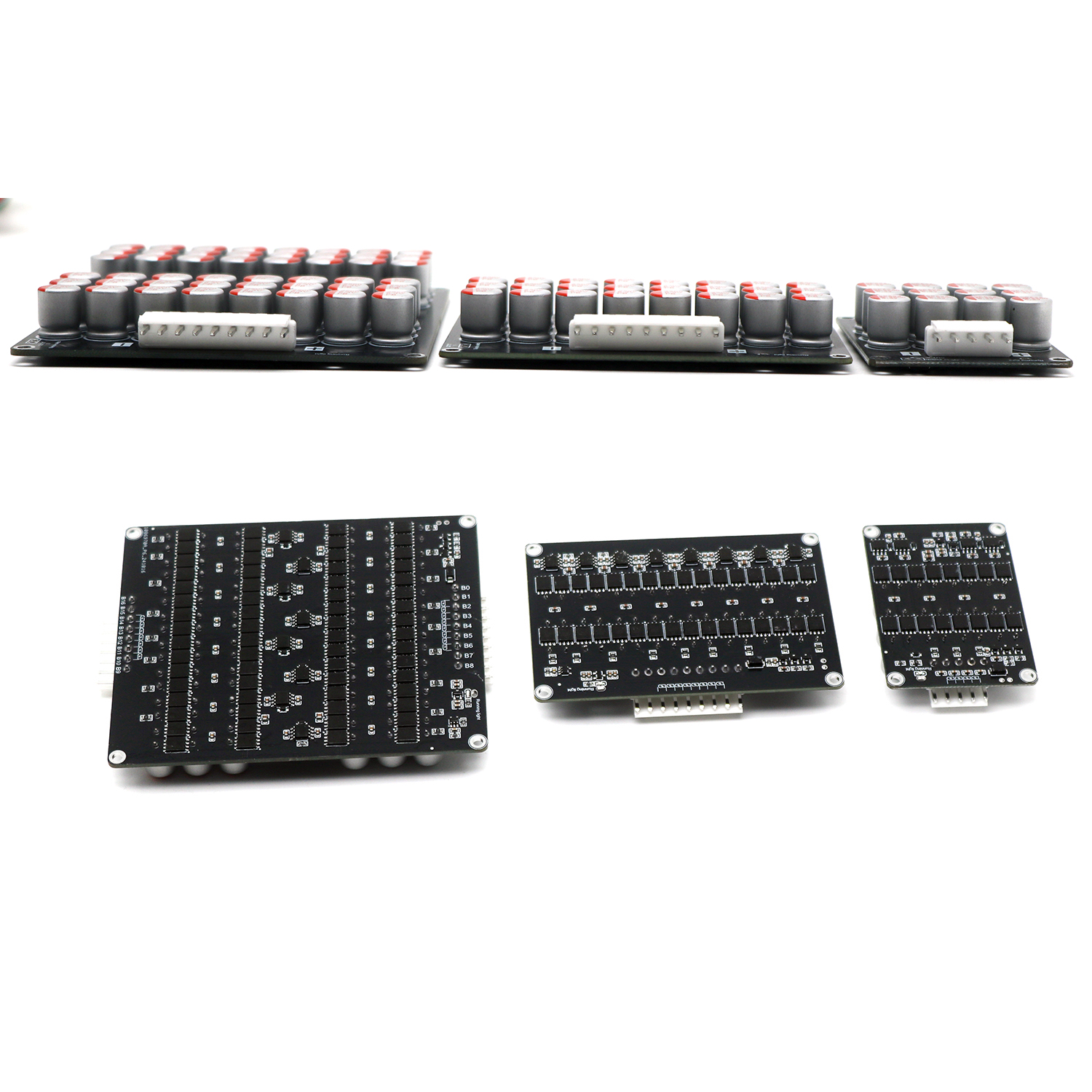

work, the brand new ultra-low internal resistance MOS, 2OZ copper

thickness PCB, equalization current 0-6A, the more the battery is, the

more the equalization current is Small, reserved for the dormant switch

wiring position, the dormant power-off mode working current is less than

0.1mA, and the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.
