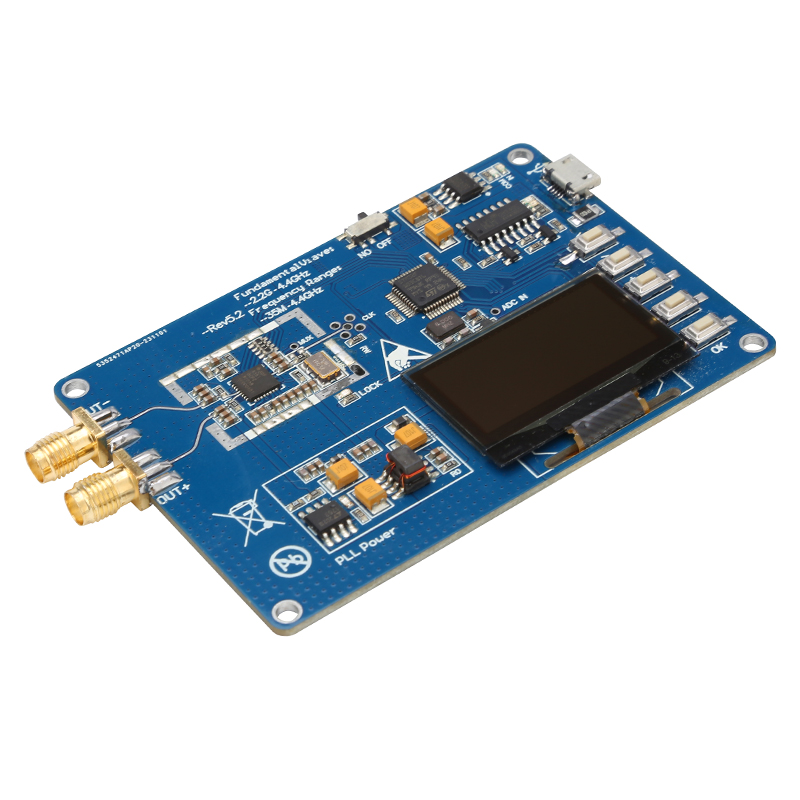

Generador de señal RF de 35 MHz a 4400 MHz, módulo ADF4351, generador de frecuencia de barrido PLL con pantalla OLED.

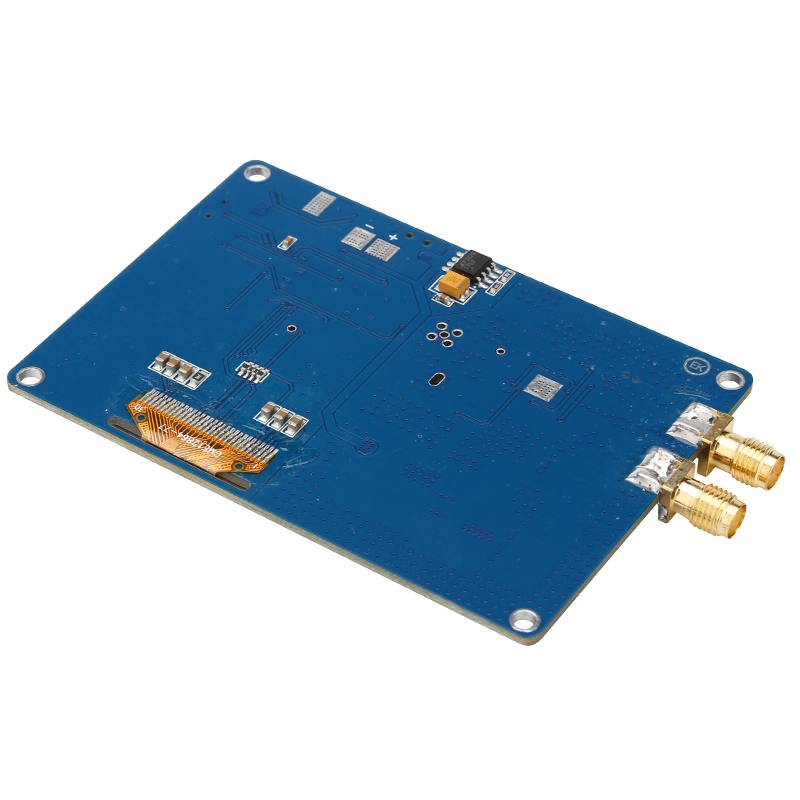

35MHz-4400MHz RF Signal Generator ADF4351 Module Sweep Frequency Generator PLL With OLED Display - Imagen 2

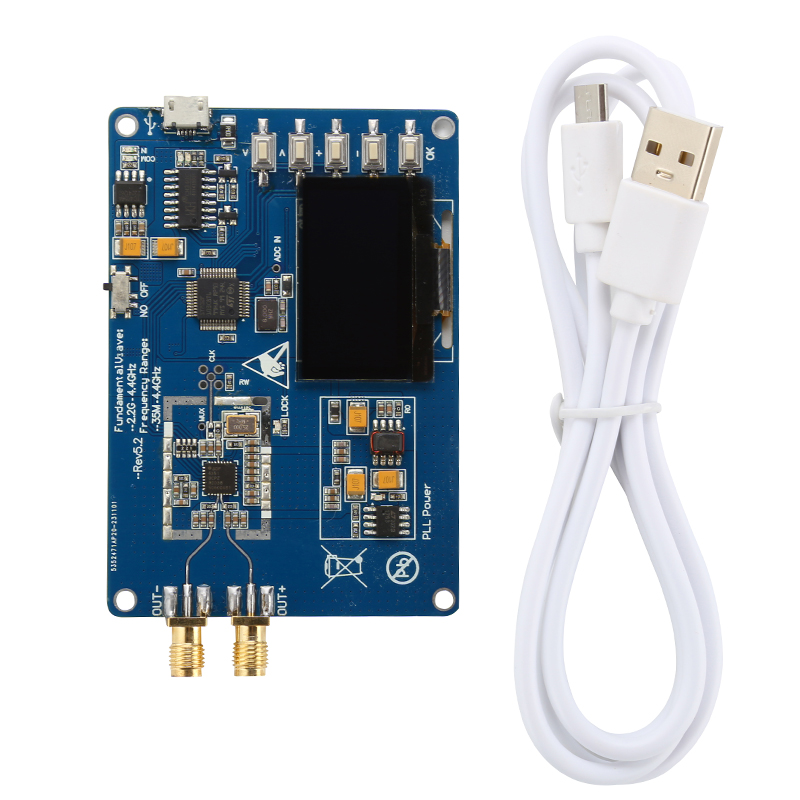

35MHz-4400MHz RF Signal Generator ADF4351 Module Sweep Frequency Generator PLL With OLED Display - Imagen 3

Generador de señal RF de 35 MHz a 4400 MHz, módulo ADF4351, generador de frecuencia de barrido PLL con pantalla OLED.

Name: Generador de señal RF de 35 MHz a 4400 MHz, módulo ADF4351, generador de frecuencia de barrido PLL con pantalla OLED.
SKU: 1005006991025800
Price: 53.90 USD
Availability: InStock

$53.90

Hay existencias

SKU: 1005006991025800 Categorías: Tienda de módulos, Pantallas y HMI, Piezas de prototipado

Descripción

For the ADF4351 integrated phase-locked loop, this phase-locked loop module with OLED display, host computer USB & serial port, integrated button operation, wide-range voltage power supply, and good human-computer interaction interface is introduced. The module can achieve 35MHz-4.4GHz frequency output, basic functions such as dot frequency, sweep frequency, and frequency hopping.

Especificación

– Power supply: 5V (Micro USB)
– Bandwidth: 35MHz-4.4GHz (35MHz-4400MHz);
– Module step: 100KHz (minimum)
– Frequency error: ±1KHz
– Output: OUTA and OUTB two ways
– Module phase noise: better than -100dBc at 10KHz (noise varies with the frequency band phase)
– Module output power: 7dBm (maximum)
– Module interface: The external communication port of STM32 USB can be configured as USB or analog serial port (default)
– Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
