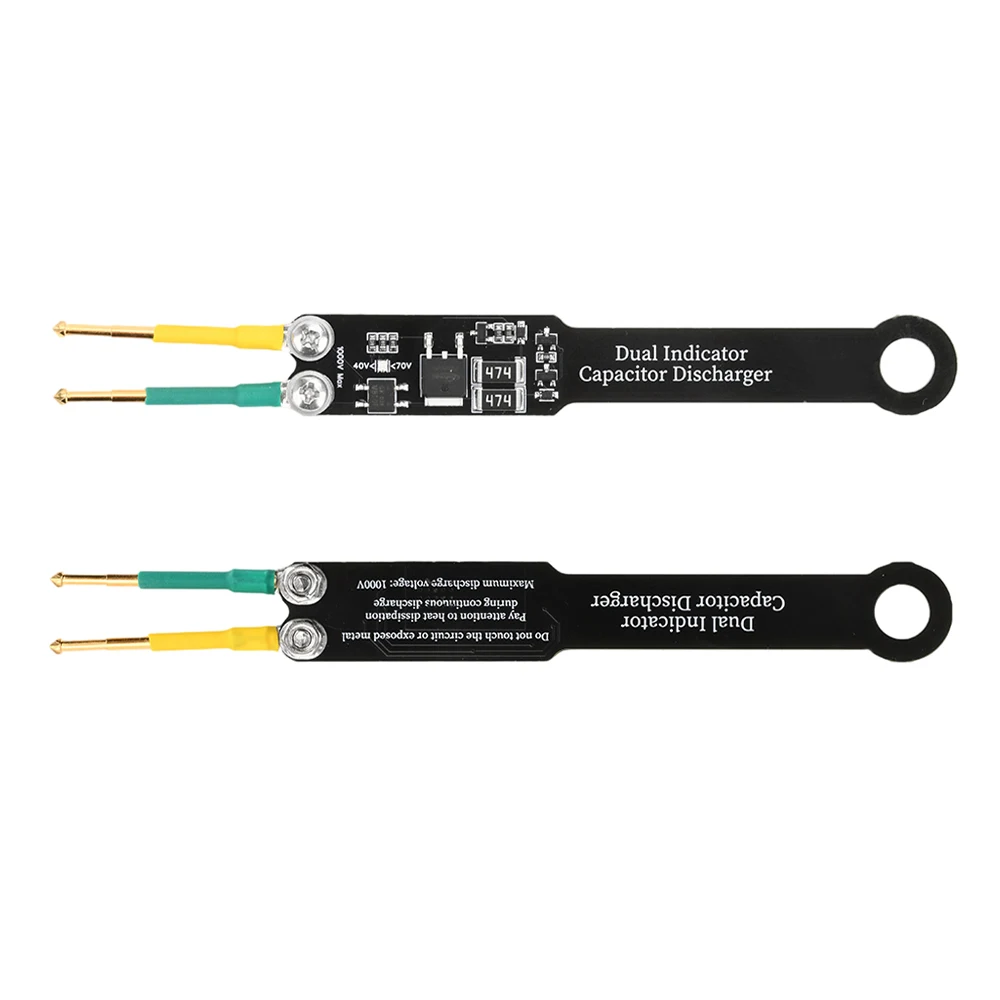

Lápiz de descarga de condensadores para reparación y mantenimiento de fuentes de alimentación conmutadas AC/DC AC8-380V/DC 12-540V

1.The product is compact, easy to use, and can be operated with one hand

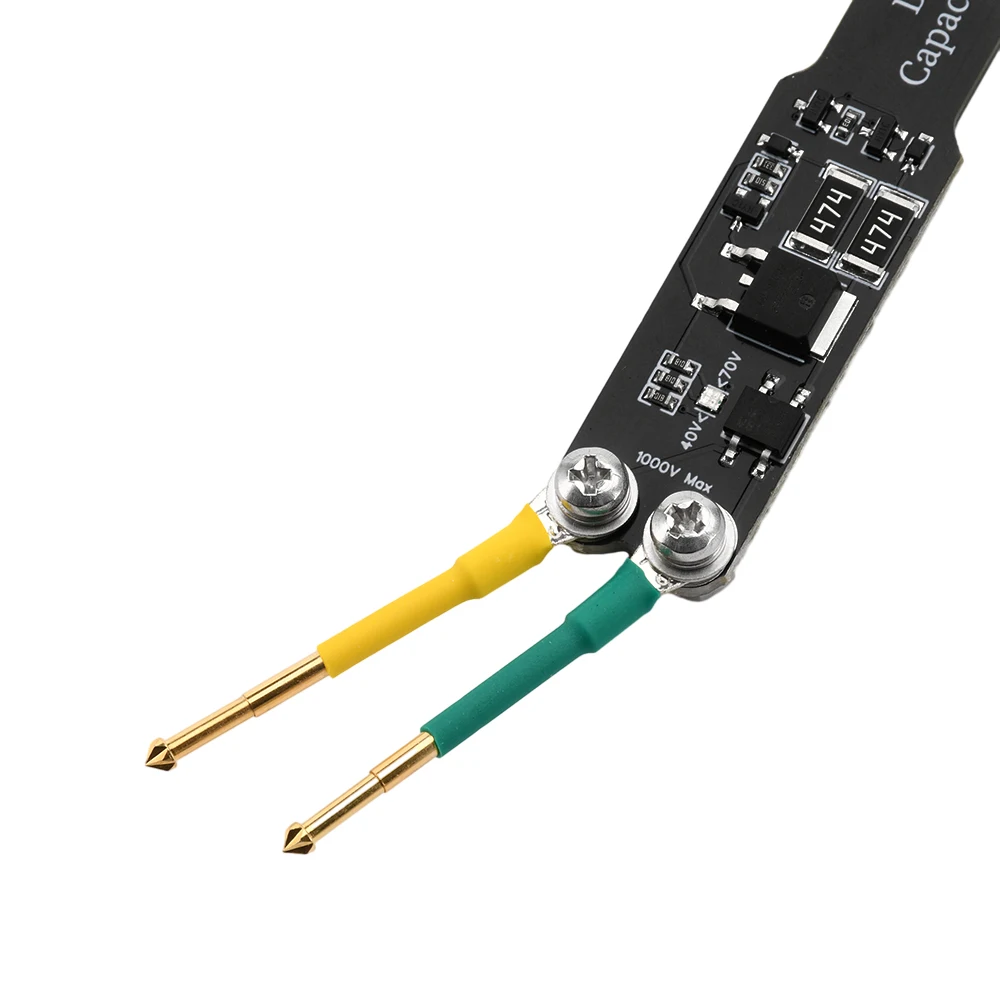

2.The probe has elasticity, flexible extension and contraction, and is not easily crushed. The needle spacing can be adjusted
3.The discharge pen uses a 1000v mos tube, and the discharge voltage should not exceed 1000v
4.The discharge pen adopts dual led to indicate the discharge process. The red led lights up when the high voltage is high, and the green led lights up when the low voltage is low. The turning voltage is about 42v
5.Wide range of use: Suitable for the production, testing, and maintenance of electronic products, it can quickly release residual voltage of capacitors, protect operators from electric shock, and prevent product damage

Parámetros:
Product name: capacitive discharge pen
Color: negro
Size: 133*15mm

Asuntos que requieren atención:
After the green led goes out, it indicates that the discharge is complete, and there is still a residual voltage of about 6v in the capacitor at this time
Do not touch the circuit and exposed metal during discharge
Do not discharge for a long time, please pay attention to heat dissipation during discharge
There is no limit to the discharge capacitor, the larger the capacity, the longer the discharge time

El paquete incluye:
Capacitive discharge pen*1
