1100W/2200W/4400W/22000W Voltmeter Ammeter AC 5A/10A/20A/100A Power Electricity Meter HD Digital Display Voltage Current Meters

-Product features:
1: HD display, 6 major functions
2: Backlight display dim environment data can also be clearly displayed
3: High safety performance
4: Simple to use, the details page has wiring introduction
5: Various choices

-Product description:

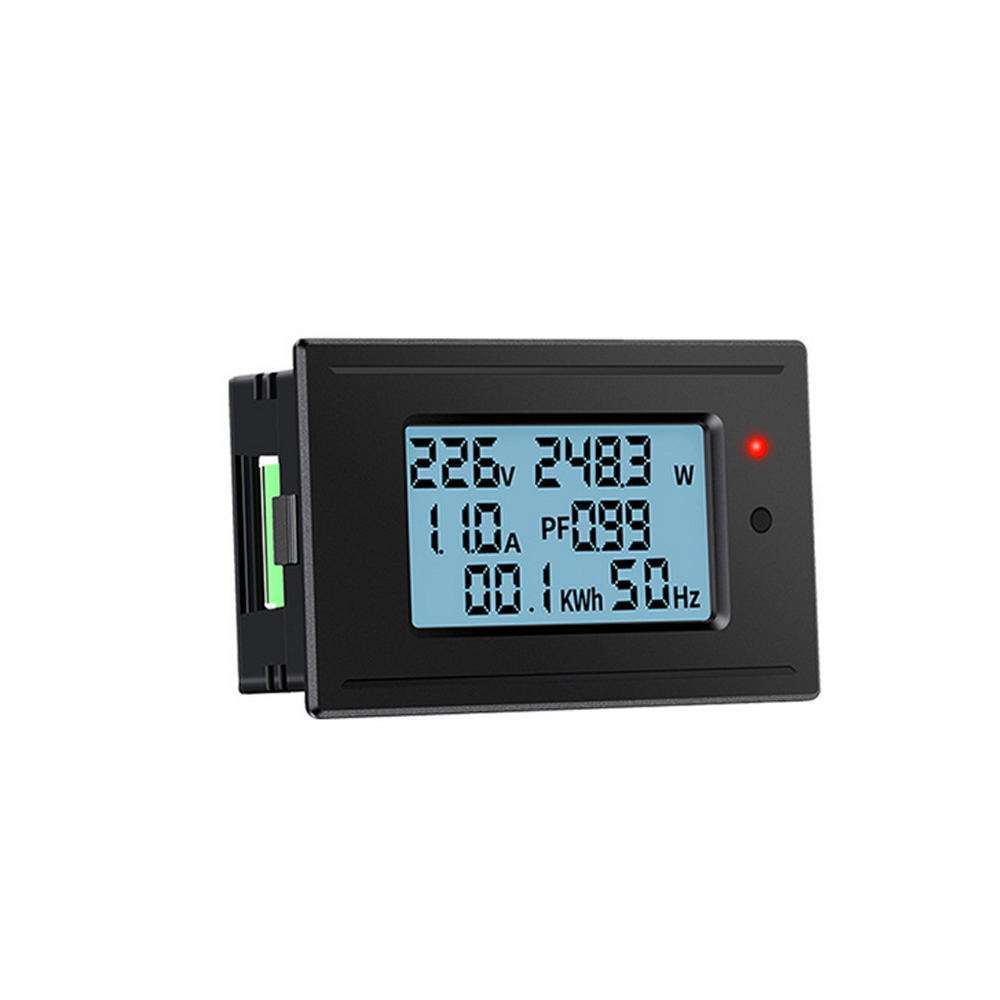

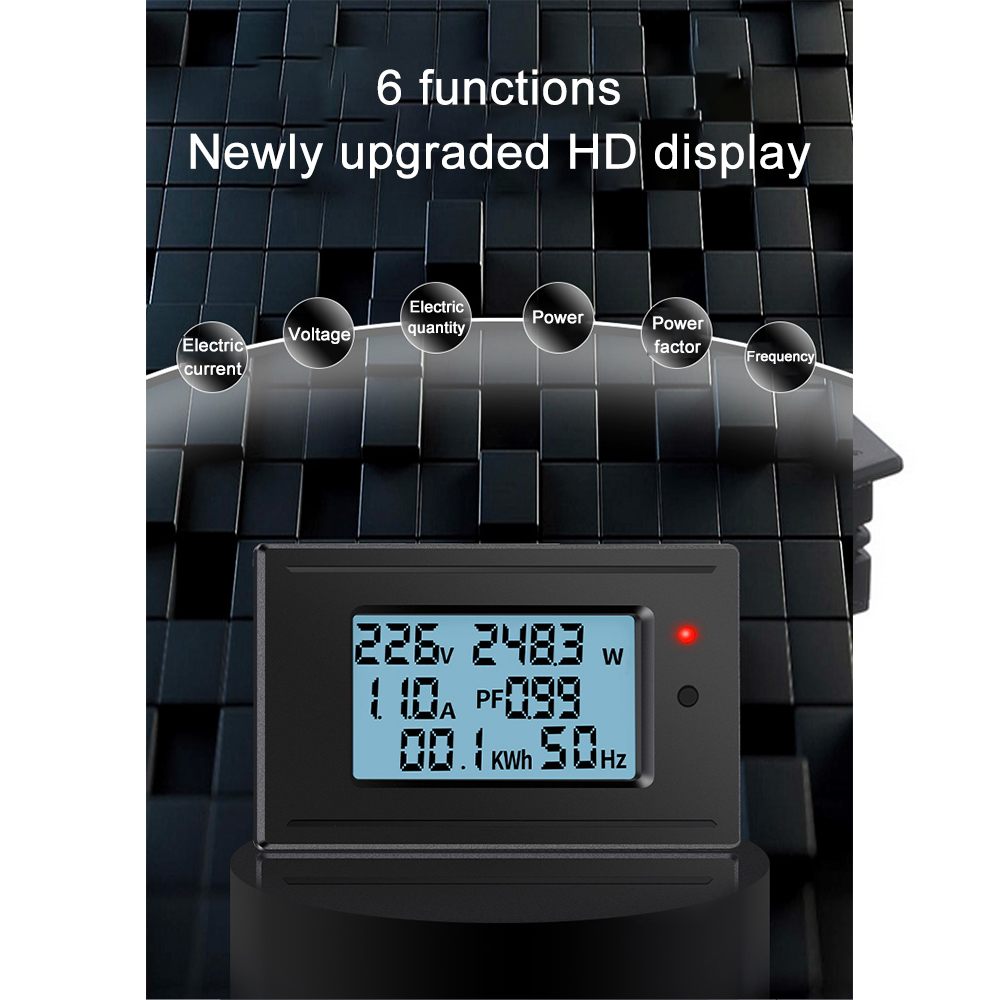

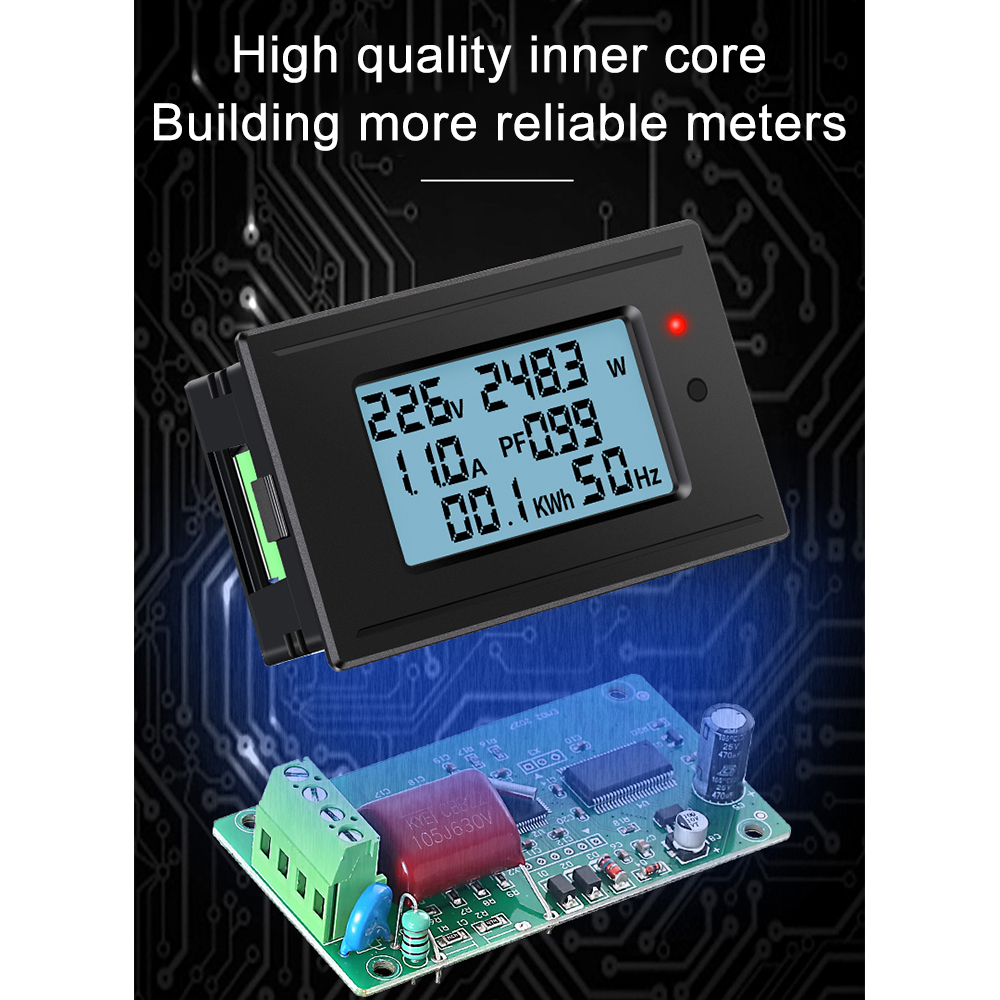

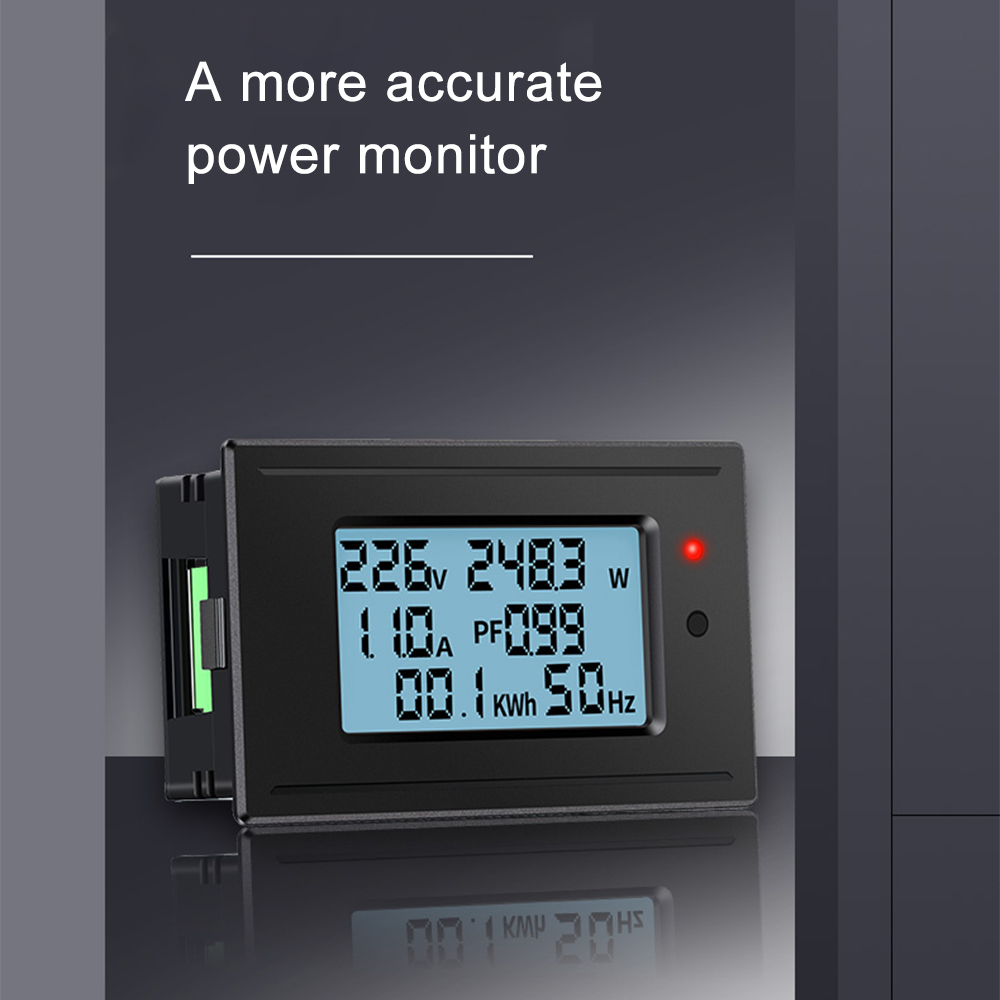

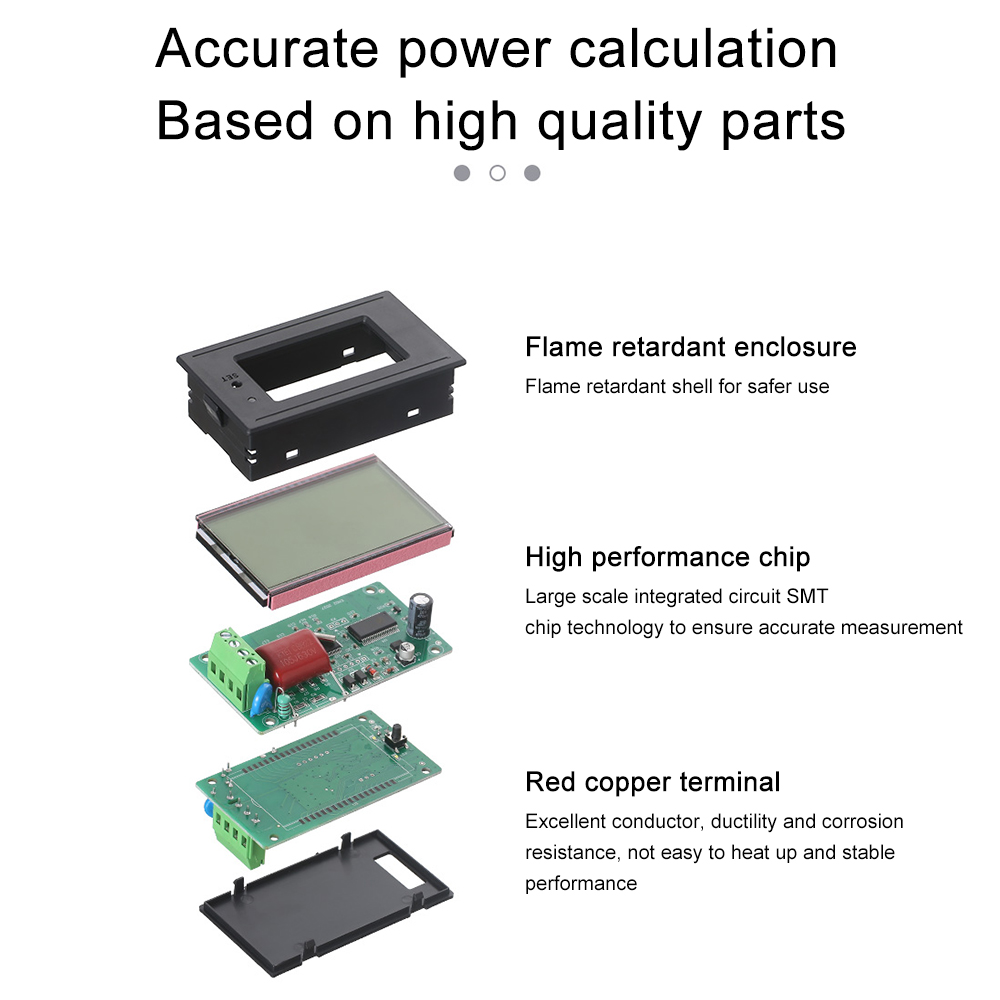

This product is divided into two types: 5A, 10A, 20A and 100A. It adopts special metering chip design, which has the advantages of good stability, low power consumption and high precision. Full-screen display of voltage, current, grid frequency, active power, power factor, accumulated power, widely used in civil and industrial fields

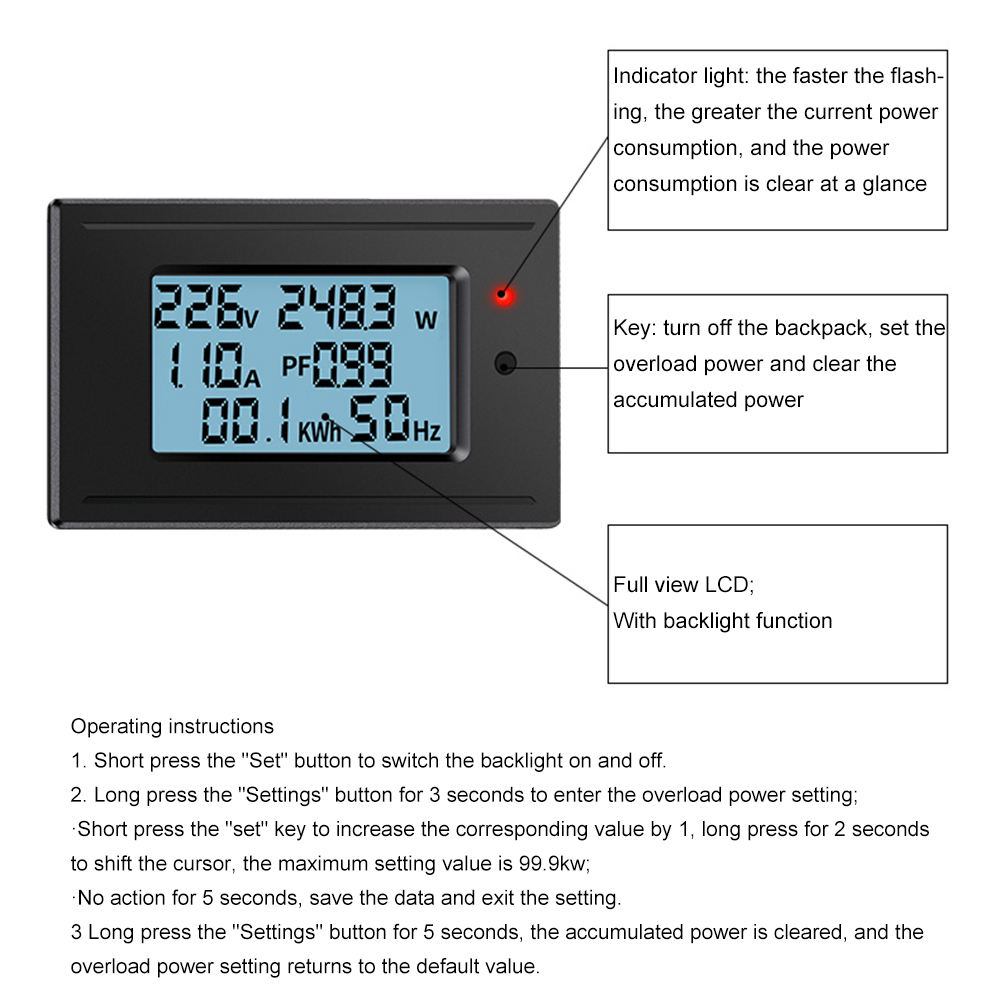

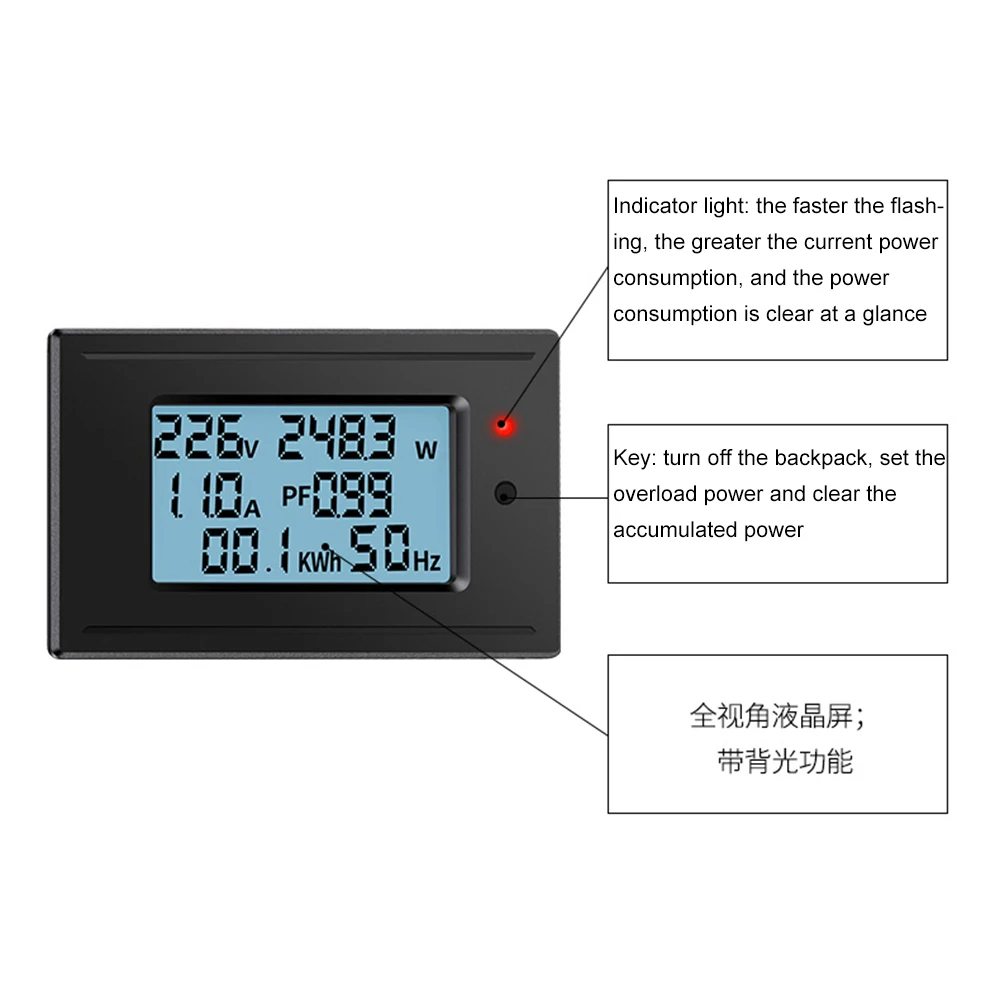

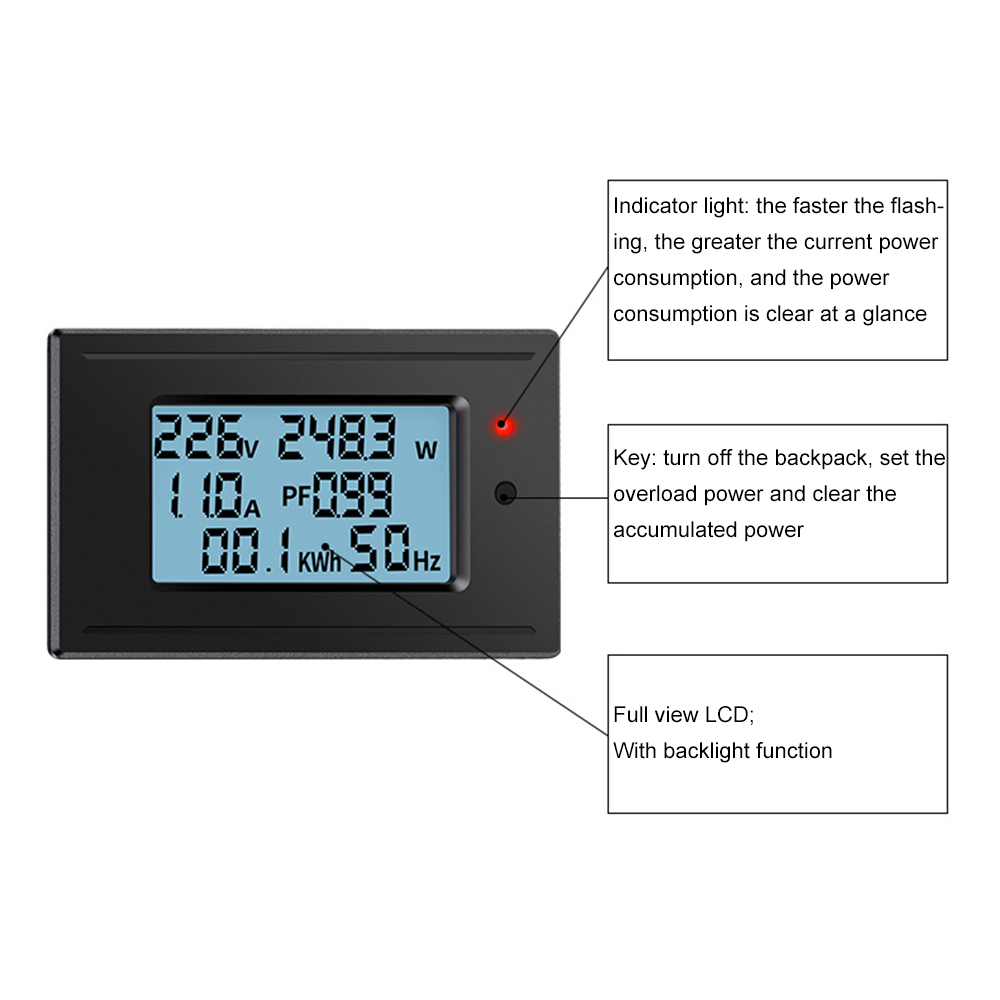

-Instructions:

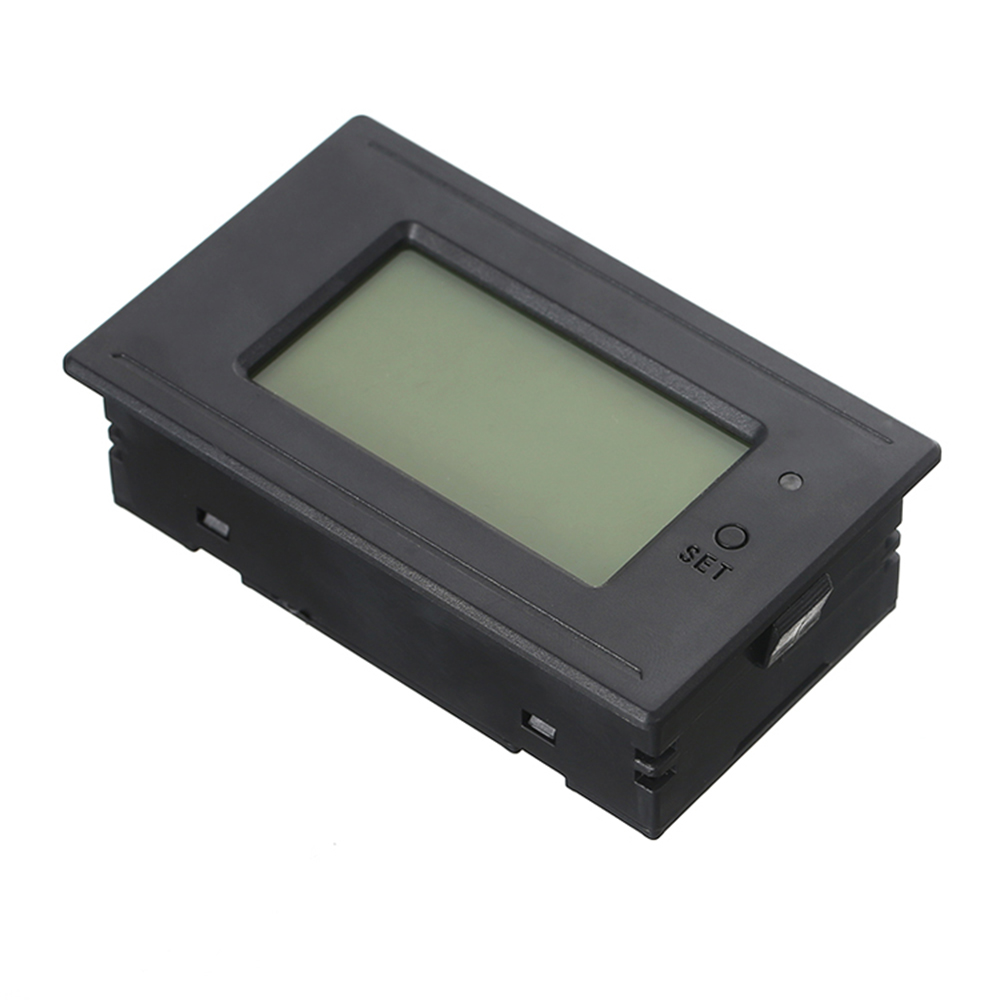

1. Short press the “Settings” button to switch the backlight on and off.
2. Press and hold the “Settings” button for 3 seconds to enter the overload power setting:
• Short press the “SET” button to add 1 to the corresponding value, long press for 2 seconds to move the cursor, the maximum setting value is 99.9kW;
• 5 seconds of inactivity, save data and exit setup.
3. Press and hold the “Settings” button for 5 seconds, the accumulated power will be reset to zero, and the overload power setting will be restored to the default value.

-Product Description
1. When the overload alarm occurs, the power value flashes; when the power is less than the set overload power, the overload alarm is automatically released.

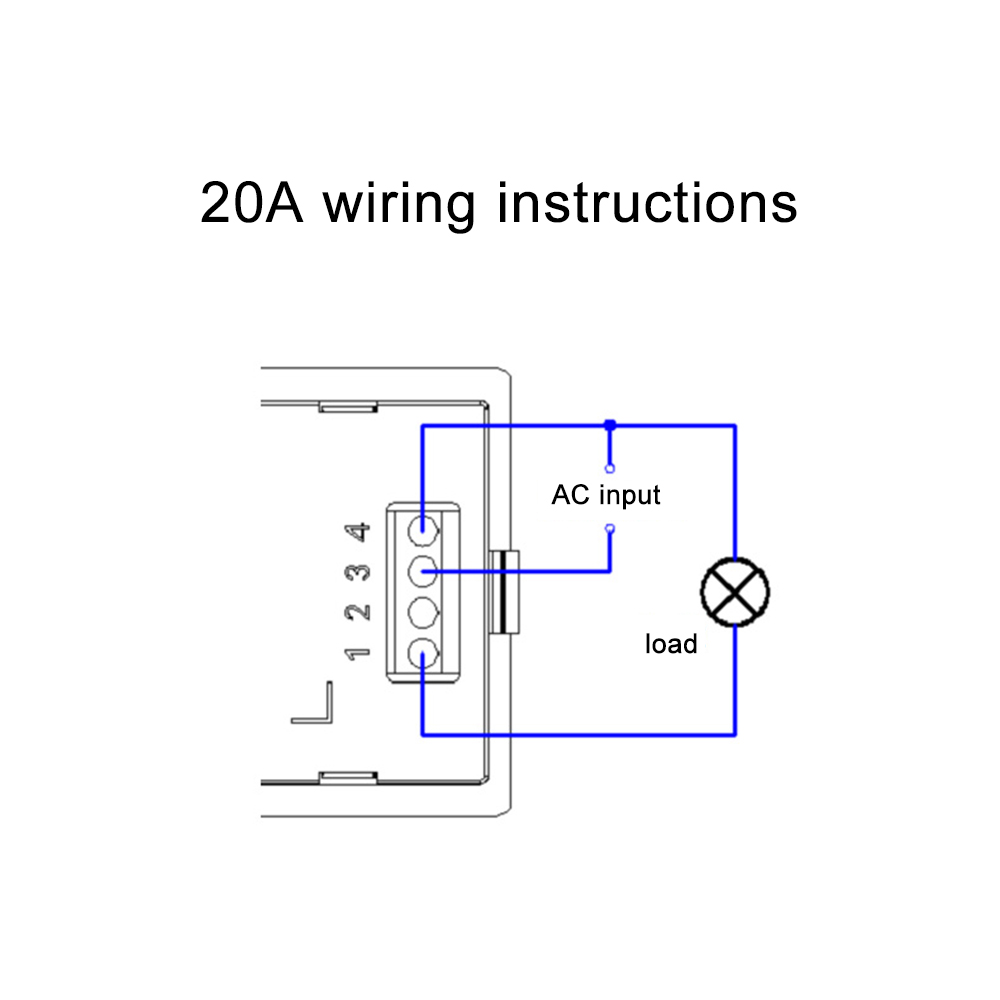

2. The wiring methods of 5A 10A 20A and 100A products are different. Do not connect the wrong wiring. The details have wiring methods. The wiring methods of 5A 10A and 20A are the same.

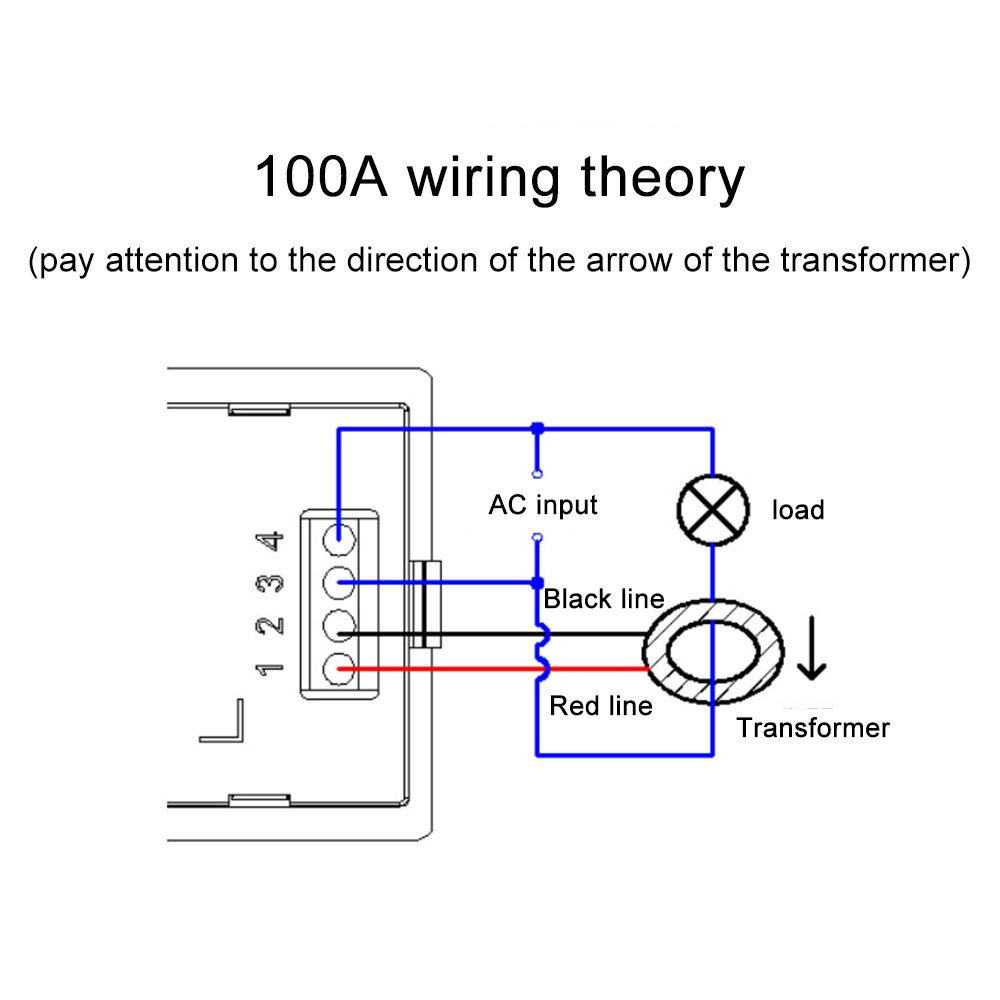

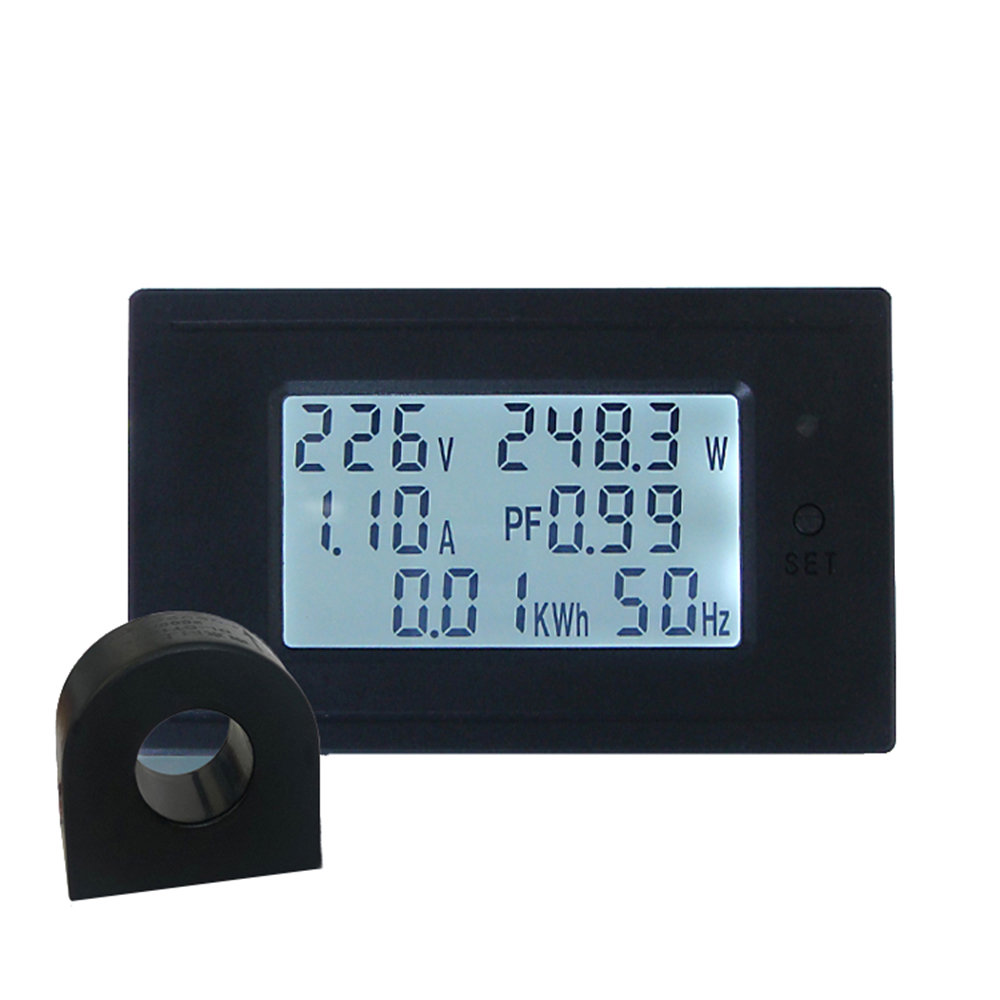

3. The 100A product must be connected to an external transformer, and the threading direction must be consistent with the direction of the transformer arrow.
4. If the power and power factor are not displayed, please check the wiring according to the wiring diagram.

-Precautions
1. The total power of the connected electrical appliances must not exceed the maximum power of the model, otherwise the product may be damaged, and a fire may occur in severe cases.
2. This product has no waterproof function. It can only be used indoors and in dry environments. Splashing water is strictly prohibited.
3. Beware of contact with children to prevent electric shock accidents.

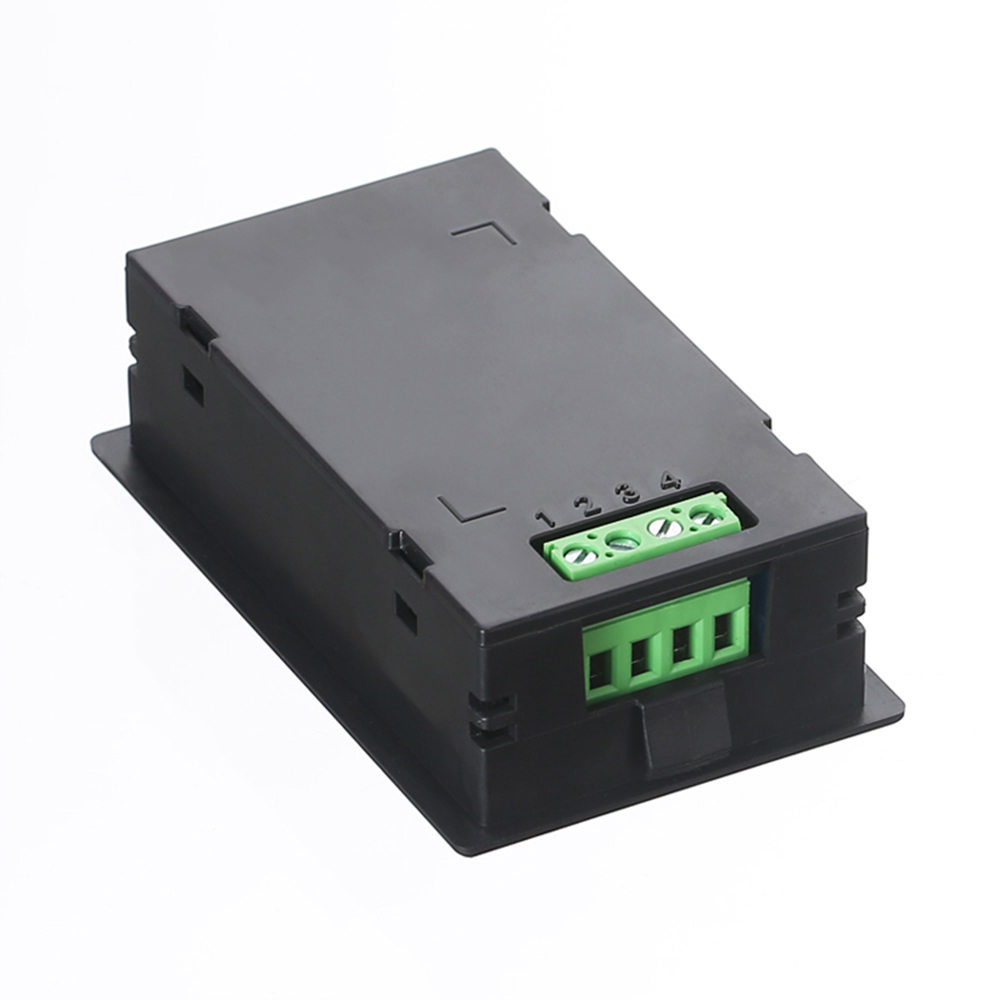

4. Please insert the wiring completely into the terminal block and tighten the screws.
5. Do not disassemble the product without authorization.
6. The added load cannot exceed the maximum power.

-Package list
1*Voltage and ammeter

-Notice:

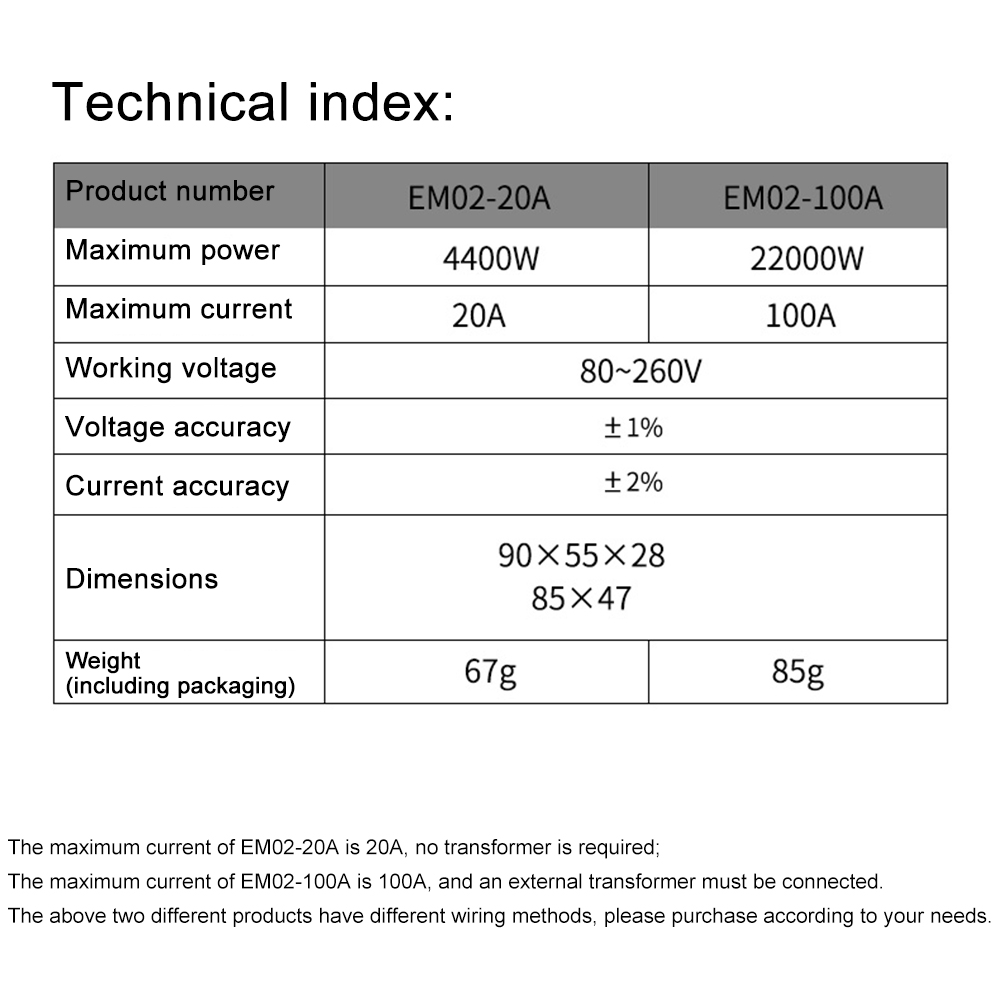

5A 10A 20A maximum current is 5A/10A/20A, no need to connect transformer; The maximum current of 100A is 100A, and an external transformer must be connected. The above products have different wiring methods, please purchase according to your needs.
