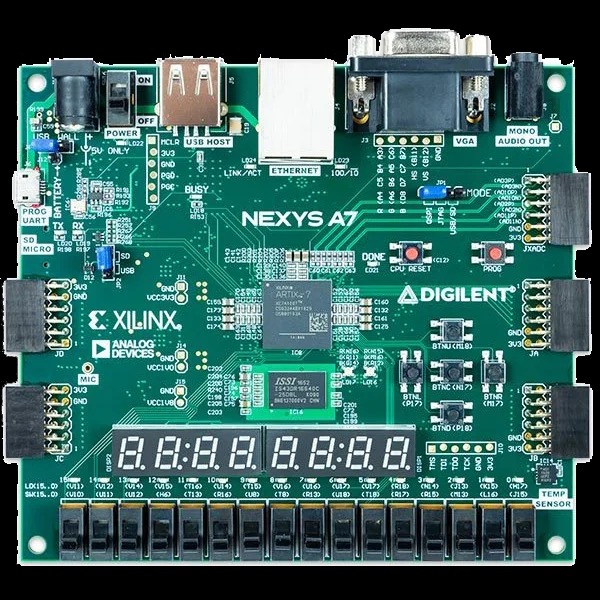

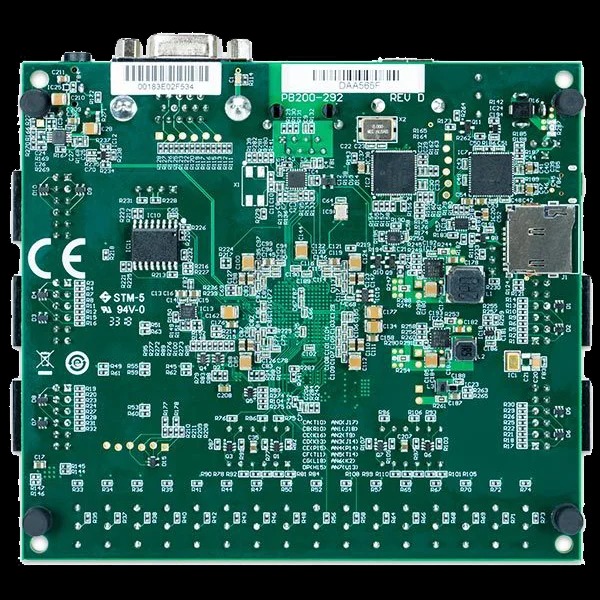

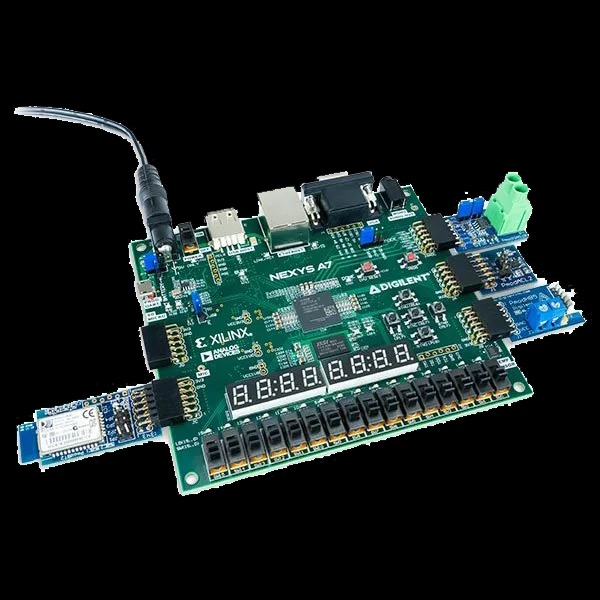

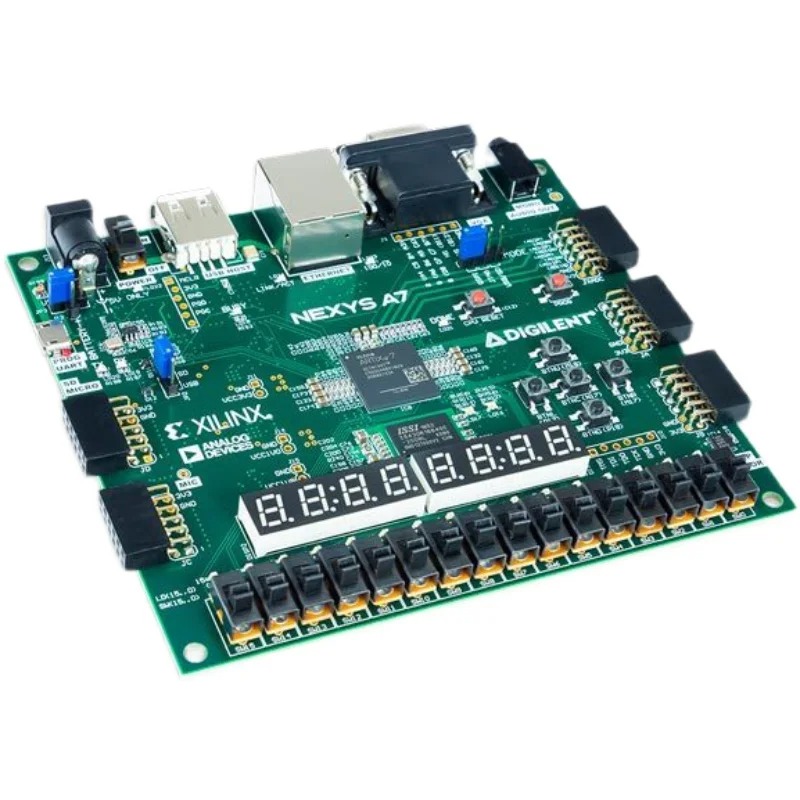

Nexys A7-100T N4-DDR Xilinx FPGA RISC-V Entwicklungsboard XUP Digilent

Beschreibung

Connectors:

UART/JTAG USB port

Pmod supporting XADC signals

Audio connector

Ethernet connector

USB host connector

microSD card slot

12-bit VGA output

4 Pmod ports

Power jack

Programming Environment: Vivado Design Suite and ISE toolset



Produktmerkmale:

XC7A100T-1CSG324C

15,850 logic slices, each containing four 6-input LUTs and eight flip-flops

4,860 Kbits of fast block RAM

6 clock management tiles, each with a phase-locked loop (PLL)

240 DSP slices

Internal clock speeds exceeding 450 MHz

On-chip analog-to-digital converter (XADC)

128 MiB DDR2

Serial Flash memory

Digilent USB-JTAG port for FPGA programming and communication

microSD card slot

Includes a sturdy plastic case and USB cable

USB-UART bridge

10/100 Ethernet PHY

PWM audio output

3-axis accelerometer

16 user switches

16 user LEDs

2 tri-color LEDs

PDM microphone

Temperatursensor

Two 4-digit 7-segment displays

USB-HID host for mouse, keyboard, and flash drive

Pmod supporting XADC signals

12-bit VGA output

4 Pmod ports

Produktanpassung

Wir unterstützen Dienstleistungen zur Produktindividualisierung. Kontaktieren Sie uns um Ihre Anforderungen zu besprechen.
