ESP32 PoE Ethernet-Entwicklungsplatine Rev M2
$4.00
US$4.00 pro Platine. 4 Kupferschichten. Angegebenes Versandgewicht: 50 g.
ESP32-Entwicklungsplattform für drahtloses und kabelgebundenes Ethernet, die über eine kompatible PoE-Verbindung mit Strom versorgt wird.
Eine unbestückte Leiterplatte. Elektronische Bauteile und Zubehör sind nicht enthalten.
Lieferzeit für die Leiterplattenfertigung: 2-3 Tage. Lieferzeit für die Leiterplattenbestückung: 5-10 Tage. Die Versanddauer ist zusätzlich. Preise für PCBA, Verfügbarkeit der Komponenten und Montageumfang werden im Angebot bestätigt.
Kontaktieren Sie uns bezüglich PCBA
Wählen Sie Ihre Leiterplattenfarbe: Grün, Lila, Rot, Gelb, Blau, Weiß, Schwarz oder Mattschwarz.
Bei Bestellungen von unbestückten Leiterplatten geben Sie bitte Ihre gewünschte Lötstopplackfarbe im Bestellprozess unter „Anmerkungen“ an. Wenn Sie mehrere Produkte bestellen, geben Sie bitte für jeden Artikel den Produktnamen und die Farbe an. Beispiel: Arisu Leiterplatte – Lila. Die Produktbilder dienen nur als Referenz; die gelieferte Leiterplattenfarbe entspricht Ihren bestätigten Bestellvorgaben.
Sie möchten lieber mit Ihren Gerber-Dateien bestellen? Laden Sie Ihre Gerber-Dateien auf unserer Online-Bestellseite für Leiterplatten/PCBAs hoch, wählen Sie Ihre Leiterplattenfarbe und Fertigungsspezifikationen aus und geben Sie Ihre Bestellung direkt auf. Der Preis wird anhand Ihrer hochgeladenen Dateien und der ausgewählten Optionen berechnet.
5% des Nettoumsatzes dieses Produkts fließen ohne zusätzliche Kosten in den gemeinsamen DIYIPCB Open-Hardware-Fonds.
Zum Fonds und zu den Bestimmungen →Vorrätig
Beschreibung
ESP32 PoE Ethernet-Entwicklungsplatine Rev M2
Hergestellt von DIYIPCB unter Verwendung des Open-Hardware-Designs von OLIMEX/ESP32-POE. Originaldesign von Olimex. Es handelt sich um eine unabhängig gefertigte unbestückte Leiterplatte, kein offizielles Produkt des ursprünglichen Entwicklers.
Designfunktionen
ESP32-Entwicklungsplattform für drahtloses und kabelgebundenes Ethernet, die über eine kompatible PoE-Verbindung mit Strom versorgt wird.
Typische Anwendungsbereiche
Vernetzte Sensoren, IoT-Gateways, kabelgebundene Gebäudeüberwachungsknoten und kundenspezifische, Ethernet-verbundene Geräte.
Wichtigste Chips und Komponenten im Entwurf
ESP32-WROOM-32E-N4 Modul; LAN8710A Ethernet PHY; TPS2378 PoE-Controller; TX4138 Stromwandler; CH340X USB-UART.
Diese Funktionen und Komponenten beschreiben die fertige Schaltung. Die unbestückte Leiterplatte enthält keine elektronischen Bauteile und führt diese Funktionen nicht selbstständig aus.
Was Sie erhalten
Eine unbestückte Leiterplatte. US$4.00 pro Platine.
Die ausgewählte Revision M2 beinhaltet den Upstream-Schaltungspatch CH340. Modulbestückung und Firmware müssen dieser Revision entsprechen. Das PCBA-Angebot beinhaltet die Bestätigung der Anforderungen an PoE, Ethernet, Stromversorgung und Programmiertests. Es handelt sich um das ESP32-PoE-Design, nicht um das separate ESP32-PoE-ISO-Modell.

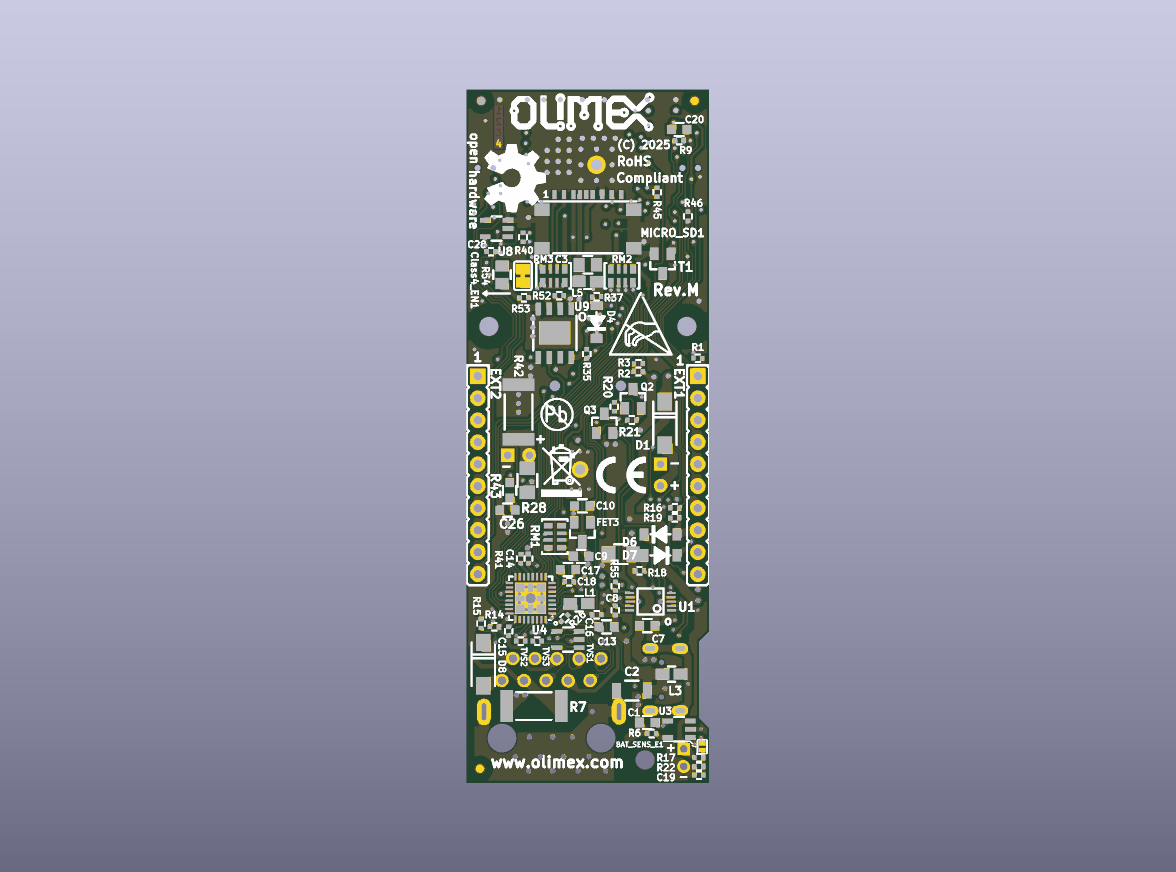

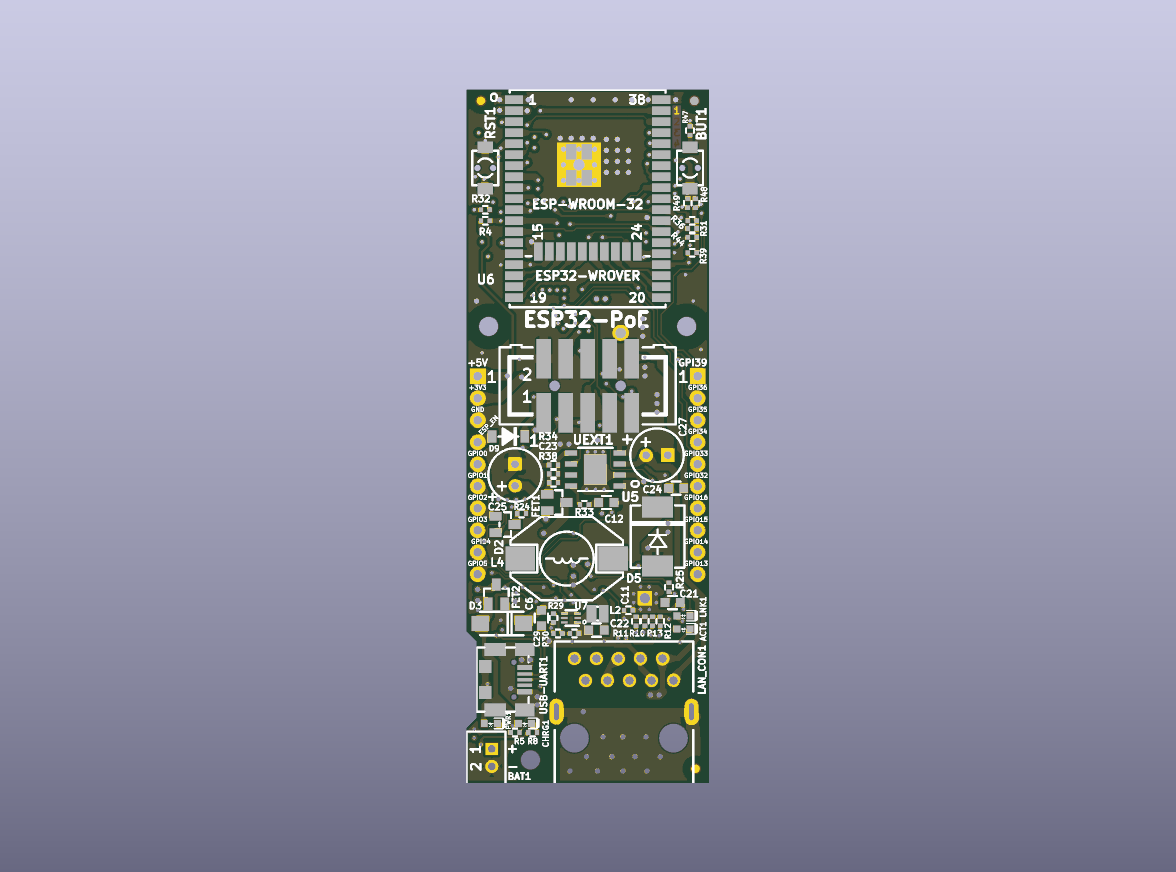

Die Abbildungen sind CAD-Vorschauen der unbestückten Leiterplatte, die aus der ausgewählten Quelle generiert wurden. Die tatsächliche Lötstopplackfarbe und Oberflächenbeschaffenheit können abweichen.
Leiterplatten und Bestelldetails
- Kupferschichten: 4
- Nenndicke der Leiterplatte: 1,6 mm
- Leiterplattenanzahl pro Kaufeinheit: 1
- Lieferzeit für die Leiterplattenproduktion: 2-3 Tage.
- Lieferzeit für die PCBA-Produktion: 5-10 Tage, abhängig von der Verfügbarkeit der Komponenten und der Bestätigung des Montageumfangs.
- Die Versanddauer kommt zusätzlich hinzu.
- Geschätztes Versandgewicht: 50 g pro Brett, inklusive Verpackungszuschlag.
Umfassender PCBA-Service
DIYIPCB unterstützt Sie bei der Komponentenbeschaffung von globalen und Shenzhen-Lieferanten, der SMT-Bestückung, dem Durchsteck- und Handlöten, der Firmware-Programmierung und vereinbarten Funktionstests, der Endmontage und dem weltweiten Versand. Ein Projektmanager koordiniert Ihre Anforderungen. Für bestückte Platinen geben Sie bitte die gewünschte Menge, die Komponenten- oder Steckverbinderauswahl, die Firmware, die Tests und das Zubehör an.
Kontaktieren Sie uns bezüglich PCBA oder per E-Mail service@diyipcb.com. Die PCBA wird auf Anfrage geliefert und ist nicht im Preis der unbestückten Leiterplatte enthalten.
Open-Hardware-Quellcode und Version
- Originalprojekt und Dokumentation
- Ausgewählte Leiterplattenquelle
- Ausgewählte Quellcode-Revision: deb38a377d50
- Upstream-Lizenz: Apache-2.0
Quellversion: M2. Die Produktionsausgabe wird aus dieser ausgewählten Revision erstellt; Montage- und Testanforderungen werden mit dem PCBA-Angebot abgeglichen.
Lizenz und Namensnennung
Originaldesign von Olimex. Hardware-Lizenz: Apache-2.0. Die Markennamen der Hersteller kennzeichnen Herkunft und Kompatibilität des Designs; eine Empfehlung wird dadurch nicht impliziert. Hinweise zum Originaldesign bleiben erhalten.
Vorgelagerte Lizenzen und Hinweise
